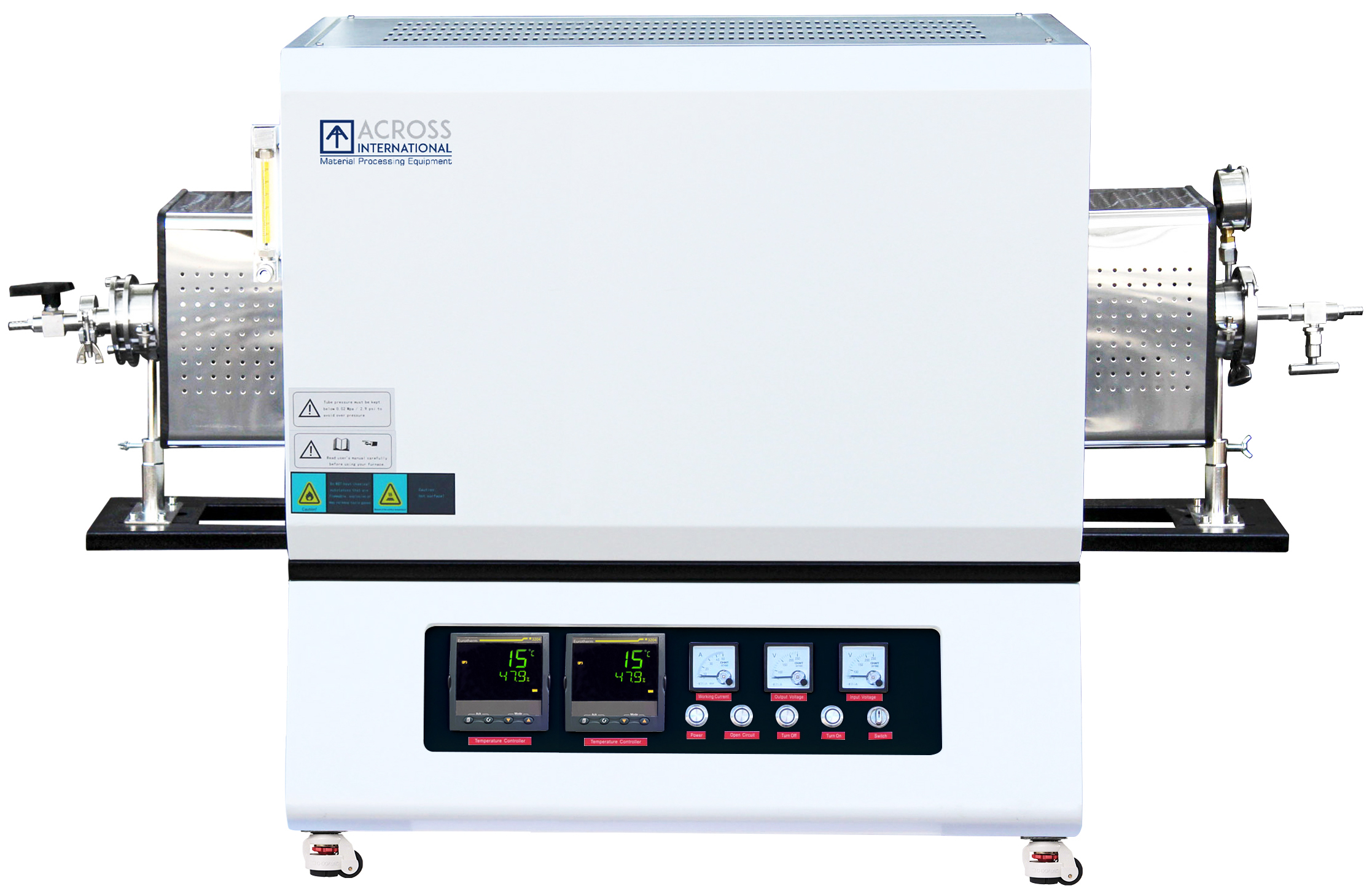

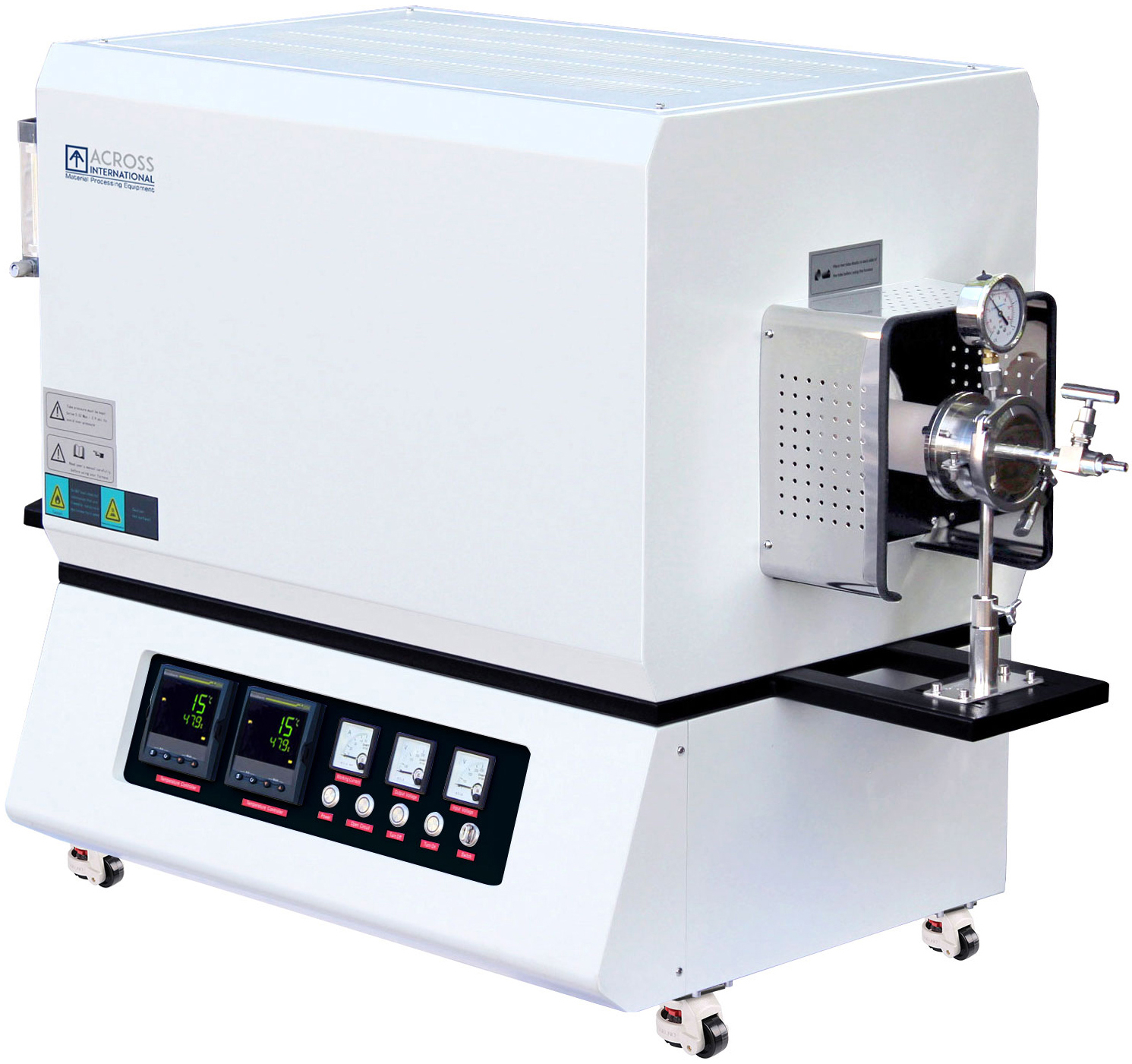

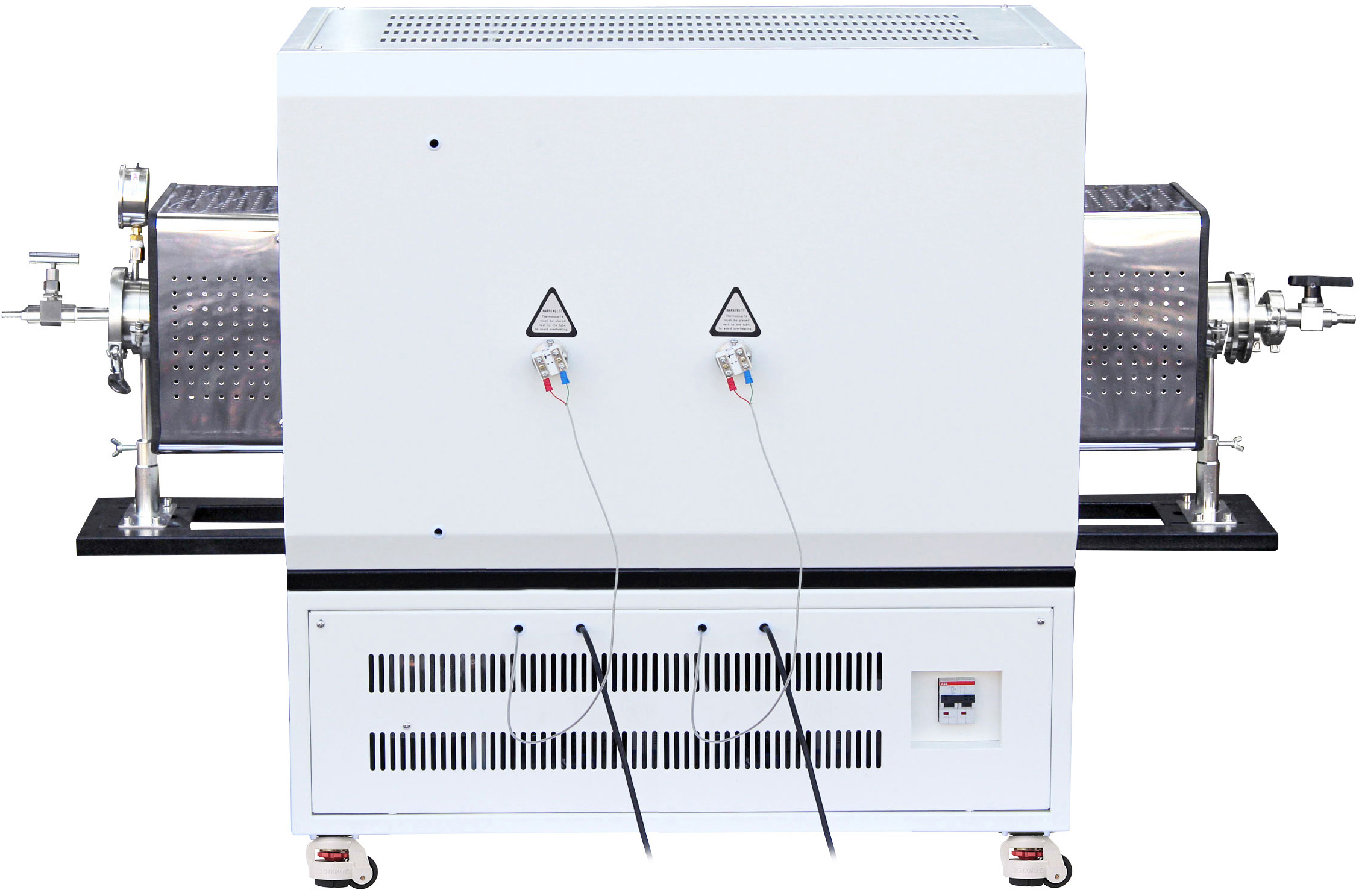

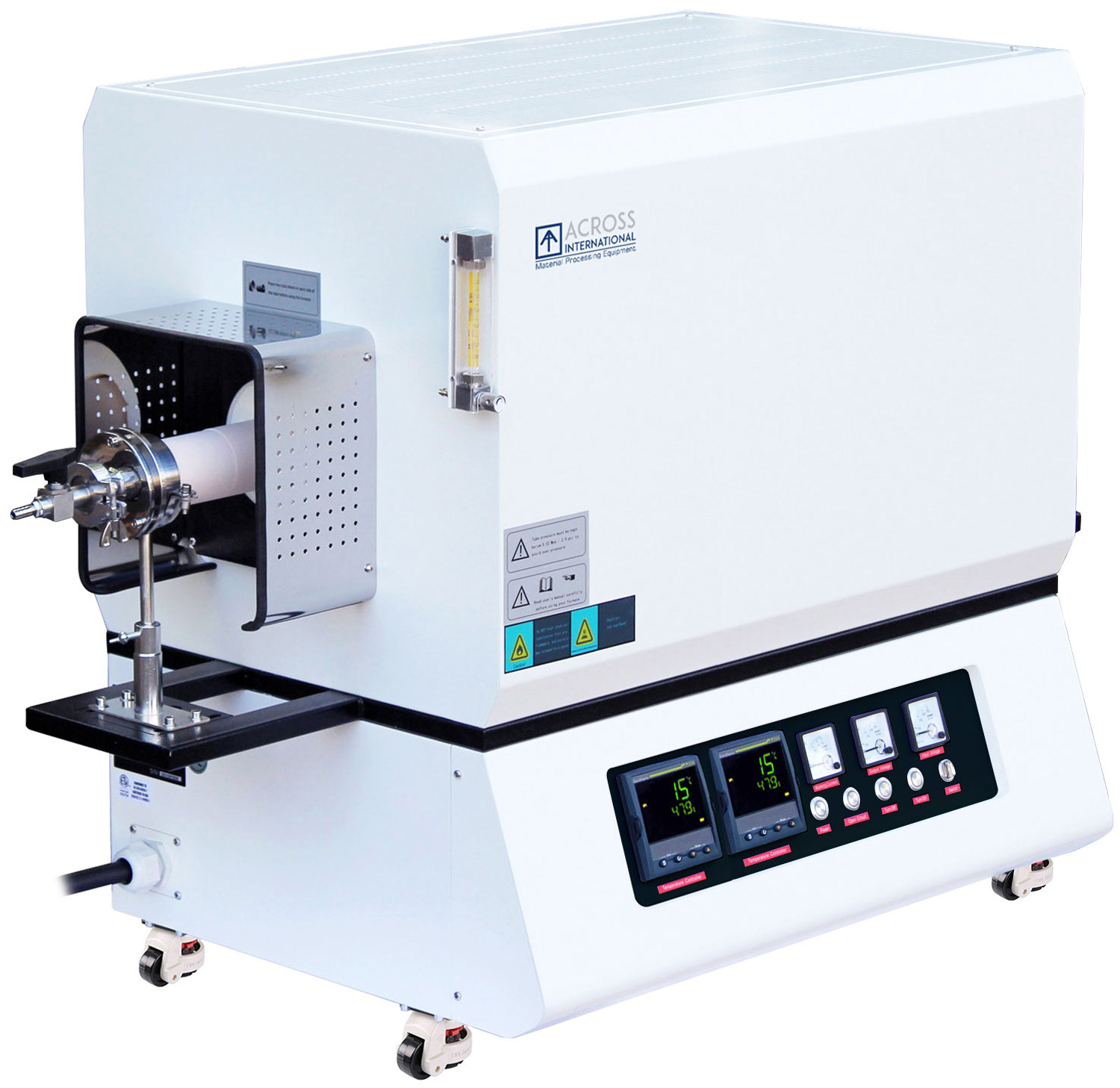

1700C 2-Zone Tube Furnace with Vacuum Flanges & Alumina Tube

12,990.00$

SKU: 4200425 Category: Tag:

Description

 Electrical requirements
 208-240V, single phase, 50/60 Hz

 Tube material
 High purity (99%) Al2O3 alumina ceramic

 Min. working temperature
 300°C

 Max. working temperature
 1700°C

 Max. constant working temperature
 1600°C

 Heating zone length
 Zone1: 8 inches   Zone2: 8 inches

 Constant heating zone length
 Zone1: 5 inches   Zone2: 5 inches

 Rated vacuum pressure
 0.001 Pa / 0.0075 millitorr / 0.00001 mbar

 Rated positive pressure
 0.02 MPa / 150 torr / 3 psi

 Refractory lining
 Mitsubishi (Japan) high quality 1800 grade fiber alumina

 Heating element type
 MoSi2

 Thermocouple type
 B

 Temperature controller
 Shimaden fp93 (Japan) with 4 patterns and  40 segments (i.e. 4 x 10 segments or 2 x 20 segments)

 Max heating rate
 10°C/min

 Recommended heating rate
 5°C/min

 Temperature controller precision
  /- 1°C

 Vacuum sealing flange kit
 Stainless steel vacuum sealing flanges with one vacuum gauge,        two valves and four thermal ceramic blocks.

 Compliance
 ETL tested to UL and CSA standards (optional), CE

 Download
 Product brochure
