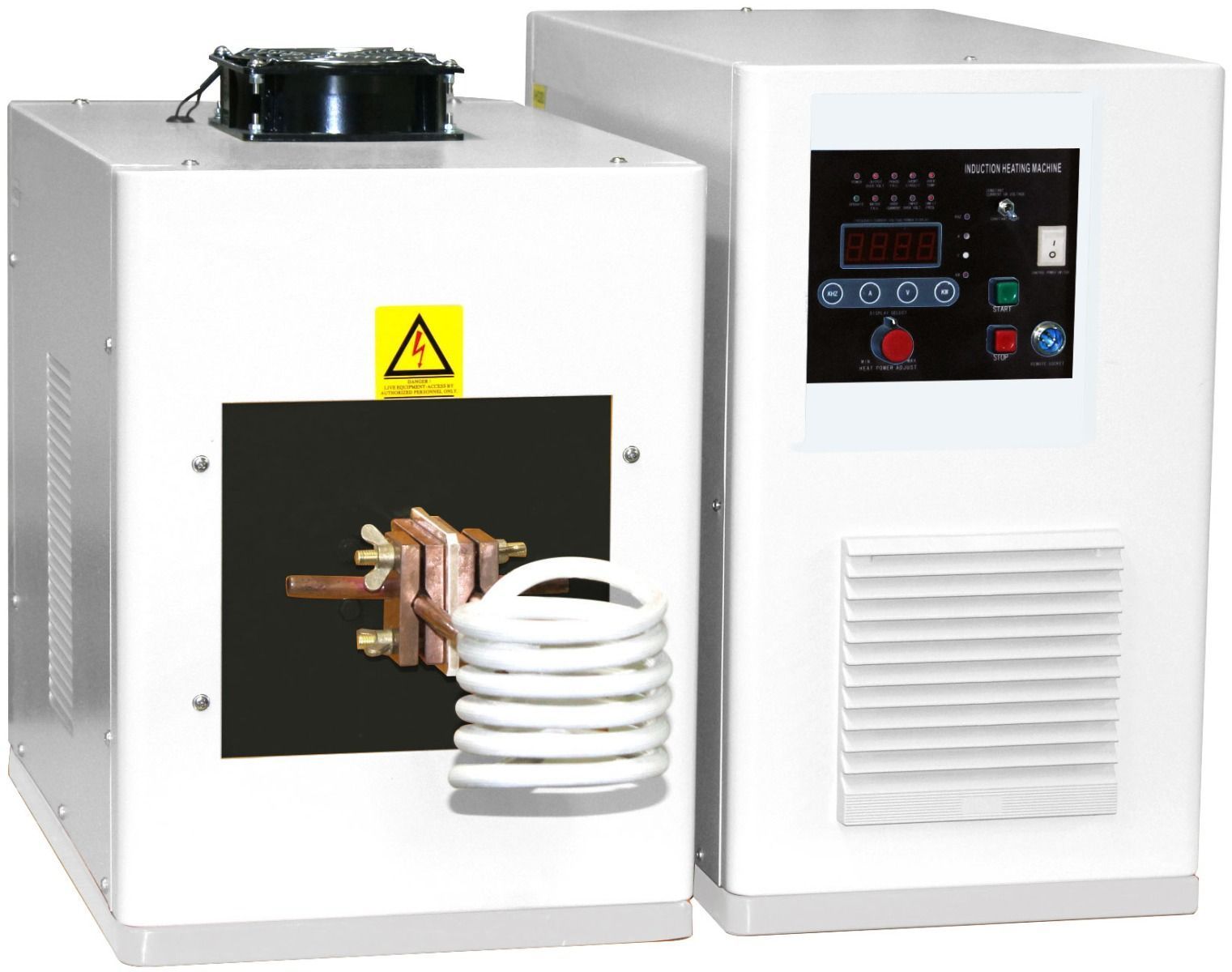

20KW Hi-Frequency Split Induction Heater 50-250KHz

Notice: Function price was called incorrectly. Product properties should not be accessed directly. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, woocommerce_template_single_price, wc_get_template, include('/plugins/woocommerce/templates/single-product/price.php'), WC_Product->get_price_html, apply_filters('woocommerce_get_price_html'), WP_Hook->apply_filters, fbs_woocommerce_get_price_html, WC_Abstract_Legacy_Product->__get, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.0.) in /www/safeleafca_430/public/wp-includes/functions.php on line 5835

Note: This model is 460-480 volt three phase.

SKU: 4200483 Category: Tag:


 Max. input current
 25A (38A 3-phase circuit breaker required)

 460 VAC, 50/60Hz, three-phase

 Output frequency
 50-250 KHz

 Input power
 20 KW

 Duty cycle

 100%, 24-hour

 Air cooling
 Rear fan

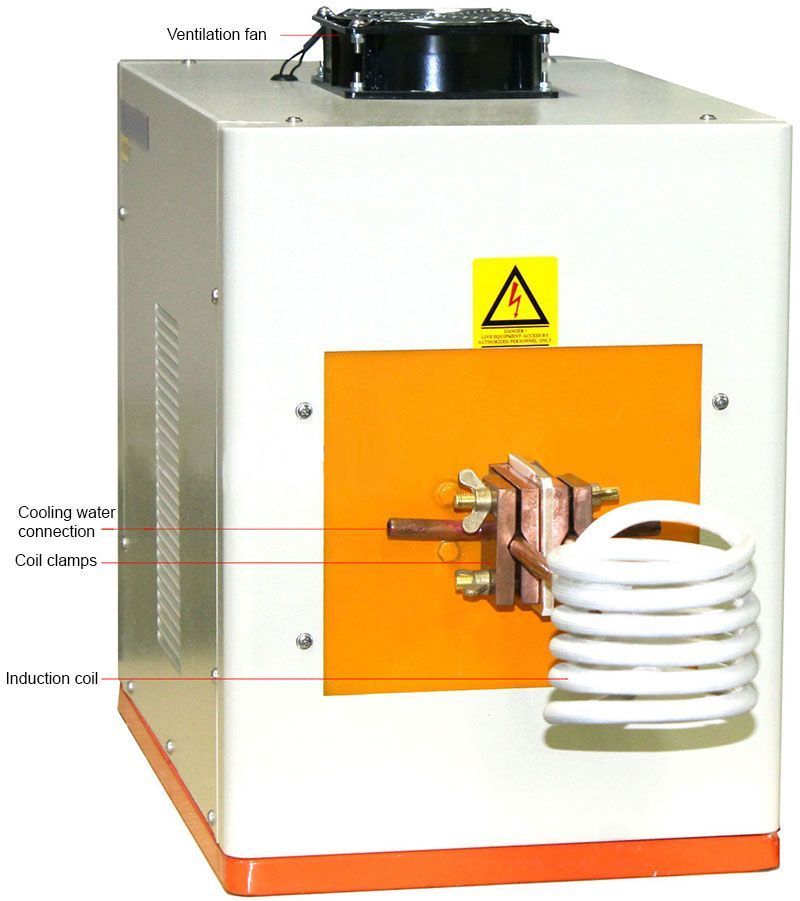

 Induction coil
 See detail specs below, we will make coils  according to your requirements

 Water pressure
 ≥ 0.2 Mpa (29 PSI) you may use tap water  and water pump (>1/4HP & >240 Gph)

 Water flow
 > 1.4 gallons (5 liters) per minute

 Power supply: 60 Lb, heater: 35 Lb

 Remote foot switch
 7 feet

 Dimensions (WxDxH)/weight (Lb)
 Power supply: 10 x 20.5 x 18″ / 65 Lb Capacitor: 11.5 x 22 x 17″ / 50 Lb Shipping: 28 x 31 x 28″ / 160 Lb
