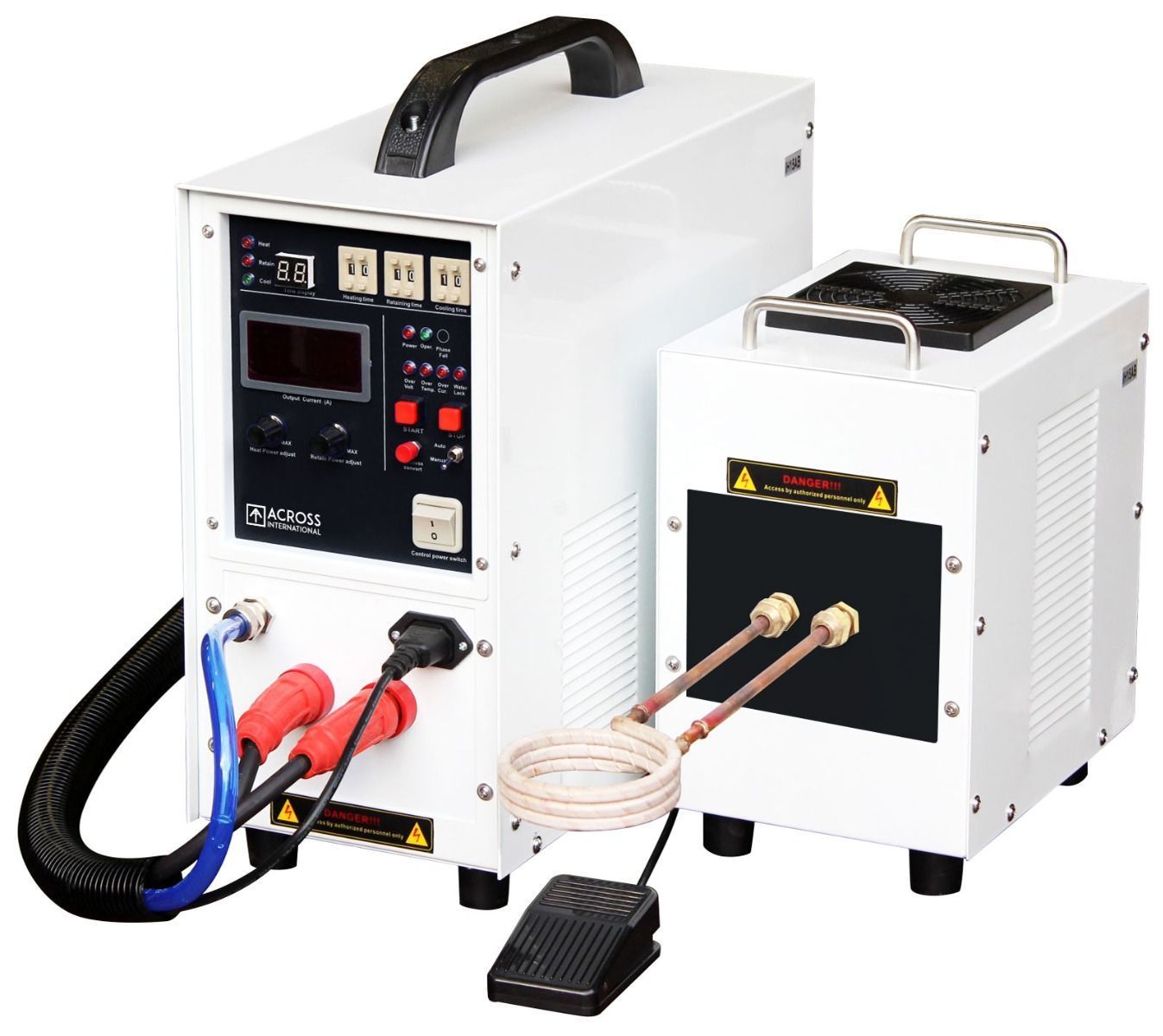

25KW Mid-Frequency Split Induction Heater w/ Timers 30-80KHz

6,690.00$

Note: This model only available in 460-480 volt three phase.

SKU: 4200491 Category: Tag:

Description

 Max. input current
 19 A (29A 3-phase circuit breaker required)

 Power
 460V, 50/60Hz, three phase

 Power distribution cord
 10-gauge 4-conductor Max 25A (10/4 SOOW for 3 PH system)

 Output frequency
 30-80 KHz

 Heating/retaining current
 200-1000 A (displayed on control panel)

 Max. oscillating power
 25 KW

 Max input power
 15 KW

 Duty cycle

 80%

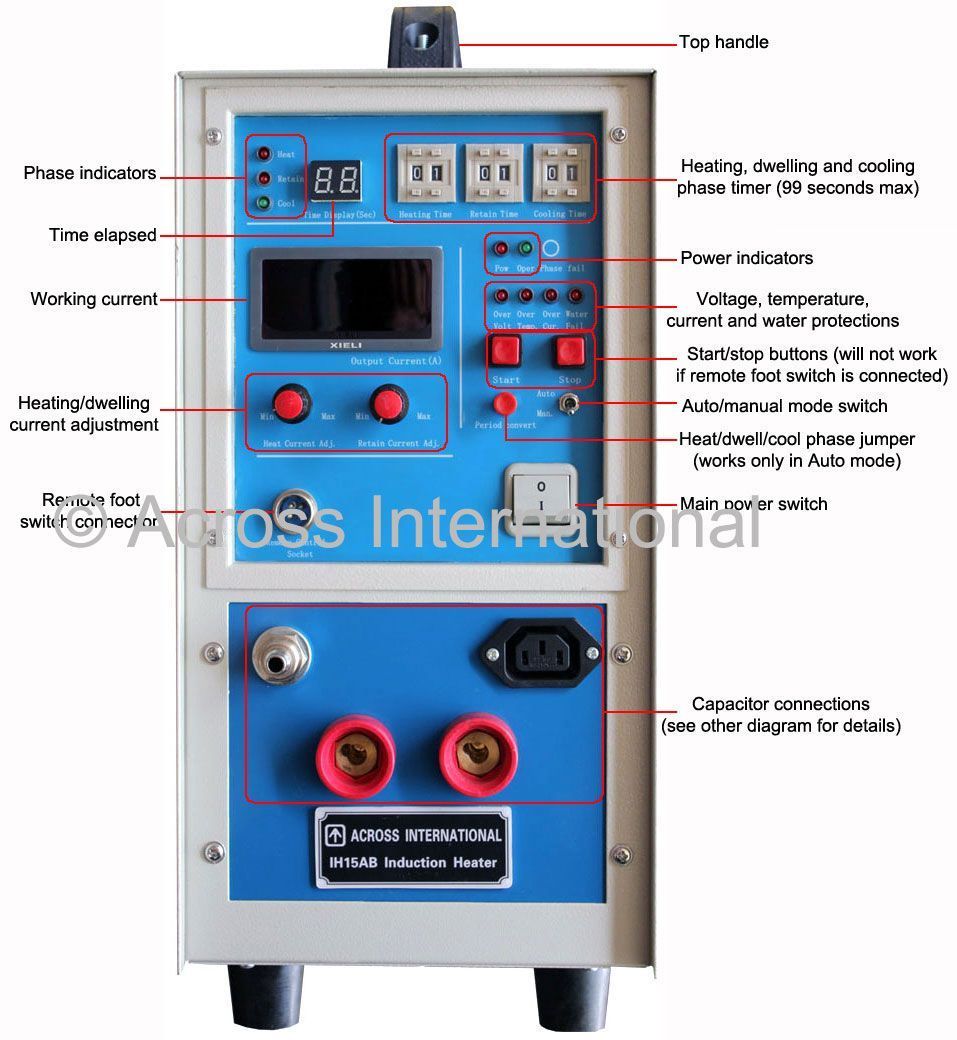

 Heating/dwelling/cooling timer
 1-99 seconds

 Water pressure
 ≥ 0.2 Mpa (29 PSI) you may use tap water  and water pump (>1/4HP & >240 Gph)

 Water temperature
 25-30°C

 Water flow
 0.5-1.3 gallons (2-5 liters) per minute

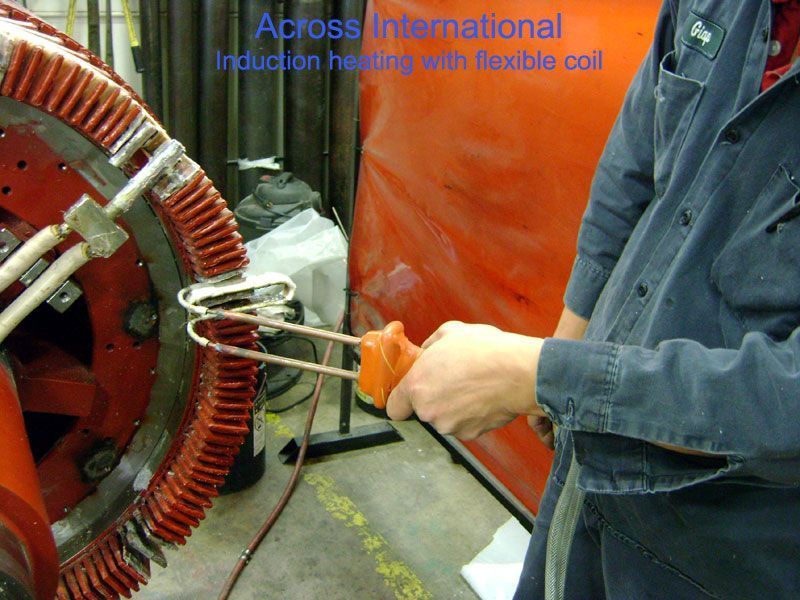

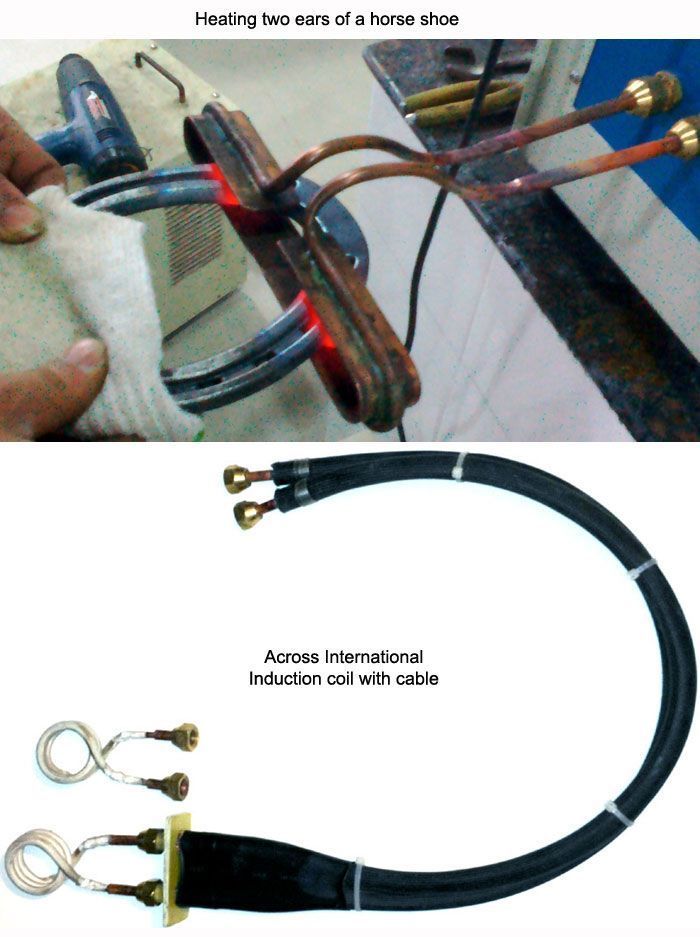

 Induction coil
 See detail specs below, we will make coils  according to your requirements

 Unit weight
 Power supply: 55 Lb, capacitor: 35 Lb

 Shipping weight
 115 Lb

 Unit size
 Power supply: 23x9x18″, capacitor: 12×7.5×13″

 Shipping size
 22x22x23″

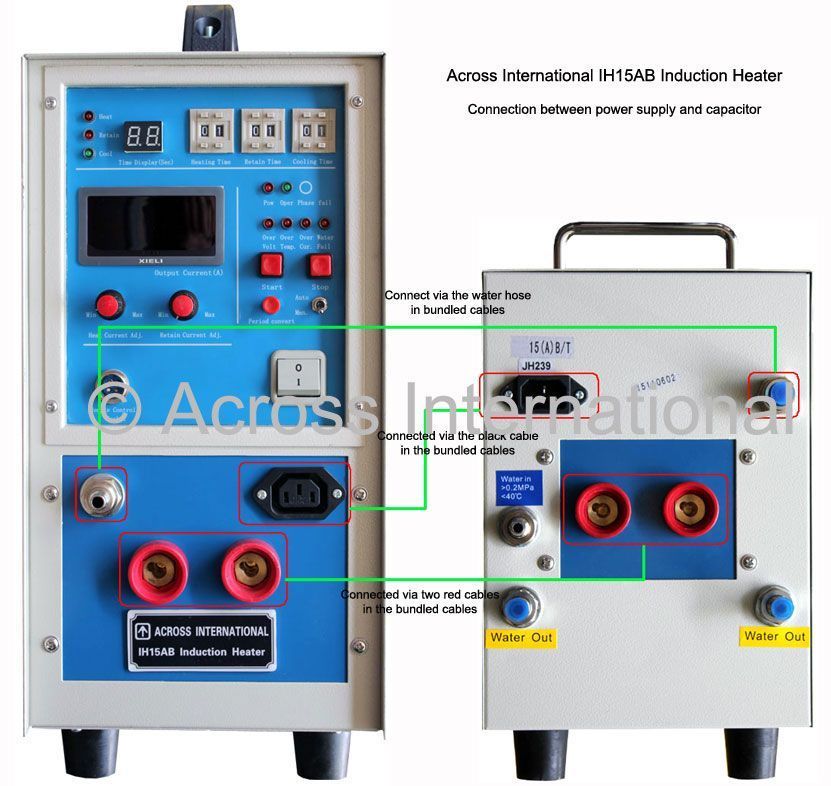

 Connection cables/foot switch
 7 feet

 Max. melting capacity
 7 Lb (gold, silver, copper), 2 Lb (steel, aluminum)
