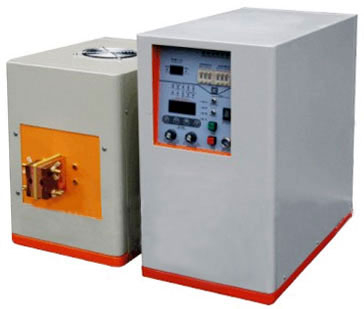

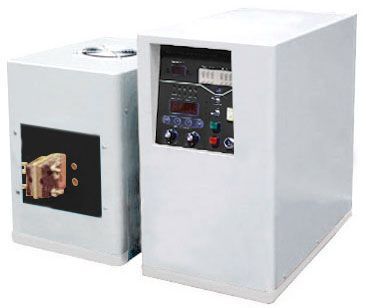

30KW Hi-Frequency Split Induction Heater 50-200KHz


Note: This model only available in 460-480 volt three-phase.

SKU: 4200484 Category: Tag:


 Max. input current
 38A (57A 3-phase circuit breaker required)

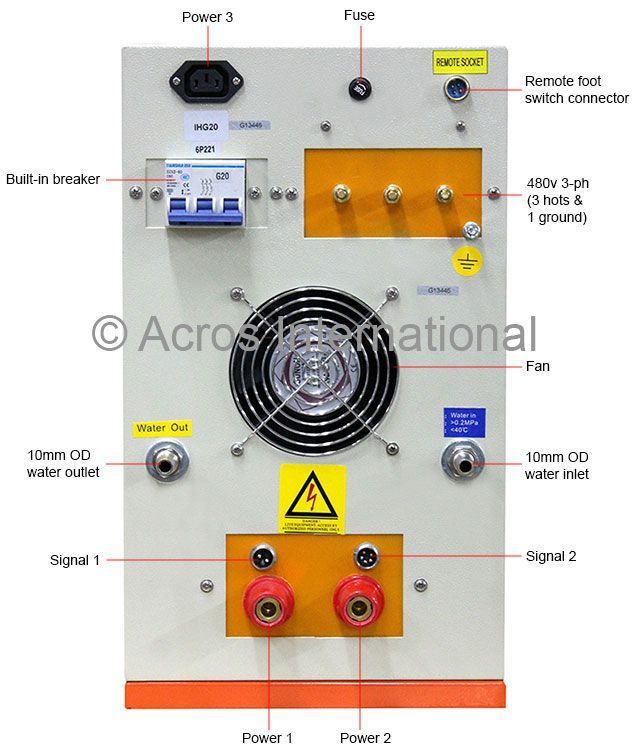

 460 VAC, 50/60Hz, three-phase

 Output frequency
 50-200 KHz

 Input power
 30 KW

 Duty cycle

 100%, 24-hour

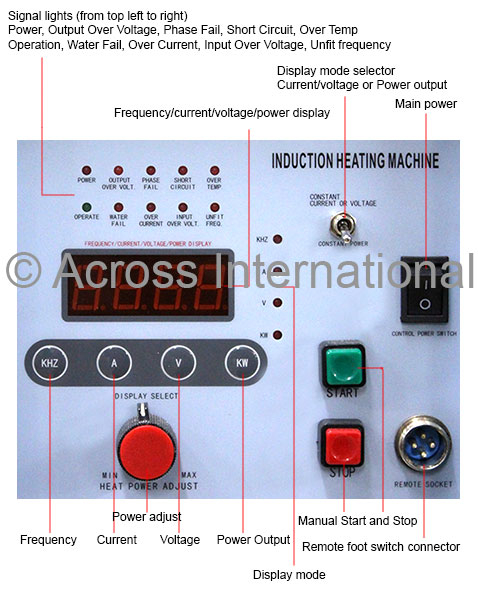

 Heating timer
 1-99.9 seconds

 Dwelling timer
 1-99.9 seconds

 Air cooling
 Rear fan

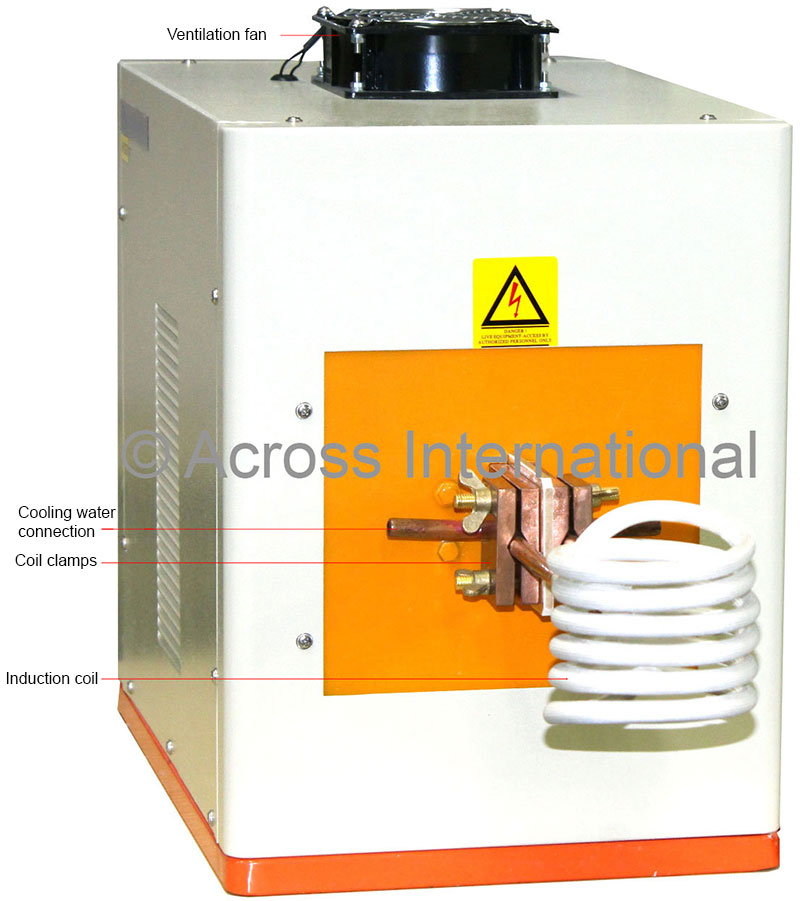

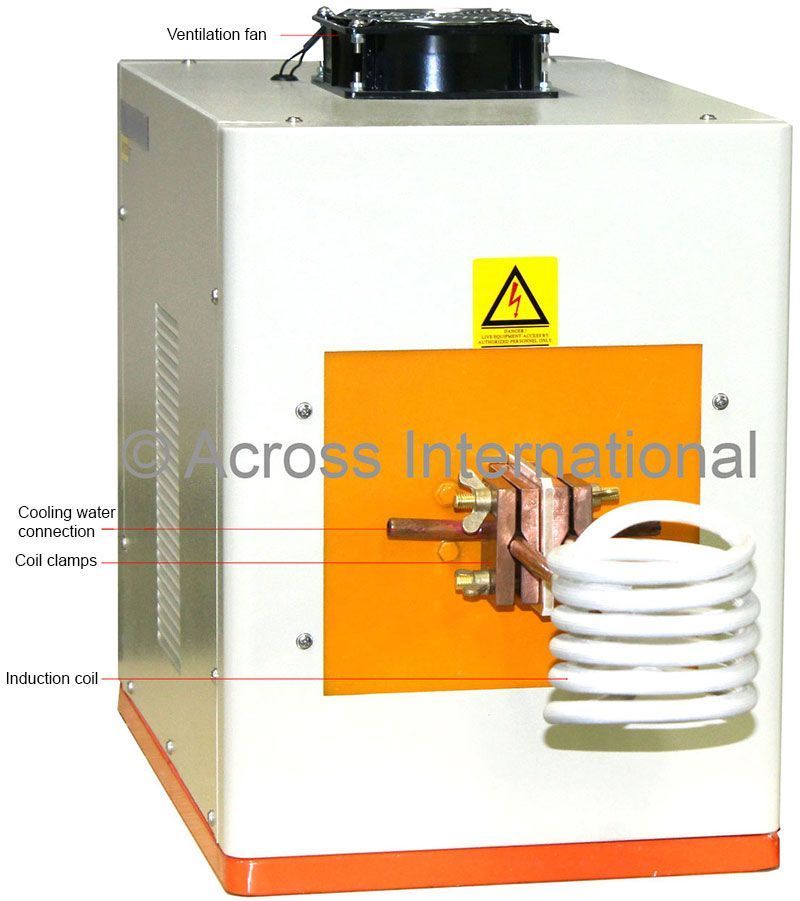

 Induction coil
 See detail specs below, we will make coils  according to your requirements

 Water pressure
 ≥ 0.2 Mpa (29 PSI) you may use tap water  and water pump (>1/4HP & >240 Gph)

 Water flow
 > 1.4 gallons (5 liters) per minute

 Power supply: 65 Lb, heater: 50 Lb

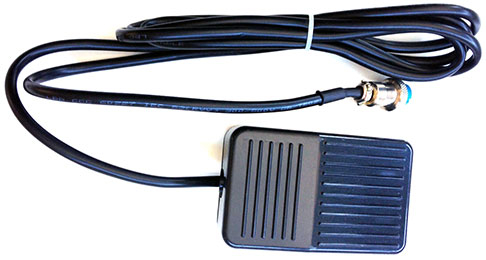

 Remote foot switch
 7 feet
