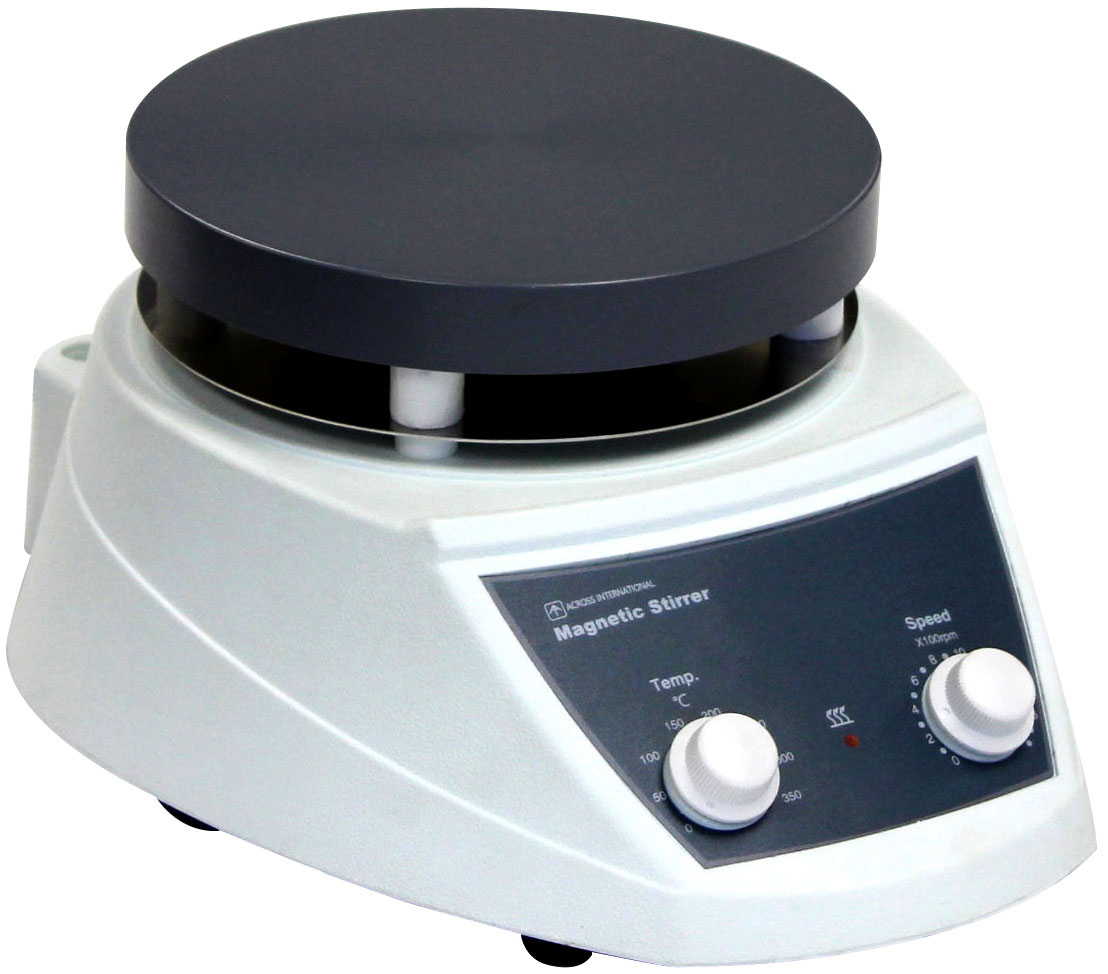

350C 1500RPM 0.8-Gallon Magnetic Stirrer with 6″ Heated Plate

$324.23

A magnetic stirrer or magnetic mixer is a laboratory device that employs a rotating magnetic field to cause a stir bar (also called “flea”) immersed in a liquid to spin very quickly, thus stirring it. The rotating field may be created either by a rotating magnet or a set of stationary electromagnets, placed beneath the vessel with the liquid. Since glass does not affect a magnetic field appreciably (it is transparent to magnetism), and most chemical reactions take place in glass vessels (i.e. see beaker (glassware) or laboratory flasks), magnetic stir bars work well in glass vessels. On the other hand, the limited size of the bar means that magnetic stirrers can only be used for relatively small (under 4 liters) experiments. They also have difficulty dealing with viscous liquids or thick suspensions. For larger volumes or more viscous liquids, some sort of mechanical stirring is typically needed.

SKU: 4200516 Category: Tag:

Description

 Electrical requirements

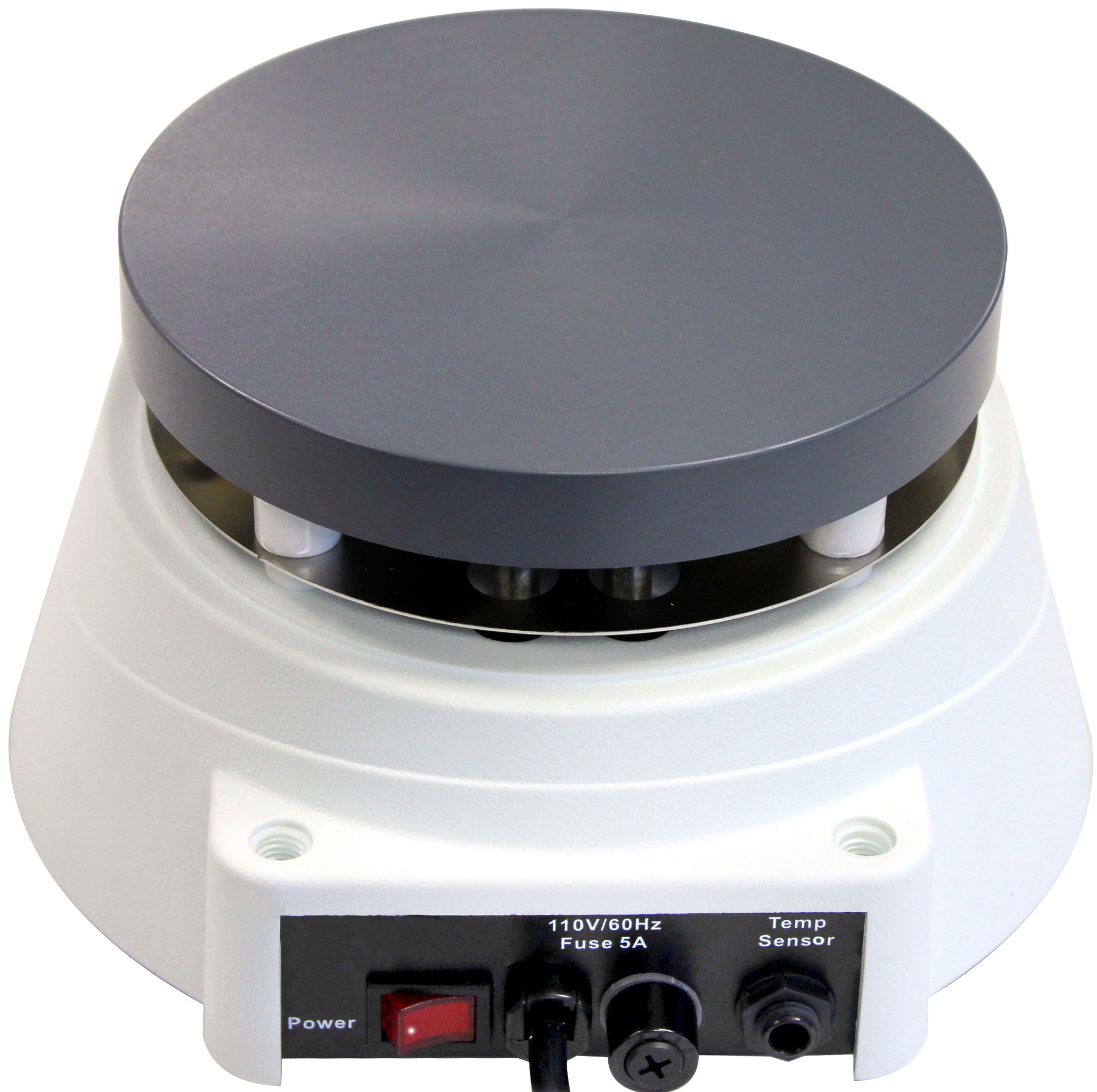

 110v 60Hz single phase, 350 watts

 Temperature range
 Ambient to 350°C

 Rotation speed
 Min. 50 rpm, max. 1500 rpm

 Maximum stirring volume
 0.8 gallon (3 liters)

 Heating plate
 Diameter: 6 inches Material: Teflon coated aluminum

 Stir bar
 a) 1 x 0.3″    b) 1.35 x 0.3″

 Unit dimensions
 8 x 10 x 4 1/2″ (WxDxH)

 Shipping dimensions
 13 1/2 x 11 x 9″ (WxDxH)

 Unit weight
 4 Lb

 Shipping weight
 5 Lb
