35KW Mid-Frequency Split Induction Heater w/ Timers 30-80KHz

9,990.00$

Note: This model only available in 460-480 volt three phase.

SKU: 4200492 Category: Tag:

Description

 Max. input current
 44 A (66A 3-phase circuit breaker required)

 Power
 460 VAC, 50/60Hz, three-phase

 Output frequency
 30-80 KHz

 Max input power
 35 KW

 Duty cycle

 100%

 Heating timer
 1-99 seconds

 Dwelling timer
 1-99 seconds

 Cooling timer
 1-99 seconds

 Air cooling
 Rear fan

 Water pressure
 ≥ 0.2 Mpa (29 PSI) you may use tap water  and water pump (>1/4HP & >240 Gph)

 Water temperature
 25-30°C

 Water flow
 1.6 gallons (6 liters) per minute

 Induction coil
 See detail specs below, we will make coils according to your requirements

 Controller weight
 75 Lb

 Heater weight
 70 Lb

 Power supply dimensions
 10.25 x 20.5 x 18 (WxDxH)

 Coil station dimensions
 12 x 18 x 16″ (WxDxH)

 Shipping size
 30 x 28 x 29″ (WxDxH)

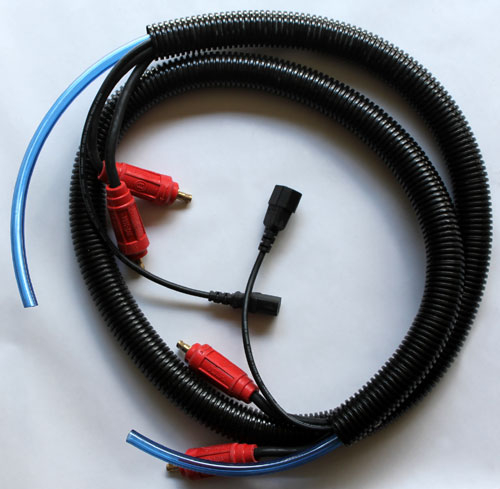

 Connection cables
 7 feet

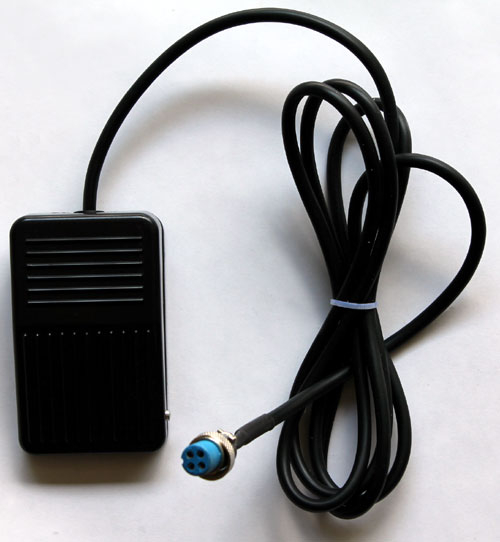

 Remote foot switch
 7 feet
