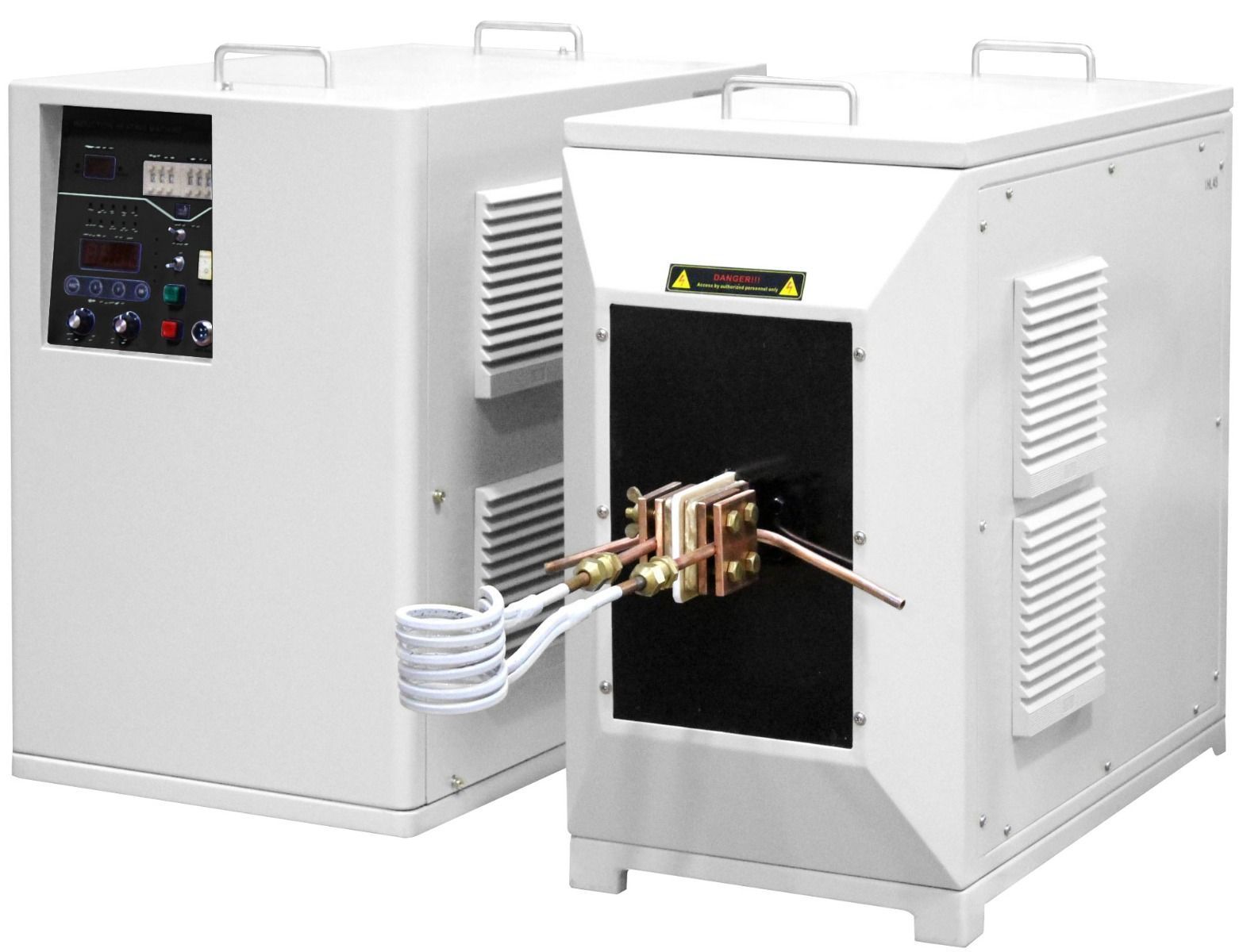

45KW Low-Frequency Dual-Station Induction Heater 1-20KHz

13,990.00$

Note: This model only available in 460-480 volt three-phase.Across International’s IHL series 1 kHz to 20 kHz low frequency induction heaters are good for a wide range of applications including deep heat penetration for full hardening processes, steel rod forging, tempering of pressing dies, pre-heating for welding, and melting of metal batches over 4 lbs. They are not limited to ferromagnetic materials, so nonferrous metals can also be used effectively.There are three major components to the system: the power supply, the compensating capacitor/transformer and the induction coil/smelting crucible. Our heaters automatically adjust to the best resonant frequency in order to achieve the most efficient overall heating results based on our customer’s requirements which include heat penetration, heating efficiency, operating noise and electromagnetic homogeneity. Two of our most popular low frequency machines are the Melting Furnaces with Tile-Pour Melter and Auto-feeding Rod Heating Furnaces for Forging.

SKU: 4200496 Category: Tag:

Description

 Max. input current
 55 A (min. 83A circuit breaker required)

 Power
 480 VAC 50/60Hz 3-phase (380V available upon request)

 Power cord
 4-gauge 4-conductor Max 60A (4/4 SOOW for 3 PH system)

 Output frequency
 1-20 KHz

 Output current
 10-70 A

 Output voltage
 70-550 V

 Max. oscillating/input power
 45 KW

 Duty cycle

 100% (24 hours continuous working)

 Air cooling
 Rear fan

 Water pressure
 ≥ 0.2 Mpa (29 PSI) you may use tap water  and water pump (>1/4HP & >240 Gph)

 Water flow
 > 1 gallon (4 liters) per minute

 Unit dimensions (WxDxH)
 Power supply: 10.5 x 22 x 18.5″ Transformer: 19 x 23 x 29″

 Shipping dimensions (WxDxH)/ Weight
 32 x 26 x 29″ / 188 lbs

 Connection cables
 7 feet
