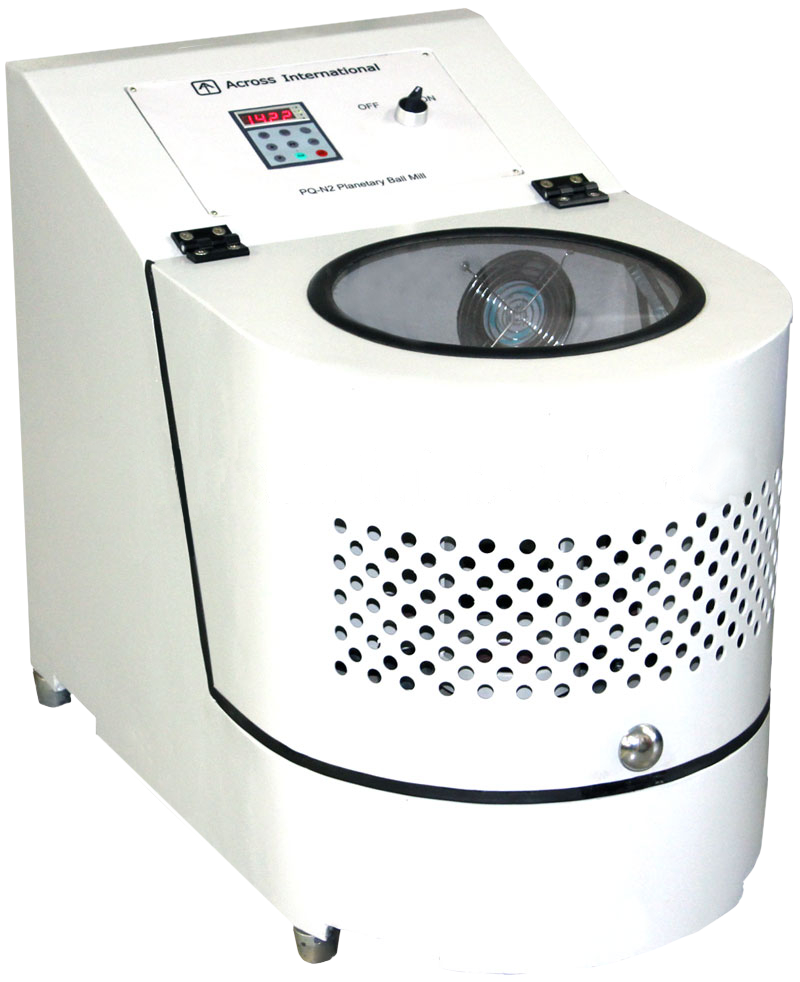

4x500ml Gear-Drive 2-Liter Planetary Ball Mill


PQ-N2 series planetary ball mills may be used for mixing, homogenizing, fine grinding, mechanical alloying, cell disruption, small volume high-tech material production and even colloidal grinding. They are the ideal wet/dry milling tools for acquiring research samples with high efficiency and low noise. Vacuum jars may be used to process sample within a vacuum environment.

SKU: 4200299 Category: Tag:


Electrical requirements
110V or 220V 50/60Hz single phase, 750 watts

Compatible non-vacuum jars
500ml x 4

Compatible vacuum jars
250ml x 4

Operation mode
Two or four grinding jars working simultaneously

Maximum feeding capacity
2/3 capacity of the grinding jars

Feeding granularity
Soil materials ≤ 10mm, others materials ≤ 3mm (If the sample feed is larger than these then it must  first undergo preliminary size reduction)

Discharging granularity
Down to 0.1 micron

Maximum continuous operating time

72 hours

Planetary jar rotation speed
290 rpm

Unit dimensions
30 x 18 x 25″ (DxWxH) height is 44″ with cover open

Shipping dimensions
36 x 25 x 33″ (LxWxH)

Shipping weight
300 Lb
