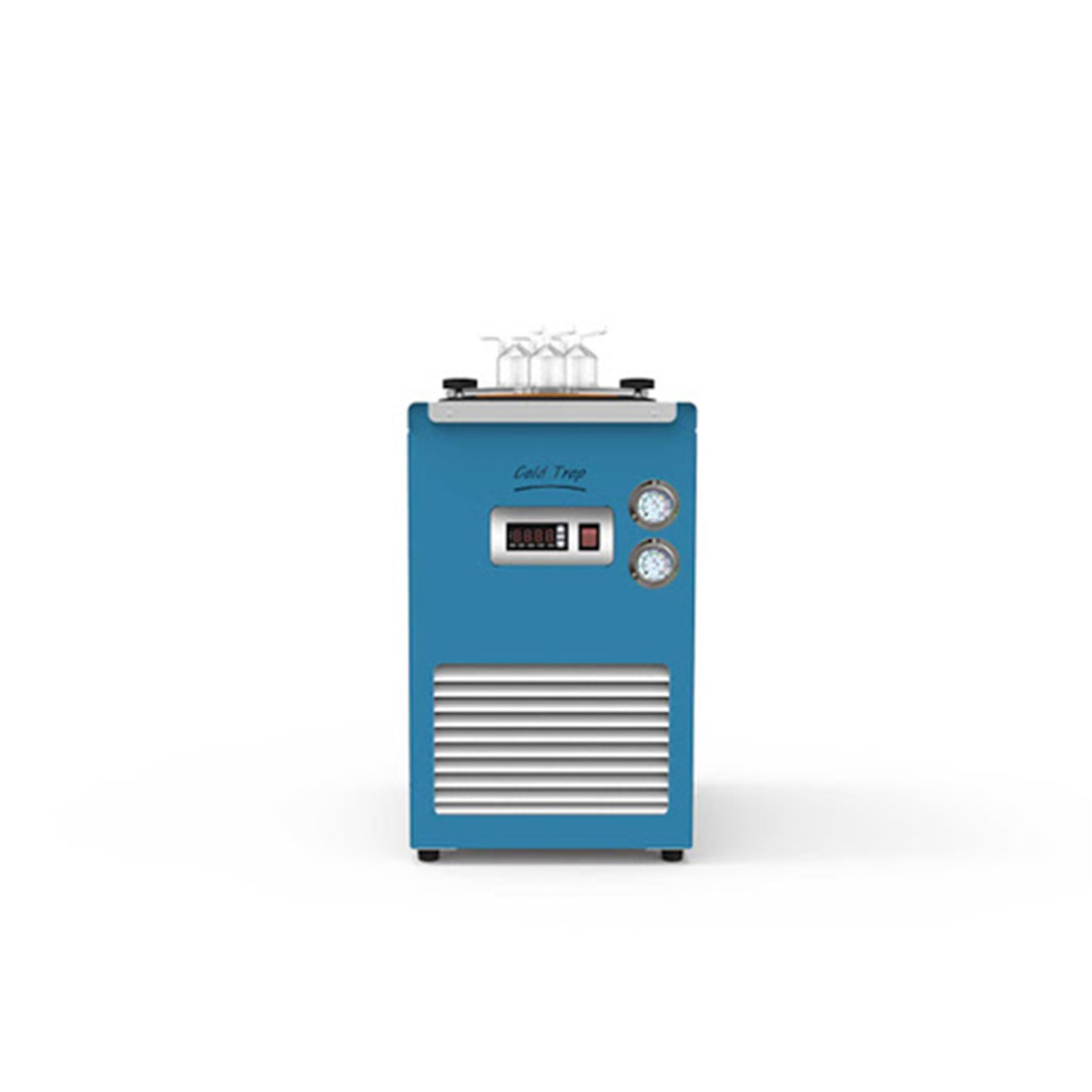

‘-80°C Mechanical Cold Trap (T80)

6,990.00$

This highly effective Mechanical Cold Trap from SH Scientific ensures that no volatile vapors (with the exception of permanent gases) will pass through the unit and into your vacuum pump.
A cold trap is a major component of laboratory efficiency and equipment longevity.

SKU: 4201774 Category:

Description

Model:
SH-MCT-80-UL

Temp Controller:
Microprocessor Digital Controller

Temperature Control Range:
Ambient to -80ºC

Internal Dimensions:
7.09” x 8.27”

External Dimensions (L x W x H in.):
19.88” x 24.41” x 29.52”

Weight:
75 kg

Internal Material:
Stainless Steel

External Material:
Steel Plate with Powder Coat

Trap:
Openable

Power:
120V 60Hz 1~ / 230V 60 Hz 1~

PID controller
Cools to -80°C
Up to three traps can be placed in the chiller
Captures volatile vapors and condense them into a liquid or solid
Protects your vacuum pumps from damage
Holds up to 300 ml. of collected liquid
Uses R410A refrigerant
CE Certified
UL Certified

Model:
SH-MCT-80-UL

Temp Controller:
Microprocessor Digital Controller

Temperature Control Range:
Ambient to -80ºC

Internal Dimensions:
7.09” x 8.27”

External Dimensions (L x W x H in.):
19.88” x 24.41” x 29.52”

Weight:
75 kg

Internal Material:
Stainless Steel

External Material:
Steel Plate with Powder Coat

Trap:
Openable

Power:
120V 60Hz 1~ / 230V 60 Hz 1~
