Ai 10 Liter Short Path Complete Turnkey Package


The all new Ai 10 liter short path turnkey system offers you the best glassware and equipment in the market.

Ai Clear10 short path distillation kit features

  • The DigiVac StrataVac gives you deep vacuum and high throughput, it is one of the most accurate and powerful vacuum controllers on the market.
  • Newly re-designed 5L distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractioning and condensation of vapor with zero clogging.
  • Ai Heavy wall glassware for durability
  • Vacuum jacketed vapor channel
  • Boiling flask to distillation port: 34/45 joint
  • Thermo port on boiling flask: 24/40 joint
  • Thermo port on distillation head: 14/20 joints
  • Recirculating fluid and vacuum connectors: GL-16 adapter and 3/8″ hose barb
  • Glass material: high borosilicate glass 3.3
  • T1 cold traps prevent vapors being evacuated from entering a vacuum pump where they would condense and contaminate it


One year warranty on DigiVac, DigiM mantle, Ai C20 chiller and SuperVac pump.

Glassware does not have warranties. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers.

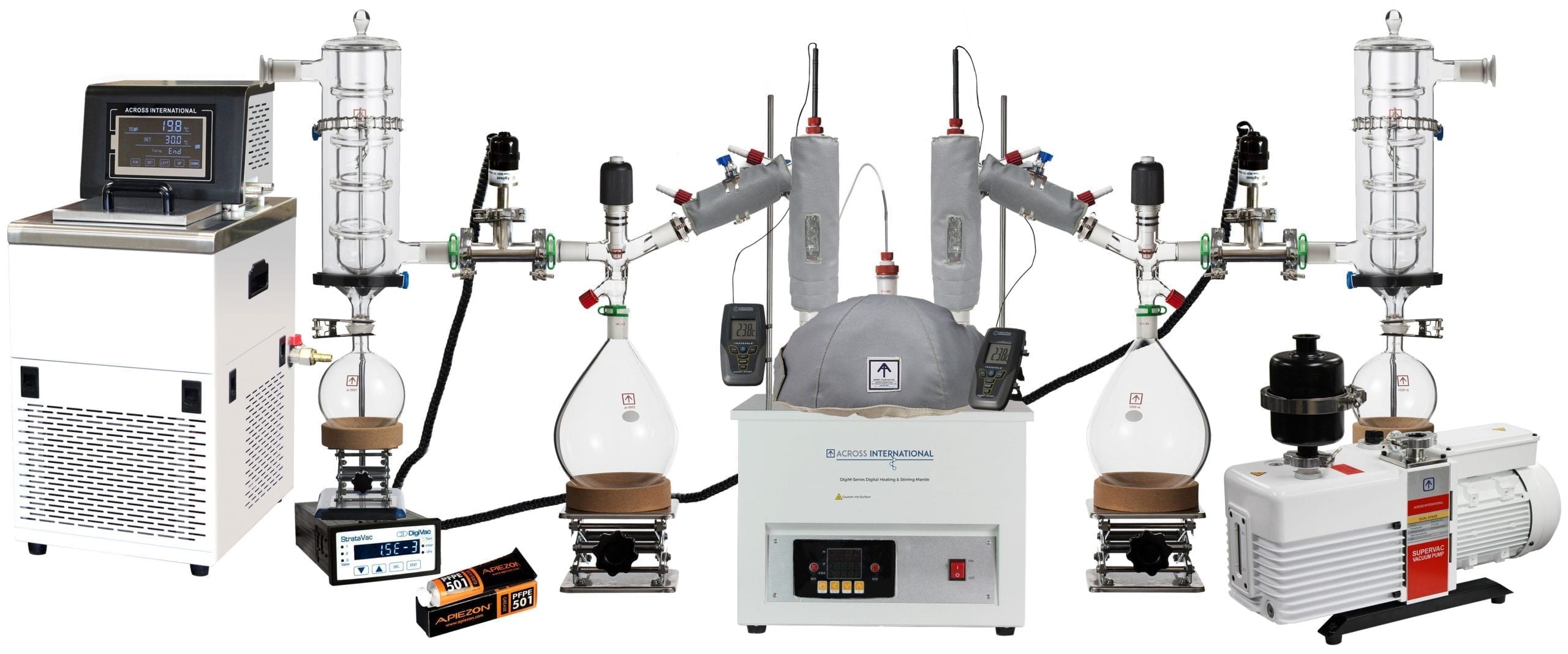

Clear10s Standard Package with DigiVac StrataVac


 Part description  Quantity
Part image
 DigiVac StrataVac vacuum regulator with dual sensors (100-240V) 1 set
 Ai SuperVac 21 cfm, 0.3 micron, dual-stage, corrosion-resist pump with adjustable gas ballast and exhaust oil mist filter – 110V 1 set
 Ai C20 -20°C to 99°C 7L capacity recirculating chiller – 110V 1 set

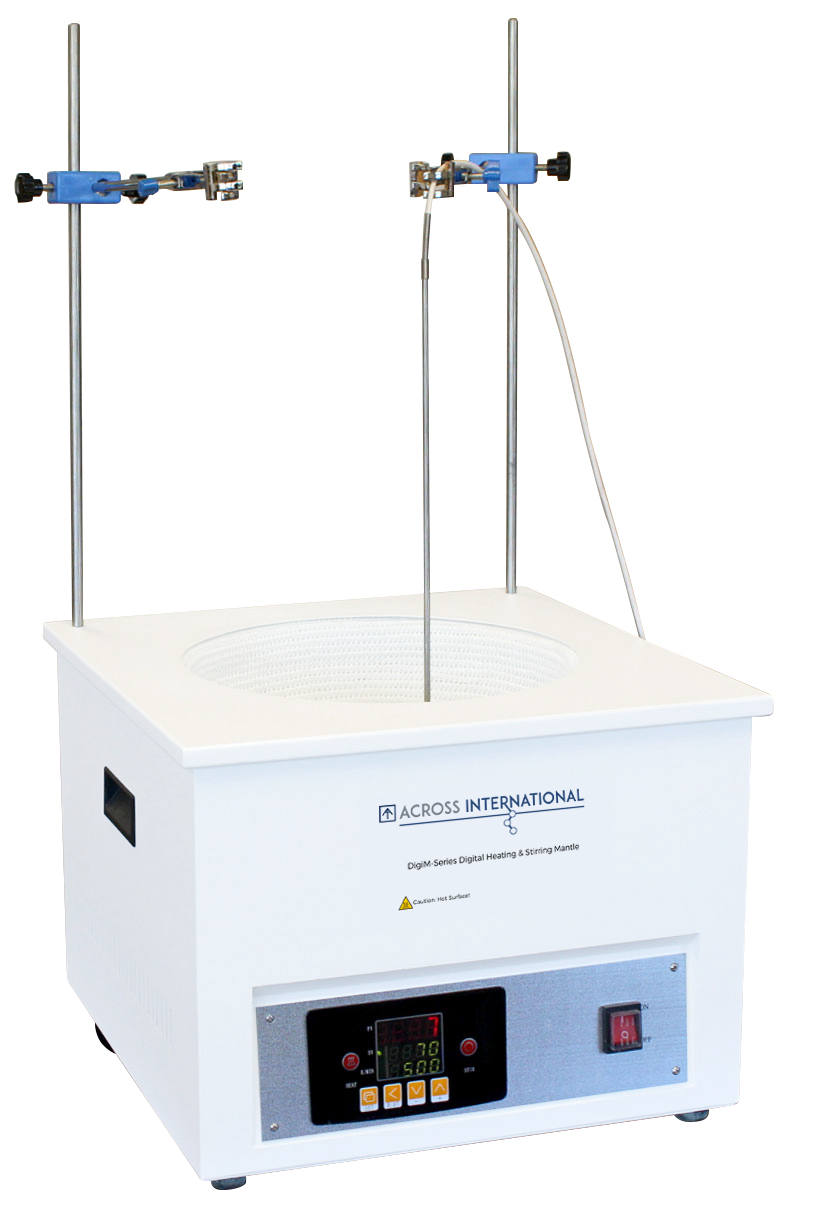

 Ai DigiM10 10L mantle with two 4-prong clamps – 110V 1 set
 Ai T1 2L glass vacuum cold trap with 24/40 joints (T1-2440) 2 sets
 Ai 24/40 & 34/45 joints, heavy wall, vacuum jacketed, 5L distillation head with multiple sets of vigreux, cooling channel, and a 14/20 thermo port 2 pcs

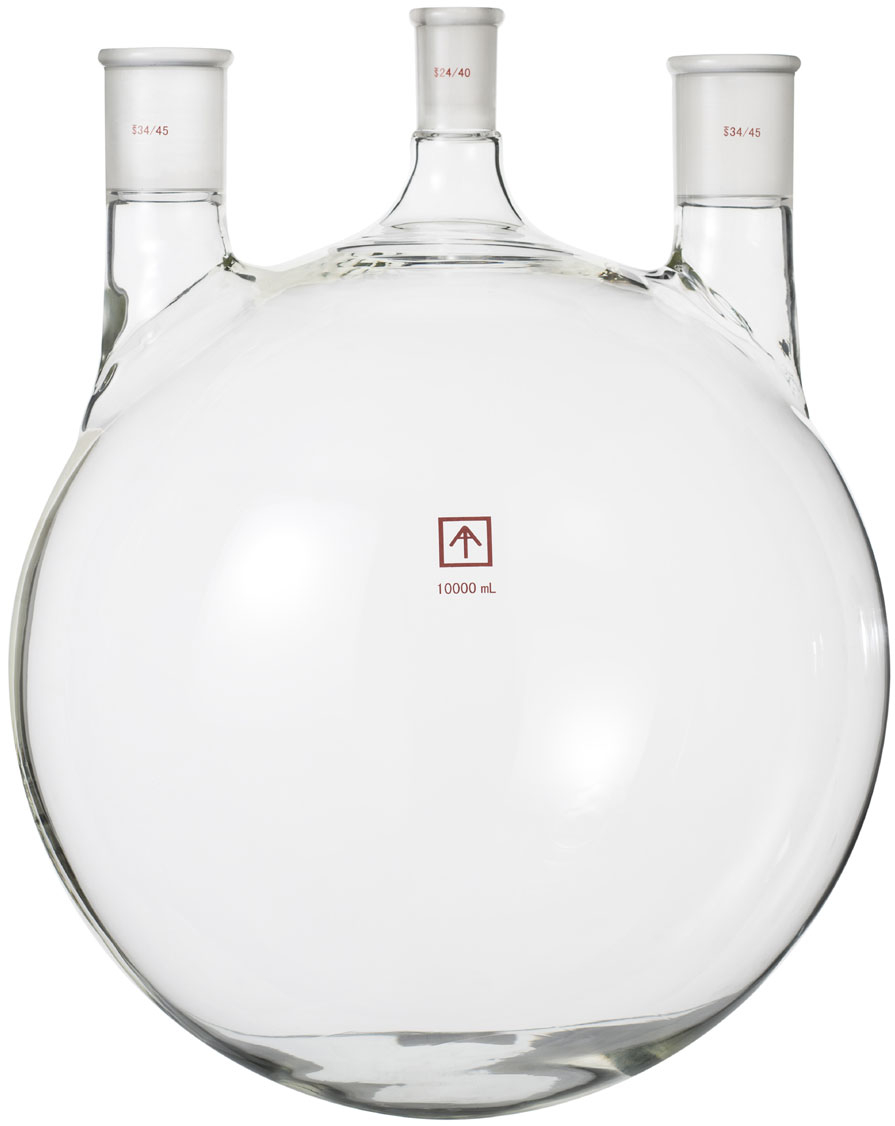

 Ai heavy wall round bottom 3-neck 10L flask with one vertical 24/40 center neck and two vertical 34/45 side necks 1 pc
 PTFE 24/40 joint thermometer inlet adapters with Viton gaskets 3 pcs
 Ai 24/40 joint, pennyhead glass stopper 2 pcs
 Ai 24/40 joint, round-top glass feeding funnel 1 pc
 Ai 24/40 single cow adapter with PTFE valve and viton gasket 2 pcs
 Ai 24/40 joint, heavy wall 2000mL pear-shaped receiving flask 2 pcs
 Ai glass 3/8″ hose barb tee adapter 3 pcs
 Ai glass 24/40 male to male adapter 1 pc
 Stainless steel keck clips, 24/40 x 2, 34/45 x 2 4 pcs
 24/40 joint, plastic keck clip 8 pcs
 Cork ring stand for 1L or 2L pear-shaped flasks 2 pcs
 6 x 6″ stainless steel lab jack (min. height 3″, max height 9.5″) 2 pcs
 Ai HeadShield fabric insulation sleeve with window for 5L heads (right x 1, left x 1) 2 pcs
 Ai DrainShield cooling channel fabric insulation sleeve for 5L heads 2 pcs

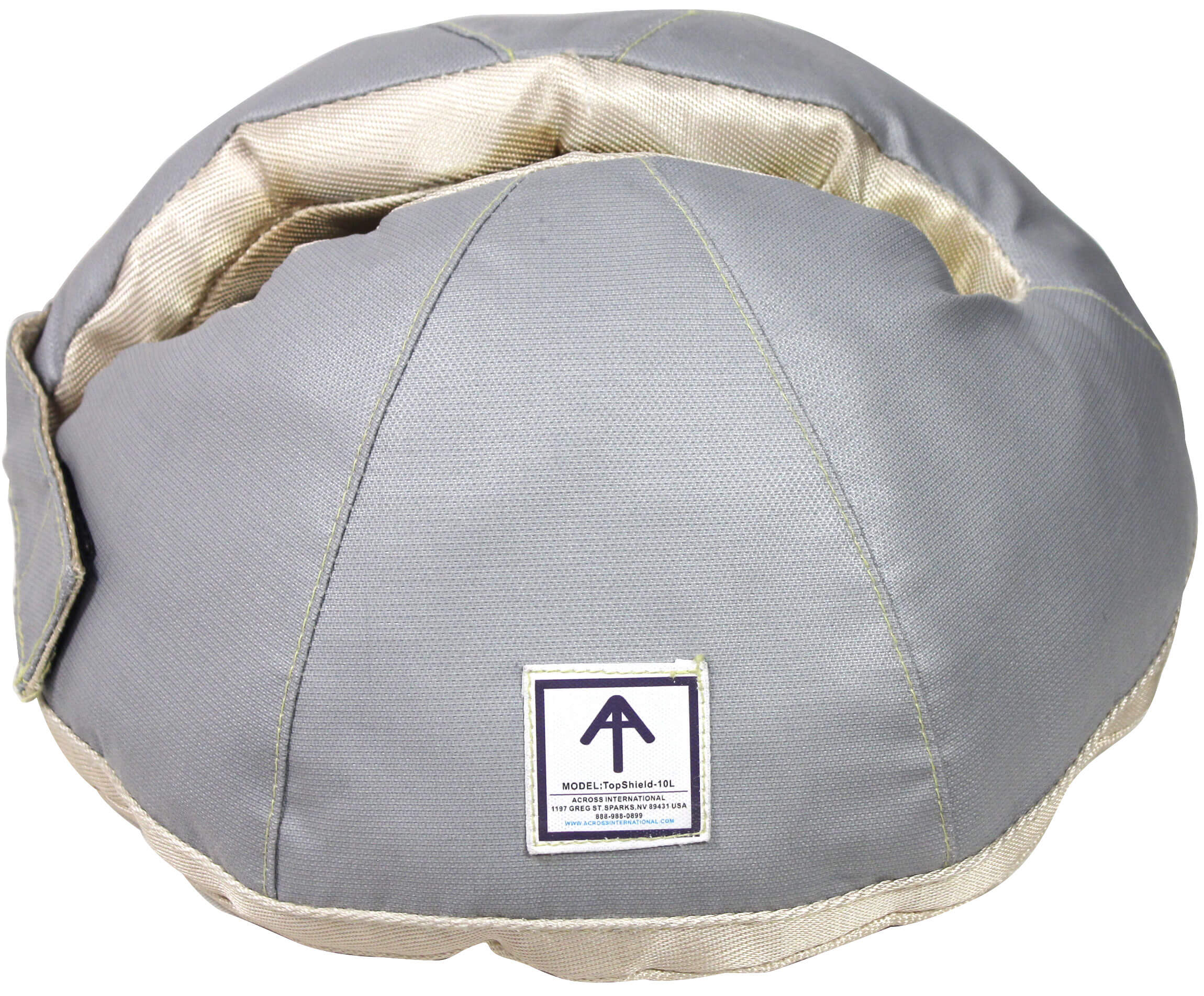

 Ai DomeShield 800C rated fabric insulating top for 10L flasks 1 pc
 PTFE 24/40 to KF25 flange adapter with viton r-ring 6 pcs
 KF25 flexible stainless steel vacuum bellow: 3.3 ft x 1, 6.6 ft x 2 3 pcs
 KF25 quick clamp and centering ring 11 sets
 KF25 3-way tee flange adapter 3 pcs
 Apiezon PFPE 501 high temp vacuum grease 1 pc
 Traceable Kangaroo digital thermometer 2 pcs


Additional information

Weight 200 lbs
Dimensions 48 × 48 × 48 in
