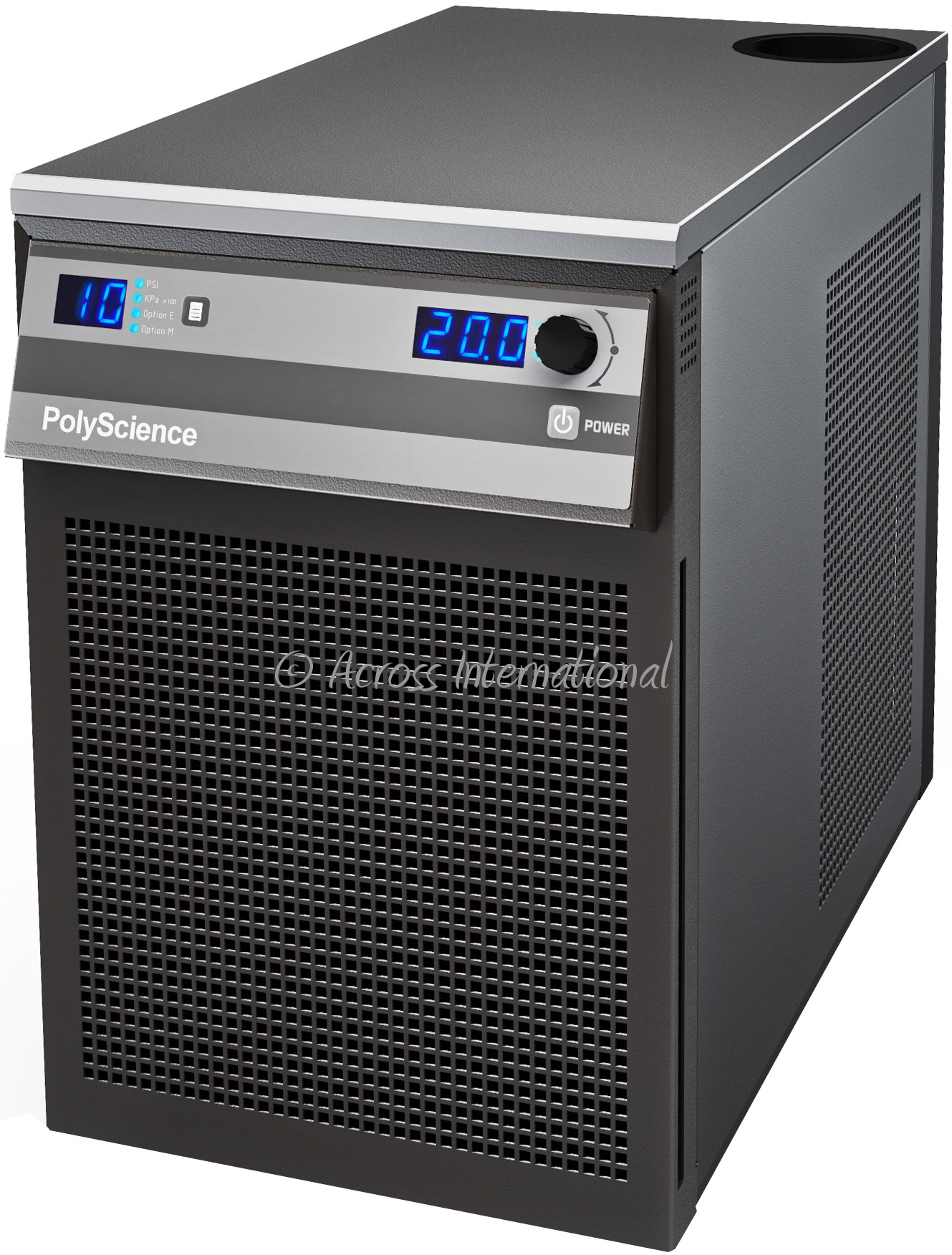

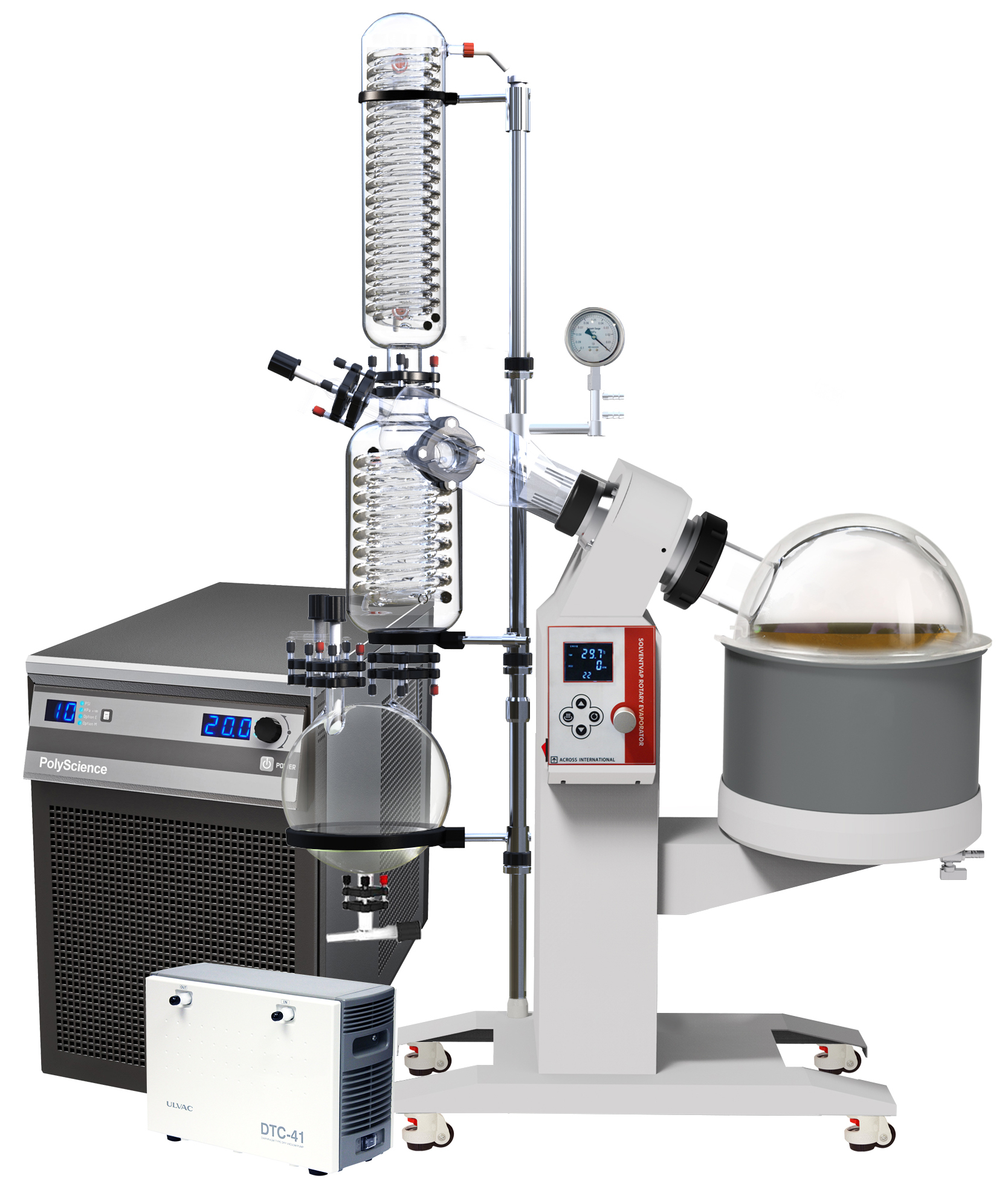

Ai 10L SolventVap w/ PolyScience Chiller & ULVAC PTFE Pump 220V

$19,246.32

A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. The process of rotary evaporation is most often used to separate solvents with low boiling points, such a n-hexane or ethyl acetate, from compounds which are solid at room temperature and pressure. However, careful application also allows for the removal of a solvent from a sample containing a liquid compound, if there is minimal co-evaporation (azeotropic behavior) and a sufficient difference in boiling points at the chosen temperature and reduced pressure.

SKU: 4200986 Category: Tag:

Description

Electrical requirements
220V 50/60Hz single phase, 17.3A, 3800 watt (rotation motor: 300 watts)

Glass material
High borosilicate glass 3.3

Evaporating flask
Capacity: 2.6 gallon (10 liters or 0.35 cu ft) Maximum load: Not to exceed 60% of the flask’s capacity Sealing flange: 4.9″ diameter Rotation speed: 10 to 130 rpm Evaporating speed: 0.75 gallon/hour (water), 1.5 gallon/hour (alcohol)

Receiving flask
1.3 gallon (5 liters or 0.18 cu ft)

Condenser
Glassware: Main auxiliary triple-circulating cold traps, vertical Chilling fluid conneciton: 3/8″ hose barb x 4 (2 on main 2 on auxiliary) Condensing surface   Main condenser: 3,900 cm2 or 4.2 sq ft   Auxiliary condenser: 2,530 cm2 or 2.7 sq ft

Working environment
5 to 95°F

Water bath
Temperature range: ambient to 99°C (210°F) Temperature controller: digital Dimensions: 12.5″ diameter x 8.7″ depth x 11″ height Material: stainless steel Media: distilled water only Max. water level: not to exceed 1″ from the top rim of the bath Number of heaters: two Drain port: one Exterior liner: rubber Lifting: motorized Maximum lifting distance: 4 inches

Vacuum
Ultimate vacuum level: < 3 torrs Vacuum sealing: PTFE Viton gaskets Vacuum connection: 3/8″ hose barb x 1 on main condenser

Swivel caster
Four, built-in with locks

Safety
Dry-run, over-temp shut-off, built-in circuit breakers

Weight & dimensions

Shipping weight: 200 Lb (evaporator), 100 Lb (glassware) Unit dimensions: 36 x 22 x 67″ (WxDxH)  Shipping dimensions: 39 x 22 x 44″ (evaporator), 30 x 25 x 28″ (glassware) (WxDxH)

Certification
ETL tested to UL and CSA standards

Download
Ai rotary evaporator brochure
