Ai 2L Short Path Complete Turnkey Package

$15,347.58

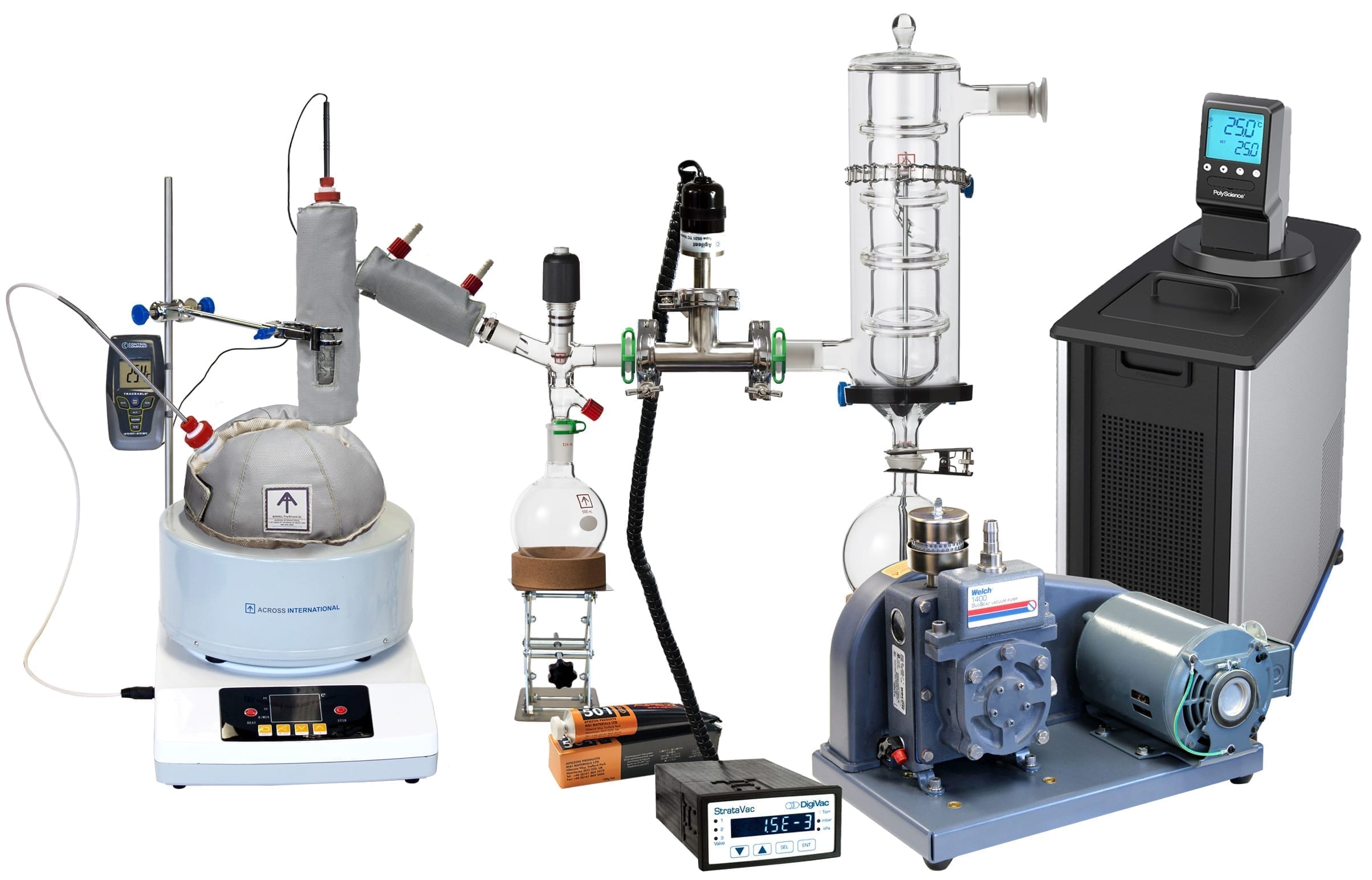

Ai Clear2 short path distillation turnkey package features

  • Newly re-designed distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractioning and condensation of vapor with zero clogging.
  • Ai Heavy wall glassware for durability
  • Glass material: high borosilicate glass 3.3
  • 3/8″ hose barb chilling fluid and vacuum connections
  • PolyScience MX -20°C to 135°C 7L capacity compact recirculating chiller
  • Ai T1 2 liter dry ice cold trap with scissor jack, designed to be compact and easy to use
  • Known for their ruggedness world-wide, the Welch 1400 DuoSeal is a durable pump with a superior vapor handling capability
  • Ai DigiM2 2L digital heating and stirring mantle with individual heating and stirring controls
  • Set your vacuum level and let us take care of the rest, with the DigiVac automatic vacuum controller

Warranty:

One year warranty on DigiM2 mantle, DigiVac vacuum controller, PolyScience chiller and Welch pump.

Glassware does not have warranties. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers.

Description

Clear2w Standard Package Includes



 Part description  Quantity
Part image
 DigiVac StrataVac vacuum regulator with digital vacuum gauge 100-240V 1 set
 Welch 1400 DuoSeal 0.9 cfm 0.1 micron belt drive dual-stage pump with Welch exhaust oil mist filter – 110V 1 pc
 Ai T1 2L glass vacuum cold trap with 24/40 joints (T1-2440) 1 set
 PolyScience MX -20°C to 135°C 7L capacity recirculating chiller – 110V 1 set
 Ai DigiM2 2L mantle with one 4-prong clamp – 110V 1 pc
 Ai heavy wall, vacuum jacketed, distillation head with five sets of vigreux, cooling channel,  temperature inlet port 1 pc
 Ai heavy wall round bottom 2-neck flask with one 34/45 vertical neck and one 24/40 angled neck  1 pc
 PTFE 24/40 joint thermometer inlet adapter with Viton gaskets 2 pcs
 Ai 24/40 PennyHead glass stopper 1 pc
 Ai 24/40 joint, glass material feeding funnel 1 pc
 Ai 24/40 single cow adapter with PTFE valve and viton gasket 1 pc

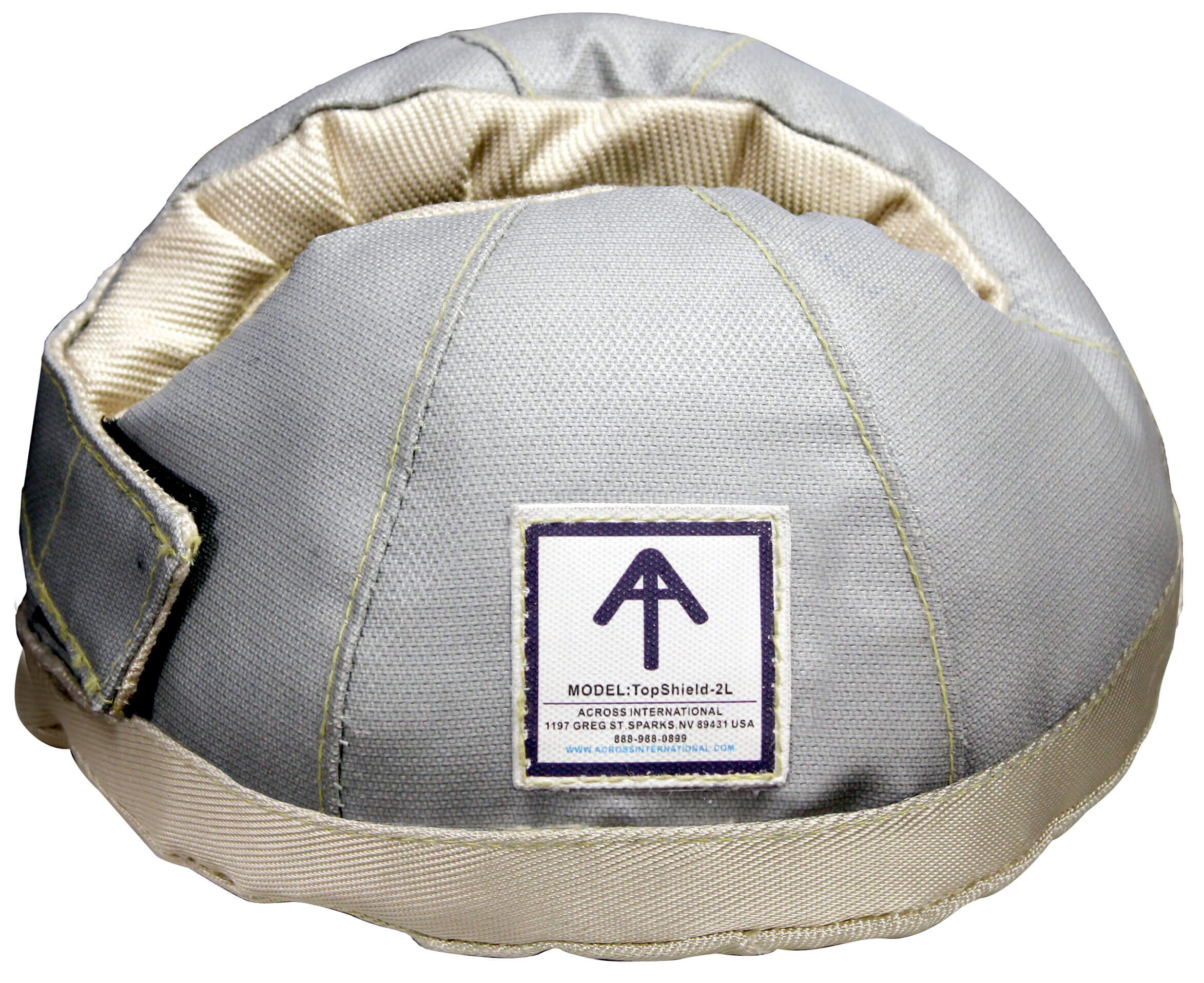

 Ai DomeShield x 1, HeadShield x 1, DrainShield x 1 3 pcs
 Ai 24/40 joint, heavy wall 500mL round bottom receiving flask 2 pcs
 Ai Glass 3/8″ Hose Barb Tee Adapter 1 pc
 24/40 joint x 1, 34/45 joint x 1, stainless steel keck clip 2 pcs
 24/40 joint, plastic keck clip 3 pcs
 Cork ring stand for 500mL round-bottom flasks 1 pc
 4 x 4″ stainless steel lab jack (min. height 1.75″, max height 6″) 1 pc
 User’s manual 3 pcs
 Apiezon PFPE 501 high temp vacuum grease 1 pc
 Traceable Kangaroo digital thermometer 1 pc
 KF25 3-way tee flange 1 pc

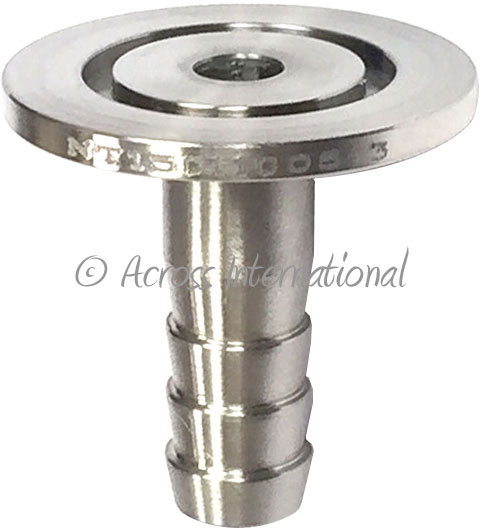

3/8″ hose barb to KF25 flange adapter 1 pc
3/8″ silicone vacuum and chilling tubing 12 ft
 KF25 flexible stainless steel bellow 3.3 ft 1 pc
 PTFE 24/40 to KF25 Flange Adapter 3 pcs
 KF25 quick clamp and centering ring 5 sets



Additional information

Weight 150 lbs
Dimensions 48 × 48 × 24 in
