Name: Ai 2L Short Path Distillation Kit with Multiple Receiving Flasks
SKU: 23135
Availability: InStock

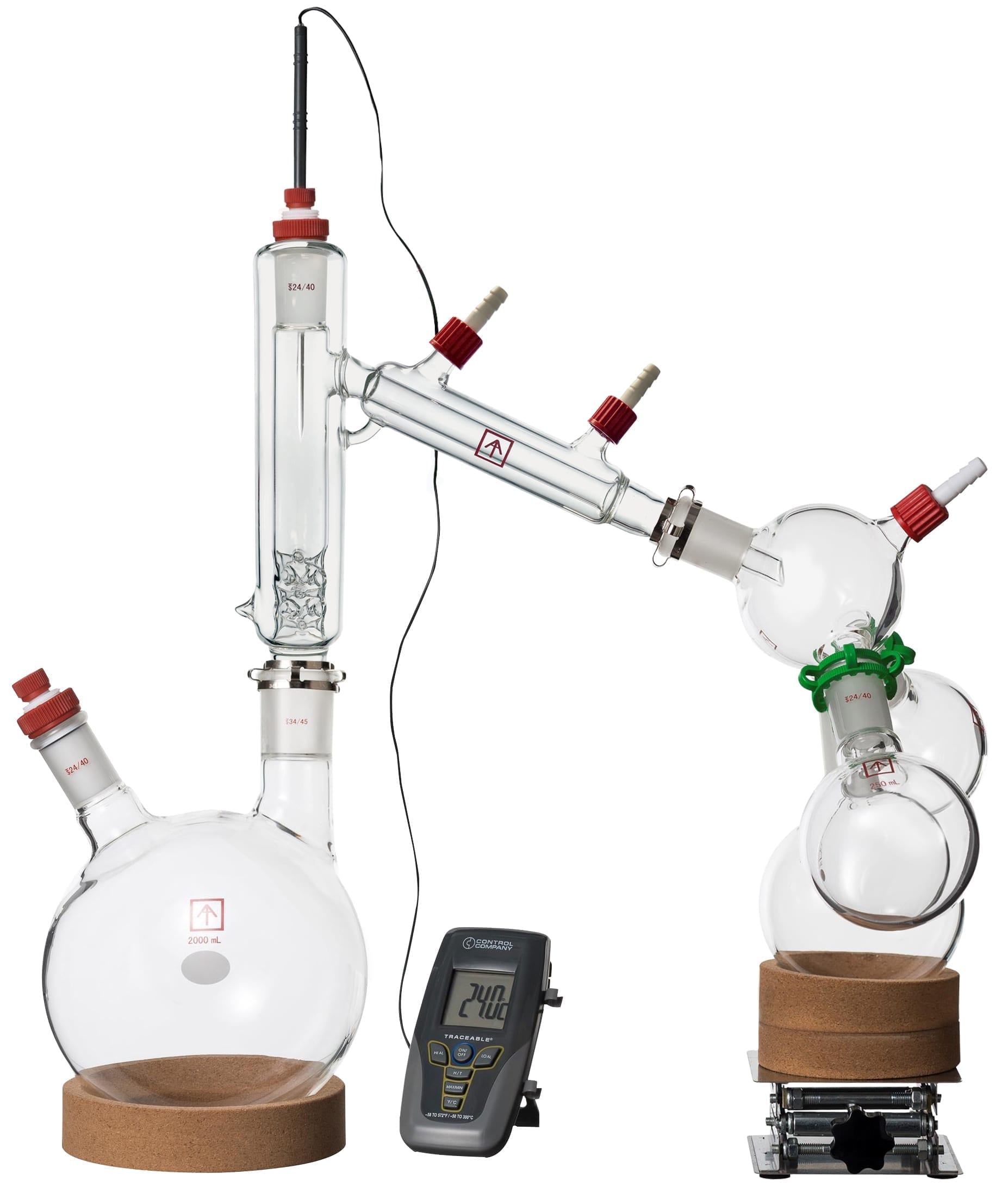

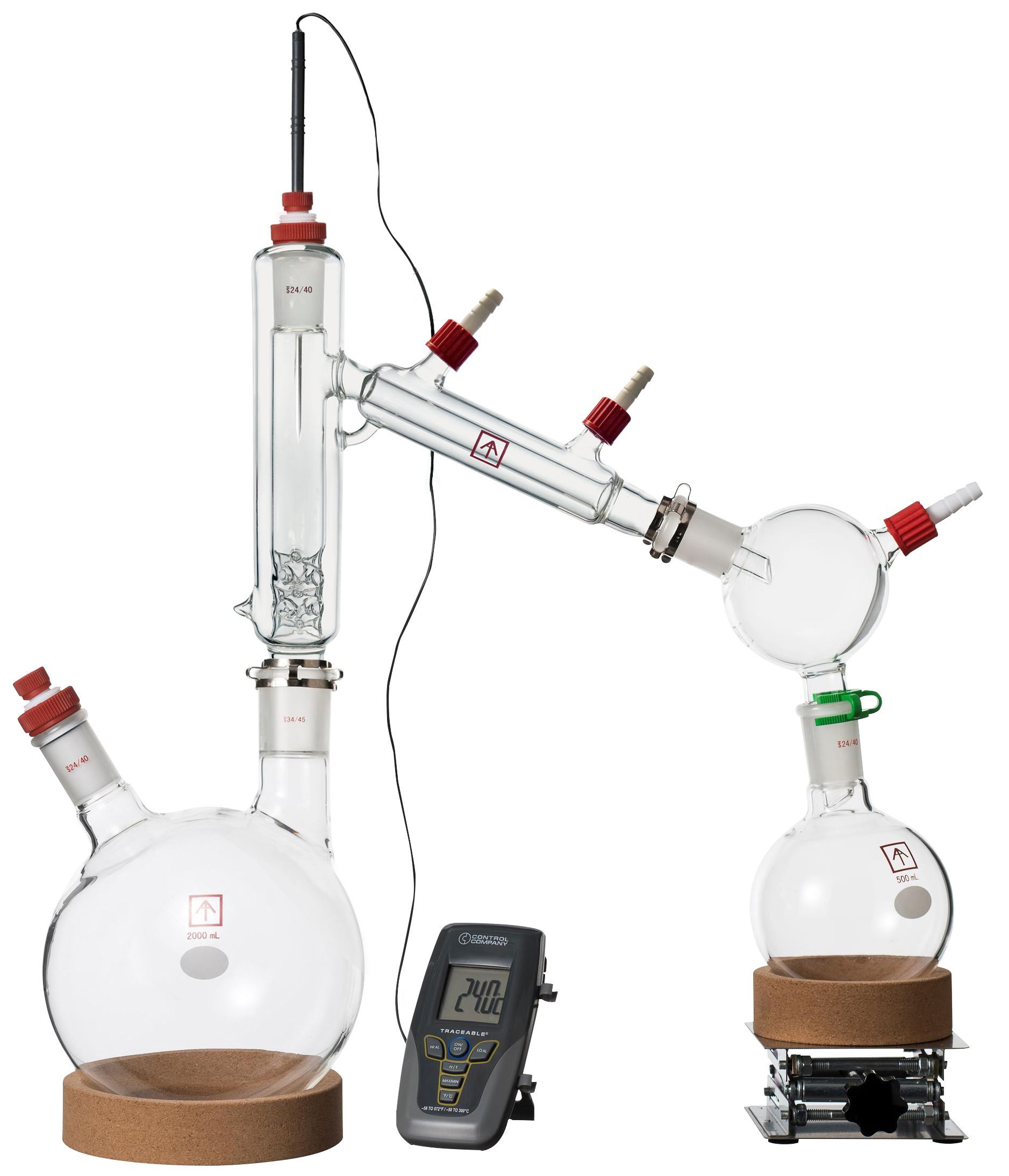

Ai 2L Short Path Distillation Kit with Multiple Receiving Flasks

$1,619.03

Ai Clear2 short path distillation kit features

Newly re-designed distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractioning and condensation of vapor with zero clogging.
PTFE 24/40 thermo inlet adapters with Viton gaskets
Ai Heavy wall glassware for durability
Vacuum jacketed vapor channel
Thermo port on distillation head: 24/40 joint
Thermo port on boiling flask: 24/20 joint
Boiling flask to distillation head: 34/45 joint
Recirculating fluid and vacuum connectors: GL-16 adapter and 3/8″ hose barb
Glass material: high borosilicate glass 3.3
Shipping dimension and weight: 27 x 22 x 9 inches, 14 lbs.

Warranty: Glassware does not have warranties. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers.

Description

Clear2 Standard Package Includes

Part description	Quantity	Part image
Ai heavy wall, vacuum jacketed, distillation head with multiple sets of vigreux, cooling channel, and a temperature probe port	1 pc
Ai heavy wall round bottom 2-neck flask with one 34/45 vertical center neck and one 24/40 angled side neck	1 pc
PTFE 24/40 joint thermometer inlet adapter with Viton gasket	2 pcs
Ai 24/40 PennyHead glass stopper	1 pc

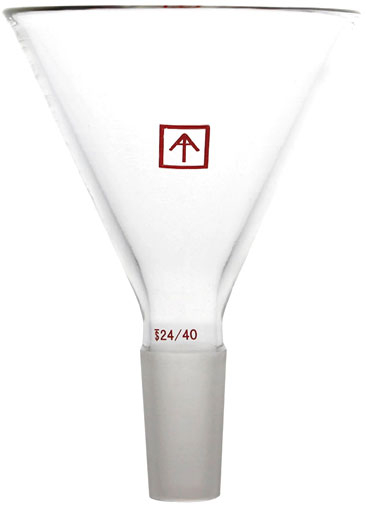

Ai 24/40 joint, round-top glass feeding funnel	1 pc

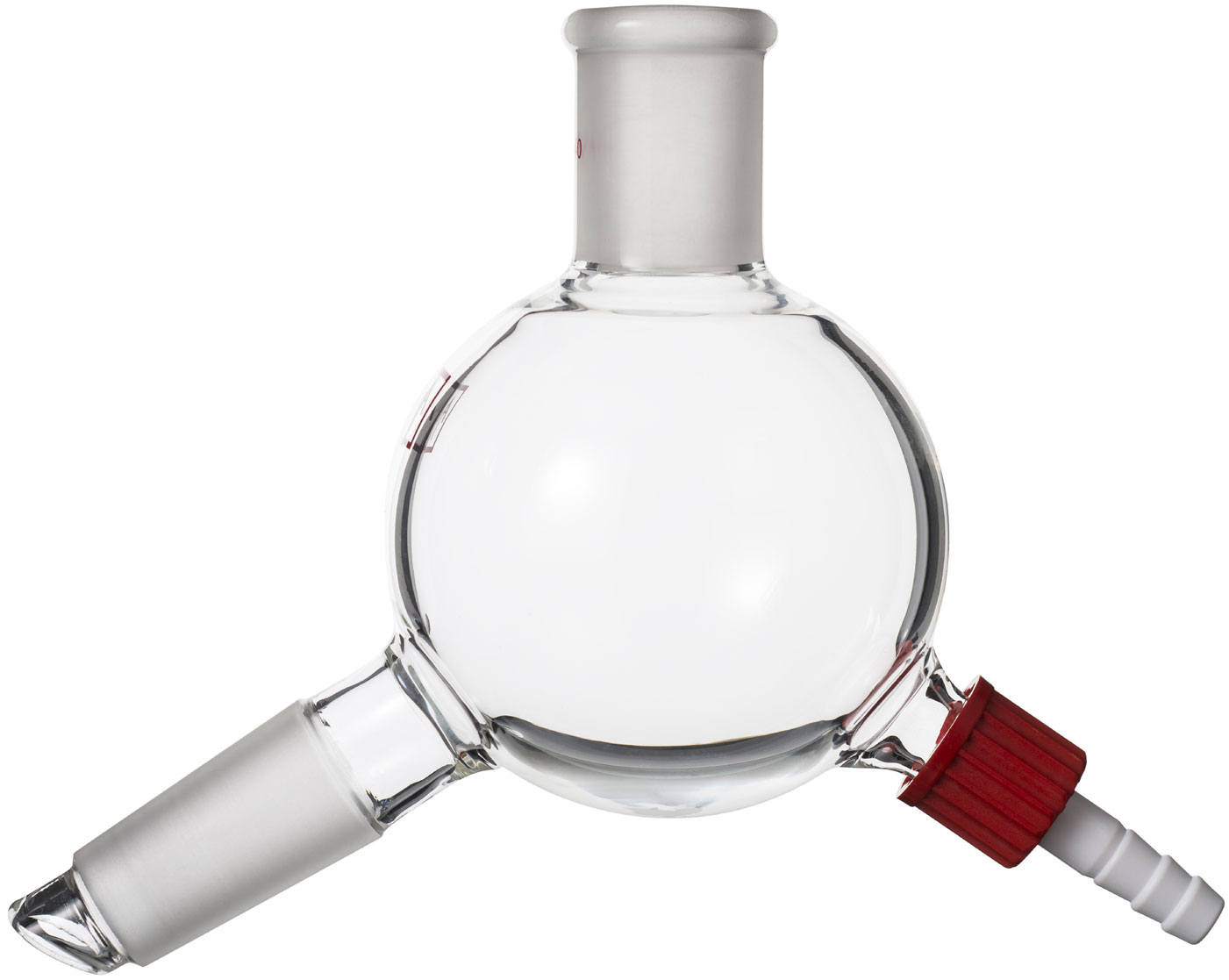

Ai 250mL distribution adapter with one 24/40 receiving flask connector and one 3/8″ vacuum port	1 pc

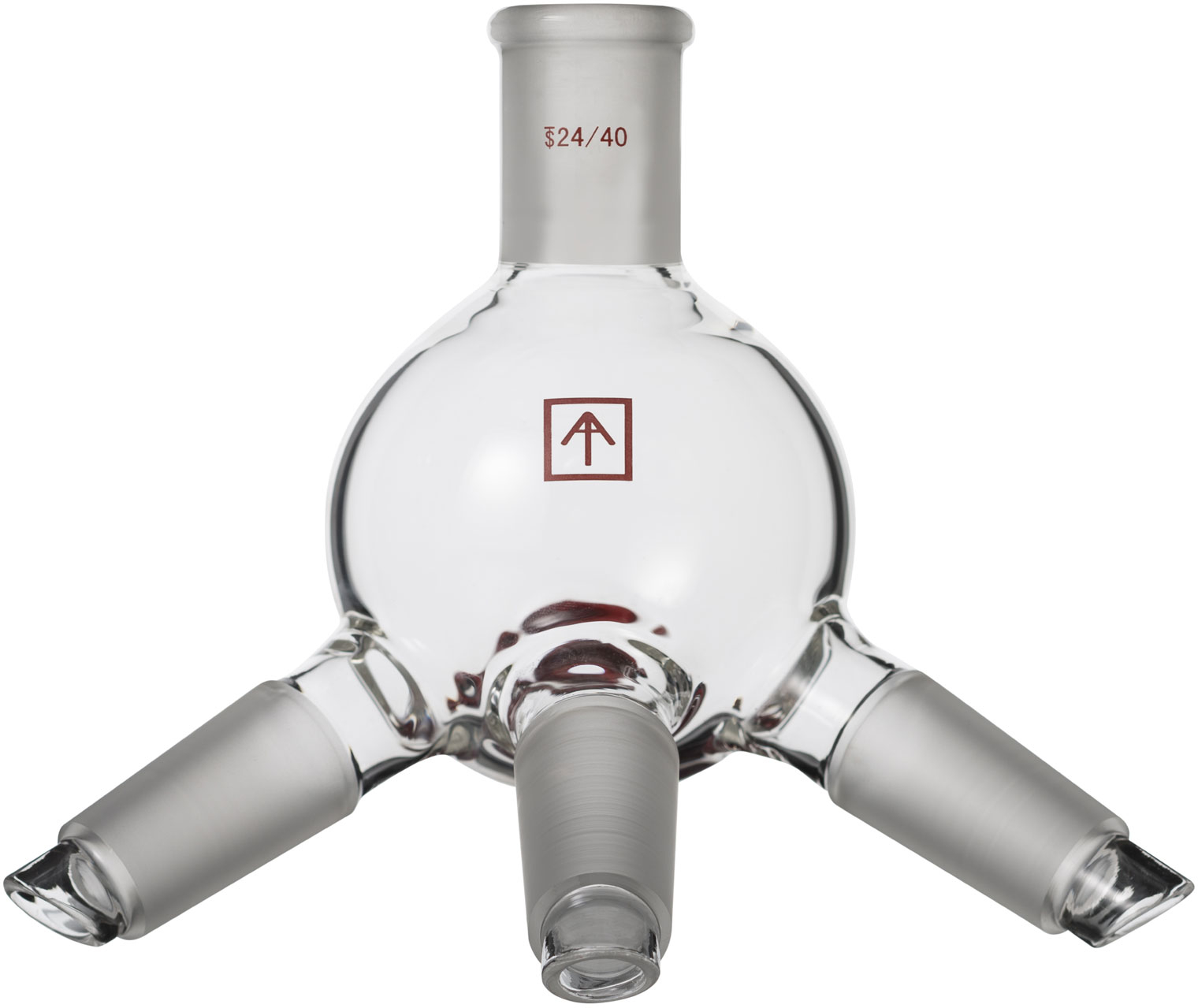

Ai 250mL distribution adapter with three 24/40 receiving flask connectors and one 3/8″ vacuum port (can be swapped with a single cow)	1 pc
Ai 24/40 joint, heavy wall 500mL round bottom receiving flask	2 pcs

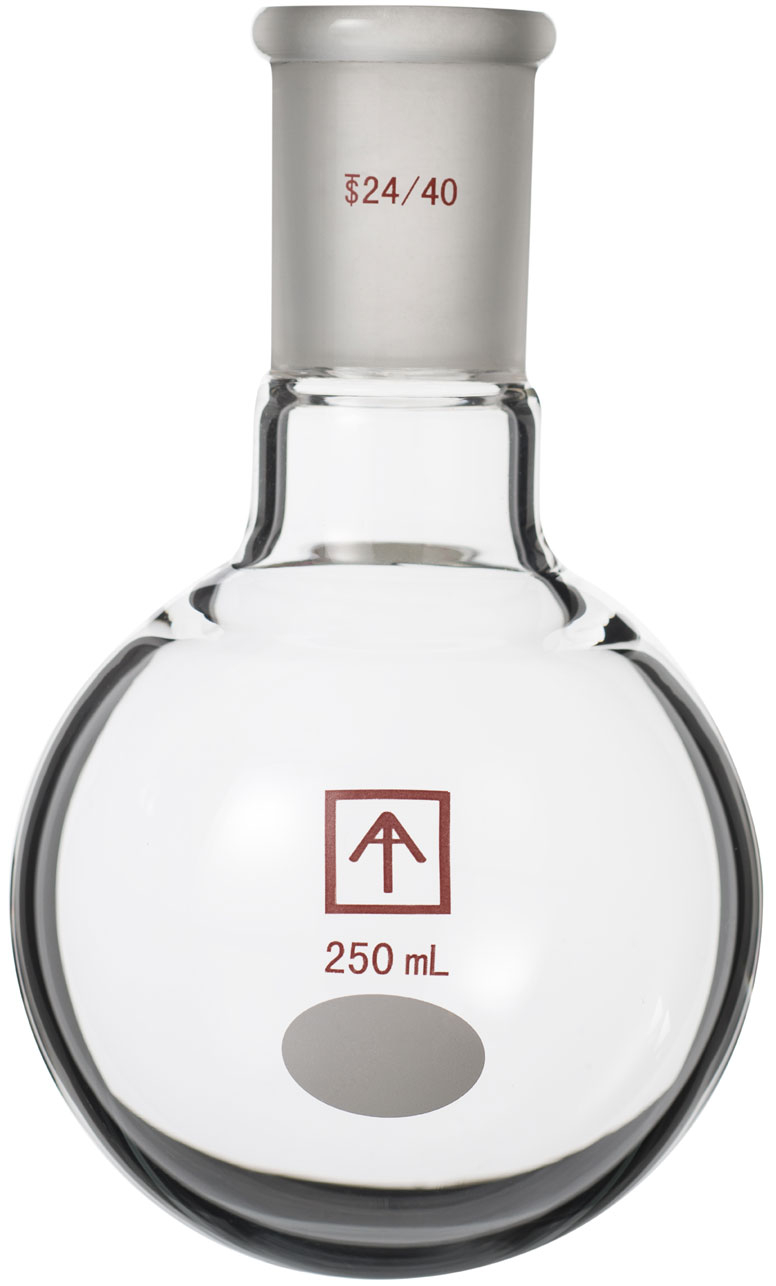

Ai 24/40 joint, heavy wall 250mL round bottom receiving flask	1 pc
Ai glass 3/8″ hose barb tee adapter	1 pc
24/40 joint x 1, 34/45 joint x 1, stainless steel keck clip	2 pcs
24/40 joint, plastic keck clip	3 pcs
Cork ring stand (2L x 1, 500mL x 1)	2 pcs
4 x 4″ stainless steel lab jack (min. height 1.75″, max height 6″)	1 pc
Dow Corning high vacuum grease 5.3 oz	1 pc
Traceable Kangaroo digital thermometer	1 pc
