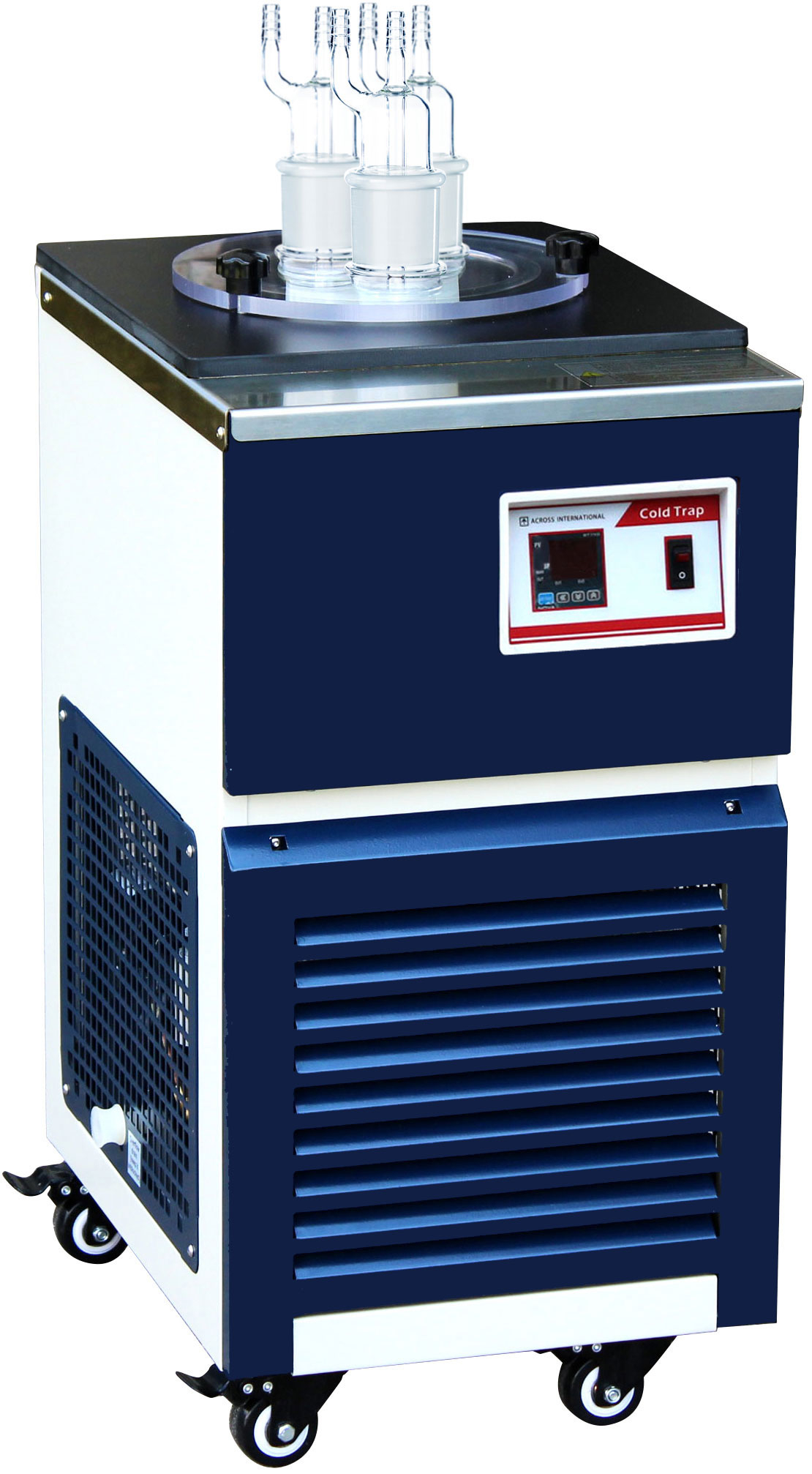

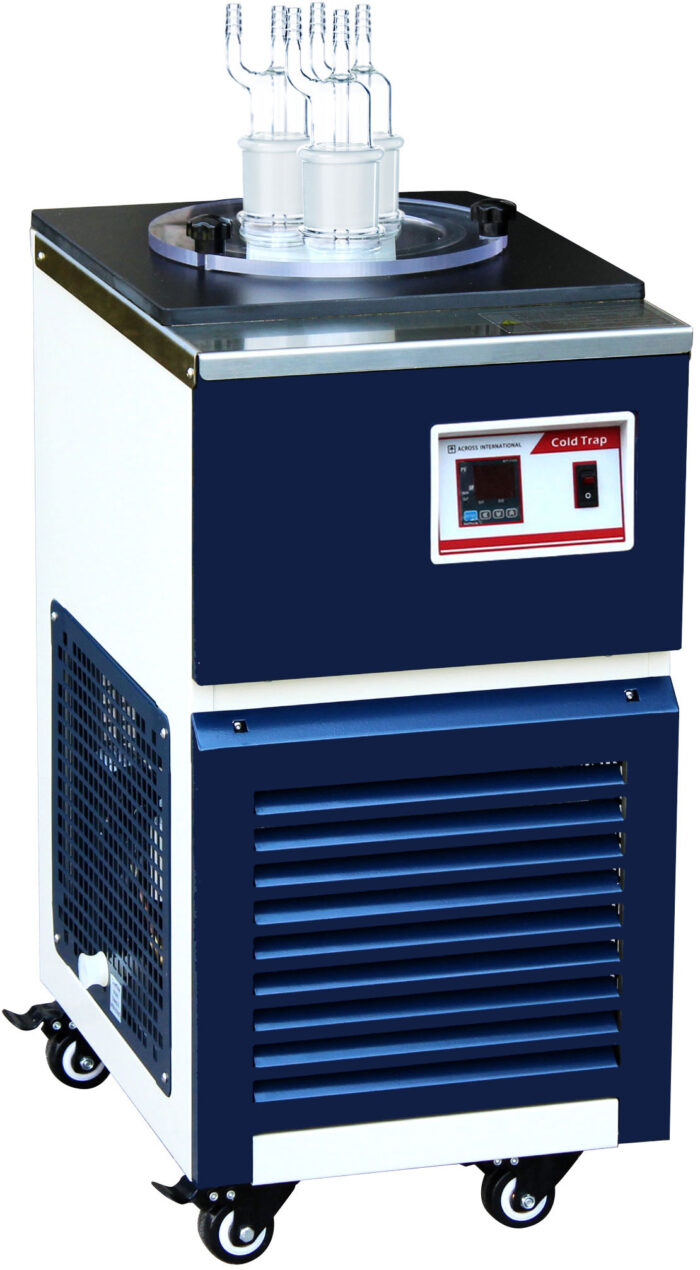

Ai -40°C 1.5L Capacity Cold Trap w/ 500ml x 3 Glass Traps ETL

$3,676.03

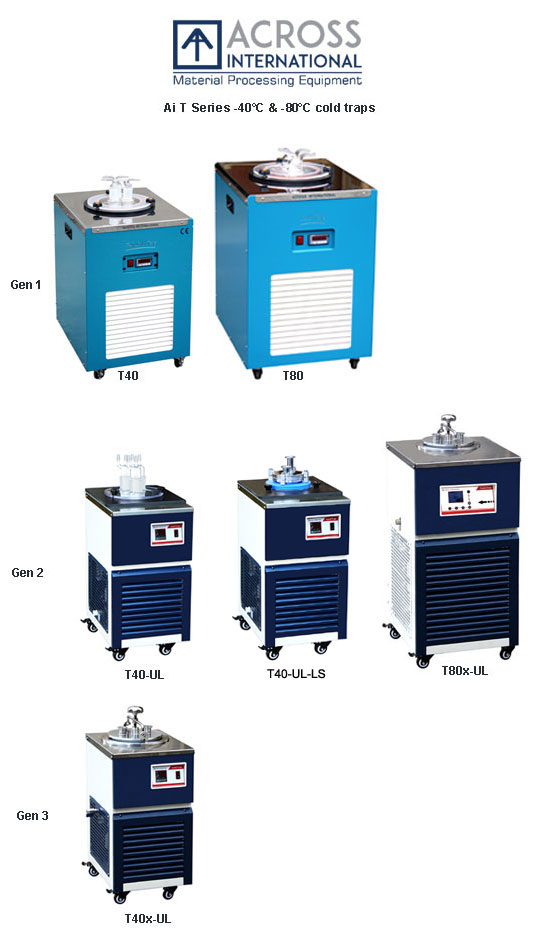

The Ai 2nd Gen -40°C/F T40 cold traps now all ETL certified. They have a much smaller footprint, but at the same time, offering you the same cooling power, 1.5X reservoir and 1.6X trap capacity. New upward hose barb ports provide you safer and easier vacuum tubing connection and removal.

SKU: 4200089 Category: Tag:

Description

 Model
 T40-UL

 Electrical requirements
 110V or 220V, 60Hz 1-PH

 Compressor
 Make: Embraco Refrigerant: R404A (220g) Cooling capacity:    @ -10°C: 300W    @ -20°C: 250W    @ -30°C: 150W    @ -40°C: 50W

 Reservoir
 Volume   1.3 gallon (5 liters) Dimensions   Diameter 6 1/4 inches   Depth: 9 1/2 inches

 Temperature
 -40°C (-40°F) Display: digital Unit: °C Sensor: Pt100

 Finish
 Exterior: powder coated steel Interior: polished type 304 stainless steel

 Trap
 Material: high borosilicate glass 3.3 Volume: 500ml Diameter: 2 inches Depth: 11 1/2 inches Quantity: three Vacuum level: lower than 500 Micron

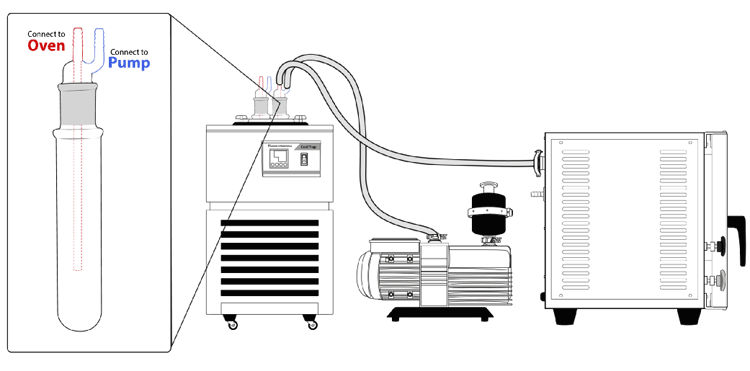

 Vacuum connection

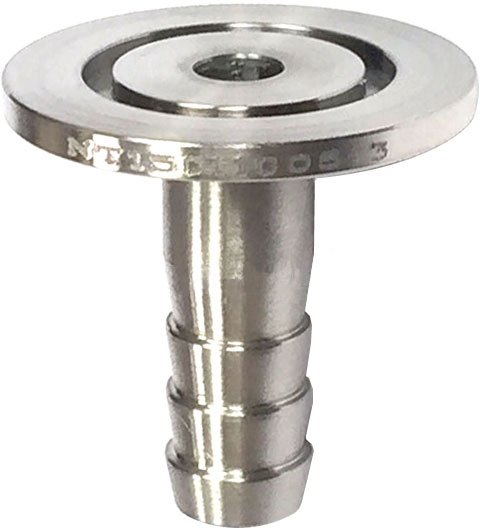

 3/8″ hose barb

 Recommended coolant
 50% Ethylene glycol 50% purified water

 Unit/shipping weight
 100 lbs / 140 lbs

 Unit/shipping dimensions
 13 x 18 x 26″ / 18 x 23 x 38″ (WxDxH)

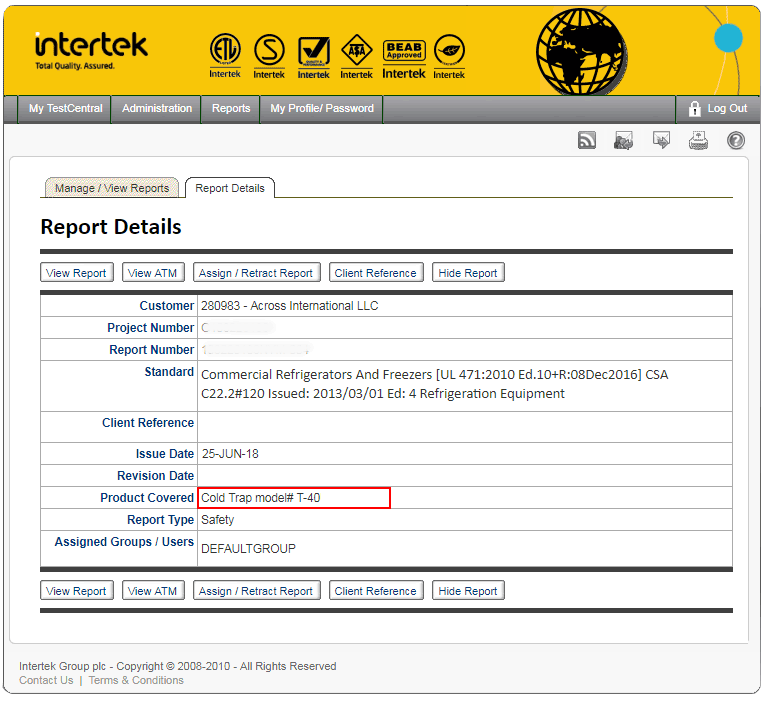

 Compliance
 UL 471:2010 Ed.10 R:08Dec2016 CSA C22.2#120 Issued: 2013/03/01 Ed: 4 Refrigeration Equipment

 Warranty
 One year
