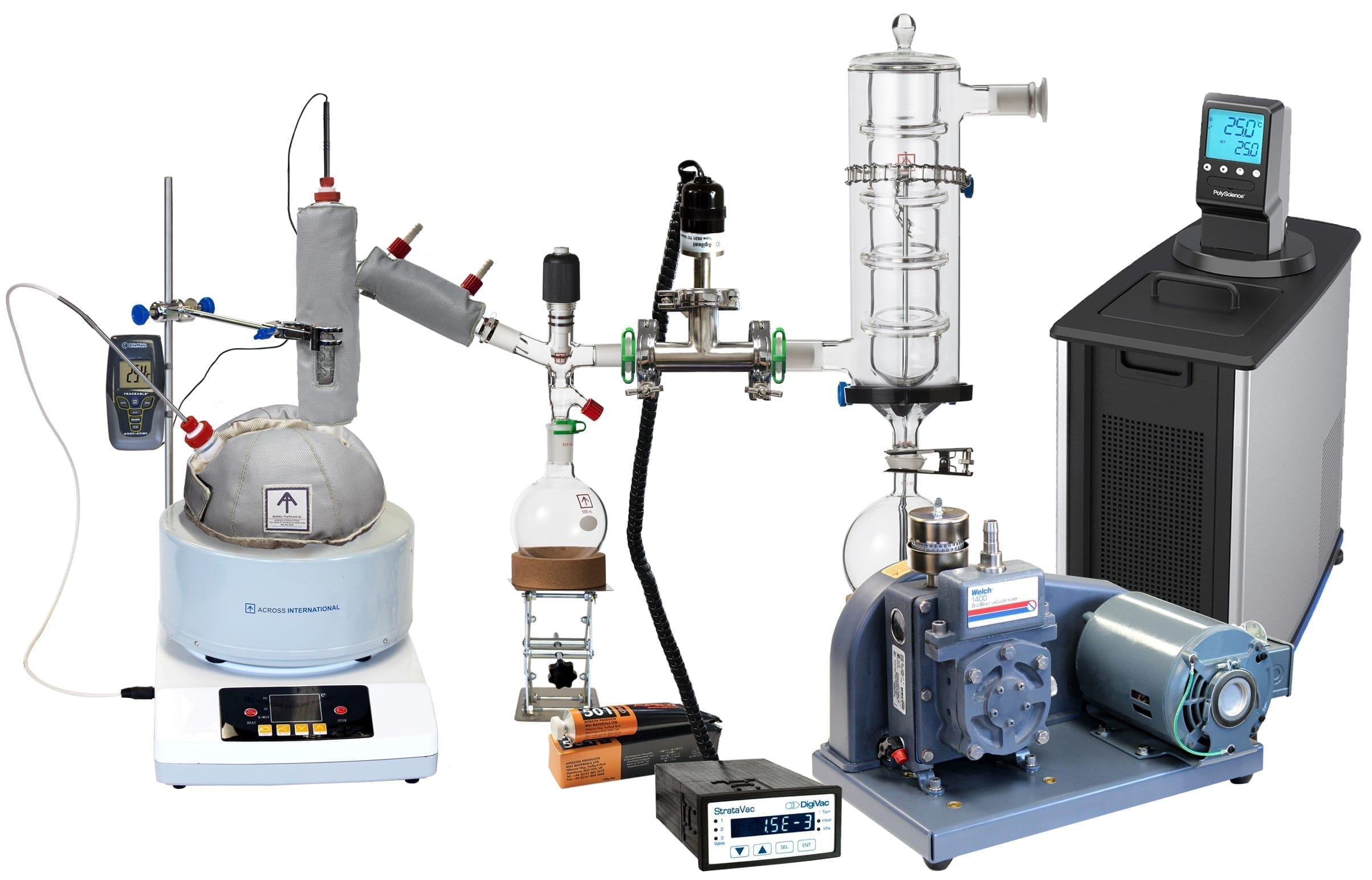

Ai 5 Liter Short Path Complete Turnkey Package

$13,532.31

Ai Clear5 short path distillation kit features

  • The DigiVac StrataVac gives you deep vacuum and high throughput, it is one of the most accurate and powerful vacuum controllers on the market.
  • Newly re-designed distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractioning and condensation of vapor with zero clogging.
  • Ai Heavy wall glassware for durability
  • Vacuum jacketed vapor channel
  • Distillation head with five sets of vigreux
  • Boiling flask to distillation port: 34/45 joint
  • Thermo port on boiling flask: 24/40 joint
  • Thermo port on distillation head: 14/20 joints
  • Glass material: high borosilicate glass 3.3
  • T1 cold traps prevent vapors being evacuated from entering a vacuum pump where they would condense and contaminate it

Warranty

One year warranty on DigiVac StrataVac, DigiM5 mantle, PolyScience MX chiller and SuperVac pump.

Glassware does not have warranties. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers.

Description

Clear5w Standard package

 Part description  Quantity
Part image
 DigiVac StrataVac vacuum regulator with digital vacuum gauge 100-240V 1 set
 Ai UL/CSA certified SuperVac 11 CFM 2-stage pump with exhaust oil mist filter – 110V 1 set
 Ai T1 2L glass vacuum cold trap with 24/40 joints (T1-2440) 1 set
 PolyScience MX -20°C to 135°C 7L capacity recirculating chiller – 110V  1 set
 Ai DigiM5 5L mantle with one 4-prong clamp – 110V 1 set
 Ai 24/40 & 34/45 joints, heavy wall, vacuum jacketed, 5L distillation head with multiple sets of vigreux, cooling channel, and a 14/20 thermo port 1 pc
 Ai 24/40 & 34/45 joints, heavy wall round bottom 2-neck flask with one vertical center neck and one angled side neck 1 pc
 PTFE 24/40 joint thermometer inlet adapter with Viton gaskets 2 pcs
 Ai 24/40 joint, pennyhead glass stopper 1 pc
 Ai 24/40 joint, round-top glass feeding funnel 1 pc
 Ai 24/40 single cow adapter with PTFE valve & viton gasket 1 pc
 Ai 24/40 joint, heavy wall 1000mL pear-shaped receiving flask 2 pcs
 Ai glass 3/8″ hose barb tee adapter 1 pc
 34/45 joint, stainless steel keck clip 1 pc
 24/40 joint, stainless steel keck clip 1 pc
 24/40 joint, plastic keck clip 3 pcs
 Cork ring stand (5L x 1, 1L x 1) 2 pcs
 6 x 6″ stainless steel lab jack (min. height 3″, max height 9.5″) 1 pc
 Ai HeadShield fabric insulation sleeve with window for 5L heads (right facing) 1 pc
 Ai DrainShield cooling channel fabric insulation sleeve for 5L heads 1 pc
 Ai DomeShield 800C rated fabric insulating top for 5L flasks 1 pc
 PTFE 24/40 to KF25 flange adapter with viton r-ring 3 pcs
 KF25 3-way tee flange 1 pc
 3/8″ silicone chilling tubing 10 ft
 KF25 flexible stainless steel bellow 3.3 ft 1 pc
 KF25 quick clamp and centering ring 5 sets

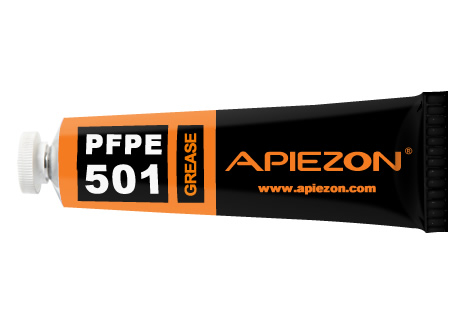

 Apiezon PFPE 501 high temp vacuum grease 1 pc
 Traceable Kangaroo digital thermometer 1 pc

Additional information

Weight 200 lbs
Dimensions 48 × 48 × 48 in
