Description
Electrical requirements
110V 50/60Hz single phase, 2300 watts (rotation motor: 300 watts)
Glass material
High borosilicate glass 3.3
Evaporating flask
Capacity: 1.32 gallon (5 liters) Maximum load: Not to exceed 60% of the flask’s capacity Sealing flange: 2″ diameter Rotation speed: 10 to 140 rpm Evaporating speed: 0.5 gallon/hour (water), 1 gallon/hour (alcohol)
Receiving flask
0.79 gallon (3 liter)

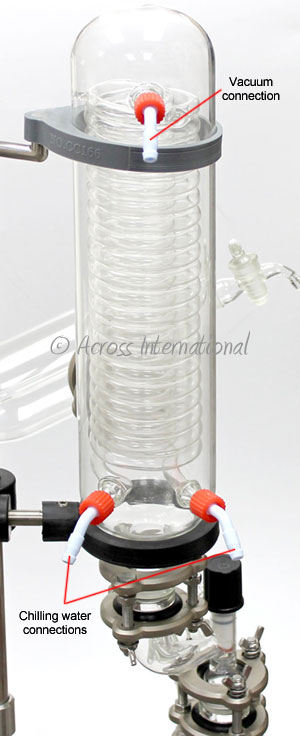

Condenser
Glassware: Dual-circulating coils, vertical Chilling fluid connection: 3/8″ hose barb x 2 Condensing surface: 2,780 cm2 or 3 sq ft
Working environment
5 to 95°F
Water bath
Temperature range: ambient to 99°C (210°F) Temperature controller: digital Dimensions: 11.4″ diameter x 6.7″ depth x 9″ height Material: stainless steel Media: distilled water only Max. water level: not to exceed 1″ from the top rim of the bath Number of heaters: one Drain port: one Exterior liner: rubber Lifting: motoriezed Maximum lifting distance: 4 inches
Vacuum
Level: < 3 torr Sealing: PTFE Viton gaskets Connector: 3/8″ hose barb x 1
Safety
Dry-run, over-temp shut-off, built-in circuit breakers
5L SolventVap
Shipping weight: 105 Lb (evaporator), 57 Lb (glassware) Unit/shipping size: 30 x 15.7 x 42″ / 29 x 17 x 35″ (evaporator), 22 x 22 x 22″ (glassware) (WxDxH)
Certification
ETL tested to UL and CSA standards
