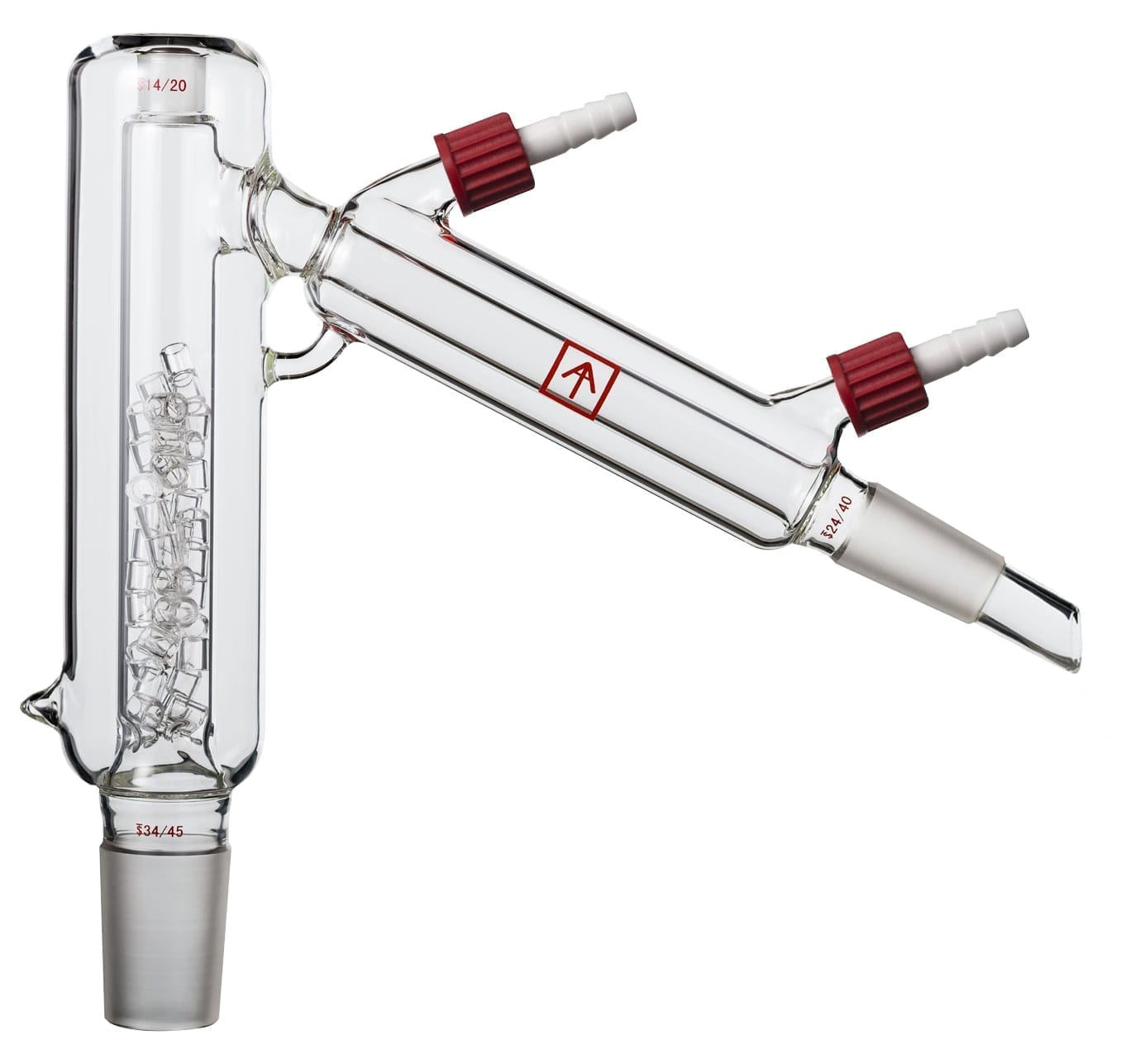

Ai C5 Packable Short Path Distillation Head w/ Packing Media


The Ai heavy wall C5 packable short path distillation head with vacuum jacket offers you a lot of new changes over its previous version.



  • One set of vigeaux to allow for packing media
  • Larger vacuum jacket means less heat loss during distillation
  • Increased internal diameter throughout the whole head for more efficient fractioning and condensation of vapor with zero clogging
  • Fine-grinded joints gives you higher ultimate vacuum level
  • Heavy wall for durability
  • Boiling flask port: 34/45 joint
  • Distribution port: 24/40 joint
  • Thermo probe port: 14/20 joint
  • Recirculating fluid port: GL-16
  • Glass material: high borosilicate glass 3.3
  • 8 x 8 mm Raschig ring packable media included

Glassware does not have warranties. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers.

Additional information

Weight 20 lbs
Dimensions 24 × 24 × 12 in
