Description
Model
D27
Electrical requirements
110V (±10%) 60Hz 1-Phase, 1,320W 12A
Performance
Temperature range: -20°C to -40°C Time to reach -40°C: 4 hours
Compressor
Make: SECOP Number of compressor: two Style: parallel Refrigerant: R507
Chamber
Dimensions: 36.5 x 27.5 x 51″ Material: 304 stainless steel Capacity: 27.1 Cu Ft

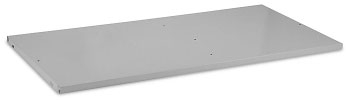

Shelf

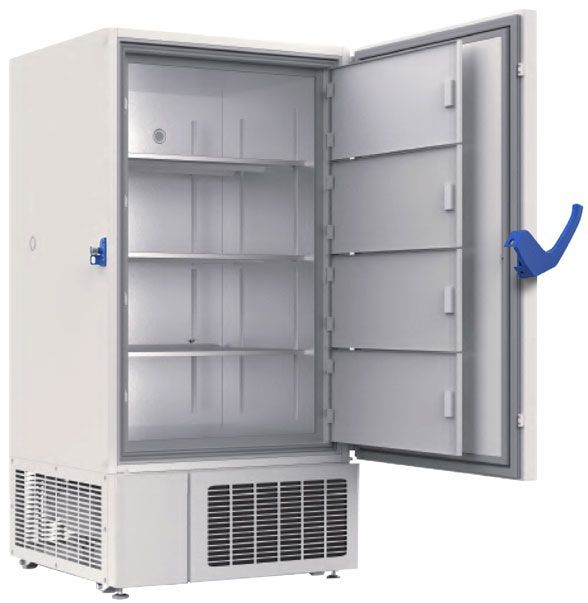

Come with unit: three adjustable shelves (4 compartments) Material: 304 stainless steel Capacity: 110 Lbs on three shelves, evenly distributed 450 Lbs on the base of the chamber, evenly distributed Dimensions: 33 x 26 inches (compatible with G27) Additional shelf unit price: $150

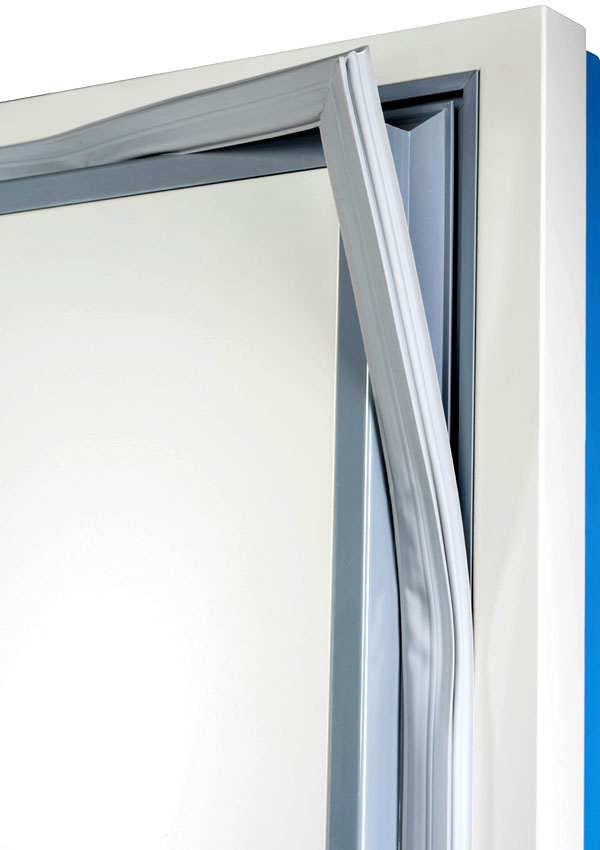

Door and gasket

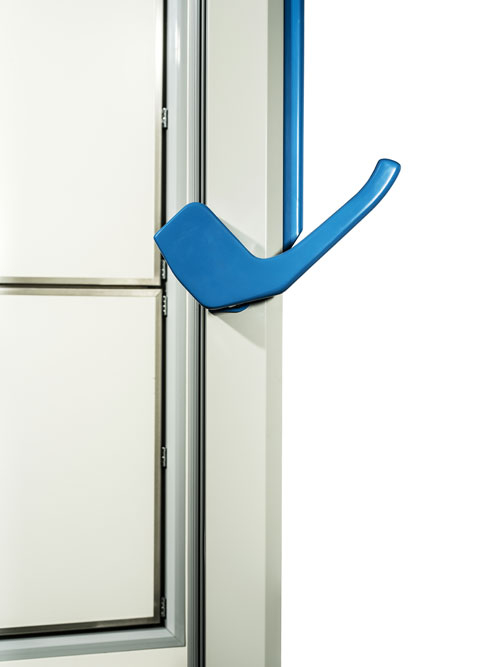

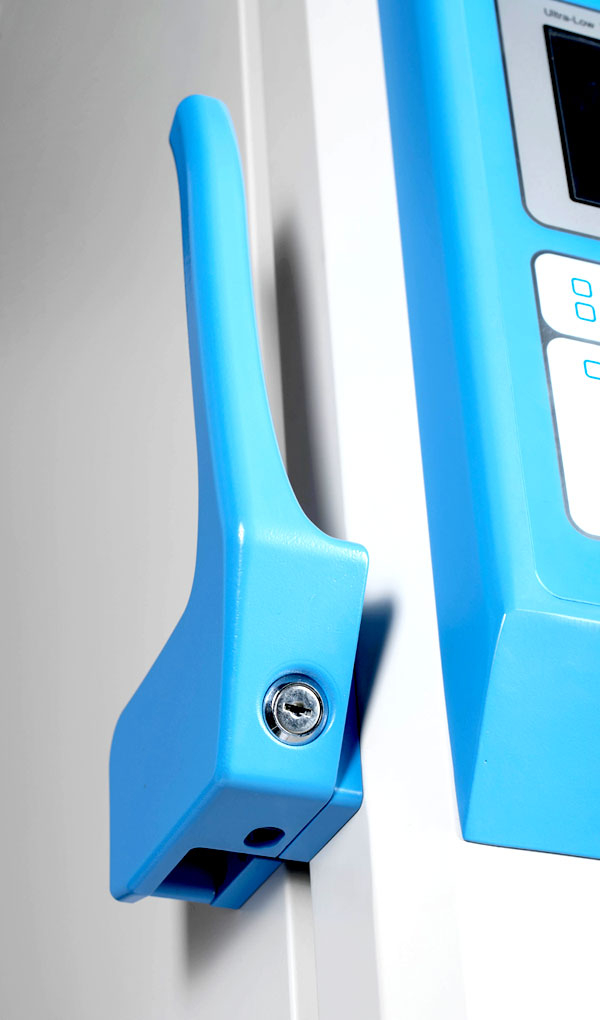

Inner door: four, each with one sealing gasket External door: one with dual sealing gasket, lock-able
Working environment
– Temperature: 16°C to 32°C – Humidity: <80% Rh - Altitude: < 2000 m / 6561 Ft - Stable, well-ventilated platform with no excessive dust - Keep freezer at least 12 inches from any walls or ceiling - Use dedicated power, do not share outlet - Extension power cable should be less than 10 feet is required - Freezer and power outlet should be grounded properly - Avoid direct sunlight, water spill and do NOT use freezer outdoor - Clean condenser fins and remove frost inside chamber at least once a month - Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
Battery backup system
72 hours (for controller display and alarms only)

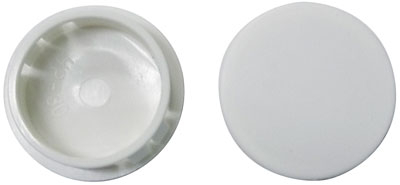

Access port
Two, one on the side and one in the back, one inch diameter
Communication

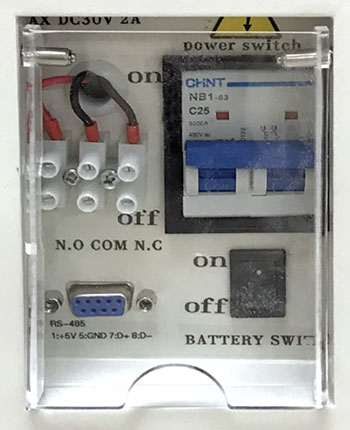

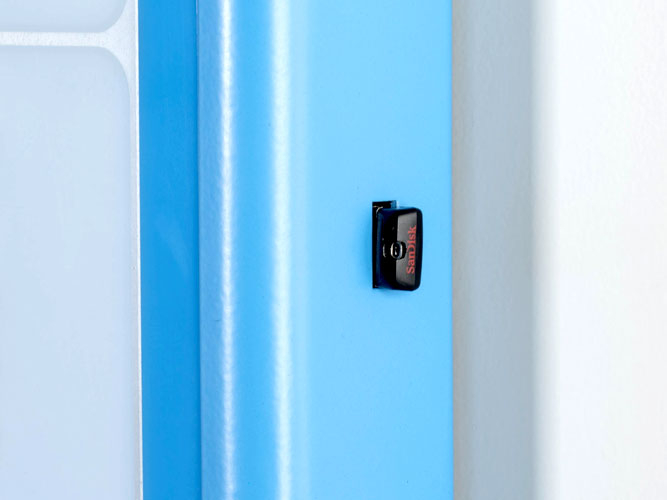

Remote alarm 4-20mA transmitter, USB, RS-485
Built-in swivel casters
Four, with two leveling feet
Noise level
52 dBA
Unit/shipping weight & dimensions
635 Lbs / 866 Lbs 47.5 x 41.5 x 77.5" / 51 x 46 x 85" (WxDxH)
Safety

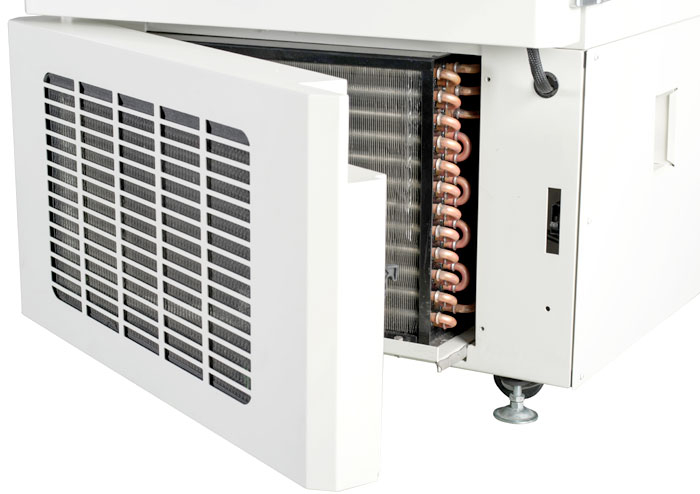

Compressor over-temp protection Compressor power surge delay protection Power failure protection Low battery, door open, filter clogging, system failure alarms External door with lock
Warranty
One year
