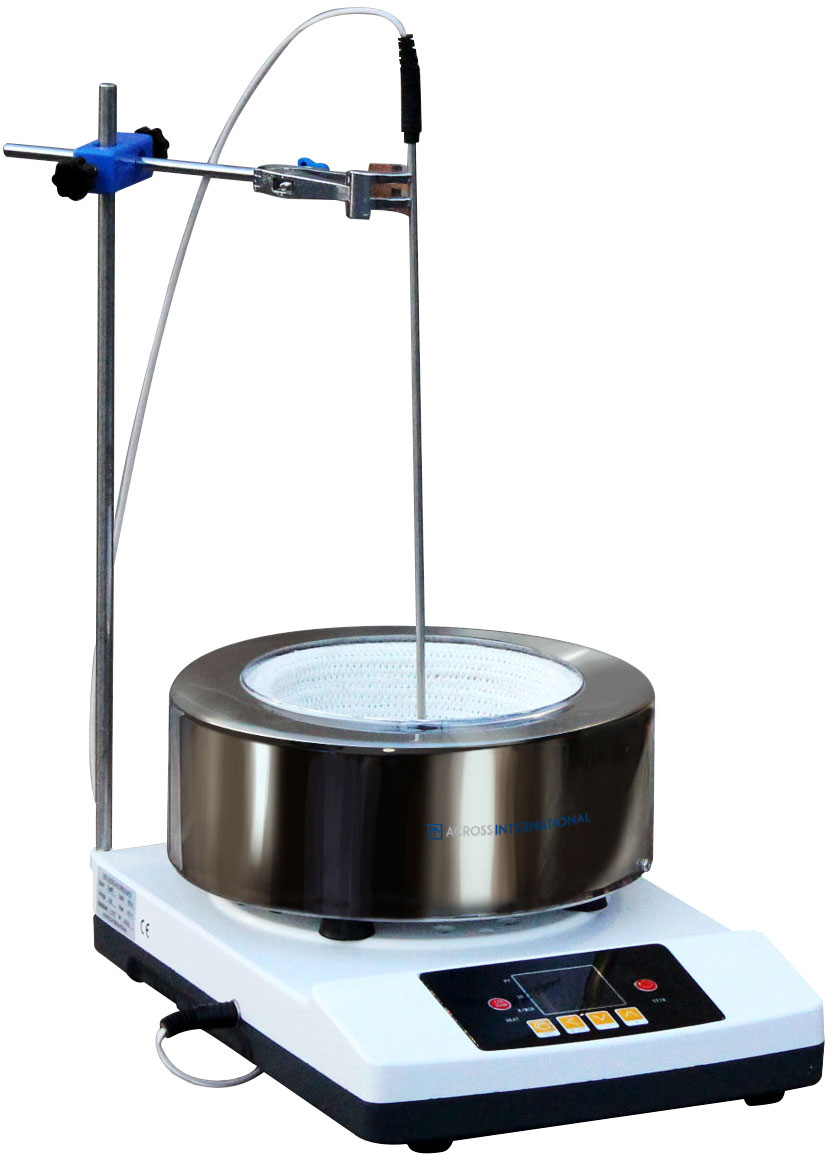

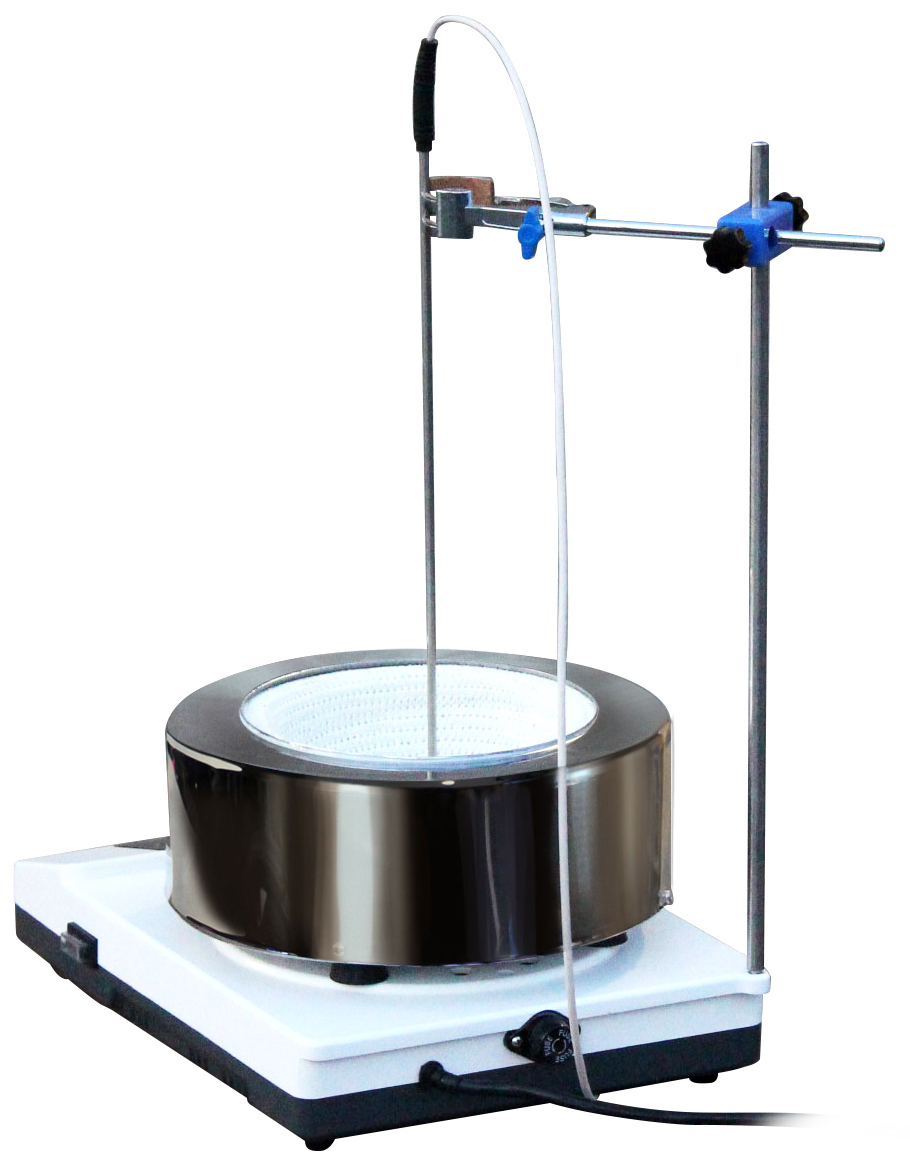

Ai DigiM 2L 300°C 1500 RPM PID Controlled Digital Heating Mantle

$935.27

Across International heating and stirring mantles come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.

SKU: 4200523 Category: Tag:

Description

 Model
 DigiM2

 Electrical requirements
 110V 60Hz 1-Phase, 700 watts, 8A or  220V 50/60Hz 1-Phase, 700 watts, 4A

 Heating
 Ambient to 300°C

 Stirring
 Min. speed: 110 rpm, max. speed: 1500 rpm Motor power: 40 watts Motor type: brushless DC motor

 Controller
 PID control with digital temperature and rotation speed display

 External thermocouple
 Type: PT100 Cable length: 40 inches Stainless steel probe length: 9 inches Stainless steel probe diameter: 5 mm

 Flask holder
 Maximum flask capacity: 2 liters  Top opening diameter: 6.5 inches Depth: 4 inches

 Dimensions (WxDxH)
 Unit: 11 x 16 x 8.5 inches, shipping: 20 x 14 x 13 inches

 Weight
 Unit: 14 lbs, shipping: 25 lbs

 Safety
 Thermocouple failure protection

 Certification
 ETL tested to UL and CSA standards (optional), CE (standard)

 Warranty
 One year
