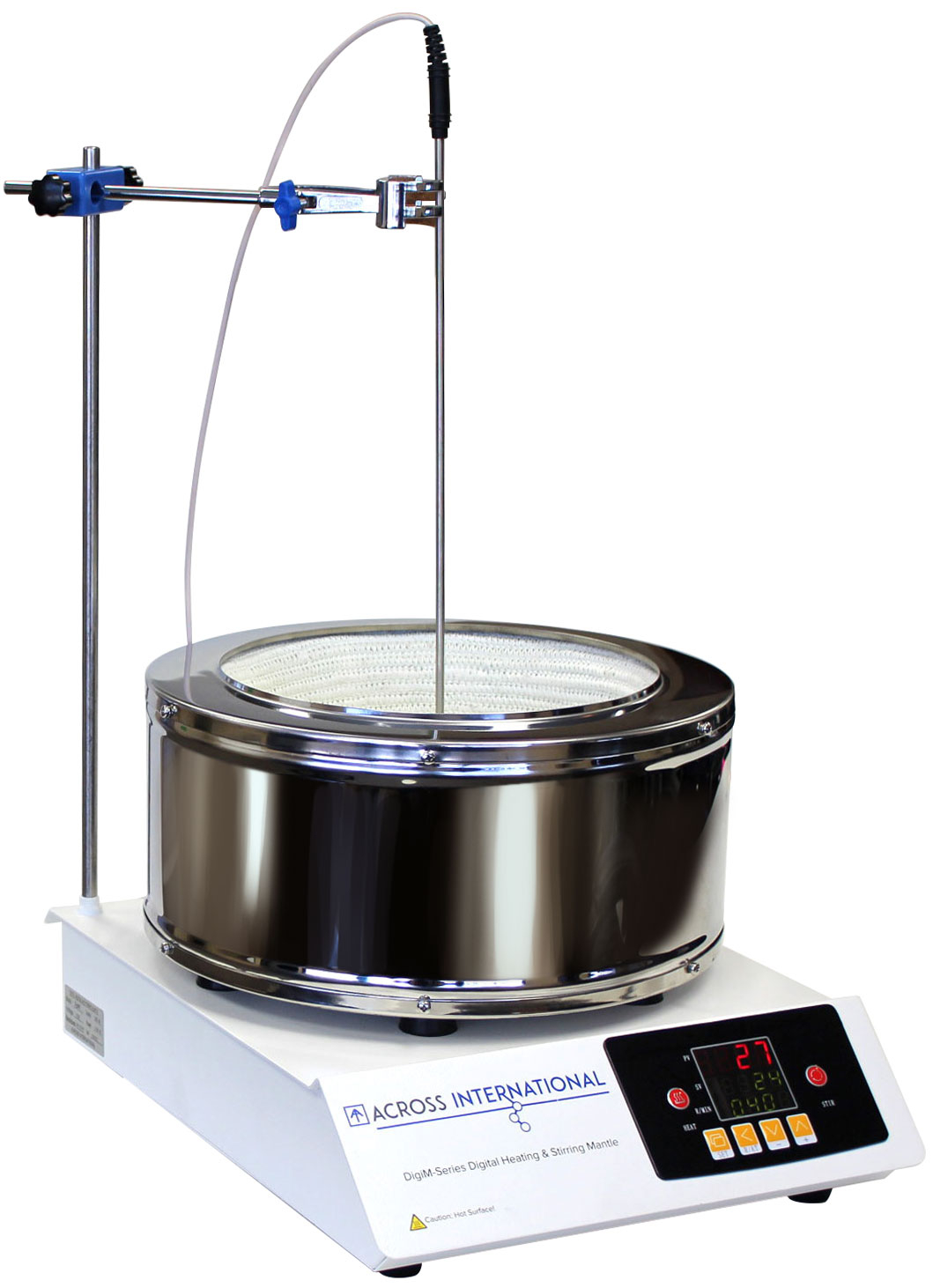

Ai DigiM 5L 300°C 2000 RPM PID Controlled Digital Heating Mantle


Across International heating and stirring mantles come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.

SKU: 4200524 Category: Tag:



 Electrical requirements
 110V 60Hz 1-Phase, 1100 watts, 12A or 220V 50/60Hz 1-Phase, 1100 watts, 6A

 Ambient to 300°C

 Min. speed: 110 rpm, max. speed: 2000 rpm Motor power: 40 watts Motor type: brushless DC motor

 PID control with digital temperature and rotation speed display

 External thermocouple
 Type: PT100 Cable length: 43 inches Stainless steel probe length: 15 inches Stainless steel probe diameter: 5 mm

 Flask holder
 Maximum flask capacity: 5 liters  Top opening diameter: 9 inches Depth: 5.5 inches

 Dimensions (WxDxH)
 Unit: 13.5 x 17 x 10 inches, shipping: 20 x 16 x 15 inches

 Unit: 22 lbs, shipping: 32 lbs

 Thermocouple failure protection

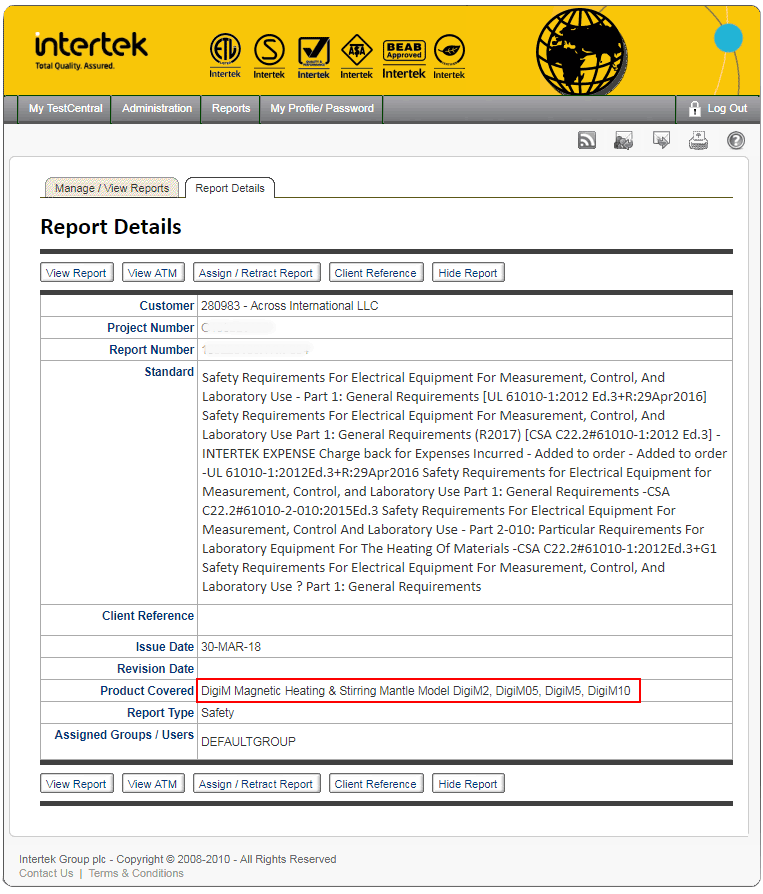

 ETL tested to UL and CSA standards (optional), CE (standard)

 One year
