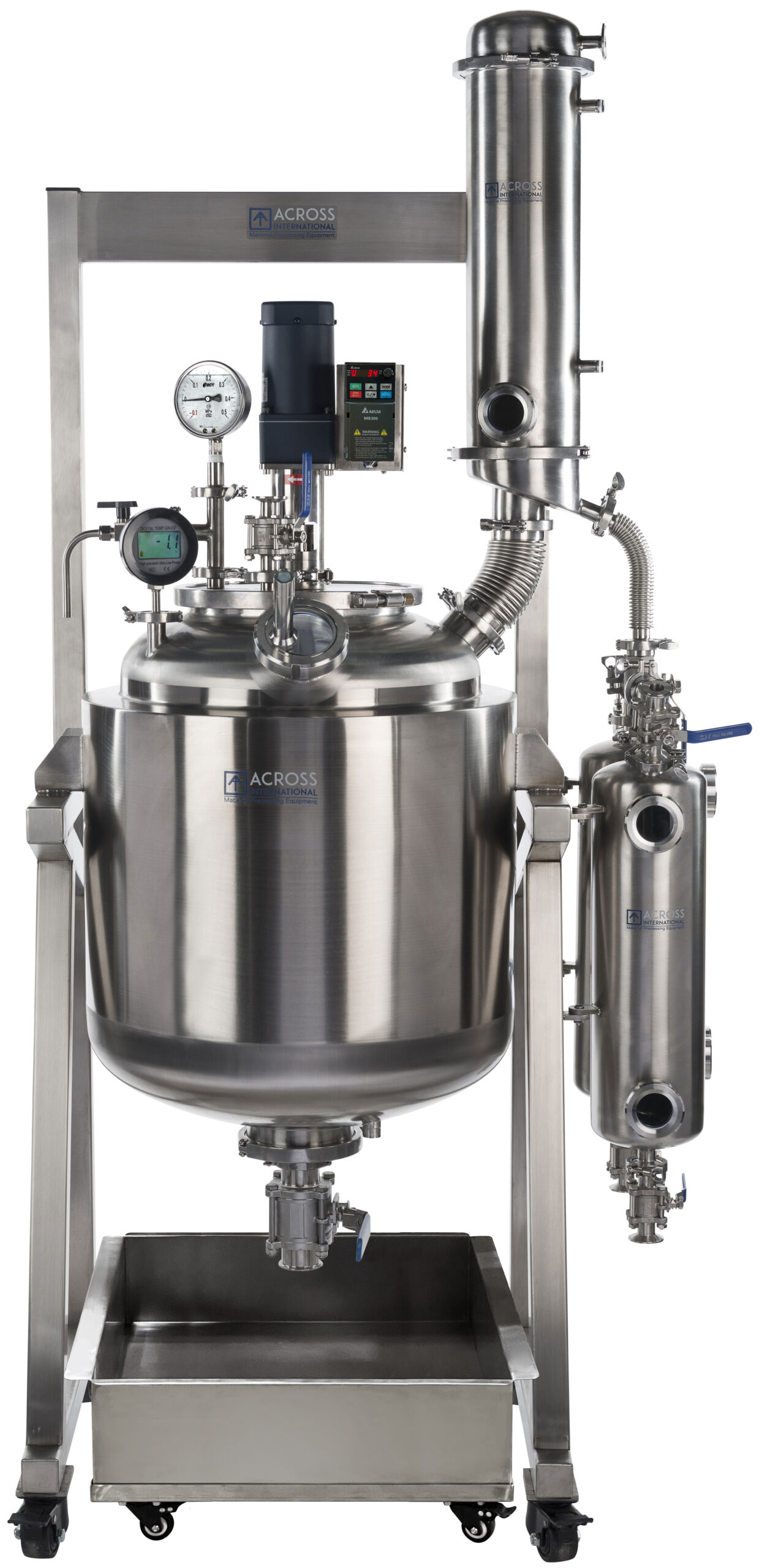

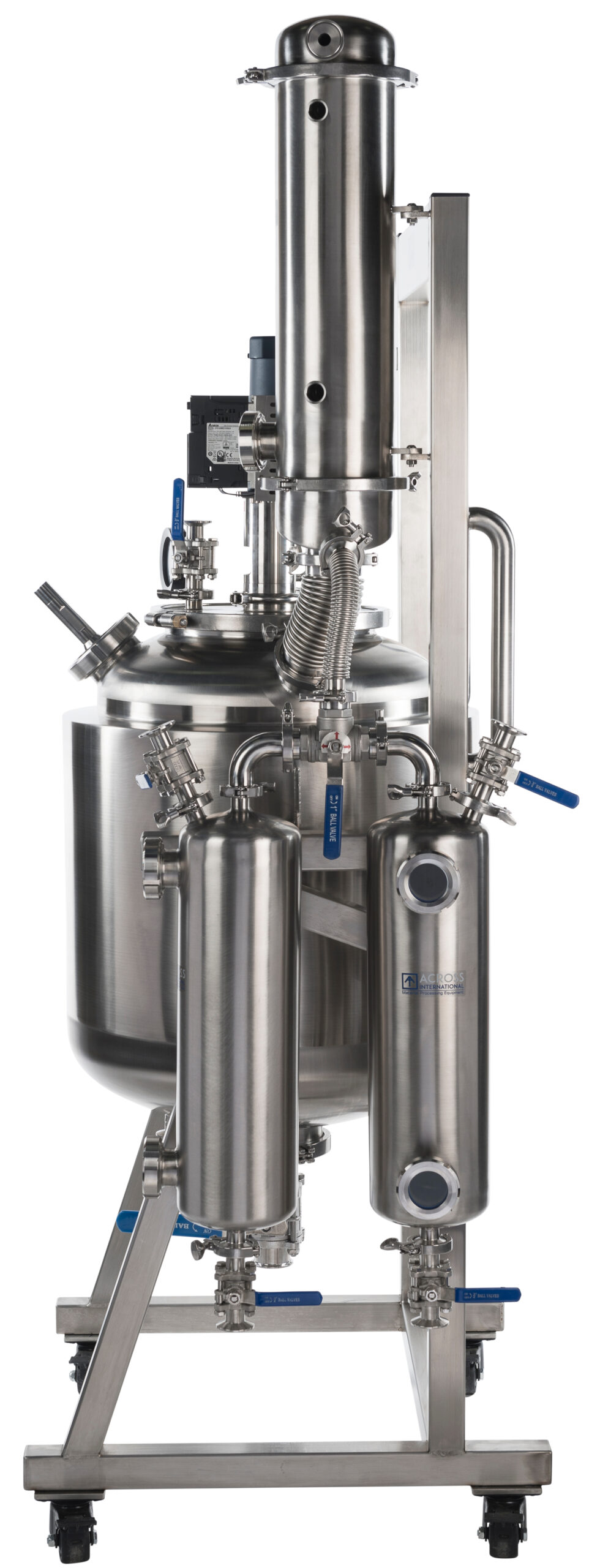

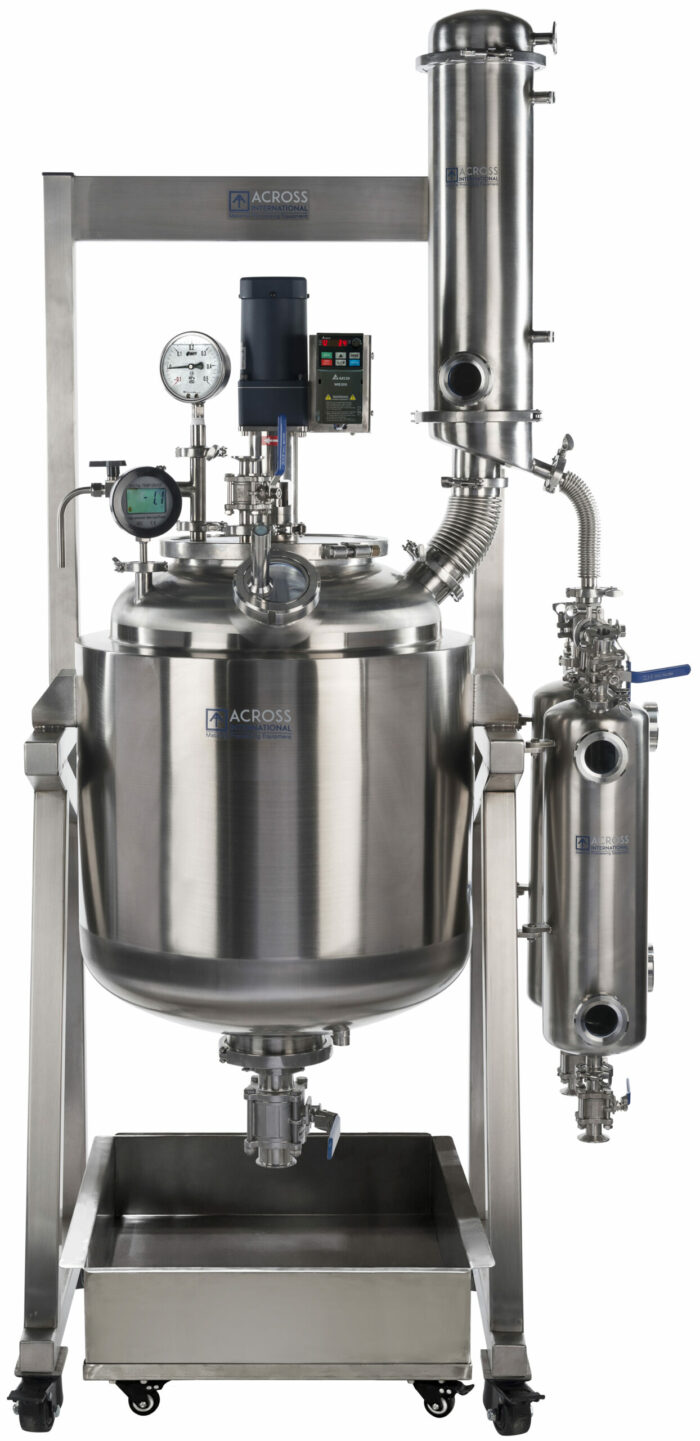

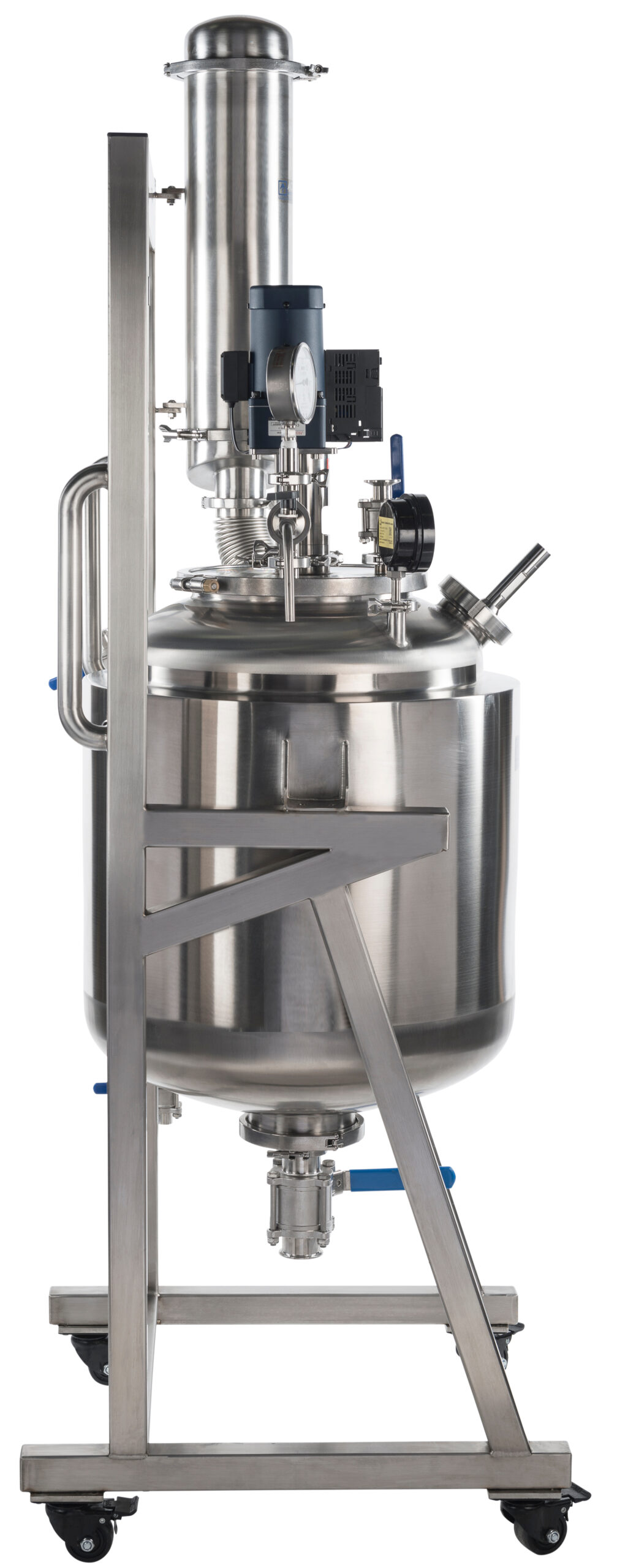

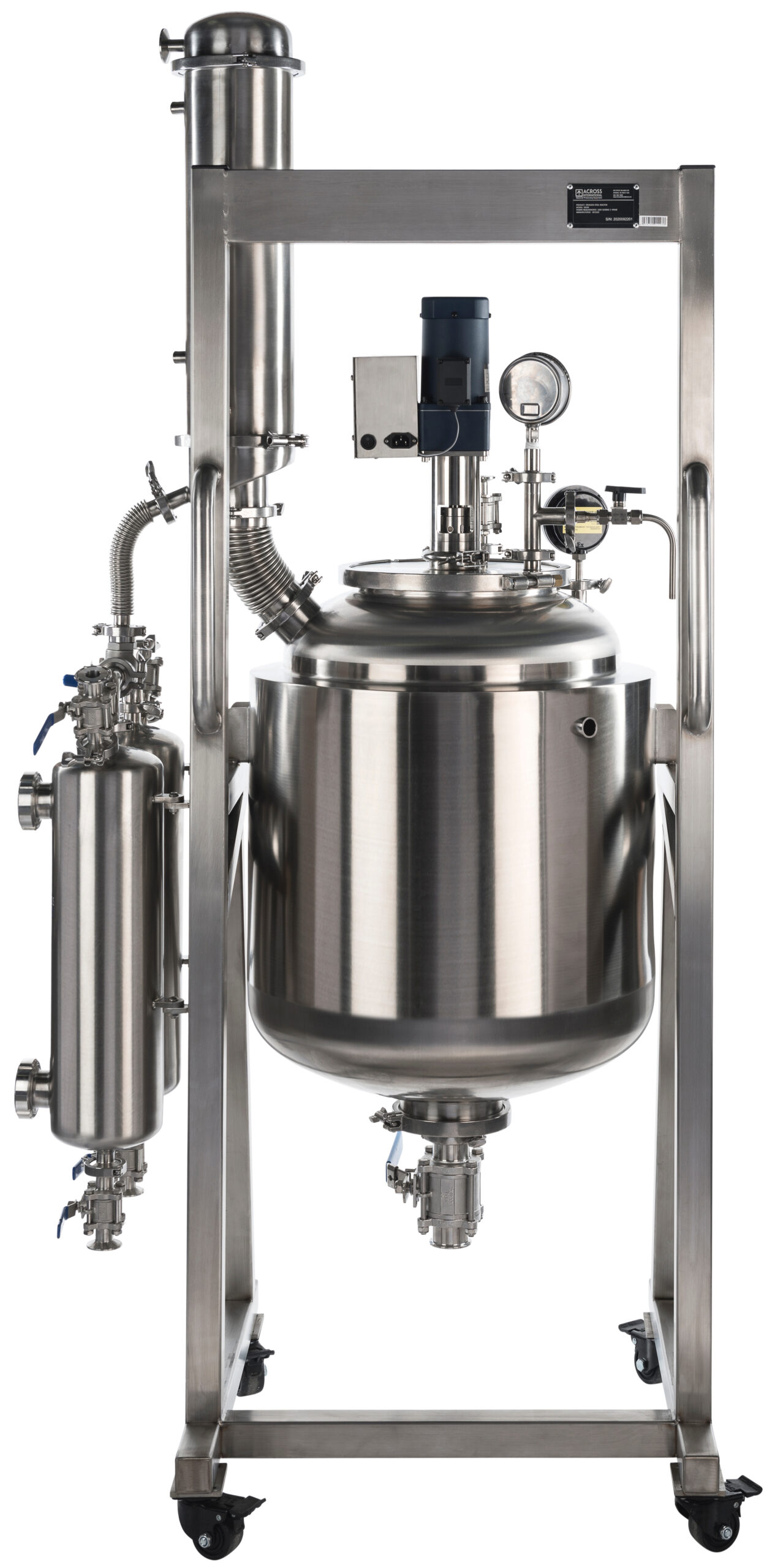

Ai Dual-Jacketed 100L 316L-Grade Stainless Steel Reactor


Peer review model lead time: 4 weeks

SKU: 4200790 Category: Tag:



 Electric stirring motor
 220V, 50/60Hz, 1~Phase, 200 watts, 1/4 HP Rotation: 450 rpm max. (±8%) Starting torque: 3.0 N.m Rated toruqe: 1.54 N.m Built-in gearbox ratio: 3:1 to 180:1 Controller: Delta, UL listed

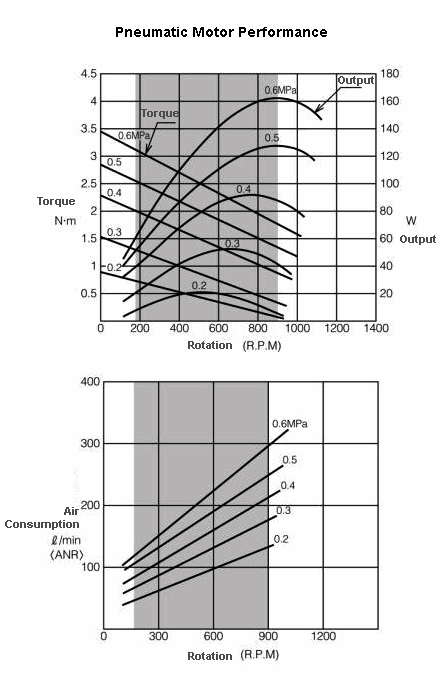

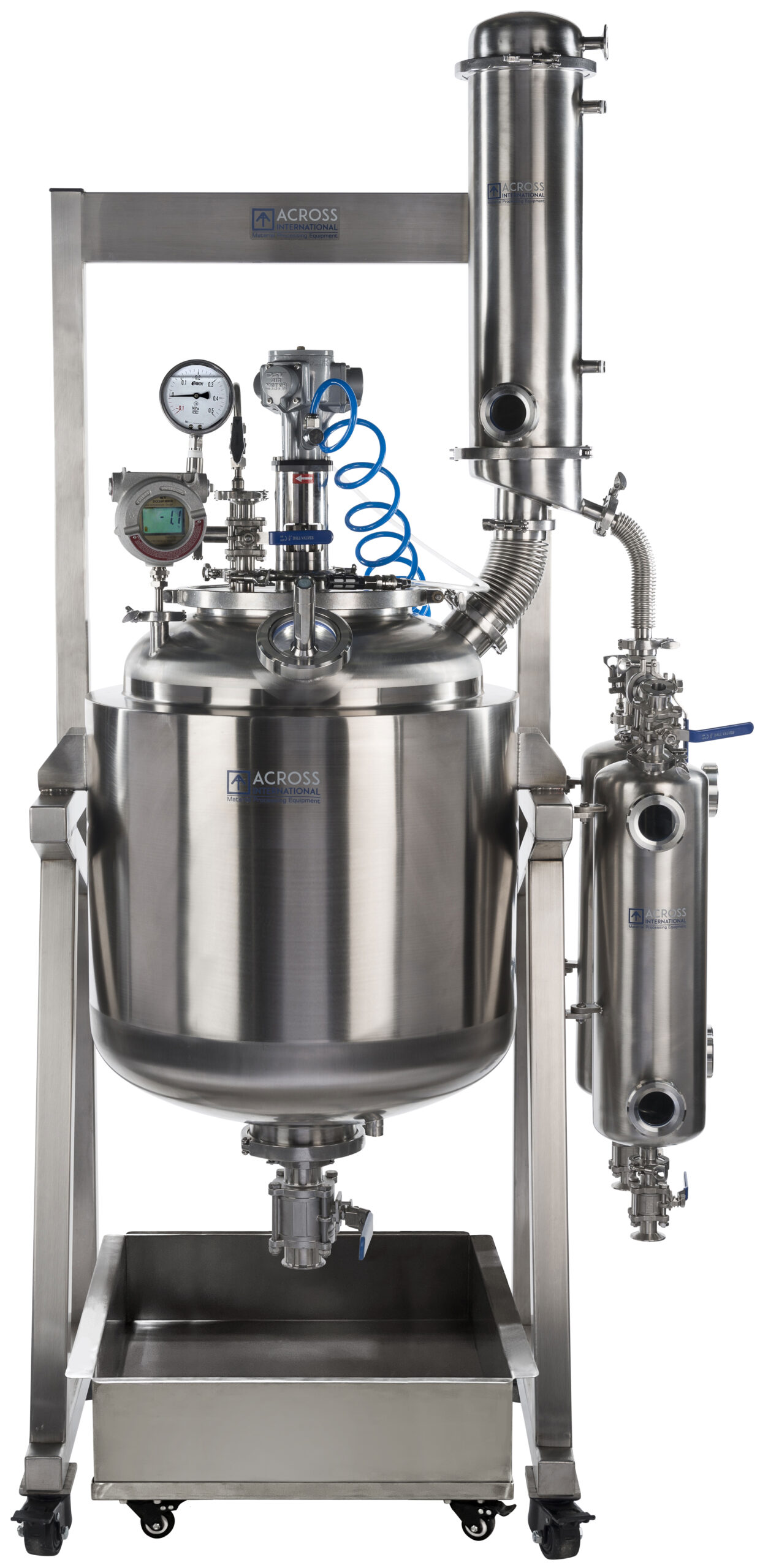

 Pneumatic stirring motor
 – Power: 1/4 HP – Rotation: 450 rpm max. (±8%) – Compressed air pressure range: 30 to 80 psi (0.2 to 0.55 MPa) – Working temperature: -10C to 70C  – For constant use: set rpm to 80% of maximum rpm  – Motor lubricant

Daphne Eponex EP-No. 1
Check/replenish/replace every 500 hours

 – Air lubricant

Type: JIS K2213-1 (ISOVG32)
Recommended products: Shell Vitrea Oil 32, JOMO Turbine 32, COSMO Turbine 32
Speed: 2-3 drops per minute

 – For safety purpose, detach compressed air supply when not in use, left un-attended or at night  – Do not run motor un-loaded  – Set Air Adjuster to minimum at initial run, make sure motor is working properly, before increasing CFM  – Before inspecting unit, stop the motor and detach air supply. Do NOT inspect unit when motor is in action.  – Make sure exhaust port/hole is clear from any debris or blockage  – Check every 2-3 days: Air Lubricant, Air Filter water drain

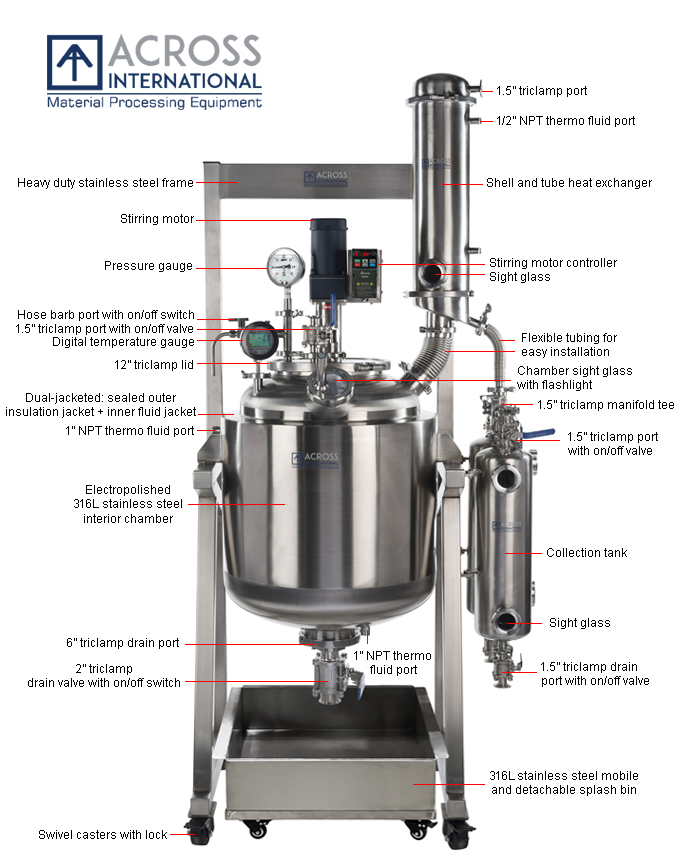

 Port configuration

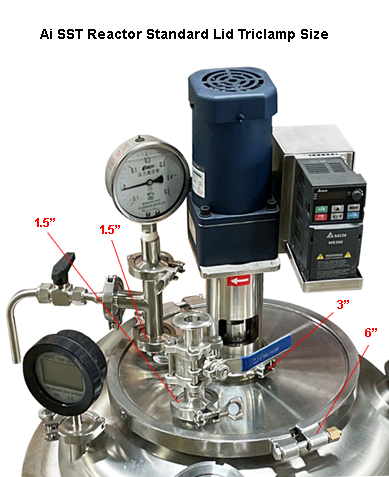

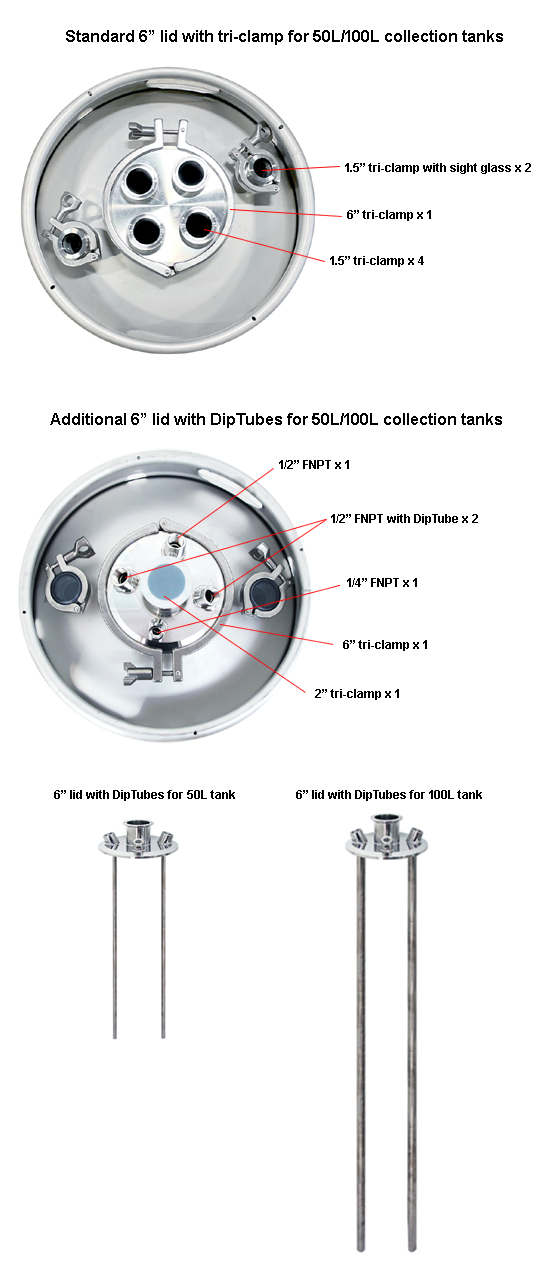

 Lid: 6″ triclamp Center motor port: 3″ triclamp Drain port: 6″ triclamp Drain port on/off valve: 2″ triclamp Vacuum port: 1.5″ triclamp Condenser recirculating fluid port: 1/2″ female NPT Vessel jacket recirculating fluid ports: 1″ female NPT 50L/100L collection tanks   * Standard lid: 6″ tri-clamp, with 1.5″ tri-clamp x 4   * Additional lid: 6″ tri-clamp, with 1/2″ FNPT with DipTube x 2, 1/2″  FNPT x 1, 1/4″ FNPT x 1, 2″ tri-clamp x 1   * Top of tank: 1.5″ tri-clamp with sight glass x 2   * Drain port: 1.5″ tri-clamp

 Main vessel
 Volume: 100L Minimum fill volume: 25L Material: 316L grade stainless steel Interior finish: ElectroPolished

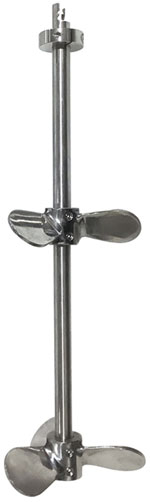

 Structure: propeller, 3-blade, dual-layer (standard) Style: quick-change Material: 316L grade stainless steel Detachable length: 20 inches

 Center fluid jacket
 Volume: 22L Material: 304 grade stainless steel

 Outer insulation jacket
 Insulation material: perlite, 2″, sealed Housing material: 304 grade stainless steel

 Collection tank

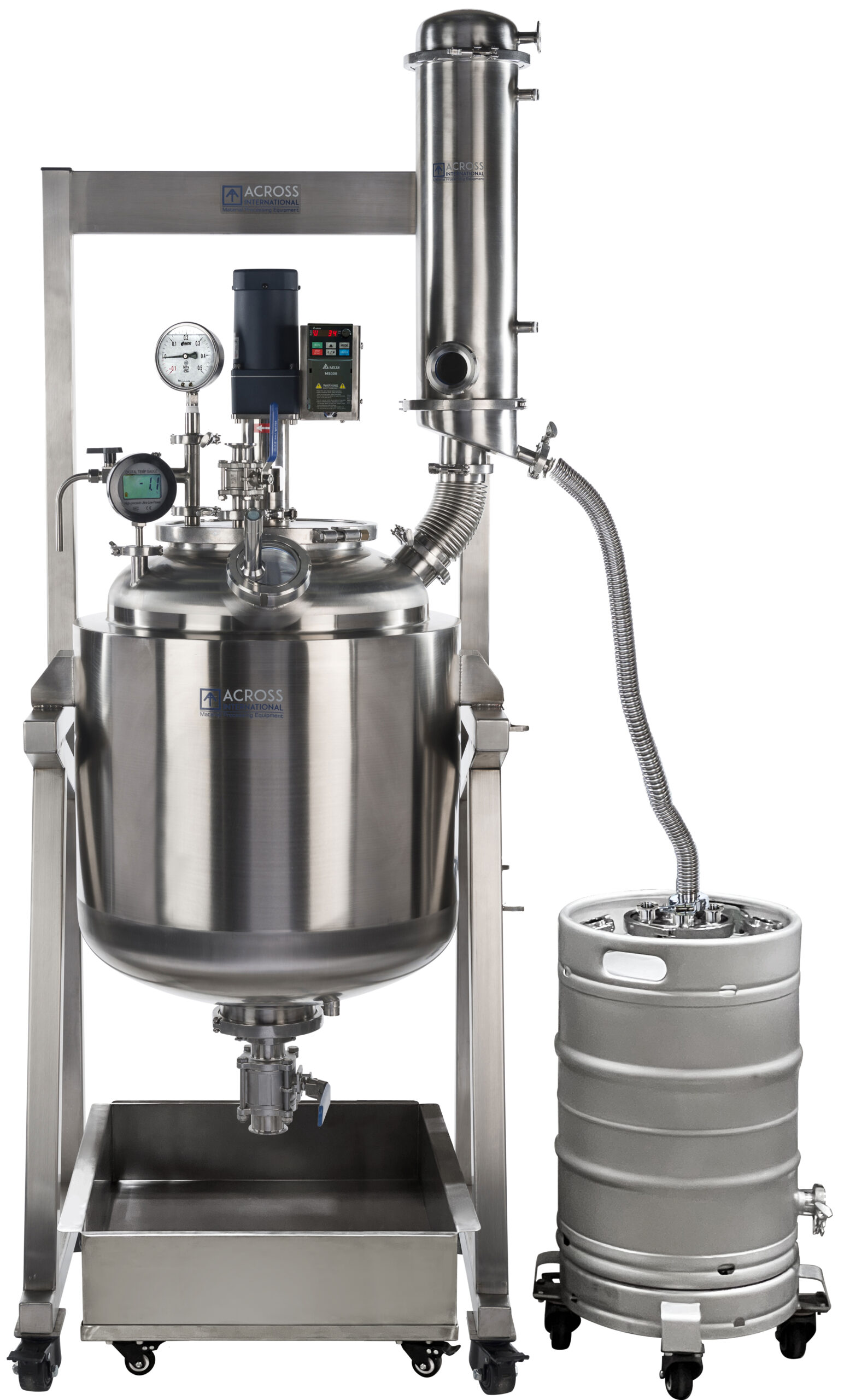

 Option 1: 10L x 2, 316L stainless steel, with manifold Option 2: 50L x 1, 304 stainless steel, with dolly (15.5″ diameter, 23.5″ height, 30″ with dolly) Option 3: 100L x 1, 304 stainless steel, with dolly (15.5″ diameter, 43″ height, 49.5″ with dolly)

 All wetted parts 316L grade stainless steel on main reactor body Rest of reactor in 304 grade stainless steel

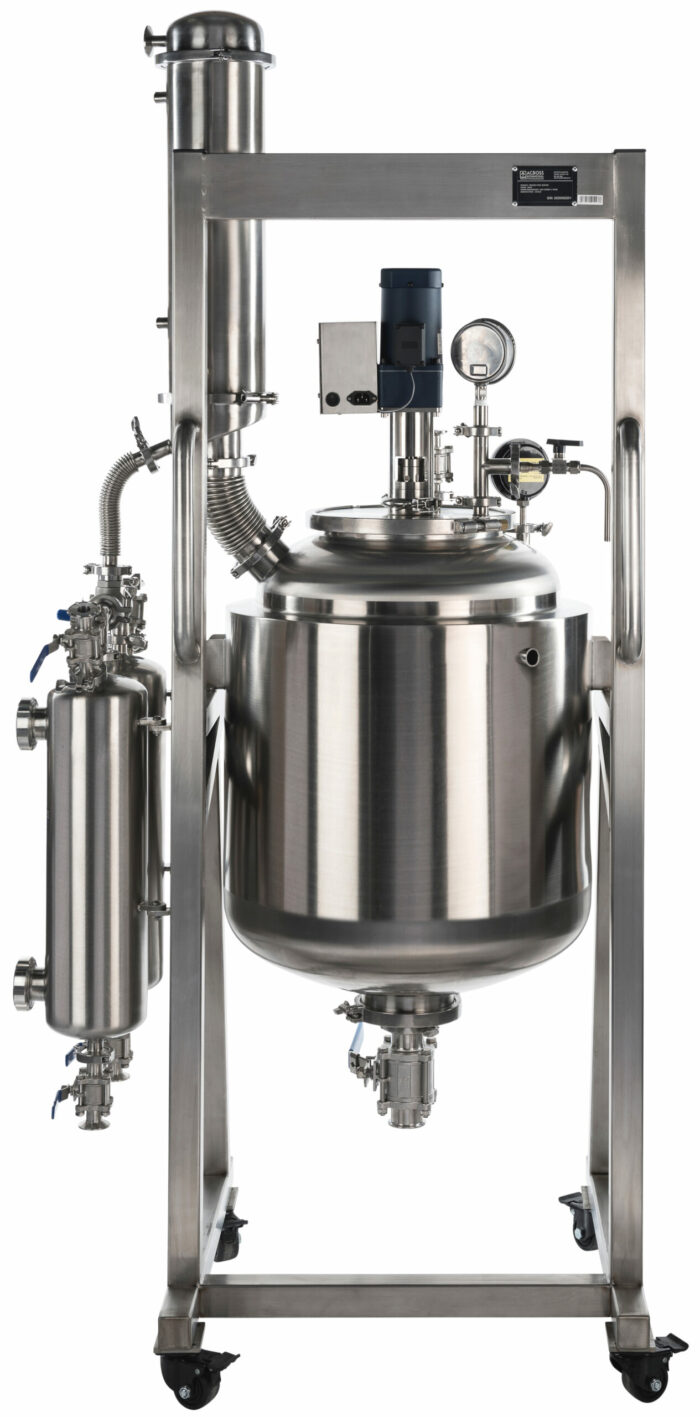

 Main Condenser

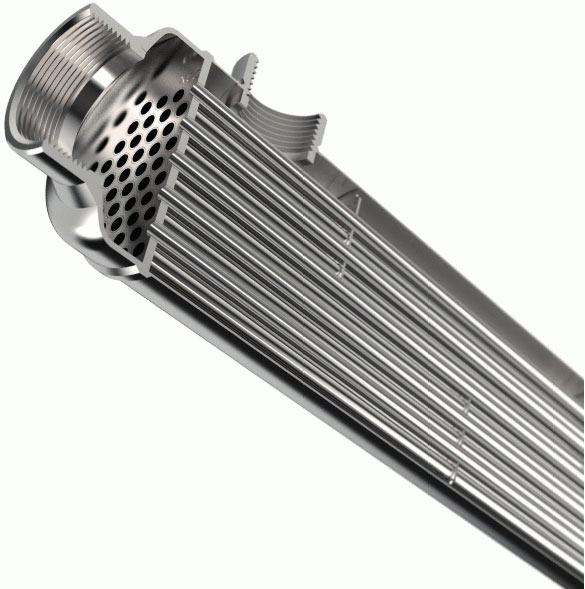

 Style: shell and tube heat exchanger Number of tubes: 70 Condensing area: 0.89 m2


 Ultimate vacuum level: 1 Torr Maximum positive pressure (C1D1 peer reviewed to 15 psi)

Main vessel: 70 psi
Fluid jacket: 40 psi

 Temperature range

 -55°C to 250°C (-67°F to 482°F)

 Temperature sensor/display

 Regular: BOOST.TTA.0101, -200C to 480C, 50.5 clamp Explosion proof: BOOST.TTA.0102, -200C to 480C, 50.5 clamp

 Sealing gasket

 Food grade Viton

 Main Mounting Frame
 Heavy duty 2 x 2″ 304 grade stainless steel, mounted on four casters

 Drain port ground clearance
 Drain port: 19.5 inches Drain valve: 14 inches

 Unit/shipping weight
 255 Lbs / 350 Lbs

 Unit/shipping dimensions

Full assembly – 39x29x80 (WxDxH)
Without condenser and collection flasks – 31x29x72 (WxDxH)

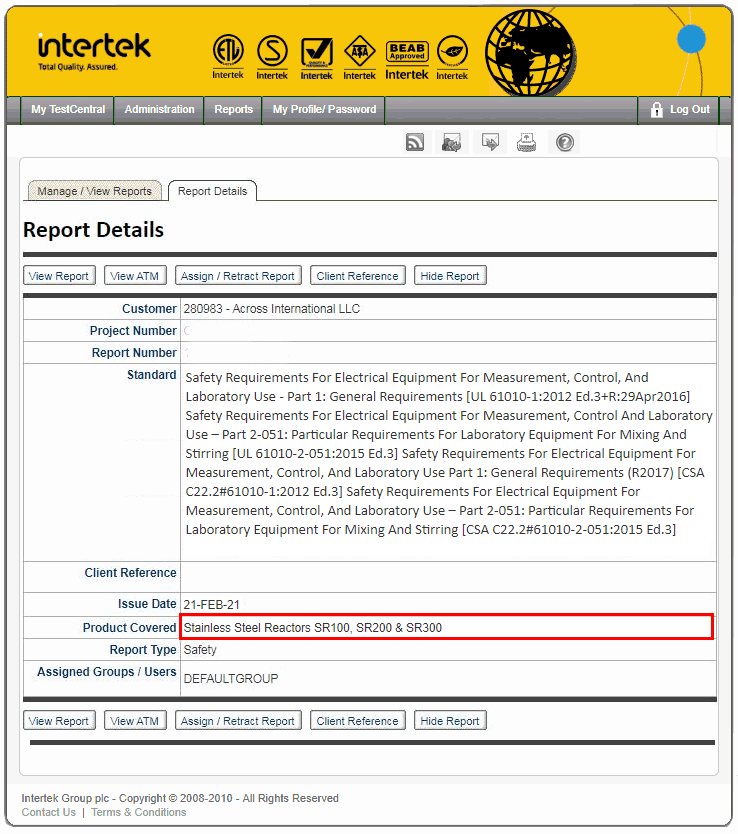

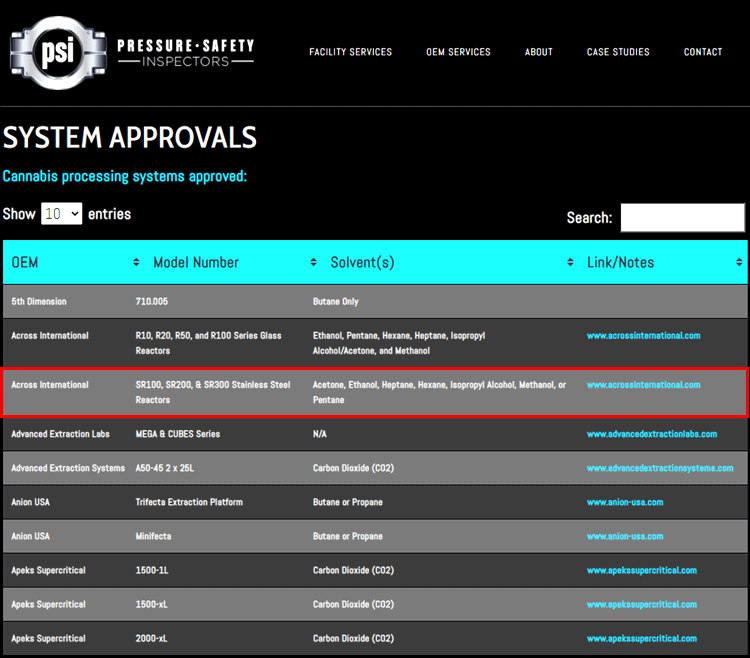

 ETL tested to UL and CSA standards C1D1 peer review by PSI (optional)
