Description
Electrical requirements
110V/220V 50/60Hz switchable, single phase 750 watts (1 HP)

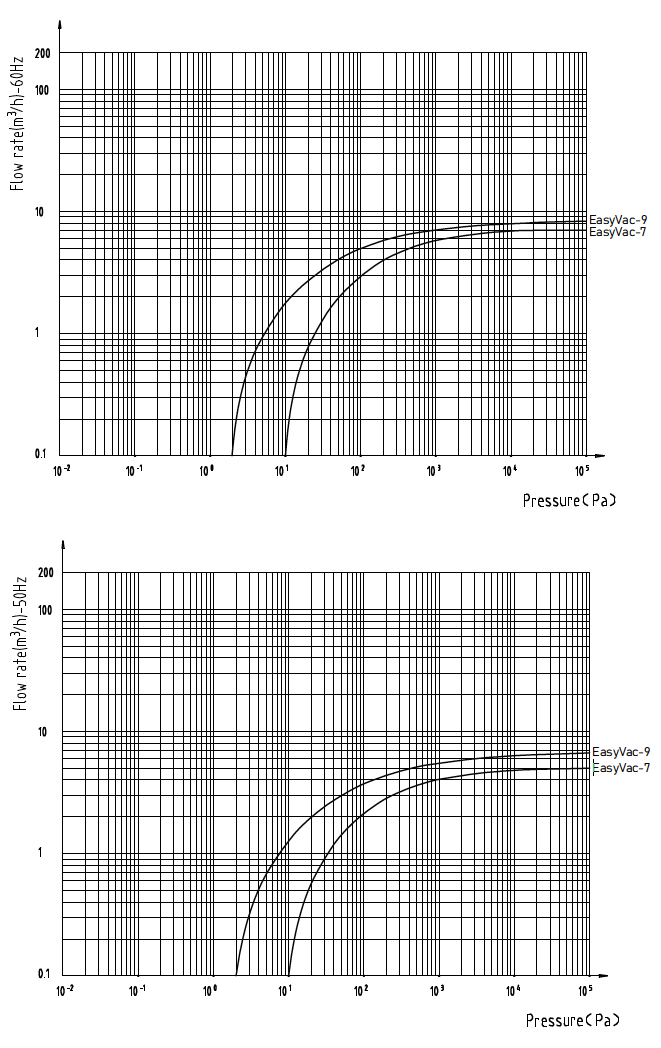

Pumping rate
9 cfm (110V 60Hz), 8 cfm (220V 50/60Hz)
Vacuum level
15 micron/millitorr
Vacuum connection
KF25/NW25 flange

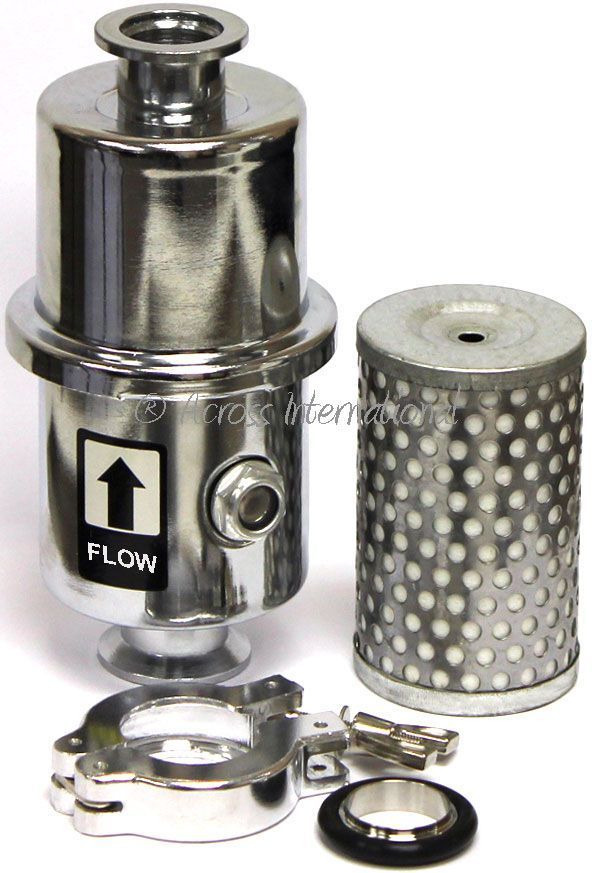

Exhaust filter connection
KF25/NW25 flange
Oil volume
560 ml / 0.6 quart
Motor rate
1720 rpm
Working temperature
-5 to 60°C
Pump dimensions (LxWxH)
16.5 x 6 x 11″, height is 16″ with exhaust filter
Shipping dimensions (LxWxH)
20 x 9 x 13″
Pump weight
37 Lb
Shipping weight
41 Lb
Recommended oil
Ultragrade 19
Compliance

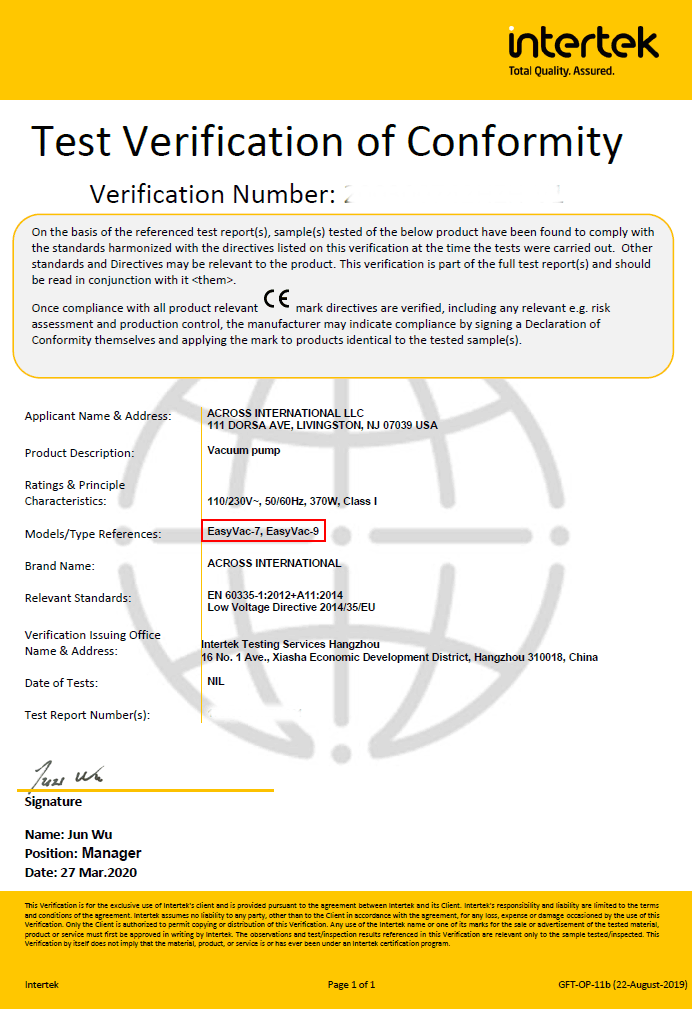

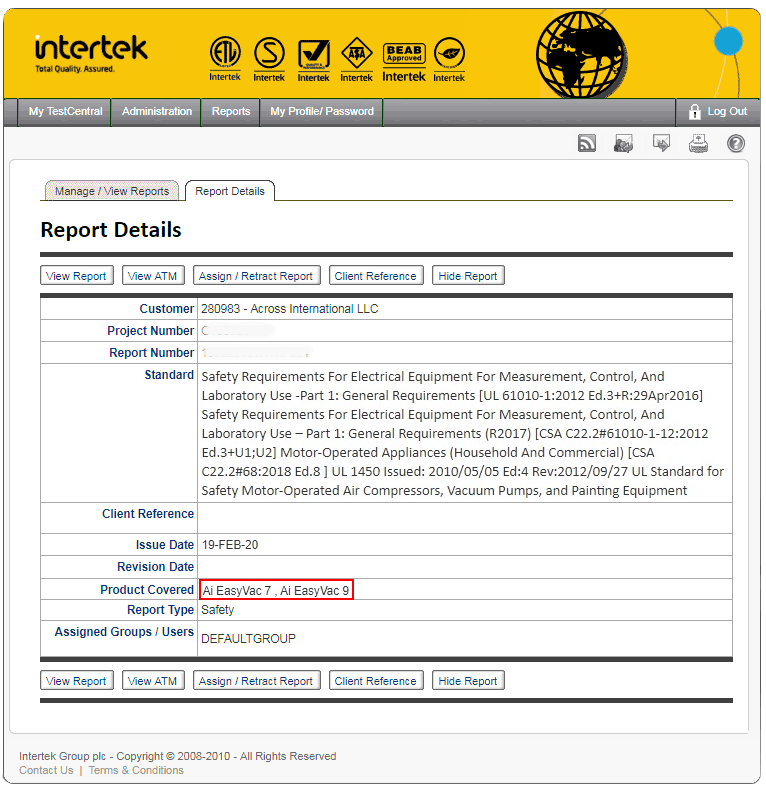

ETL tested to UL and CSA standards, CE
Warranty
One year
Download
Product brochure
