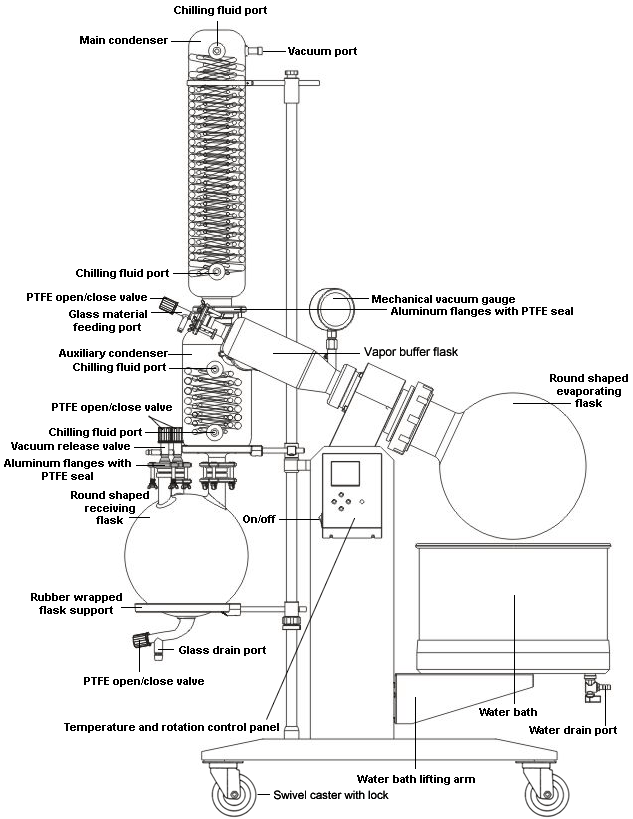

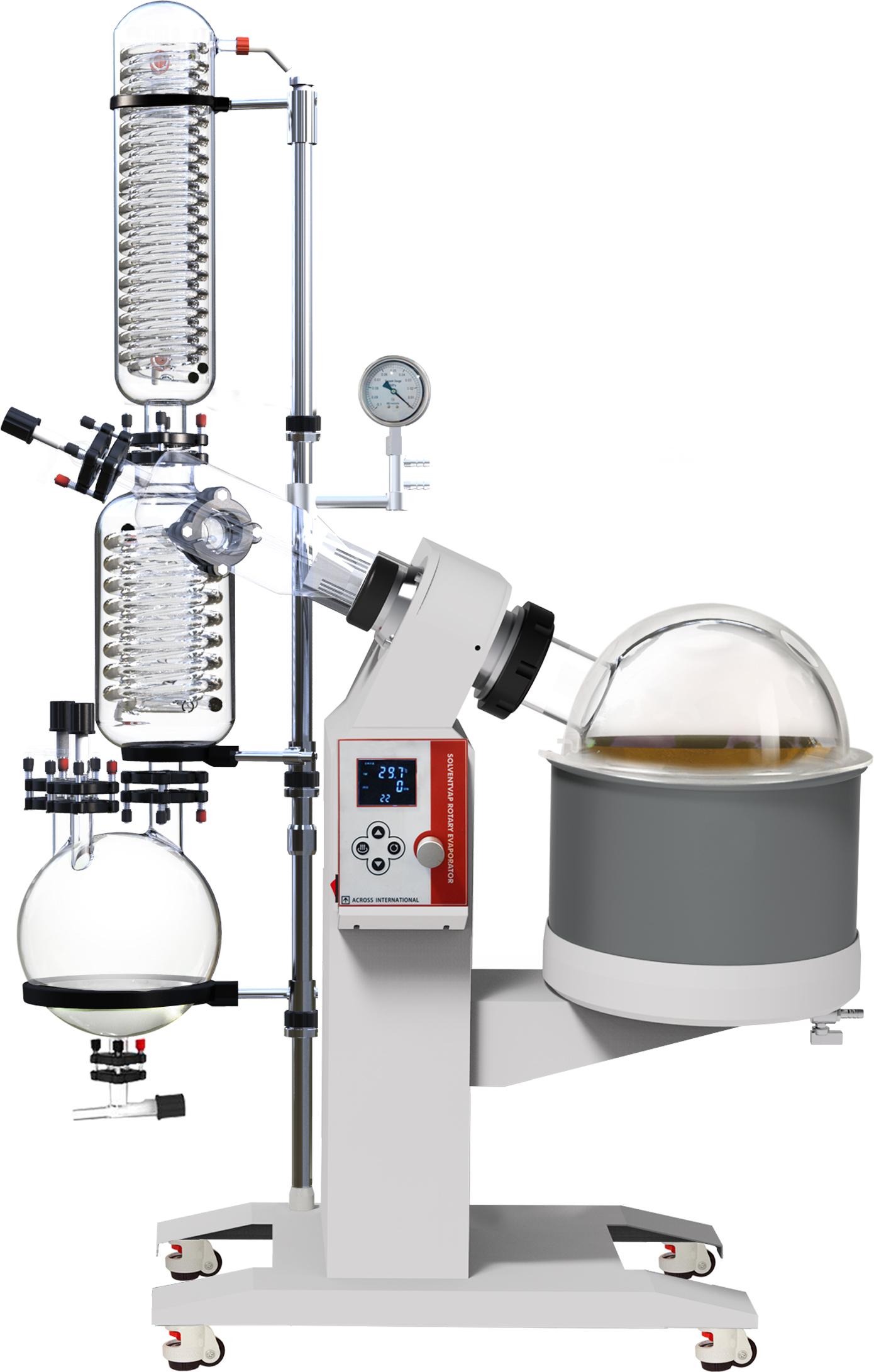

Description
Electrical requirements
220V 50/60Hz single phase, 17.3A, 3800 watt (rotation motor: 300 watts)
Glass material
High borosilicate glass 3.3

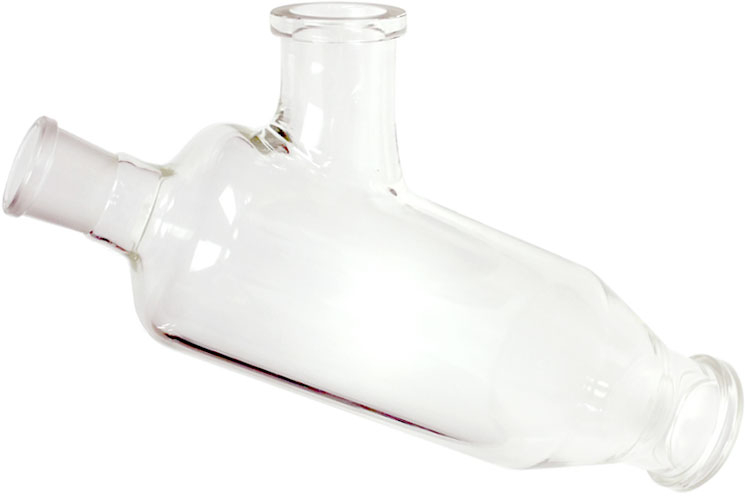

Evaporating flask
Capacity: 2.6 gallon (10 liters or 0.35 cu ft) Maximum load: Not to exceed 60% of the flask’s capacity Sealing flange: 4.9″ diameter Rotation speed: 10 to 130 rpm Evaporating speed: 0.75 gallon/hour (water), 1.5 gallon/hour (alcohol)
Receiving flask
1.3 gallon (5 liters or 0.18 cu ft)
Condenser
Glassware: Main auxiliary triple-circulating cold traps, vertical Chilling fluid conneciton: 3/8″ hose barb x 4 (2 on main 2 on auxiliary) Condensing surface Main condenser: 3,900 cm2 or 4.2 sq ft Auxiliary condenser: 2,530 cm2 or 2.7 sq ft
Working environment
5 to 95°F
Water bath
Temperature range: ambient to 99°C (210°F) Temperature controller: digital Dimensions: 12.5″ diameter x 8.7″ depth x 11″ height Material: stainless steel Media: distilled water only Max. water level: not to exceed 1″ from the top rim of the bath Number of heaters: two Drain port: one Exterior liner: rubber Lifting: motorized Maximum lifting distance: 4 inches

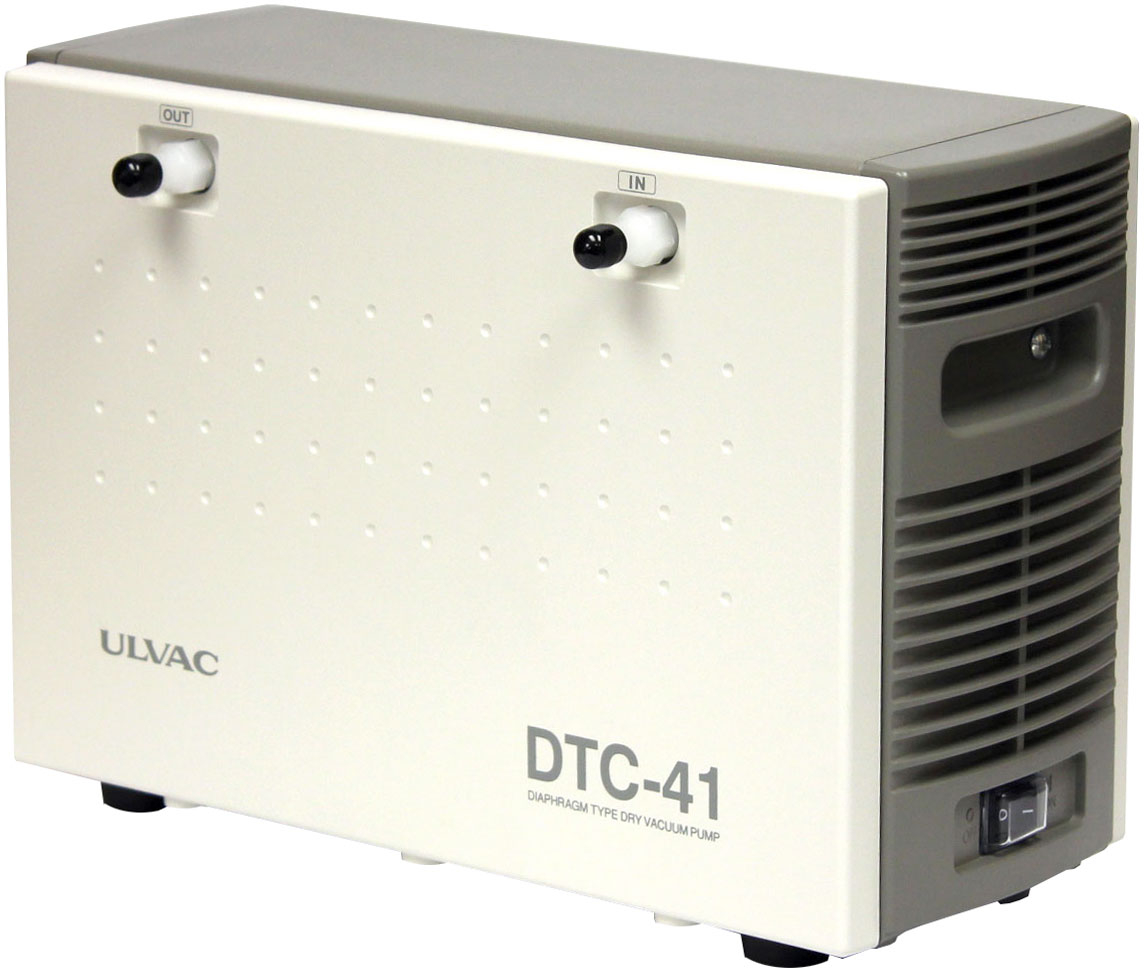

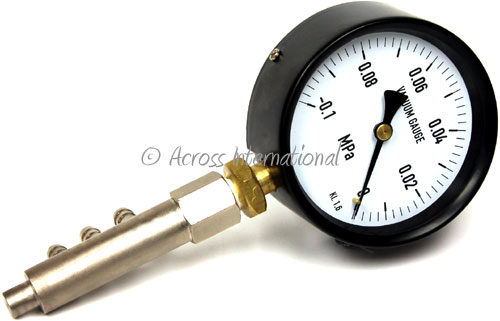

Vacuum

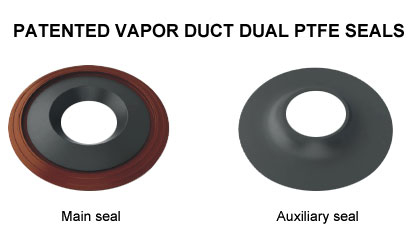

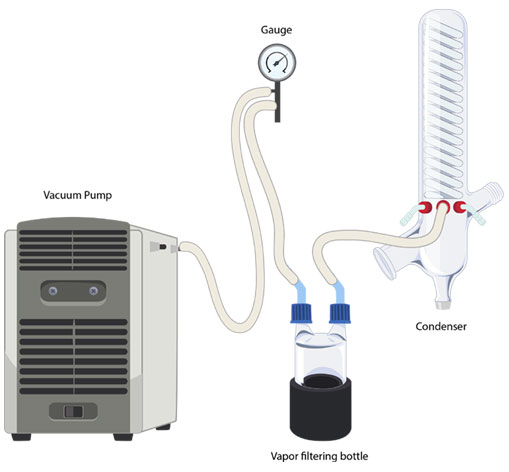

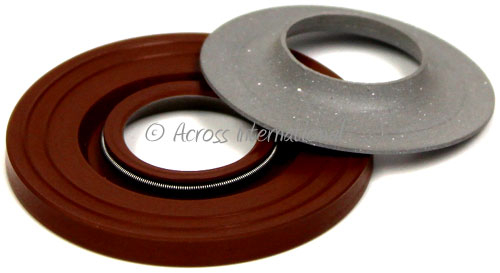

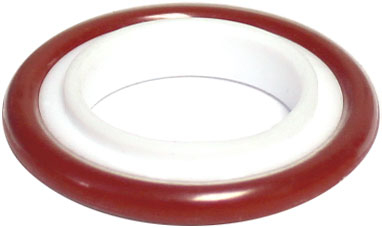

Ultimate vacuum level: < 3 torrs Vacuum sealing: PTFE Viton gaskets Vacuum connection: 3/8″ hose barb x 1 on main condenser
Swivel caster
Four, built-in with locks
Safety
Dry-run, over-temp shut-off, built-in circuit breakers
Weight & dimensions
Shipping weight: 200 Lb (evaporator), 100 Lb (glassware) Unit dimensions: 36 x 22 x 67″ (WxDxH) Shipping dimensions: 39 x 22 x 44″ (evaporator), 30 x 25 x 28″ (glassware) (WxDxH)
Certification
ETL tested to UL and CSA standards
Download
Ai rotary evaporator brochure
