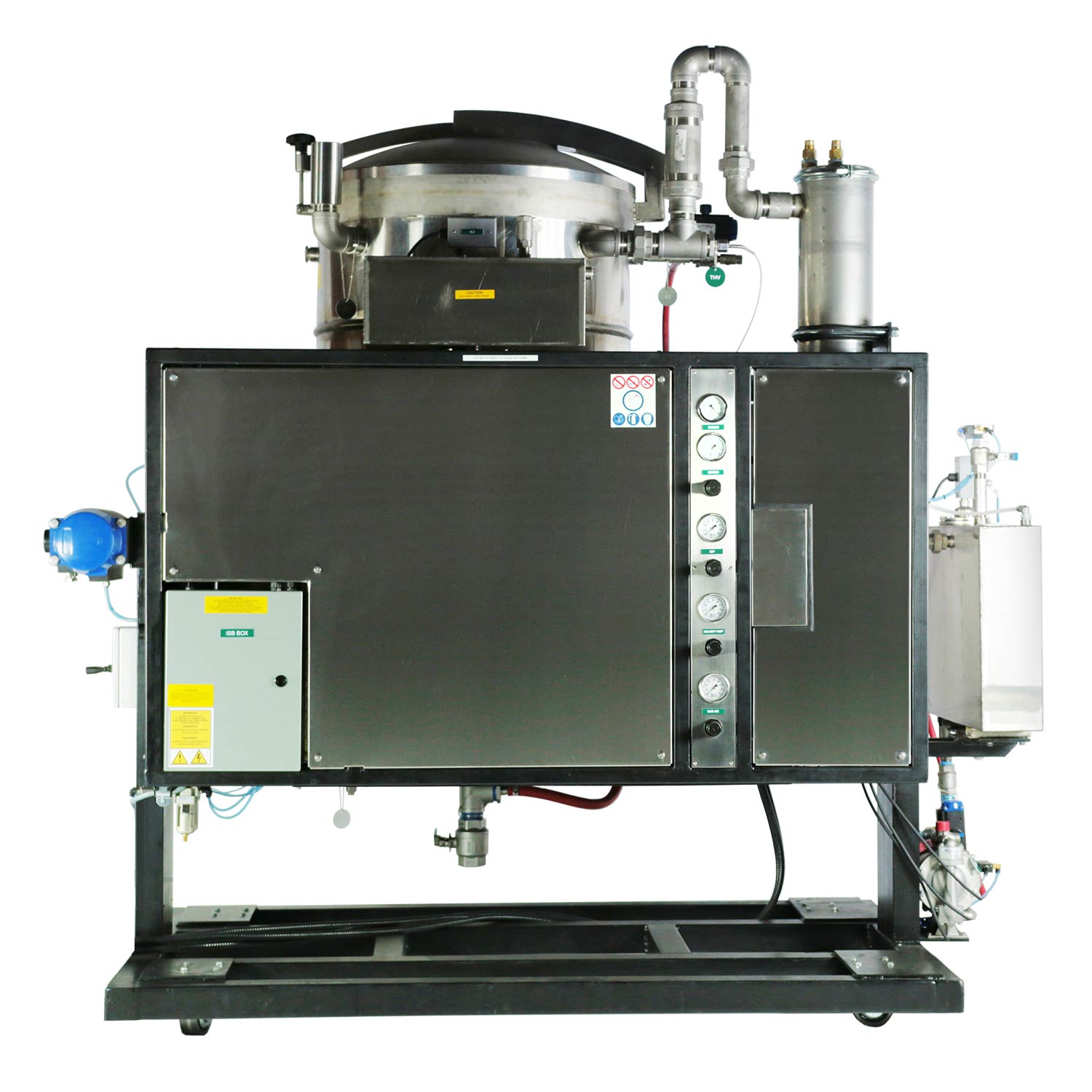

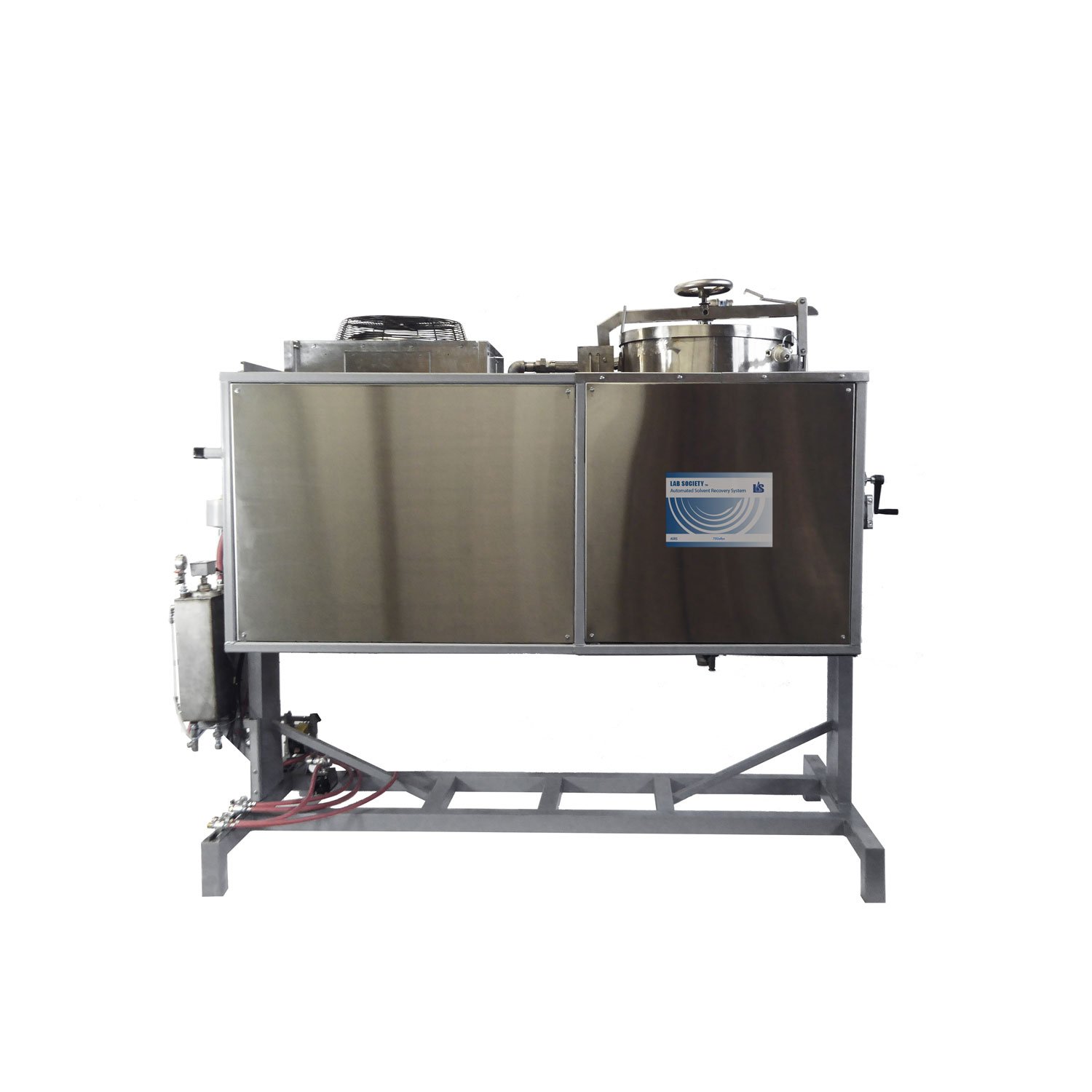

Automated Solvent Recovery System (ASRS)

Contact for Pricing

Our top-of-the-line Automated Solvent Recovery System (ASRS) was designed to meet the needs of even the most demanding of industrial laboratories.

Instead of letting valuable solvents go to waste, you can now recover them on a large scale.



Description

Automated Solvent Recovery System (ASRS)

Solvent Recycle - Buy Automated Solvent Recovery Systems Online from Lab Society.

Recover solvents at scale.

Our top-of-the-line Automated Solvent Recovery System (ASRS) was designed to meet the needs of even the most demanding of industrial laboratories.

Instead of letting valuable solvents go to waste, you can now recover them on a large scale.

Designed for high-volume labs.

Early real-world tests show that these units perform well beyond specifications, letting you recover more of your solvent per hour than by any other method on the market.

Finally, a plug-and-play solution for industrial labs.

Thanks to a variety of sensors and automation at the heart of these machines, all of our (ASRS) units are able to run safely with minimal operator intervention. In most cases, it’s a simple matter of plug and play.

Features:

  • Set it and forget it – Just put the used solvent in, and watch the clean solvent come out.
  • Multiple, large-scale sizes –  (32, 50, 110 Gallon options available)
  • Process insane amounts of solvent per hour – (5.5, 9.1, 18.2 gallons per hour, respectively)
  • Vacuum-assisted – Allows for a reduced atmosphere, which lowers boiling points and increases evaporation speed!
  • Remotely accessible via Ethernet or cellular data
  • Electric heating (with thermal oil)
  • Collection container sensors prevent overflow and spills
  • Includes free lifetime service and support (including remote access)
  • 480 volts – make sure you have the proper power available
  • Automatic hydraulic tilt lift available upgrade

Shop Solvent Extraction Products Online

Vacuum-assisted.

These powerful machines use a vacuum in the boiling chamber to lower the temperature needed to boil high-boiling-point solvents. Each premium unit uses a Liquid Ring Vacuum System for maximum efficiency.

Remotely accessible via Ethernet or cellular data.

The system PLC is accessible remotely through an Ethernet or cellular data connection. Settings can be viewed and changed as if the touch screen were being used.

Electric heating (with thermal oil).

Uses a thermal oil jacket electric heater to quickly and evenly heat the boiling vessel.

Collection container sensors prevent overflow and spills.

The last thing you want is a massive solvent leak in your laboratory, or worse, volatile chemicals and vapors everywhere. That’s why we’ve integrated intelligent sensors to prevent spills and to stop these machines from overflowing.

Our automated premium solvent recovery units are:

Recycling Alcohol, Ethanol

  • Safe – Class 1, Div 1, Group D, explosion-proof, METLAB Certified
  • Strong – High quality 304 stainless steel construction
  • Simple – Automated operations, tilted base for easy residual product removal and access
  • Smart – Highly automated, with touch-screen PLC and remote cellular access

Note: The ASRS requires the use of a 480V standalone chiller.
