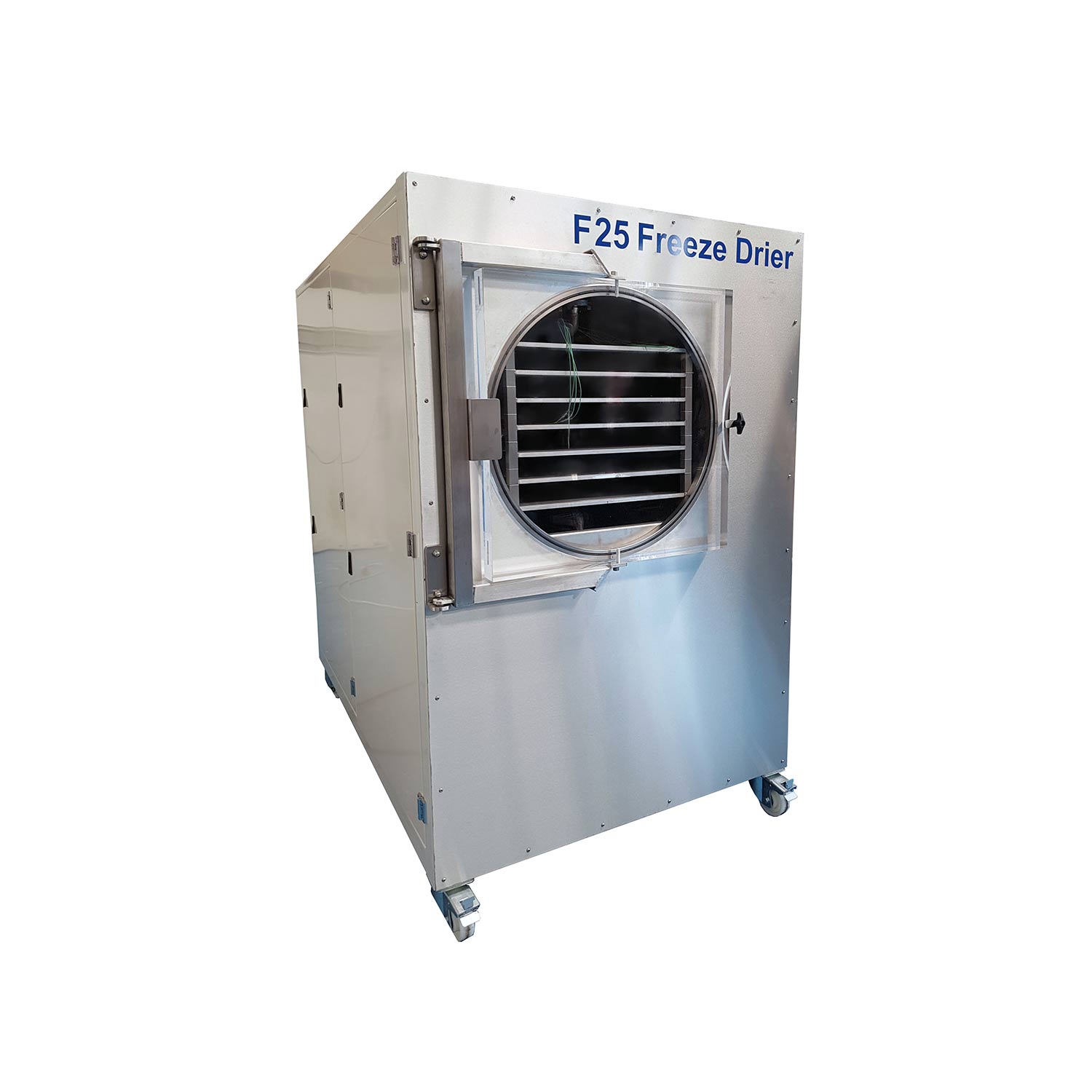

CannaFREEZE FC25 Series Freeze Dryer Package

Call for Pricing

The FC Series is the newest freeze dryer series from CannaFREEZE and includes programmable control. It is a general-purpose, food-grade freeze dryer.
The FC Series freeze dryers are short cycle, high-performance units that feature stainless steel shelves for direct conductance of heat to the product. Freeze drying conduction does not require high shelf temperatures, and it is instrumental in retaining targeted compounds.
All FC Series freeze dryers process full loads within 24 hours.

SKU: 4201338 Category:

Description

Model:
FC 25

Ice Condenser Capacity:
88 lbs / 24 hrs

Ice Condenser Performance:
66 lbs / 24 hrs

Ice Condenser Temperature:
-76°F

Defrost:
Hot Gas

Shelf Dimensions:
19.76” x 25.6”

Number of Shelves:
Two sets of (6 1) trays

Shelf Area:
28 sq ft

Shelf Spacing:
2.36”

Shelf Temperature:
-58°F to 194°F

Refrigeration:
Air Cooled

Unit Dimensions (H x W x L):
82” x 59” x 86”

Refrigerant:
R-404

Vacuum:
Pfeiffer Duoline 20M

Electrical:
230V 50/60hz 3 Phase Neutral 40 Amps

Weight:
3306 lbs

Fast-drying capabilities of 24 hours for 33 – 66 lbs of material
Fast initial product freezing via conduction
Fully programmable automatic cycle with 17″ touch screen HMI
LCD vacuum and temperature displays
Perfect for product development and small scale
Remote access via internet and direct factory support
Shelf area of 28 square feet and a shelf spacing of 2.36″
Fast-drying capabilities of 24 hours for 55 – 110 lbs of material
Fully programmable automatic cycle with 19″ touch screen HMI
Remote access via internet and direct factory support
Shelf area of 56 square feet and shelf spacing of 2.36″
Fast initial product freezing via conduction
Water cooling for refrigeration system provided by 15 kW chiller
Fast-drying capabilities of 24 hours for 110 – 220 lbs of material
Fully programmable automatic cycle with 19″ touch screen HMI
Remote access via internet and direct factory support
Shelf area of 112 square feet and shelf spacing of 2.36″
Fast initial product freezing via conduction
Water cooling for refrigeration system provided by 30 kW chiller
Fast-drying capabilities of 24 hours for 275 – 550 lbs of material
Fully programmable automatic cycle with 19″ touch screen HMI
Remote access via internet and direct factory support
Shelf area of 280 square feet and shelf spacing of 2.36″
Fast initial product freezing via conduction
Water cooling for refrigeration system provided by 60 kW chiller
Fast drying capabilities of 24 hours for 550 to 1100 lbs of material
Fully programmable automatic cycle with 19″ touch screen HMI
Remote access via internet and direct factory support
Shelf area of 549 square feet and shelf spacing of 2.36″
Fast initial product freezing via conduction
Water cooling for refrigeration system provided by 120 kW chiller
