Description
Model:

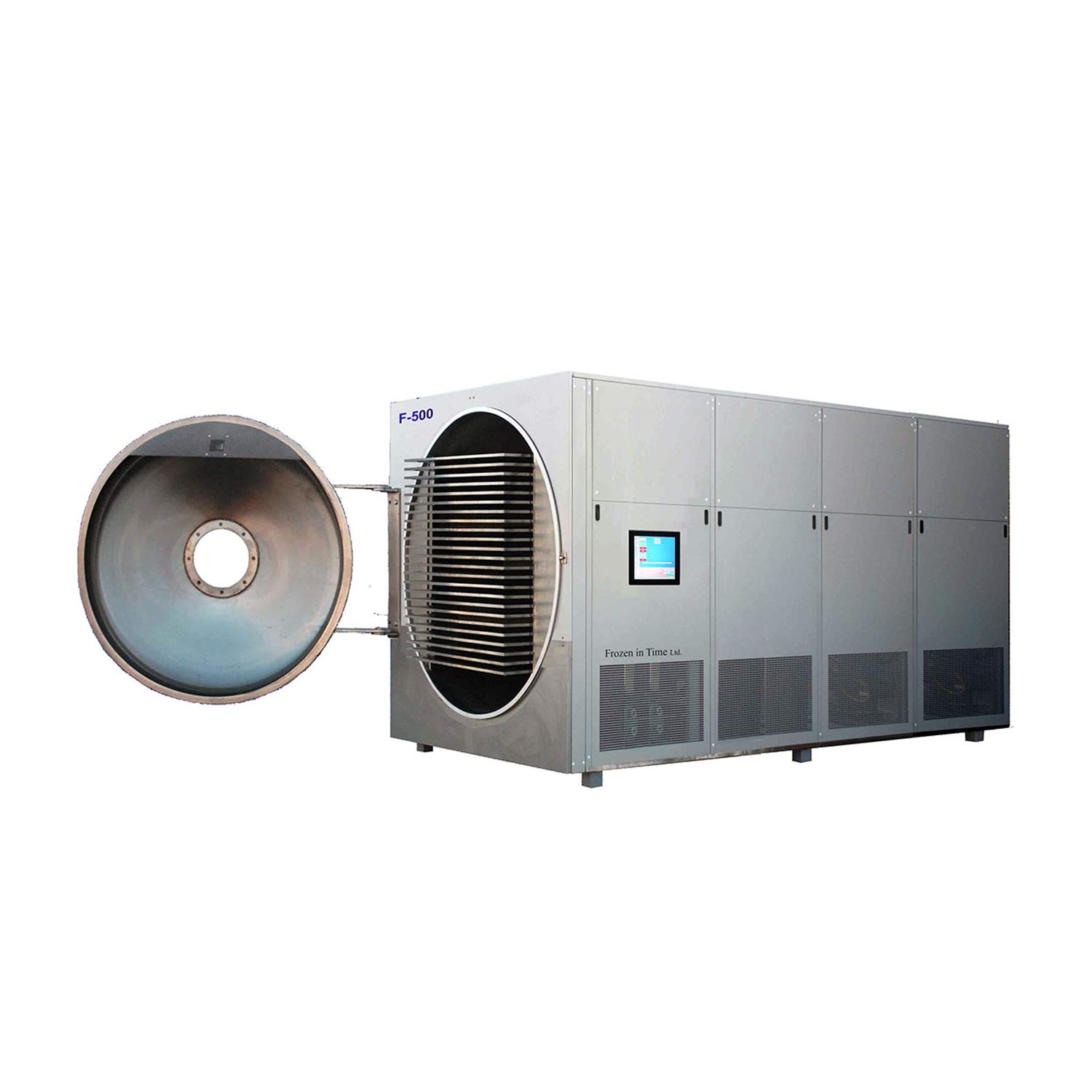

FC 500 with 120 kW Chiller
Ice Condenser Capacity:
1499 lbs
Ice Condenser Performance:
1234 lbs / 24 hrs
Ice Condenser Temperature:
-103°F
Defrost:
Hot Gas
Shelf Dimensions:
67” x 51”
Number of Shelves:
23 1
Shelf Area:
549 sq ft
Shelf Spacing:
2.36”
Shelf Temperature:
-85°F to 194°F
Cooling System:
Water Cooled
Refrigeration:
Two Stage
Unit Dimensions (H x W x L):
94.5” x 86.6” x 196.9”
Refrigerant:
R-404
Vacuum:
Pfeiffer Duol 255
Electrical:
460V 50/60hz 3 Phase Neutral 250 Amps
Weight:
22,046 lbs
Chiller Electrical:
460V 60Hz 3 Phase 84 Amps
Chiller Tank Volume:
132 Gal
Chiller Dimensions (L x W x H):
130” x 49.4” x 85”
Chiller Weight:
3634 lbs
Chiller Inlet Water Temperature:
69°F
Chiller Outlet Water Temperature:
59°F
Glycol Type:
25% Propylene Glycol
Chiller Ambient Temperature:
95°F
Cooling Capacity:
34.5 Tons / 414,000 Btu/Hr
Max Ambient Temperature:
108°F
Fast-drying capabilities of 24 hours for 33 – 66 lbs of material
Fast initial product freezing via conduction
Fully programmable automatic cycle with 17″ touch screen HMI
LCD vacuum and temperature displays
Perfect for product development and small scale
Remote access via internet and direct factory support
Shelf area of 28 square feet and a shelf spacing of 2.36″
Fast-drying capabilities of 24 hours for 55 – 110 lbs of material
Fully programmable automatic cycle with 19″ touch screen HMI
Remote access via internet and direct factory support
Shelf area of 56 square feet and shelf spacing of 2.36″
Fast initial product freezing via conduction
Water cooling for refrigeration system provided by 15 kW chiller
Fast-drying capabilities of 24 hours for 110 – 220 lbs of material
Fully programmable automatic cycle with 19″ touch screen HMI
Remote access via internet and direct factory support
Shelf area of 112 square feet and shelf spacing of 2.36″
Fast initial product freezing via conduction
Water cooling for refrigeration system provided by 30 kW chiller
Fast-drying capabilities of 24 hours for 275 – 550 lbs of material
Fully programmable automatic cycle with 19″ touch screen HMI
Remote access via internet and direct factory support
Shelf area of 280 square feet and shelf spacing of 2.36″
Fast initial product freezing via conduction
Water cooling for refrigeration system provided by 60 kW chiller
Fast drying capabilities of 24 hours for 550 to 1100 lbs of material
Fully programmable automatic cycle with 19″ touch screen HMI
Remote access via internet and direct factory support
Shelf area of 549 square feet and shelf spacing of 2.36″
Fast initial product freezing via conduction
Water cooling for refrigeration system provided by 120 kW chiller
