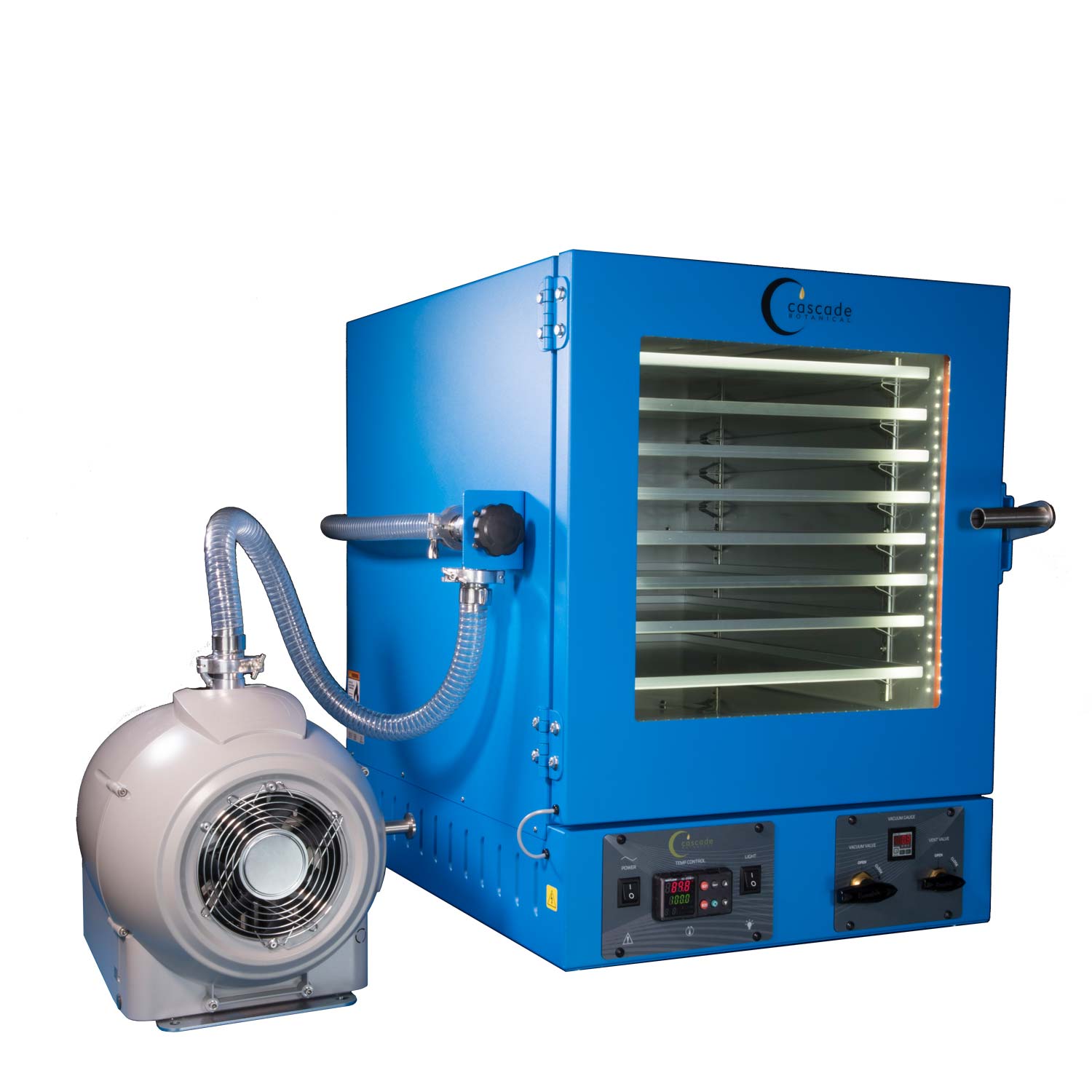

CV0-5 Pro Vacuum Oven Package

15,207.29$

Cascade Vacuum Purge Ovens are a high quality, scalable laboratory oven solution.
Vac purge ovens are excellent for outgassing, removing water or other residual solvents, drying products, baking out, and a host of other applications.

SKU: 4201245 Category: Tag:

Description

Power
110V, 1ph, 14 FLA, also available in 220V

Chamber size
5 cubic foot

Chamber material
Stainless Steel

Chamber dimensions
18.25” W x 24” D x 18.25” H

Port
Rear KF-25 port 1″ diameter

Vacuum
3/8″ barb

Vent
1/4″ barb

Certified
NRTL

Shelves
5 Included in 1″,2″ and 3″ height

Agilent IDP7, 5.4CFM dry scroll pump
Included

MAX EVAP vacuum oven to pump connection kit
Included

KF-25 Hardware
Included

Filter Required
No

Ultimate Vacuum
2 x 10^-2 Torr

Controller
PID controller /Analog knobs

Display
 ° F

Stability
/-4 °F at 105 °F

Max temperature
240 °F

Unit weight
249 lbs

Shipping weight
449 lbs

Unit dimension
18.75″ W x 26.5″ D x 24.5″ H

Shipping dimensions
30 x 30 x 45″

Made in the USA
Perfect for removing water or residual solvents
PID controller included
Multiple sizes and types available
