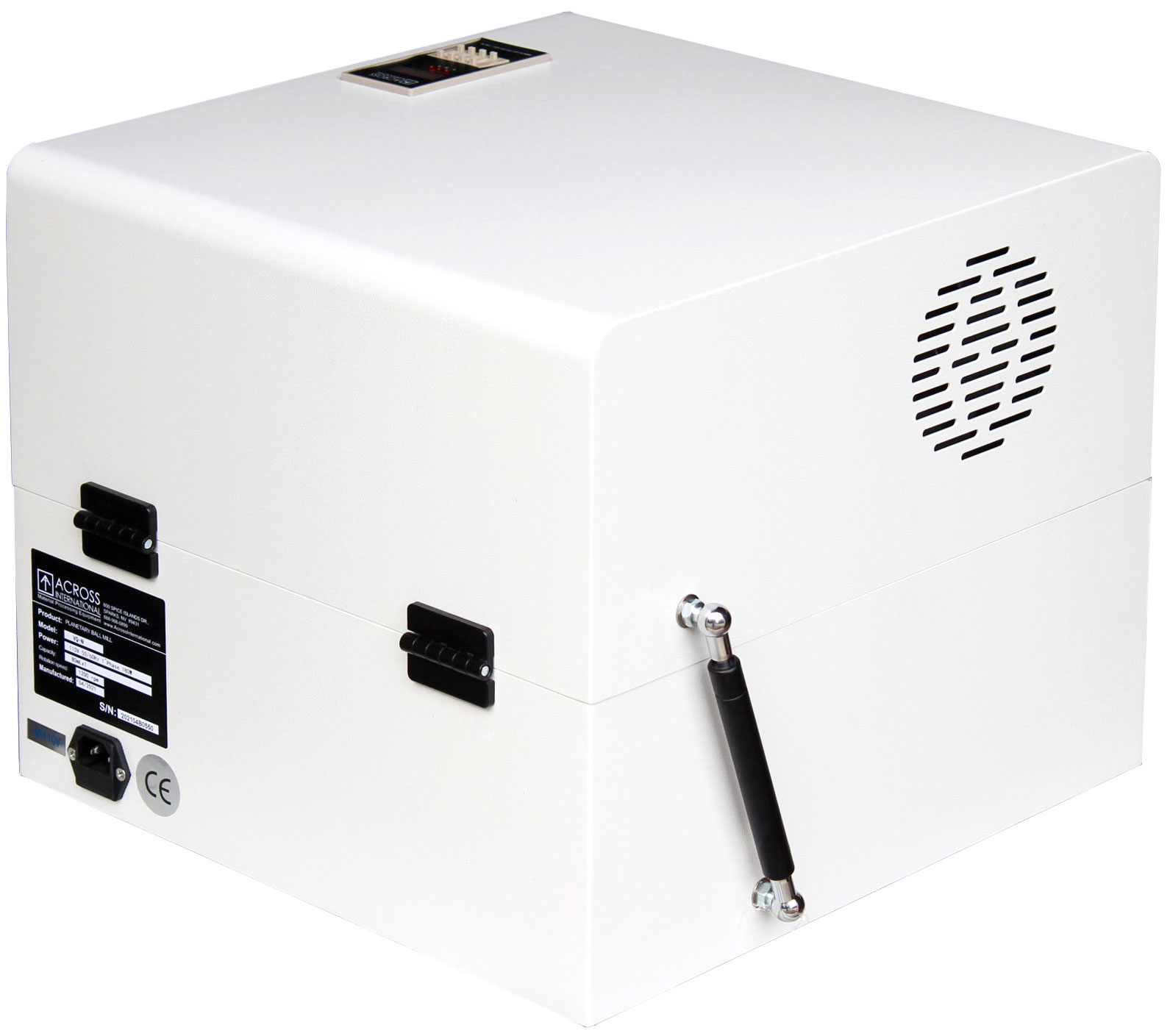

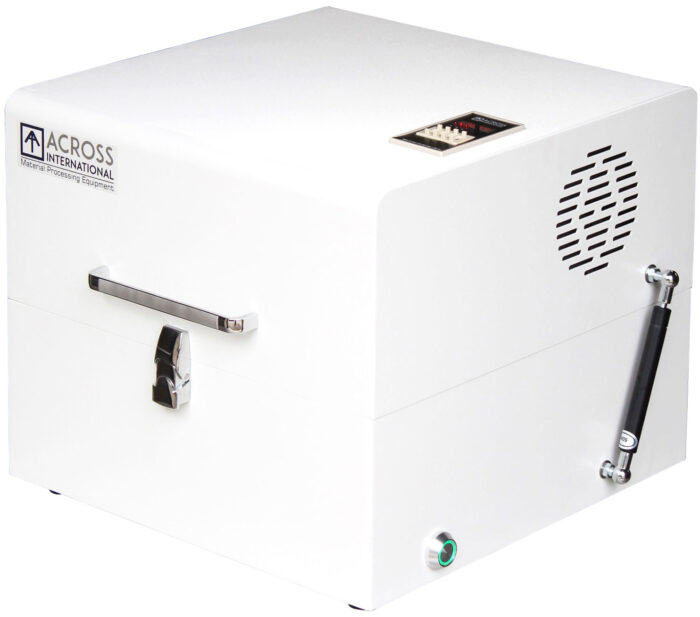

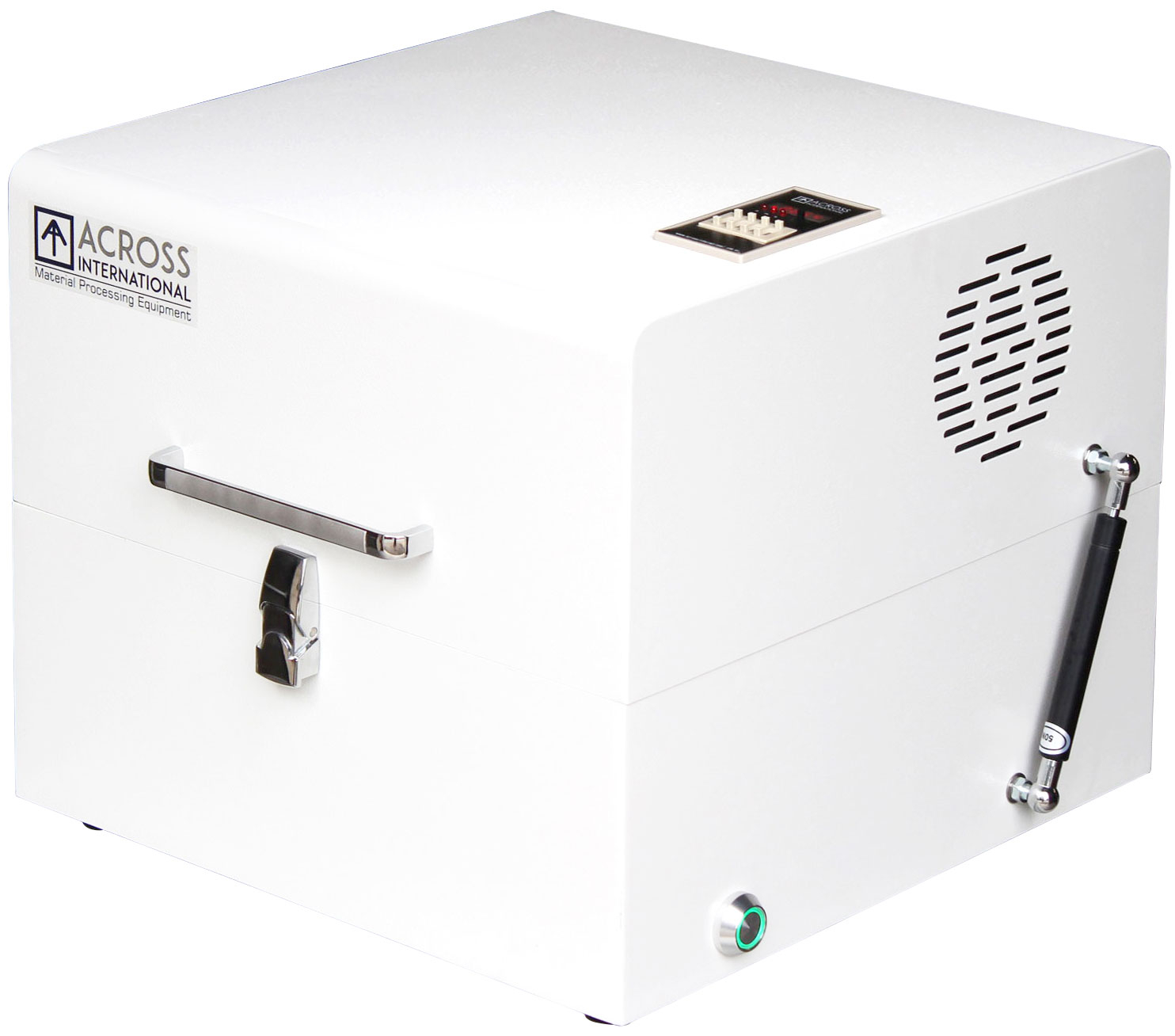

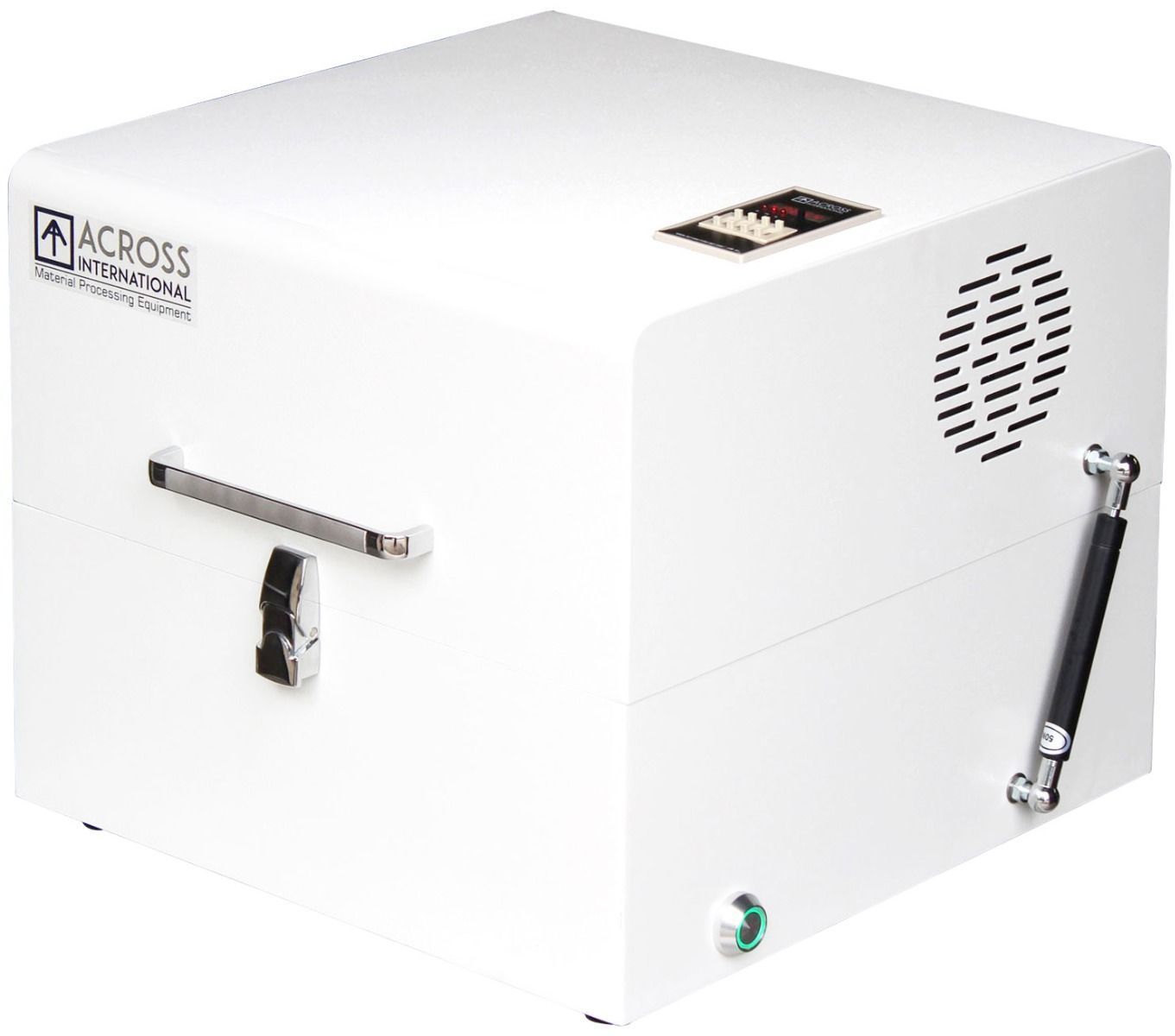

Desktop High Energy Vibratory Ball Mill with One 80ml St St Jar


VQ-N ball mills may be referred to as shaker mills, mixer mills or high-energy ball mills. They can be used for both wet and dry grinding as well as to mix a variety of solids, suspended liquids and pastes. This unit is ideal for preparing small batches of your sample efficiently.

SKU: 4200323 Category: Tag:


 Electrical requirements

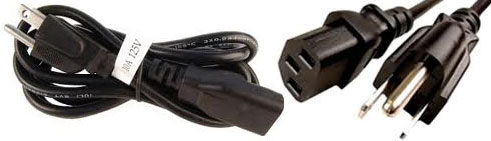

 110V or 220V 50/60Hz single phase, 180 watts

 Jar capacity
 50ml or 80ml

 Oscillation speed
 1,200 rpm

 ~78 dB

 Timing range
 1-999 seconds

 Discharging granularity
 Down to 0.1 micron

 Unit weight
 84 Lb

 Shipping weight
 150 Lb

 Unit dimensions
 16 x 17 x 14″ (DxWxH)

 Shipping dimensions
 21 x 20 x 17″ (LxWxH)

 Grinding jar included

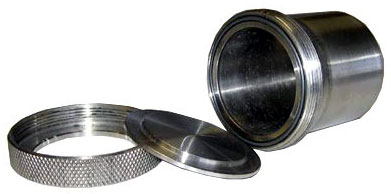

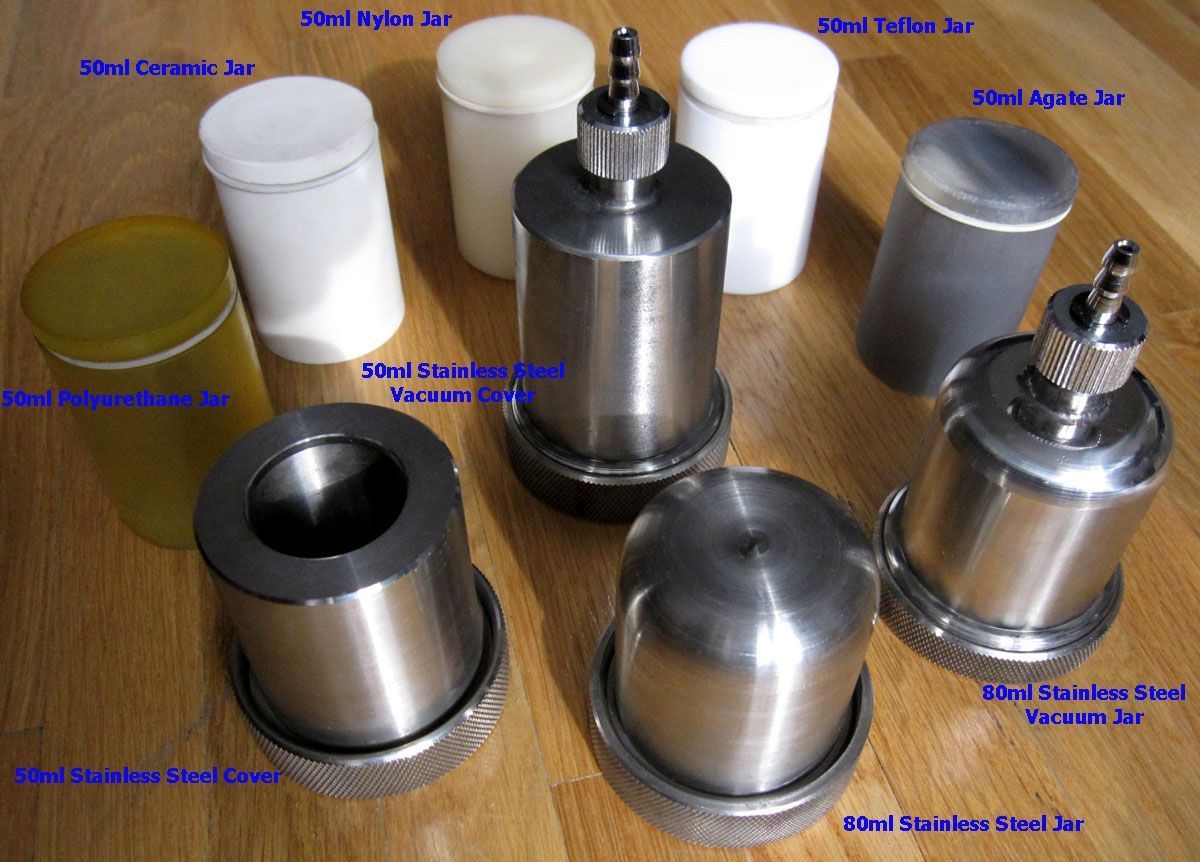

 One 80ml stainless steel jar with stainless steel balls and o-ring. Additional grinding media in a variety of materials is sold separately.

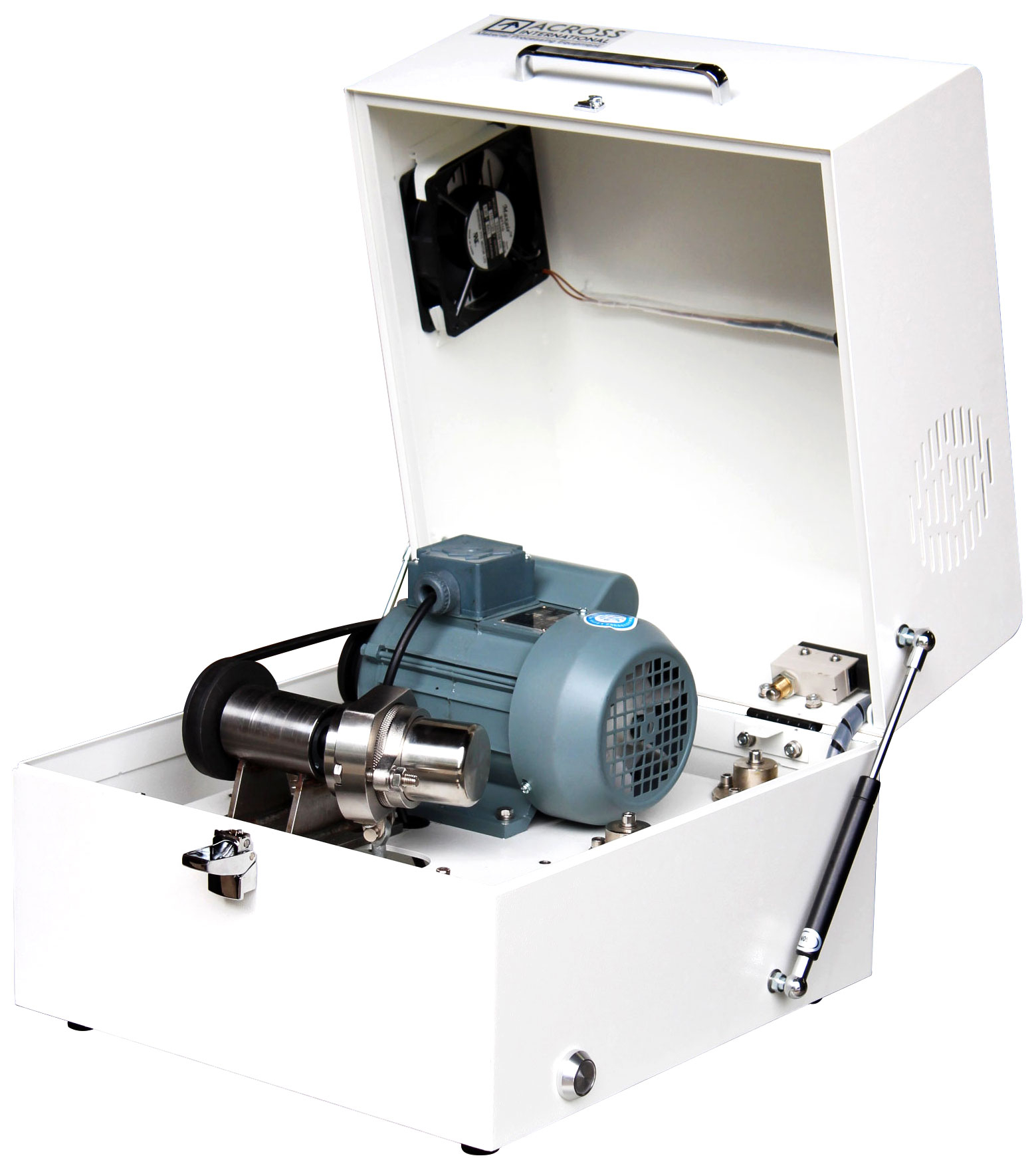

 Unit turns off when cover is open


 Product brochure
