DigiVac SNAP, Simple, Nimble, Automatic Vacuum Controller


Notice: Function price was called incorrectly. Product properties should not be accessed directly. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, woocommerce_template_single_price, wc_get_template, include('/plugins/woocommerce/templates/single-product/price.php'), WC_Product->get_price_html, apply_filters('woocommerce_get_price_html'), WP_Hook->apply_filters, fbs_woocommerce_get_price_html, WC_Abstract_Legacy_Product->__get, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.0.) in /www/safeleafca_430/public/wp-includes/functions.php on line 5835
3,500.00$

Model – SNAP
Power – Auto sensing 110V/220V 50/60Hz
Performance – Range: 2 to 760 Torr Accuracy: ±5% of reading Integral sensor accuracy: ±2 Torr Integral sensor range: 0.5 to 775 Torr
Display units: Torr, mTorr, mBar, kPa Time to convergence within 5% after disturbance: <30 seconds

Construction

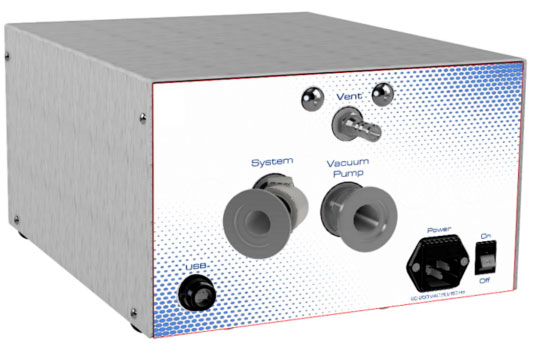

Inlet: KF25 x 1
outlet: KF25 x 1
Vacuum path orifice: minimum 12.5 mm
Minimum bleed valve orifice: 10 mm
Valves: wetted materials aluminum and Viton
Integral sensor: isolated Piezo sensor | SEN-775i Integral sensor wetted materials: 316 stainless steel, isolated
Set-points: quickly dial in set-point with control knob, START, STOP, Vent or Isolate the system
Vacuum fittings: KF25

Novel vacuum control – Proportional throttle and proportional bleed control (vent to atmosphere) delivered from an integral dual valve module
Output – Ability to be controlled remotely via USB for integration into larger systems
Recipes – Ramp Vacuum Controller: Program ramps and holds vacuum at different a duration and vacuum level

Unit weight 10 Lb
Dimensions – Unit: 10.25 x 12 x 5.25″, Shipping: 16 x 16 x 12 (WxDxH)
Compliance – RoHS, CE/UL expected 1H2021

Warranty – One year

SKU: 4200370 Category: Tag:

Description


DigiVac SNAP: Automatic Vacuum Process Controller | Vacuum control and venting with the touch of a button or twist of a dial

  • Vent your vacuum chamber or equalize your system with the touch of a button instead of pulling hoses or turning valves
  • Treat material in chamber more gently by implementing kinder ramp rate controls
  • Vacuum Controller with onboard ramp rate recipe control. Set up to 8 recipes based on time and pressure setpoints.
  • Dashboard pushbutton control for START, STOP functionality for each channel allows you to automatically vent or isolate your system with a push of a button
  • Ideal for automating and simplifying vacuum chamber pressure control.

SIMPLE SIMPLIFY YOUR LAB & CONTROL MORE WITH LESS

  • Applications: vacuum chamber (from 1 liter to 1000 liters) research, vacuum ovens/vacuum drying, vacuum furnaces, large scale food processing, microwave drying, composites, rotary evaporators, falling film systems
  • Fine control of target vacuum pressure for more precise processing and research
  • Enables using reliable and long lasting rotary vane pumps & dry scroll pumps in applications where diaphragm pumps were previously required
  • Keeps vacuum pumps near their base pressure resulting in greater longevity

NIMBLE MAXIMIZES THROUGHPUT & PUMPDOWN SPEED

  • Largest flow paths available to insure maximum flow for faster evaporation
  • Maximize throughput and pump down speed with a 17 mm vacuum path

AUTOMATIC PROCESS PRECISION CONTROL & INTUITIVE DESIGN

  • Automatic Vacuum Process Controller | precise automated control with programmable recipes and graphing of vacuum levels
  • Innovative valve control performs both proportional throttle and bleed vacuum control (vent to atmosphere)
  • The integrated bleed design allows you to quickly vent to atmosphere to stop bumping during processing

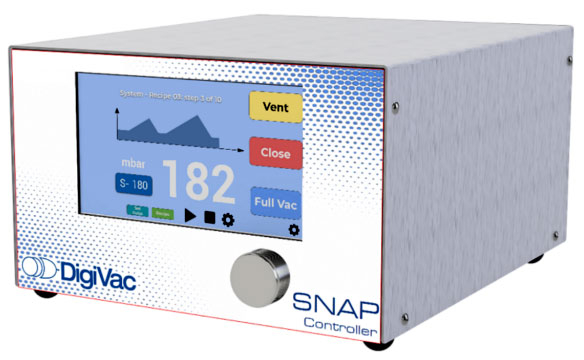

  • Numerical readings right on the LCD screen and one touch buttons: VENT, CLOSE (isolate, close all valves) and FULL VAC (fully opens the valve for vacuum pump and closes the vent valve)

SNAP Vacuum Controller Wetted Material Options

  • Aluminum (6061) wetted surfaces: available now
  • Stainless steel (304) wetted surfaces: 8 weeks lead time
