Description
Model
StrataVac Two-Head Distillation Kit
Units
Torr, mbar, kPa
Power
100-240VAC 50/60Hz
Output
5V
Vacuum range
5E-9 – 1000 Torr
Range with Accuracy
5E-4 – 1000 Torr
Vacuum interface
1/8″ male NPT or KF/NW
Vacuum reference
Absolute
Display
.38 inch high 6 digit red LED
Controls
7 amp, 250 Volt (If applicable)
Telemetry options

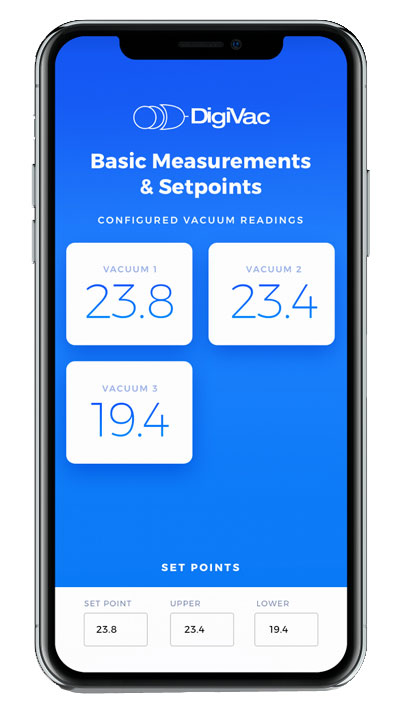

RS232, ethernet
Mount
1/8 DIN or bench top
Panel mount
Yes
Unit dimensions
1.7 x 3.52 x 5.35 inches (HxWxDeep)
Shipping dimensions
11 x 10 x 4 inches
Weight
2 lbs
StrataVac 2018 WiFi addendum
Download
Product brochure
Download
Operator’s manual
Download
