FP1 Filter Press

Call for Pricing

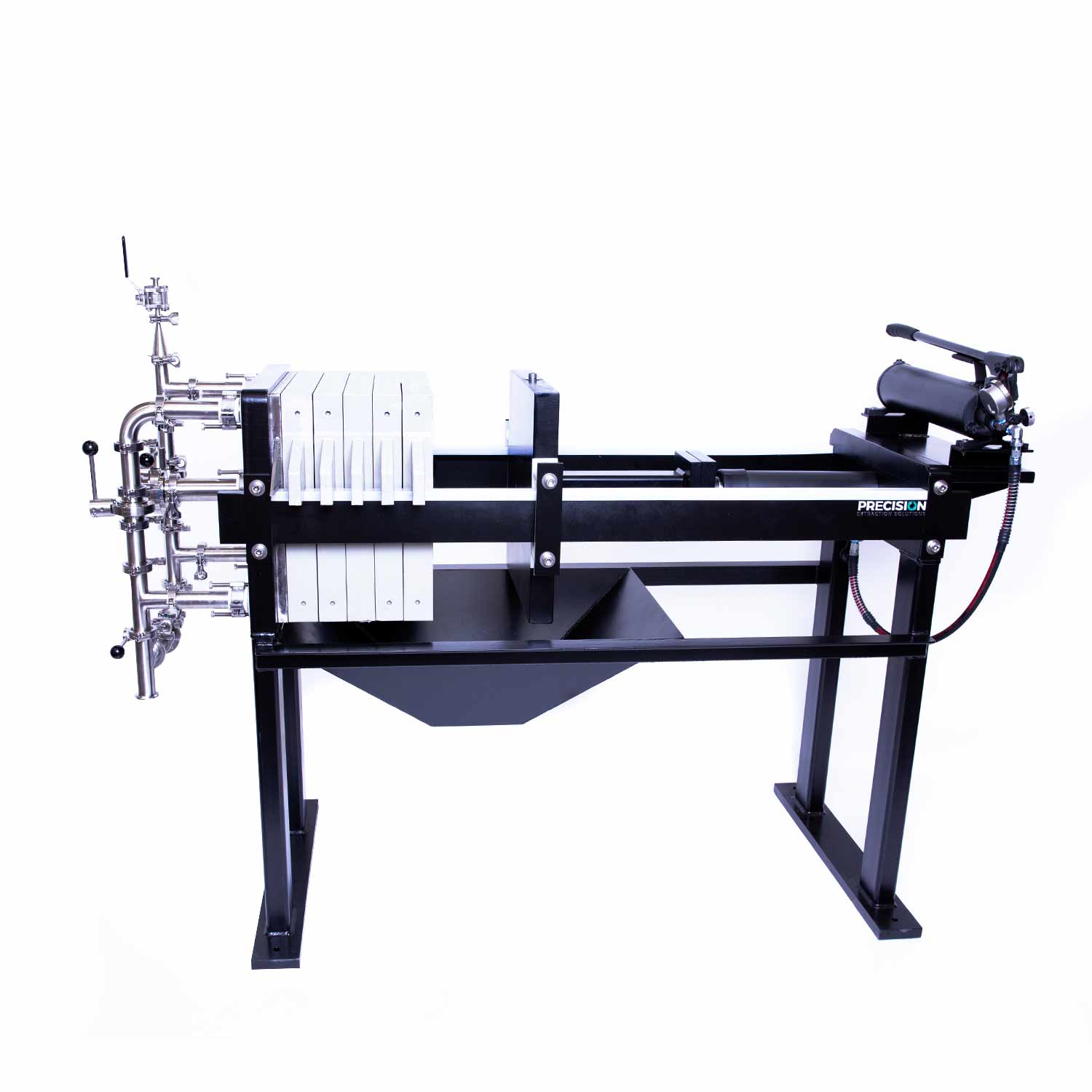

The FP1, by Precision Extraction, is an industrial-scale filter press.
The FP1 is ideal for the post-winterization filtration of crude oil. Utilizing positive pressure, the FP1 can remove fine particles and small particulate from winterized crude solutions efficiently.

SKU: 4201267 Category:

Description

Model:
FP1 Filter Press

Dimensions (approx.):
75” L x 32” W x 52” H

Weight:
1500 lbs

Capacity:
1 Cubic Foot

Expandable Capacity:
1 Cubic Foot (2 Cubic Foot Total)

Filter Area:
13.6 sq. ft.

Air Compressor:
5 HP 20 CFM

Hydraulic Pump:
Manual Hand Pump Closure

Operating Temperature Range:
-40°C to 37°C

Max Feed Pressure:
100 PSI

Average Flow Rate (est.):
2 GPM

Air Blow Down Pressure:
15 PSI

Filter Plate Size:
470mm

Filter Cloth Material:
Polypropylene

Frame Material:
Carbon Steel

Manifold Material:
304 Stainless Steel

Sludge Chute:
8” x 8” Chute Opening

Gaskets:
EPDM

Warranty**:
One year

5 HP 20 CFM Air Compressor required for operation

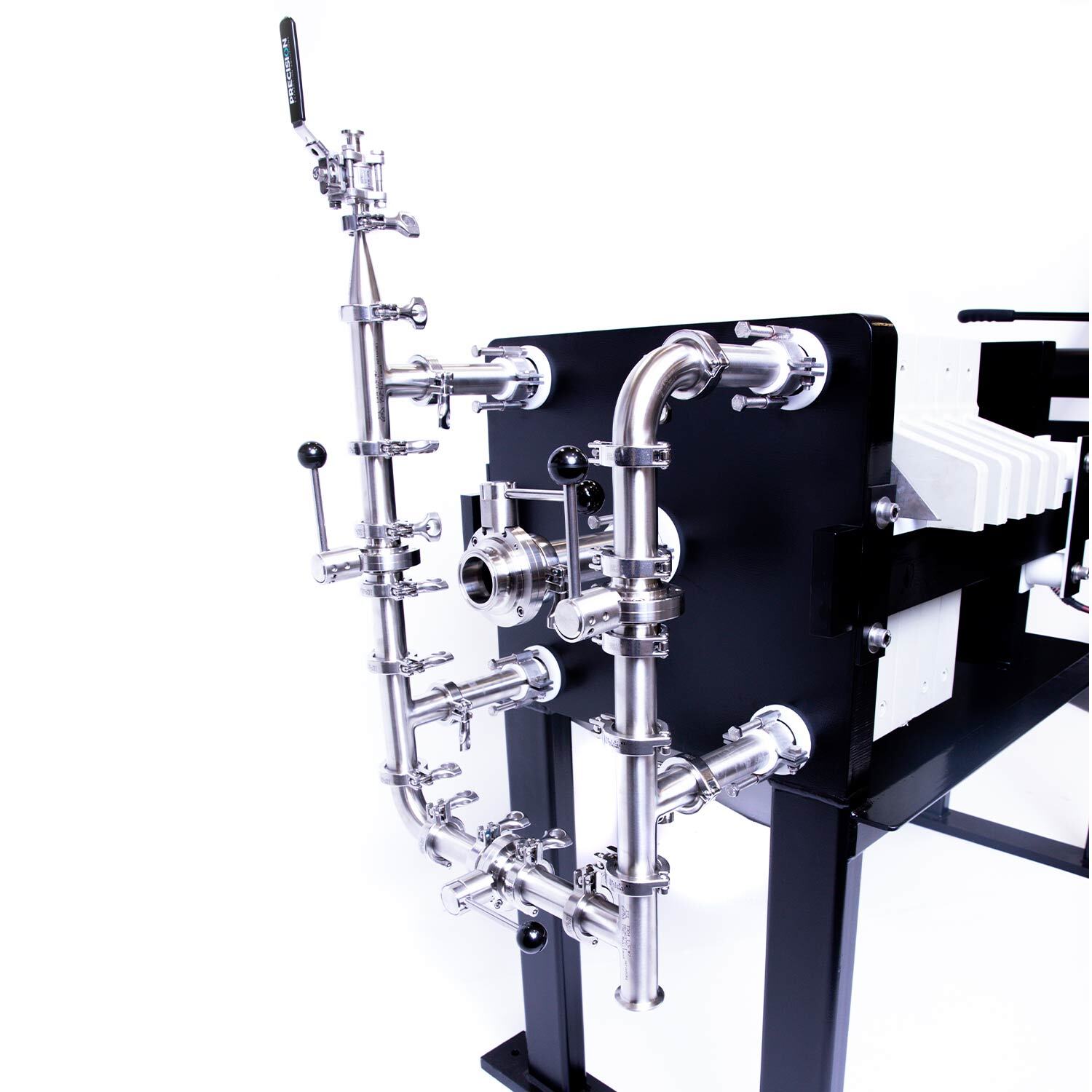

Airblown manifold piping for air drying filter cakes
Easier to use, less labor-intensive, and higher throughput compared to candle or bag filters
Food grade wetted parts
For use in C1D1 facilities
Heavy-duty hydraulic cylinder for opening and closing the press
Ideal for post-winterization, pressure filtration of crude oil and fine particle filtering
Includes advanced spare parts kit
Manual hydraulic pump and cylinder

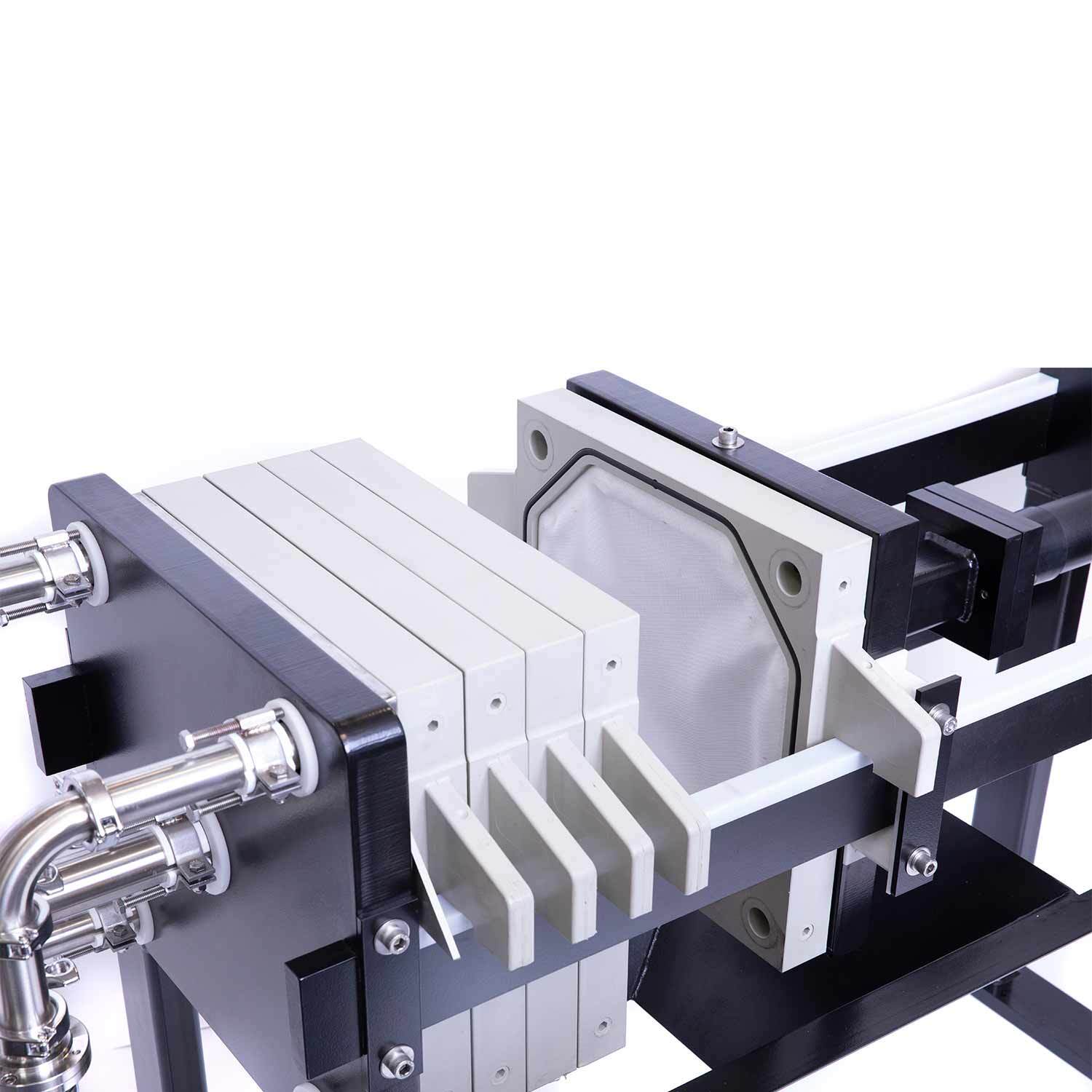

Recess, polypro-gasketed plates prevents leaking
Up to 3,600 liters of filtering per 8-hour shift

Model:
FP1 Filter Press

Dimensions (approx.):
75” L x 32” W x 52” H

Weight:
1500 lbs

Capacity:
1 Cubic Foot

Expandable Capacity:
1 Cubic Foot (2 Cubic Foot Total)

Filter Area:
13.6 sq. ft.

Air Compressor:
5 HP 20 CFM

Hydraulic Pump:
Manual Hand Pump Closure

Operating Temperature Range:
-40°C to 37°C

Max Feed Pressure:
100 PSI

Average Flow Rate (est.):
2 GPM

Air Blow Down Pressure:
15 PSI

Filter Plate Size:
470mm

Filter Cloth Material:
Polypropylene

Frame Material:
Carbon Steel

Manifold Material:
304 Stainless Steel

Sludge Chute:
8” x 8” Chute Opening

Gaskets:
EPDM

Warranty**:
One year
