Description
General information & temperature controller
Temperature range
-40…200 °C
Temperature stability
±0,02 °C
Temperature control
TAC, self-optimizing (True Adaptive Control)

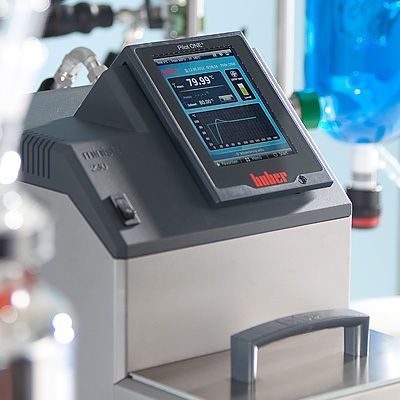

Controller

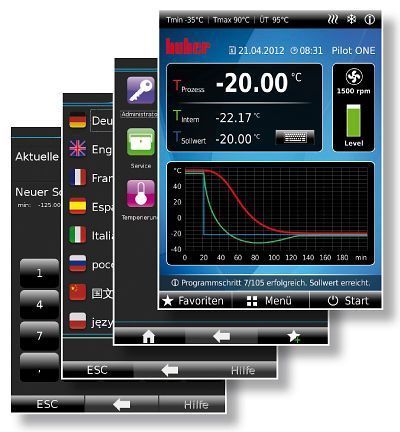

Pilot ONE (E-grade “Basic”)
Safety class
III / FL
Protection class
IP20
Dimensions (W x D x H)
255 x 450 x 476 mm
Weight
37 kg
Heating / cooling capacity
Heating capacity
1,5 kW
Cooling capacity
100
20
0
-10
-20
-40
°C
0,42
0,42
0,38
0,33
0,25
0,05
kW
Cooling machine
air-cooled
Refrigerant
R290 (0,099 kg)
Circulation pump
Pressure pump max.
22 l/min ; 0,7 bar
Suction pump max.
16 l/min ; 0,4 bar
Pump connection
M16x1 AG male
Permissible viscosity
50 mm²/s
Connections
Pt100 connection
Pt100

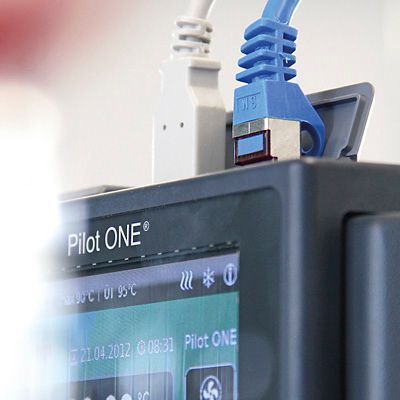

Digital interface
RS232, Ethernet, USB Device, USB Host
Operating data
Permissible ambient temp.
5…40 °C

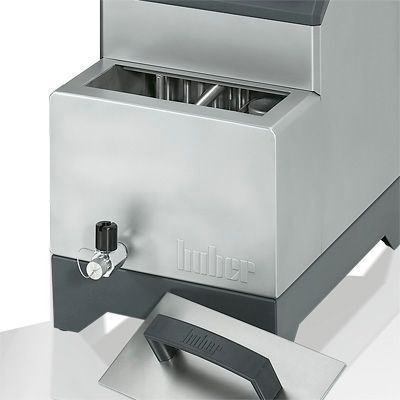

Bath opening WxD/BD
170 x 85 / 135 mm
Bath volume
3,2 Litres
Filling volume min.
2,8 Litres
Power supply
115V 1~ 60Hz
Current max.
14 A
Fusing
16 A
