Description
General information & temperature controller
Temperature range
-85…250 °C
Temperature stability
±0,01 °C
Temperature control
TAC, self-optimizing (True Adaptive Control)
Display resolution
0,01 °C
Alarm message
optical, acoustical
Controller

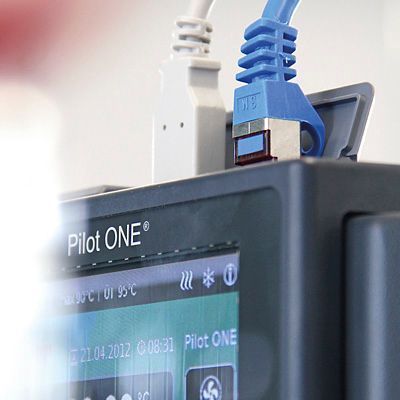

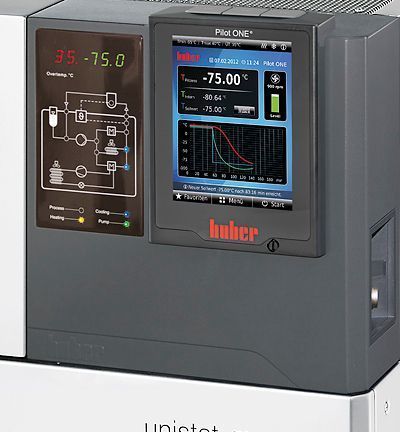

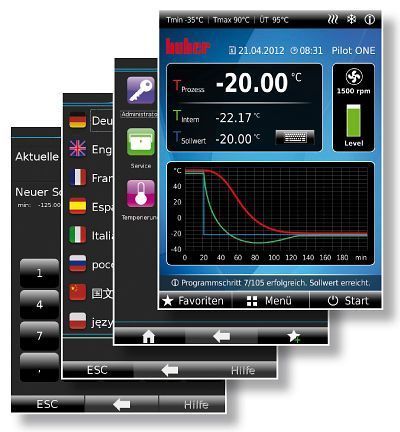

Pilot ONE (E-grade “Professional”)
Safety class
III / FL
Protection class
IP20
Dimensions (W x D x H)
460 x 604 x 1465 mm
Weight
— kg
Heating / cooling capacity
Heating capacity
3 kW
Cooling capacity
250
200
100
0
-20
-40
-60
-80
°C
2,3
2,3
2,3
2,2
2
2
1,4
0,3
kW
Cooling machine
air-cooled
Refrigerant 1. stage
R452A
Refrigerant 2. stage
R23 (0,39 kg)
Circulation pump
Pressure pump max.
40 l/min ; 0,9 bar
Pump connection
M30x1,5 AG male
Permissible viscosity
50 mm²/s
Connections
Pt100 connection
Pt100
Analogue input
via optional Com.G@te
Analogue output
via optional Com.G@te
Digital interface
RS232, Ethernet, USB Device, USB Host
Operating data
Permissible ambient temp.
5…40 °C
Filling volume min.
2,9 Litres
Volume of expansion
3,6 Litres
