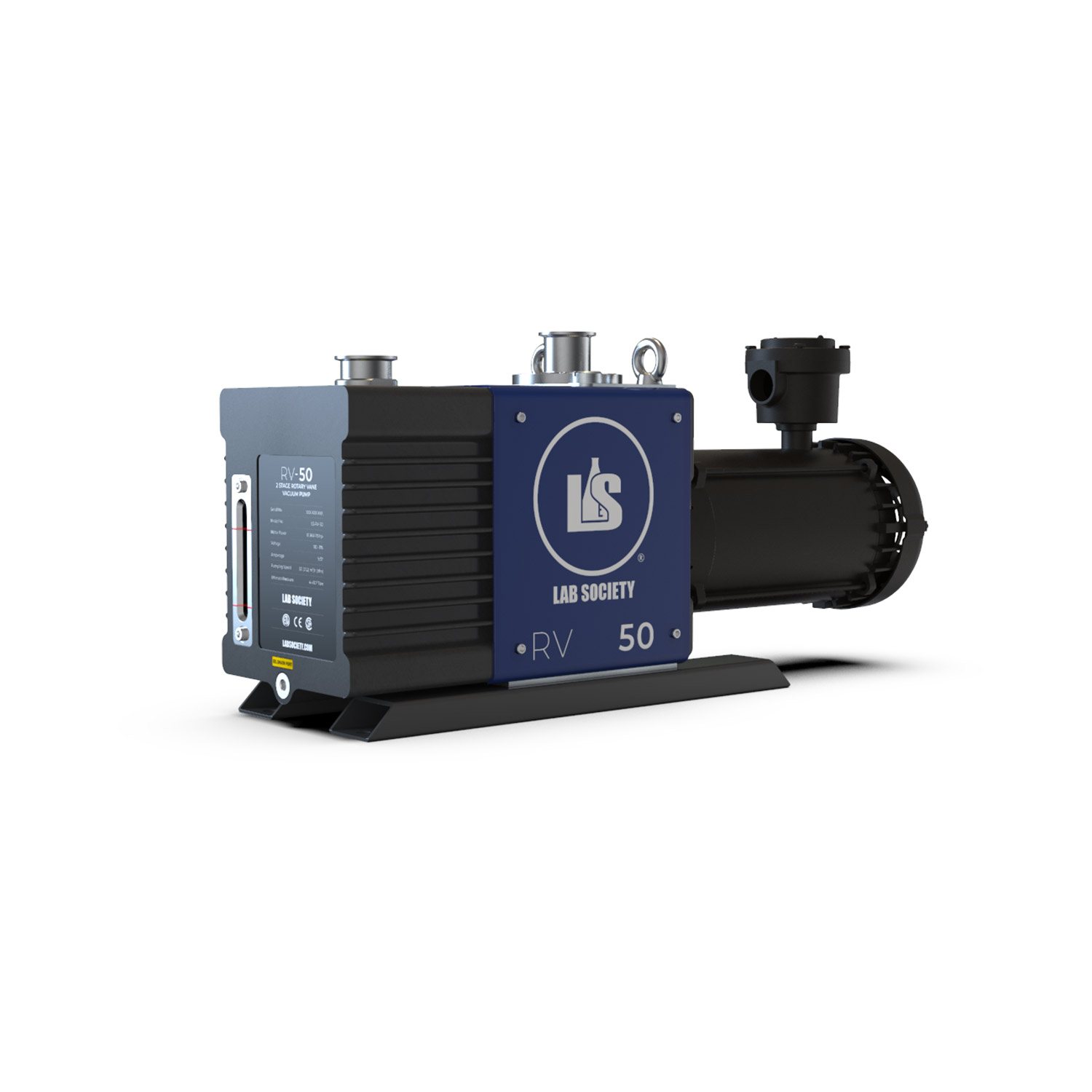

Lab Society 2-Stage Rotary Vane Vacuum Pump 50 – 460V / C1D2 (3 Phase Motor)

$13,554.70

Oil sealed rotary vane pumps with excellent vapor handling capacity.
Lab Society’s new series of oil-sealed rotary vane vacuum pumps have a cost-to-flow-rate ratio better than most (if not all) vacuum pumps on the market today. They are ideally suited for wet pumping applications such as distillation, freeze-drying, and various other laboratory and industrial applications.
Explore In-Depth Download Product Guide

SKU: 4201548 Category:

Description

MODEL:
LS-RV-12
LS-RV-18
LS-RV-25
LS-RV-36
LS-RV-50
LS-RV-70
LS-RV-110
LS-RV-200
LS-RV-300

m3/ hr (CFM):
12 (7.1)
17.4 (10.2)
24 (14.1)
36 (21.2)
48 (28.3)
72 (42.4)
108 (63.6)
196(115.4)
306(180.1)

ULTIMATE PRESSURE w/ gas ballast open (Torr):
4 x 10-2
4 x 10-2
4 x 10-2
4 x 10-2
4 x 10-2
4 x 10-2
4 x 10-2
4 x 10-2
4 x 10-2

ULTIMATE PRESSURE w/ gas ballast closed (Torr):
4 x 10-3
4 x 10-3
4 x 10-3
4 x 10-3
4 x 10-3
4 x 10-3
4 x 10-3
4 x 10-3
4 x 10-3

OIL CAPACITY
(Liters):
0.55 ~ 1
0.65 ~ 1.2
0.75 ~ 1.5
1.2 ~ 2.8
1.2 ~ 2.8
2.5 ~ 4.2
2.5 ~ 4.2
20 – 25
23 – 28

INLET & OUTLET FLANGE:
KF-25
KF-25
KF-25
KF-40
KF-40
KF-40
KF-40
ISO63 & KF-40
ISO63 & KF-40

VOLTAGE:
115V or 220V
115V or 220V
115V or 220V
115V or 220V
208V (3ph)
208V (3ph)
208V (3ph)
208V (3ph)
208V (3ph)

MOTOR POWER kW (HP):
0.4 (0.5)
0.55 (0.75)
0.75 (1.0)
1.1 (1.5)
1.5 (2.0)
2.2 (3.0)
3.7 (5.0)
5.5 (XX)
7.5 (XX)

DIMENSIONS (L x W x H in.):
22” x 10 ½” x 6 ½”
23” x 11” x 9”
27 ¾” x 12” x 8 ¼”
27 ¾” x 12” x 8 ¼”
28 ½” x 15” x 8 ¼”
29” x 14 ½” x 10”
32 ½” x 14 ½” x 10 ½”
41” x 22” x 16”
42 ½” x 22” x 16”

WEIGHT(lbs.):
56
74
85
142
147
197
229
513
568

Oil drain valve for easy draining and oil replacement
Gas ballast to help expel harmful vapors
CSA, ETL certified
Anti-suck-back protection
1 year standard warranty
Advanced pump replacement program

MODEL:
LS-RV-12
LS-RV-18
LS-RV-25
LS-RV-36
LS-RV-50
LS-RV-70
LS-RV-110
LS-RV-200
LS-RV-300

m3/ hr (CFM):
12 (7.1)
17.4 (10.2)
24 (14.1)
36 (21.2)
48 (28.3)
72 (42.4)
108 (63.6)
196(115.4)
306(180.1)

ULTIMATE PRESSURE w/ gas ballast open (Torr):
4 x 10-2
4 x 10-2
4 x 10-2
4 x 10-2
4 x 10-2
4 x 10-2
4 x 10-2
4 x 10-2
4 x 10-2

ULTIMATE PRESSURE w/ gas ballast closed (Torr):
4 x 10-3
4 x 10-3
4 x 10-3
4 x 10-3
4 x 10-3
4 x 10-3
4 x 10-3
4 x 10-3
4 x 10-3

OIL CAPACITY
(Liters):
0.55 ~ 1
0.65 ~ 1.2
0.75 ~ 1.5
1.2 ~ 2.8
1.2 ~ 2.8
2.5 ~ 4.2
2.5 ~ 4.2
20 – 25
23 – 28

INLET & OUTLET FLANGE:
KF-25
KF-25
KF-25
KF-40
KF-40
KF-40
KF-40
ISO63 & KF-40
ISO63 & KF-40

VOLTAGE:
115V or 220V
115V or 220V
115V or 220V
115V or 220V
208V (3ph)
208V (3ph)
208V (3ph)
208V (3ph)
208V (3ph)

MOTOR POWER kW (HP):
0.4 (0.5)
0.55 (0.75)
0.75 (1.0)
1.1 (1.5)
1.5 (2.0)
2.2 (3.0)
3.7 (5.0)
5.5 (XX)
7.5 (XX)

DIMENSIONS (L x W x H in.):
22” x 10 ½” x 6 ½”
23” x 11” x 9”
27 ¾” x 12” x 8 ¼”
27 ¾” x 12” x 8 ¼”
28 ½” x 15” x 8 ¼”
29” x 14 ½” x 10”
32 ½” x 14 ½” x 10 ½”
41” x 22” x 16”
42 ½” x 22” x 16”

WEIGHT(lbs.):
56
74
85
142
147
197
229
513
568
