Description
Model
BC-4F
Electrical requirements
115V 60Hz 1-Phase 400 watts

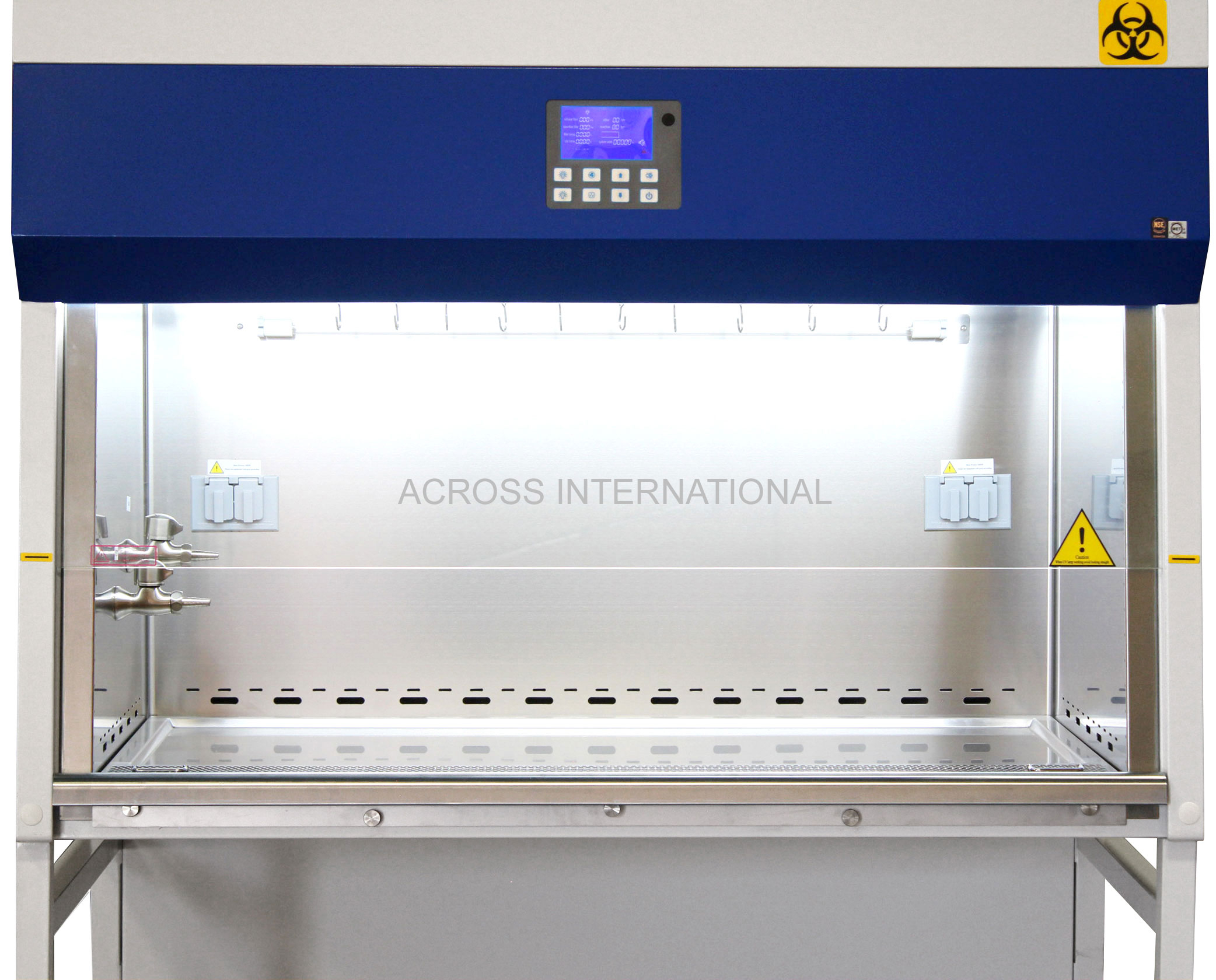

Chamber

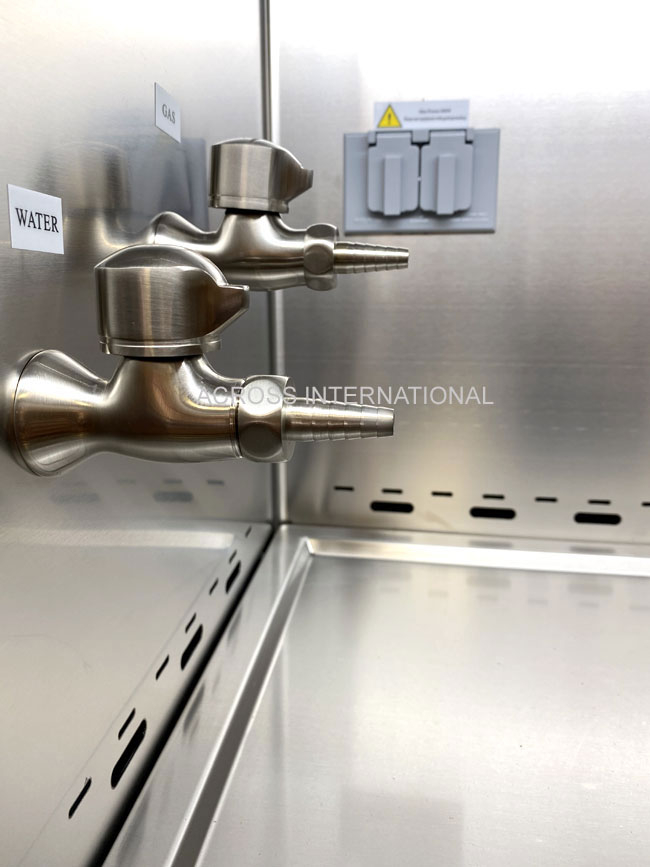

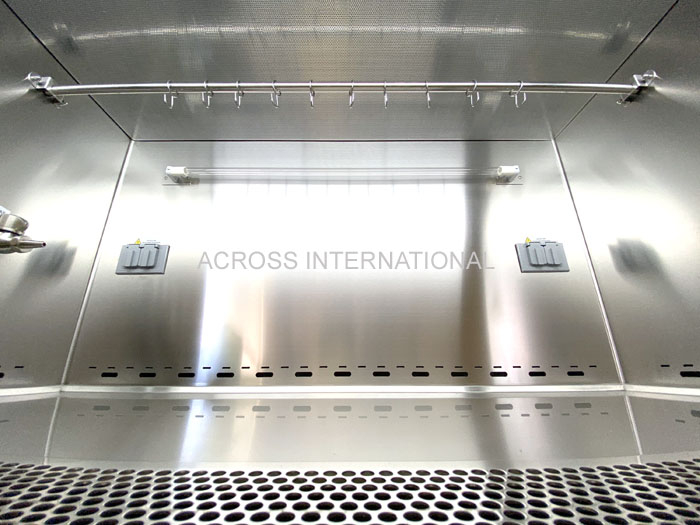

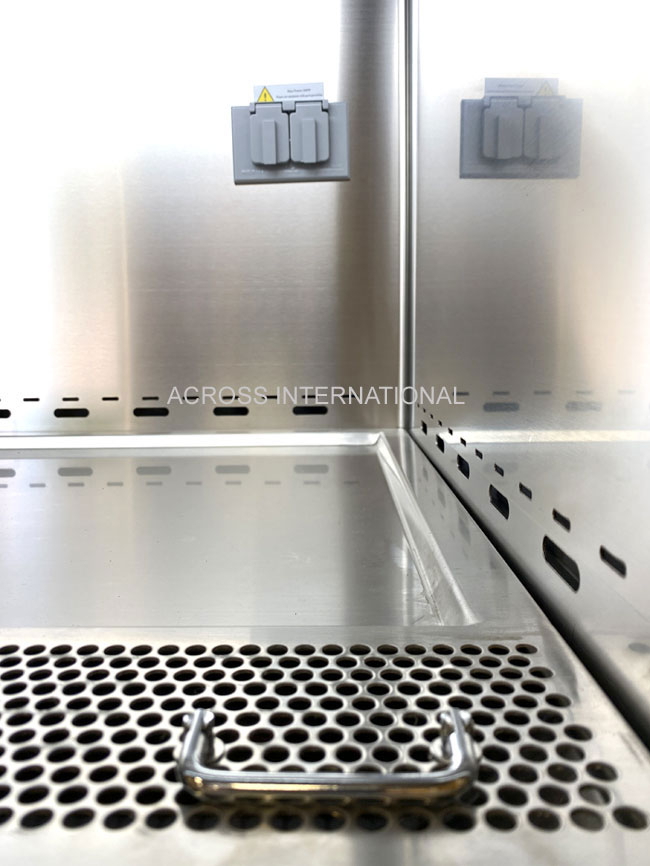

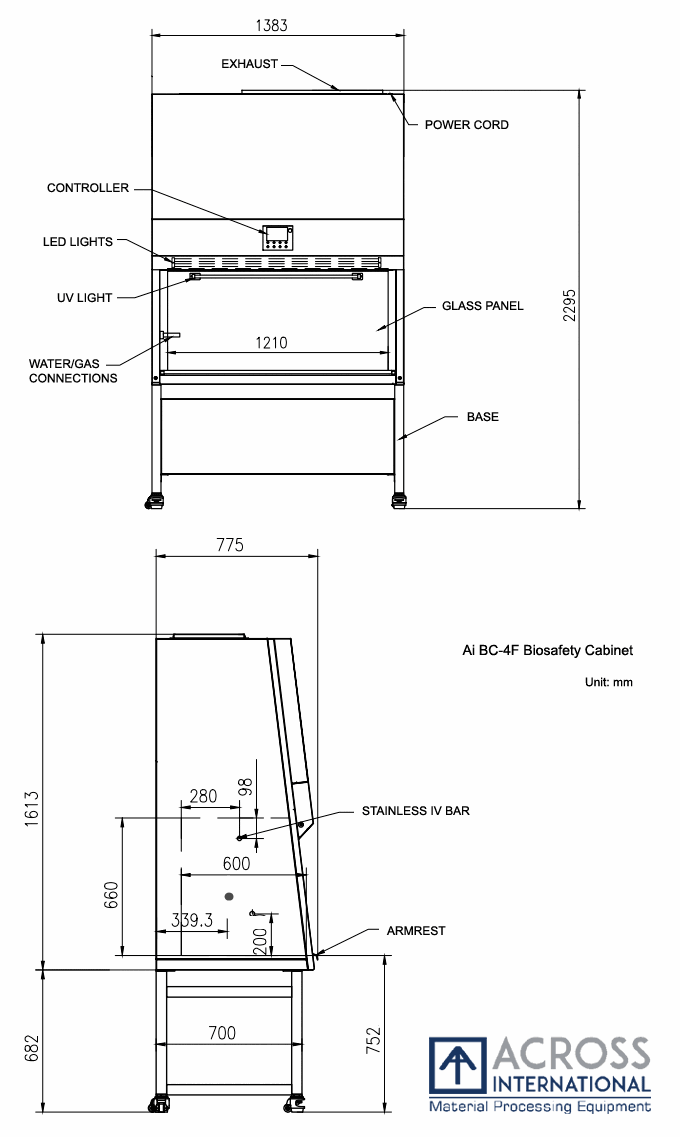

Dimensions: 48 x 23.5 x 26″ (WxDxH) Material: 304 stainless steel Power outlet with cover: four, < 500 watts Water port x 1, stainless steel Gas port x 1, stainless steel Surface height from ground: 29.5" Hanging bar: stainless steel, with 10 hooks
Lights
LED lights: 18W x 2, > 1000 Lux UV lights: 30W (Germicidal UV lamp, emission 253.7 nanometers) * UV lights available only when front glass panel is fully closed. * Recommended replacement interval: 600 hours
Air flow

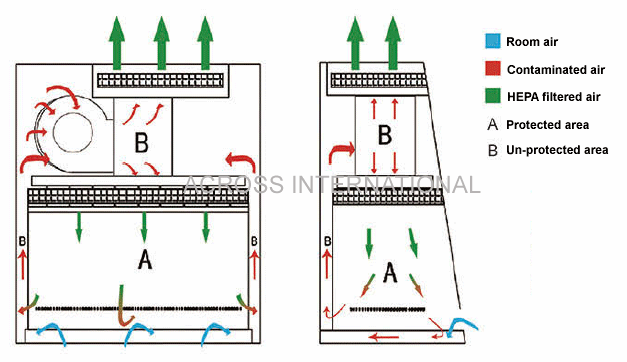

Volume Inflow: 345 CFM (Cubic Feet per Minute) Downflow: 500 CFM Exhaust: 345 CFM Speed Inflow: 100-110 FPM (Feet per Minute) Downflow: 60-70 FPM Motor: 1/2 HP, 9A * 70% recirculated internally, 30% discharged from top vent * Air circulation available only when front glass panel is open
Top clearance
12″ (recommended)
HEPA (High-Efficiency Particulate Air) filter
Two, with 99.999% efficiency at 0.3 μm diameter Filter hour indicator and life bar on controller * Recommended replacement interval: 4,000 hours
Front safety panel

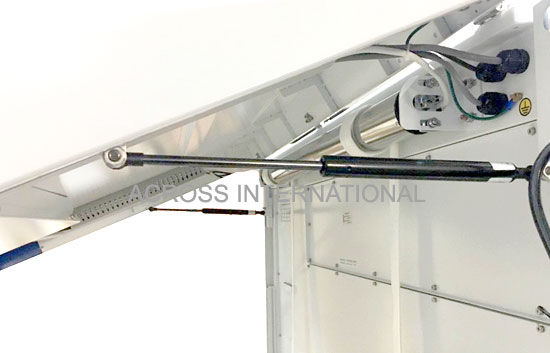

Material: tempered safety glass (thickness > 5mm), dual-layer, laminated, UV blocking Recommended opening height: 10″ Maximum opening height: 20.5″
Material
Chamber: 304 stainless steel Main body: powder coated steel
Controller
LCD screen with soft touch buttons and remote control
Noise
< 65 dB(A)
Casters
Four, with stationable feet
Unit/shipping Weight & dimensions
520 Lbs / 725 Lbs 54.5 x 30.5 x 90" (fully assembled) / 61 x 43 x 76" (WxDxH)
Safety
Abnormal airflow alarm Filter replacement alarm Front glass panel unsafe height

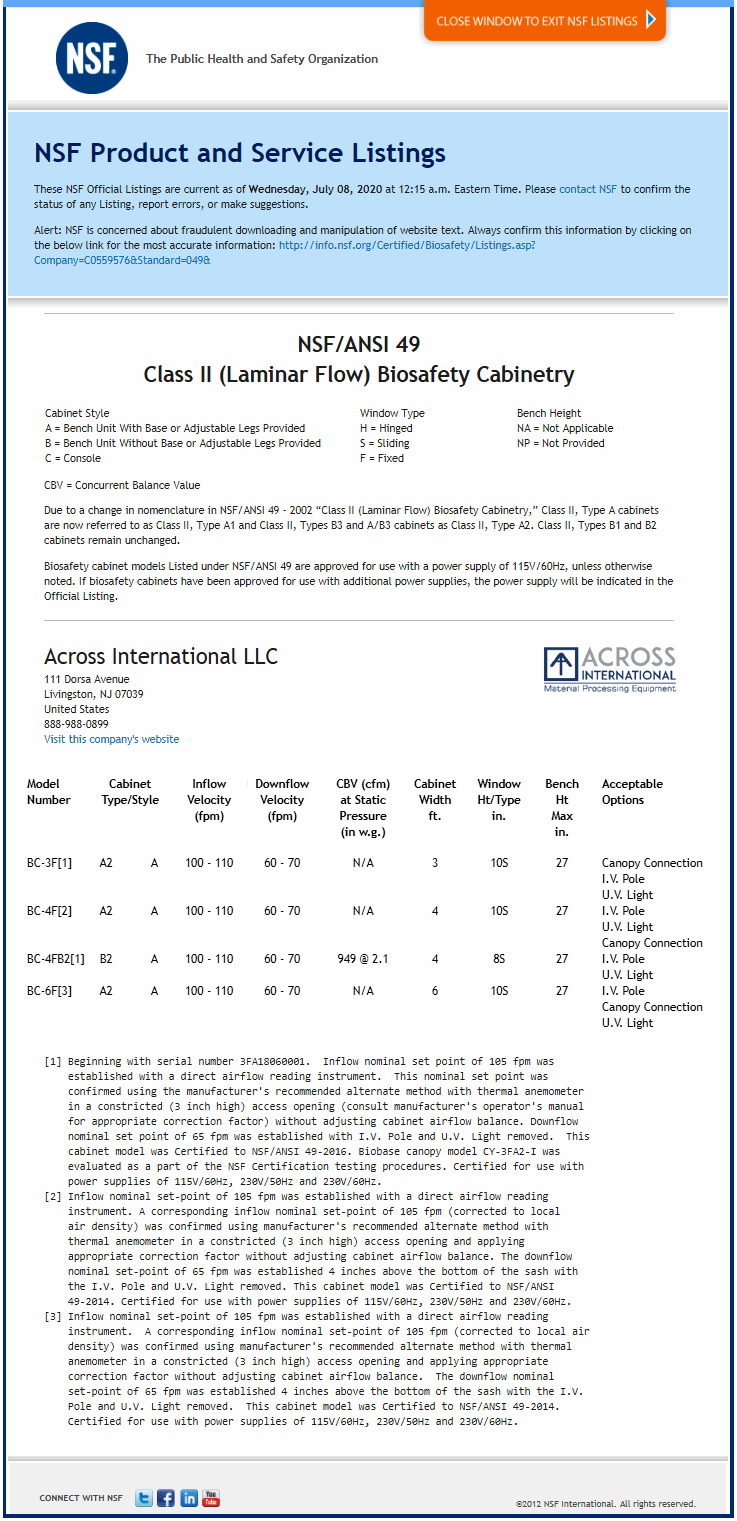

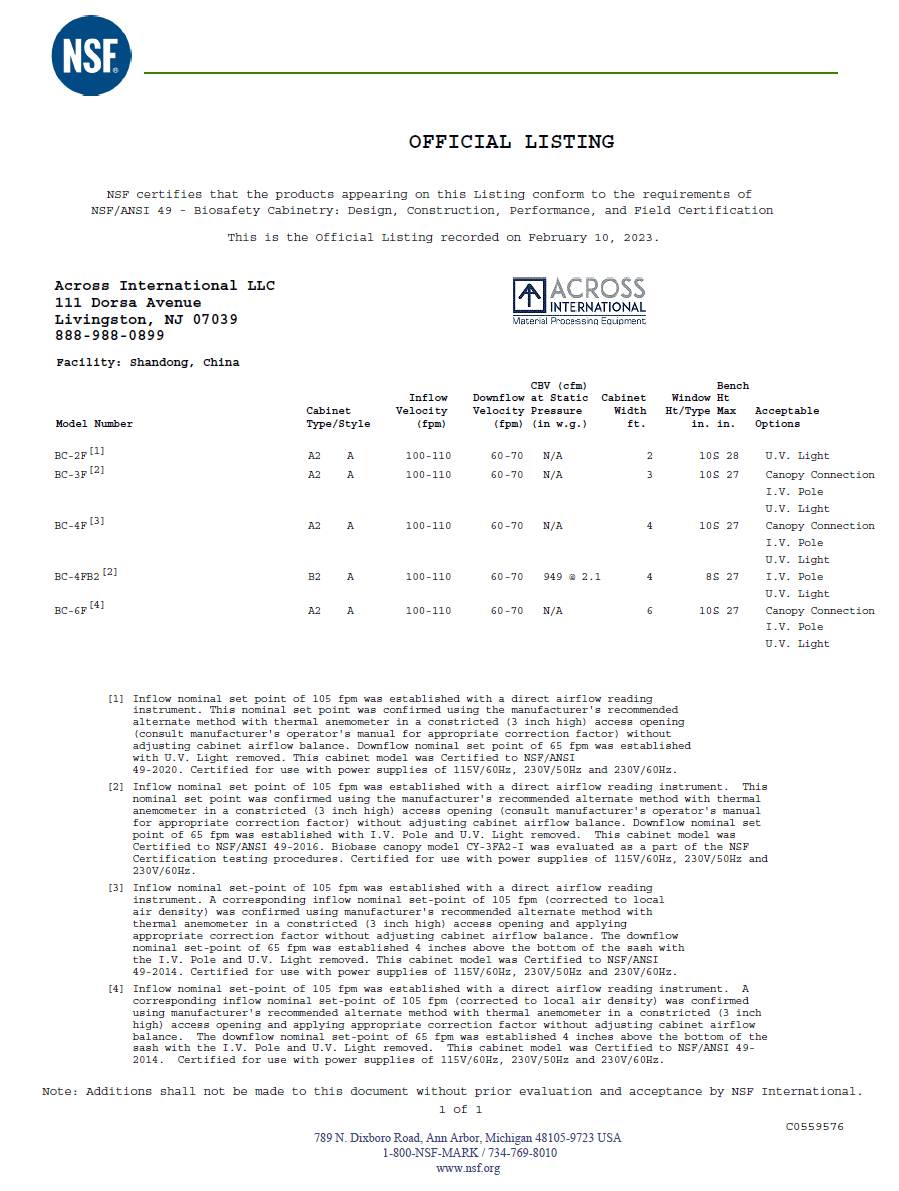

Compliance

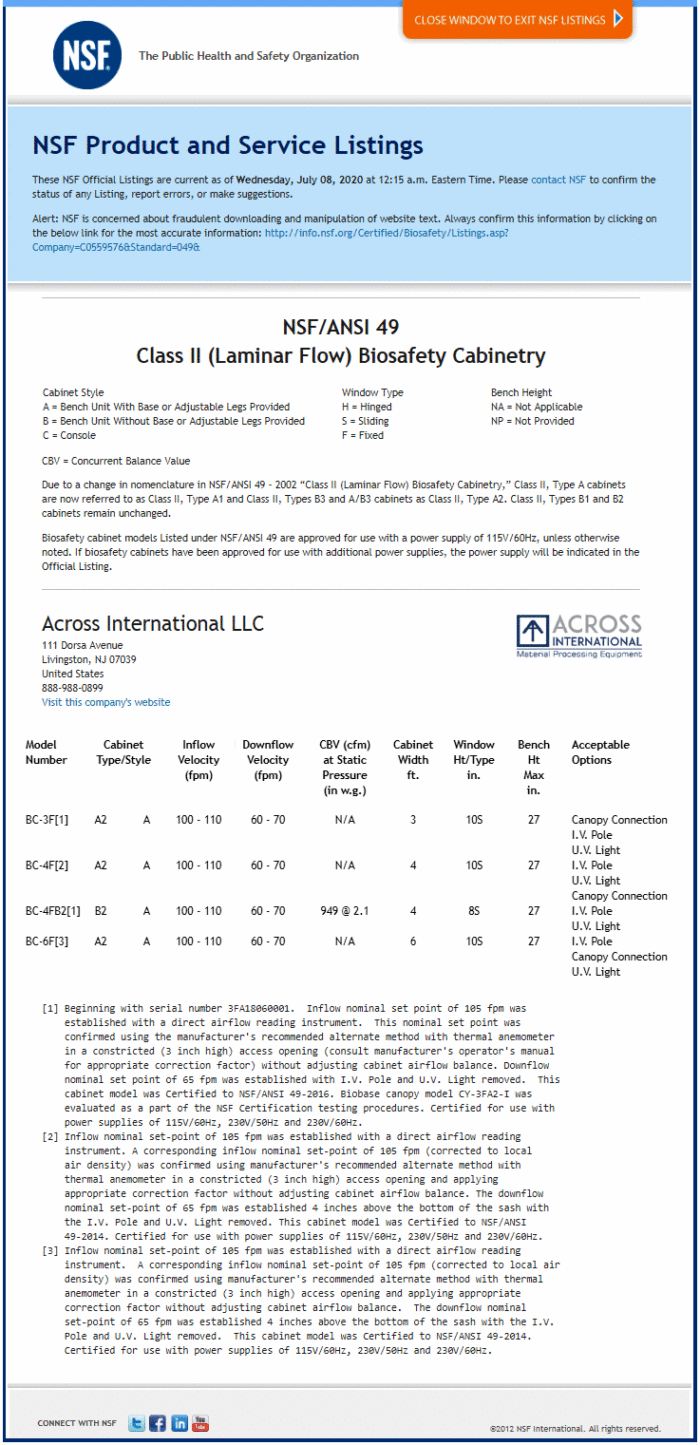

NSF/ANSI 49 (C0559576)
Warranty
One year
