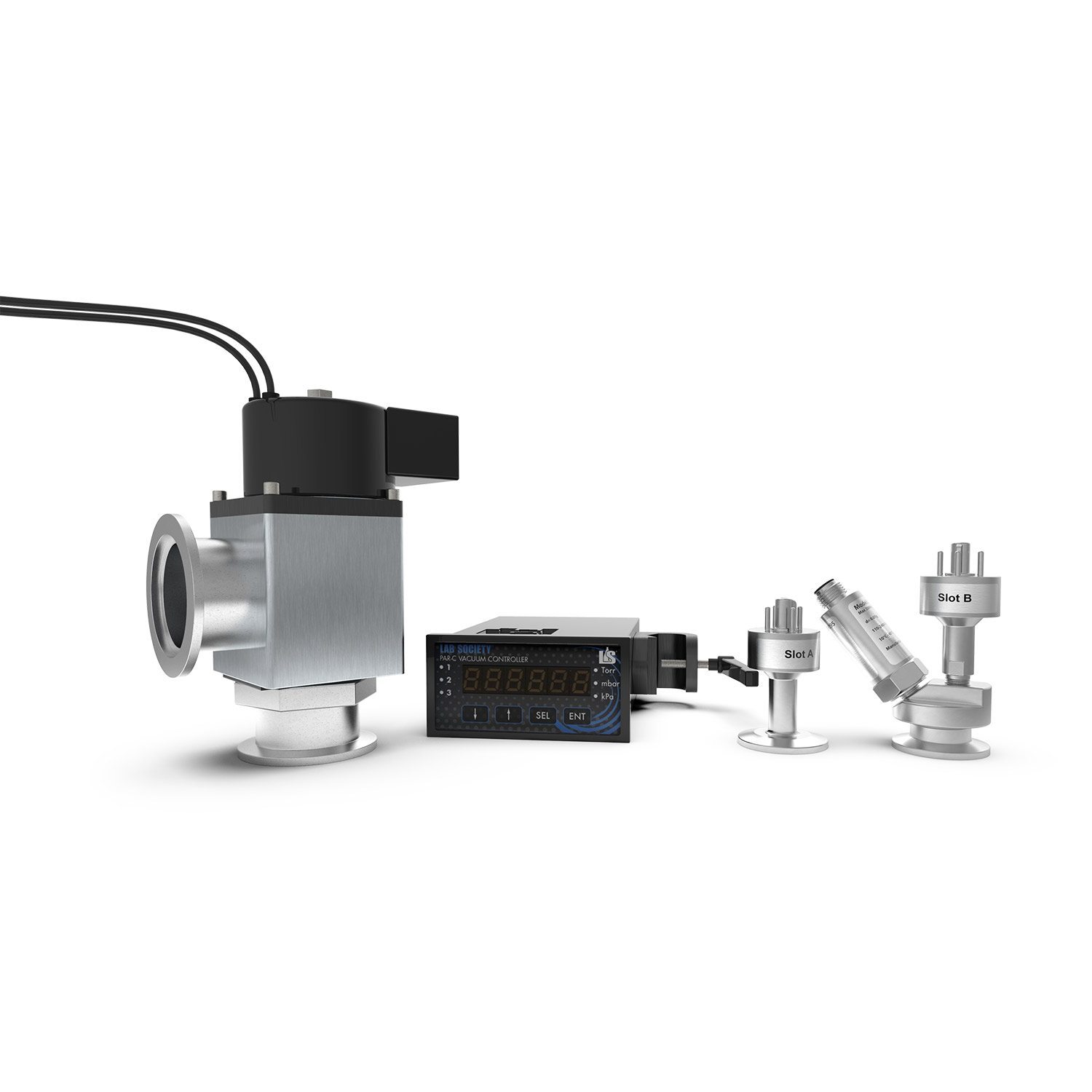

PAR-C Vacuum Controller – Dual Sensor (KF40)

3,190.00$

The newest addition to Lab Society’s Precision Vacuum Monitor series is a true, wide-range vacuum controller (and vacuum gauge).
The controller includes two (2) points of vacuum measurement, and one has the ability to control an automatic isolation valve.

SKU: 4201228 Category:

Description

Compound pressure sensor for wide-range vacuum control
Multiple units of vacuum measure
Data logging via USB & EliteLab integration
Digital vacuum gauge with visual display
Portable
Numerical output via LED screen, graphical via EliteLab software (requires a computer)
Rod-mount support
Easy and quick troubleshooting
Rugged thermocouple probes for measurement
Self-powered automatic vacuum valve
Wide isolation valve orifice – to reduce bottlenecking of pressure before the valve
Wide-range of accurate pressure control for various stages of the distillation process
Pressure control for gently removing volatiles in the early stages of distillation
Specific pressure control for more precise, repeatable distillations
Reduce load on cold traps and vacuum pump due to high vacuum depth during volatile/solvent presence in the distillation process
Operate systems in low-to-medium-to-high vacuum ranges
Wide range of accurate pressure control for various stages of the distillation process
Perform decarboxylation/devolatilization processes strategically in low-to-medium vacuum ranges (to prevent trap/pump overloading)
Gently remove volatiles and/or terpenes from feedstock by raising system pressure
Control feed rates by reducing pressure spikes and having static system pressure for consistent distillation
Dual-purpose single-stage Thin Film Distillation units into decarboxylation/devolatilization units as well as high-vacuum distillation units
Operate systems in low to medium to high vacuum ranges

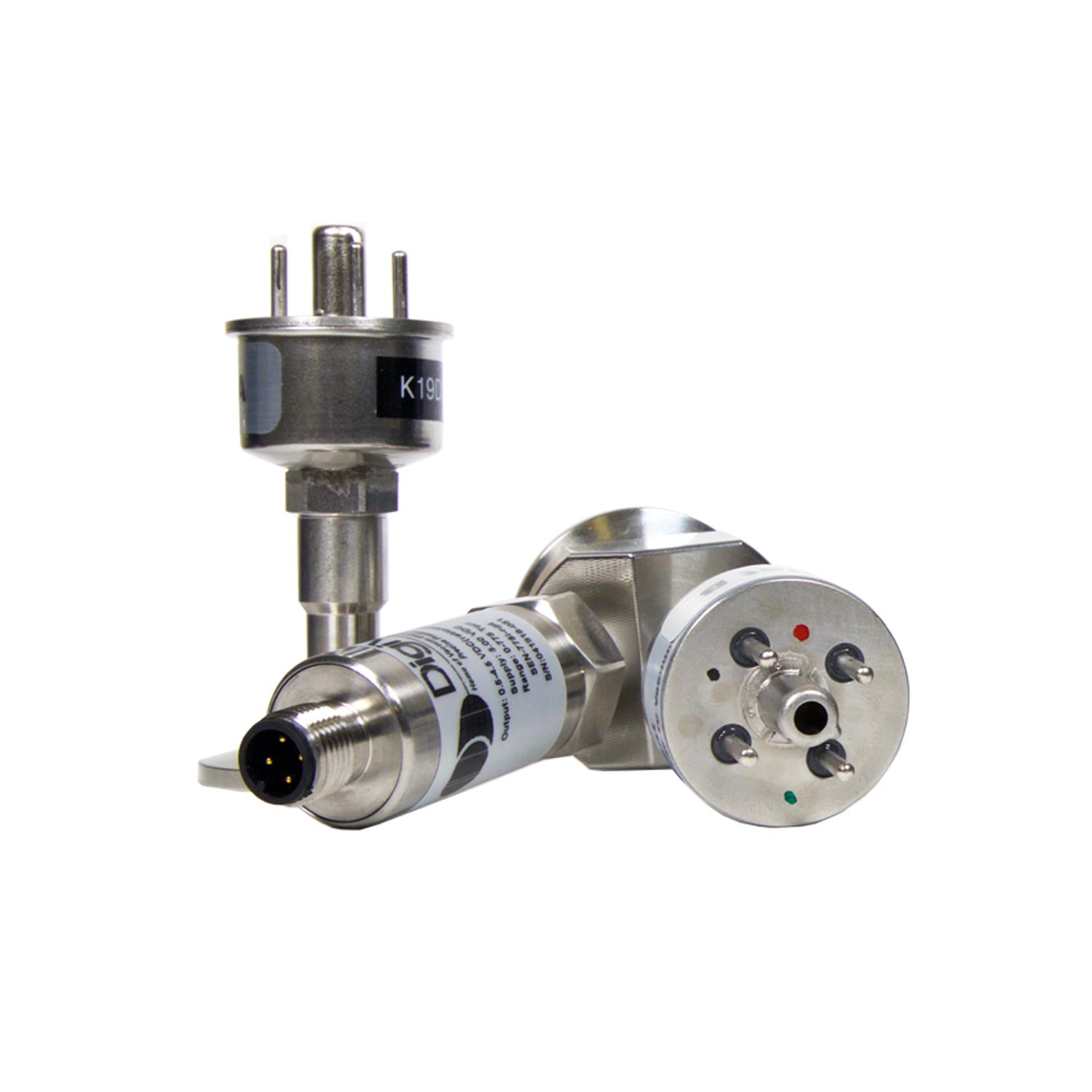

Compound pressure sensor consisting of two (2) sensor probes, connected via a single KF25 flange connection, that monitor vacuum pressure accurately in two (2) ranges:

0.02 to 2 Torr
2 to 775 Torr

0.02 to 2 Torr
2 to 775 Torr
Thermocouple pressure sensor for accuracy in the 0.001 to 2 Torr and 6 to 800 Torr pressure ranges
0.02 to 2 Torr
2 to 775 Torr
Power: 100-240Vac 50/60Hz, 100 Watts
Compound Sensor Interface:

531 Sensor & 775i Sensor mounted to single KF25 adapter
AcRange: 20 mTorr to 775 Torr

531 Sensor & 775i Sensor mounted to single KF25 adapter
AcRange: 20 mTorr to 775 Torr
Thermocouple Sensor Interface:

531 Sensor with single KF25 connection
Range: 1 mTorr – 760 Torr

531 Sensor with single KF25 connection
Range: 1 mTorr – 760 Torr
Isolation Valve Orifice: 0.5 inches
Mount: Side-mounted rod support
Indicator Lights
Telemetry Options: USB
531 Sensor & 775i Sensor mounted to single KF25 adapter
AcRange: 20 mTorr to 775 Torr
531 Sensor with single KF25 connection
Range: 1 mTorr – 760 Torr
