Description
PARAMETER
VALUE
PARAMETER
VALUE
Feed Rate
100L / 1hr
Max Temp Crude OIl
25-45C
Feed Compositions: Alcohol
96.5%
Steam Pressure
12-24 PSI
Feed Compositions: Oil
3.5%
Cooling Water Temp.
7C
Alcohol Recovery Rate
100-135 LPH
Distillate Composition:Alcohol
>99.9%
100% engineered and fabricated in house by Pinnacle Stainless in Denver, CO
100L/hr solvent recovery rate
35 kW steam generator and 25 kW chiller at 40°F required for operation
Closed-loop system designed for safe operation
Equipment built to food and sanitary standards
Rising film technology for minimal degradation
Third-party engineer peer-reviewed
Touch screen operation
UL hazardous location controls

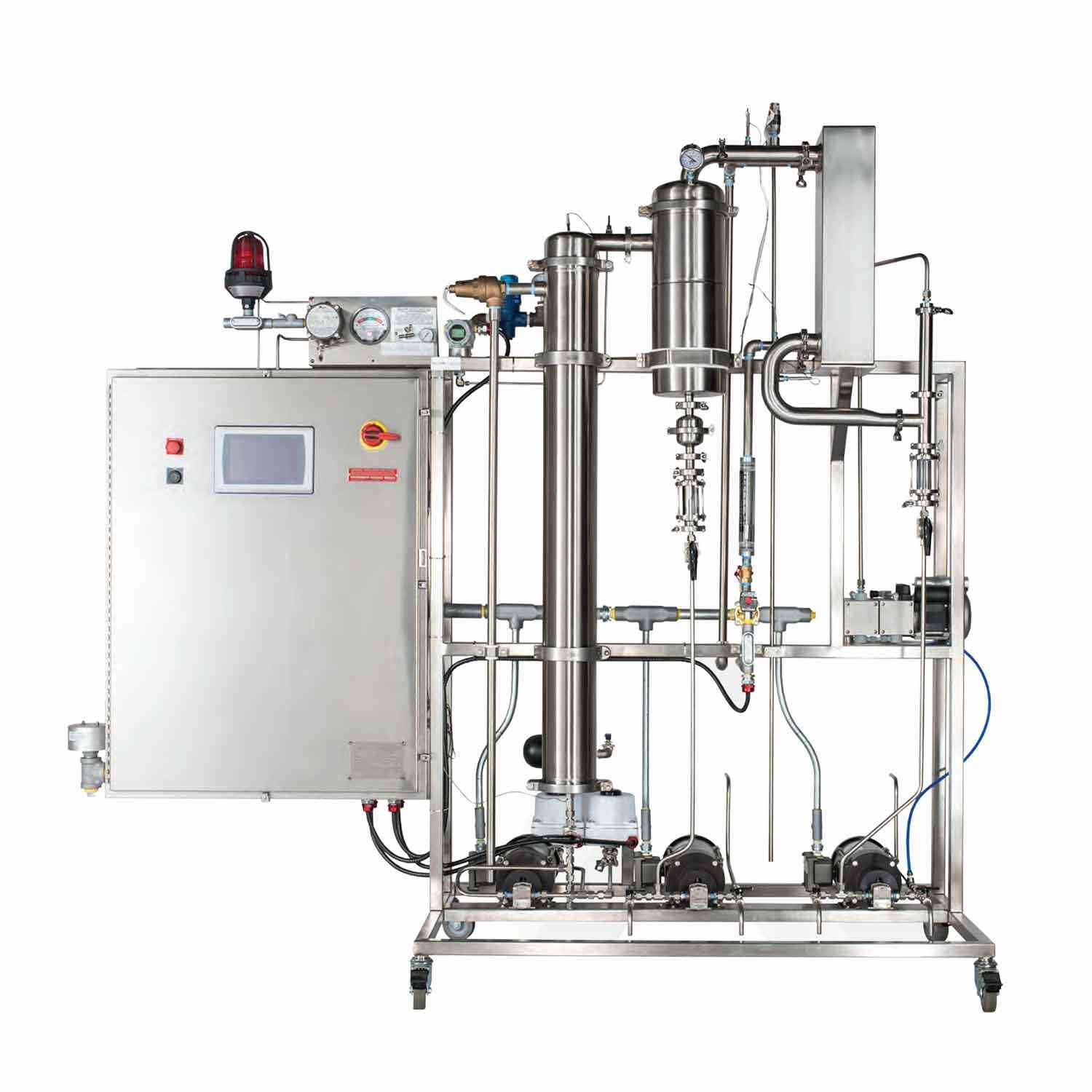

Pinnacle Stainless SRS Evaporator Skid
Pinnacle Stainless C1D2 UL Listed & Approved Electronics
Training and Install Support
System Dimensions (L x W x H in.): 98″ x 40″ x 95″
System Weight: 2400 lbs (including crating)
Closed-loop system designed for safe operation
400L/hr solvent recovery rate
Rising film technology for minimal degradation
Equipment built to food sanitary standards
Touch Screen operation
UL hazardous location controls
Third-party engineer peer-reviewed
100% engineered and fabricated in house by Pinnacle Stainless in Denver, CO
140 kW steam generator and 100 kW chiller at 40°F required for operation
Pinnacle Stainless SRS Evaporator Skid
Pinnacle Stainless C1D2 UL Listed & Approved Electronics
Training and Install Support
System Dimensions (L x W x H in.): 114.25″ x 43.5″ x 98.25″
System Weight: 2400 lbs (including crating)
