Description
Model

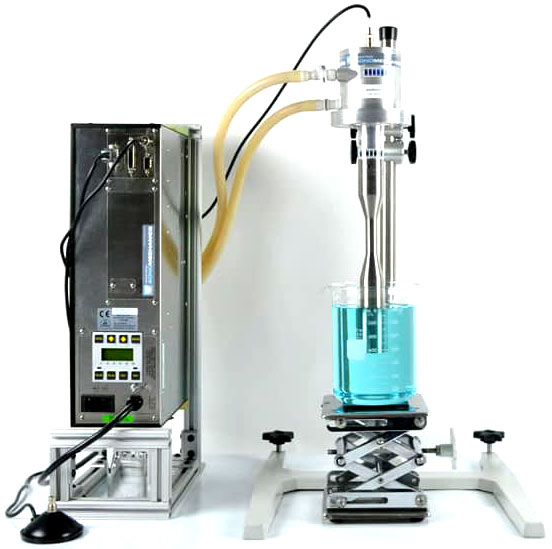

BSP-1200
Electrical requirements
100V-120V (20A max.), 220V-240V (10A max.), 50/60Hz
Ultrasonic output
3000 V rms (max.), 20 ( /- 1) kHz, 1200 W (max.)

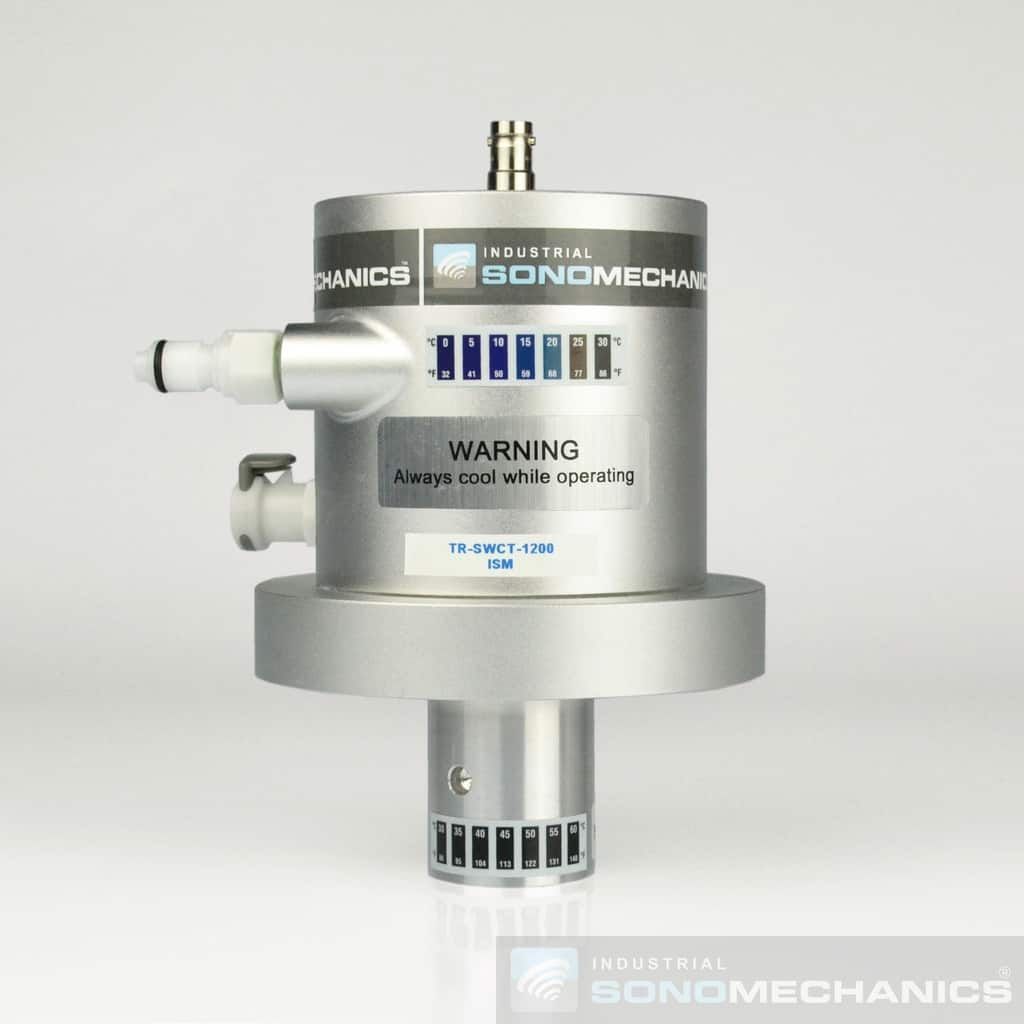

Water-cooled piezoelectric transducer (SWCT-1200)
Output Characteristics: amplitude — 24 microns (max.), frequency 20 ( /- 1) kHz, power — 1200 W (max.)

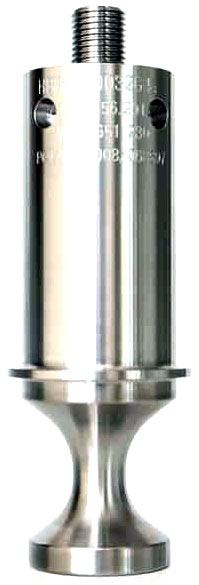

Half-wave Barbell Horn® (HBH, 32 mm tip diameter)
Output characteristics: amplitude — 93 microns (max.), frequency — 20 ( /- 1) kHz, power — 1200 W (max.)

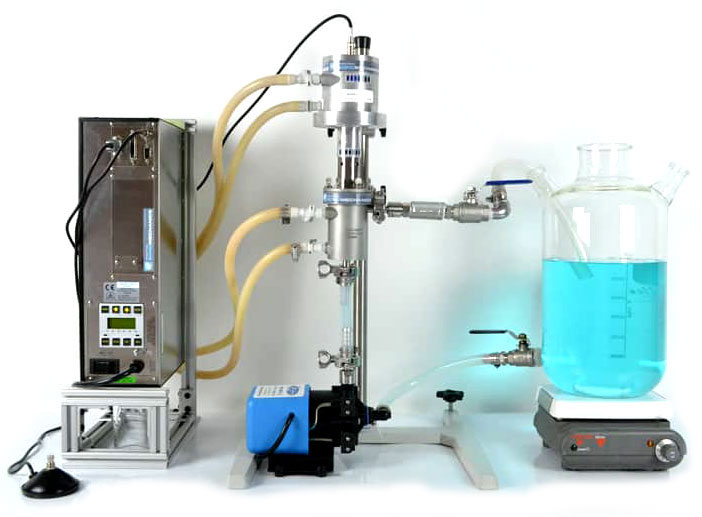

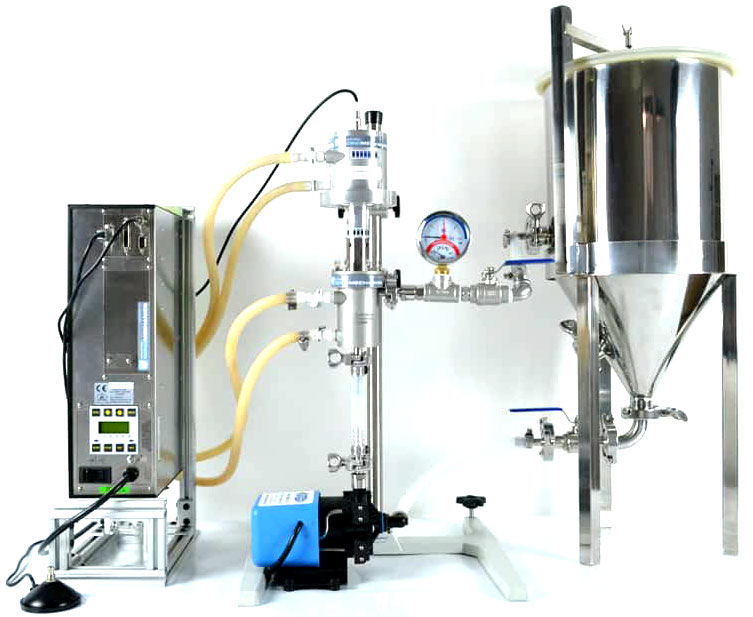

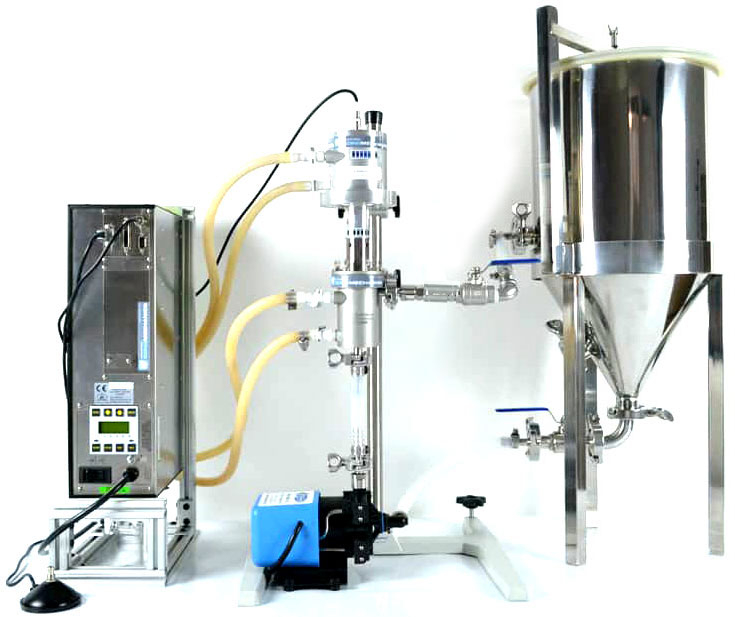

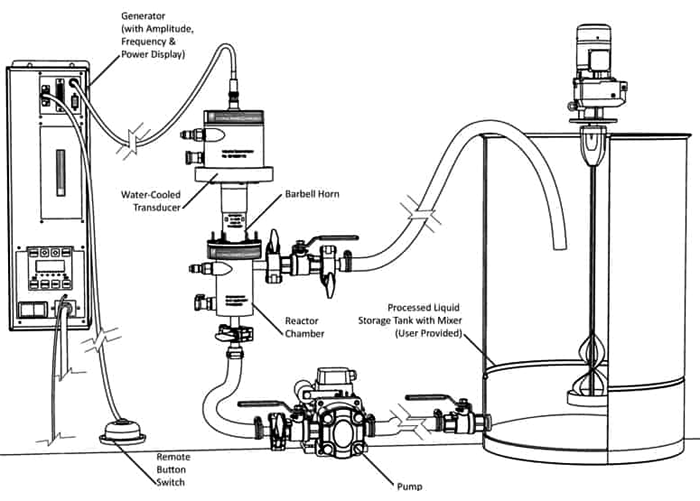

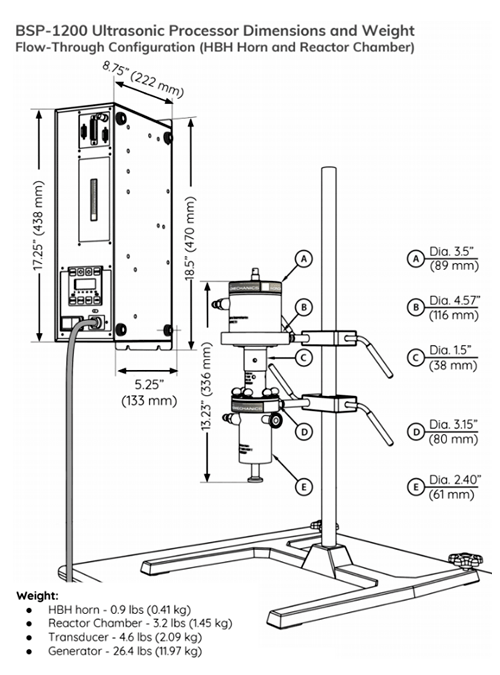

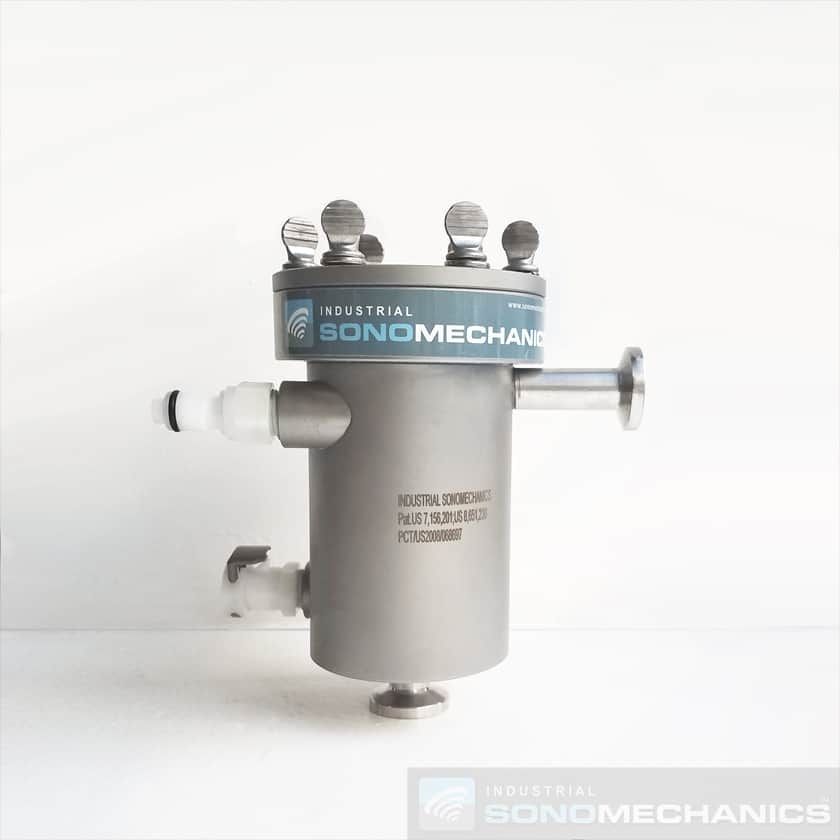

Flow-through reactor chamber (flow cell)
Features: 1/2″ tri-clamp inlet and outlet, cooling jacket with valved quick-disconnects.
Materials of wetted parts
Reactor chamber — 304 Stainless Steel. Food compatible. Horns (FBH, HBH) — Grade 5 Titanium (Ti6Al4V). Food compatible. Gaskets — Buna-N or Teflon. Food compatible. O-rings — Buna-N. Food compatible.
Noise level
103 – 106 dBa at 2′ away. Noise reducing earmuffs or sound enclosure required.
Capacity

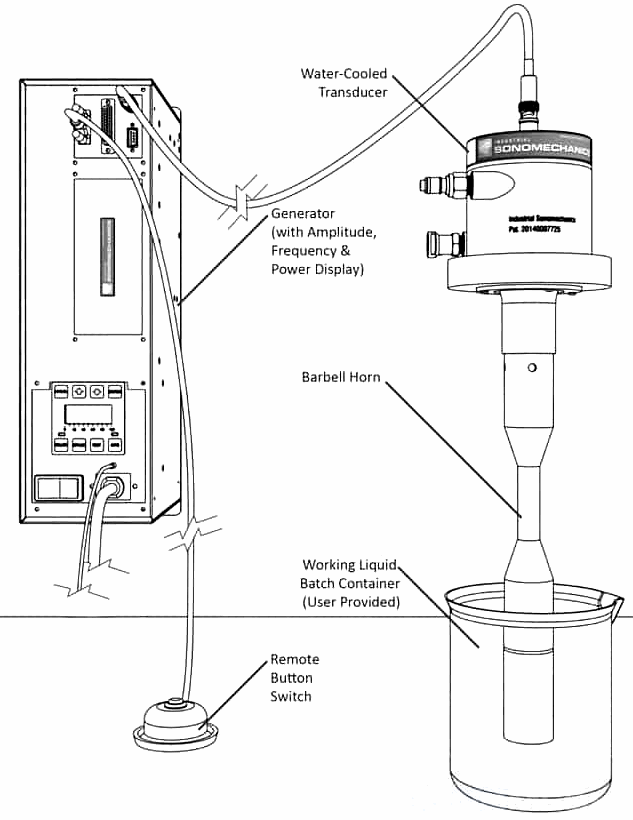

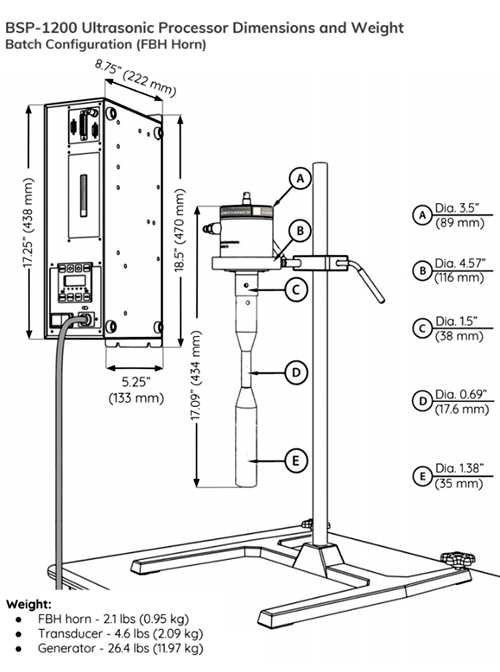

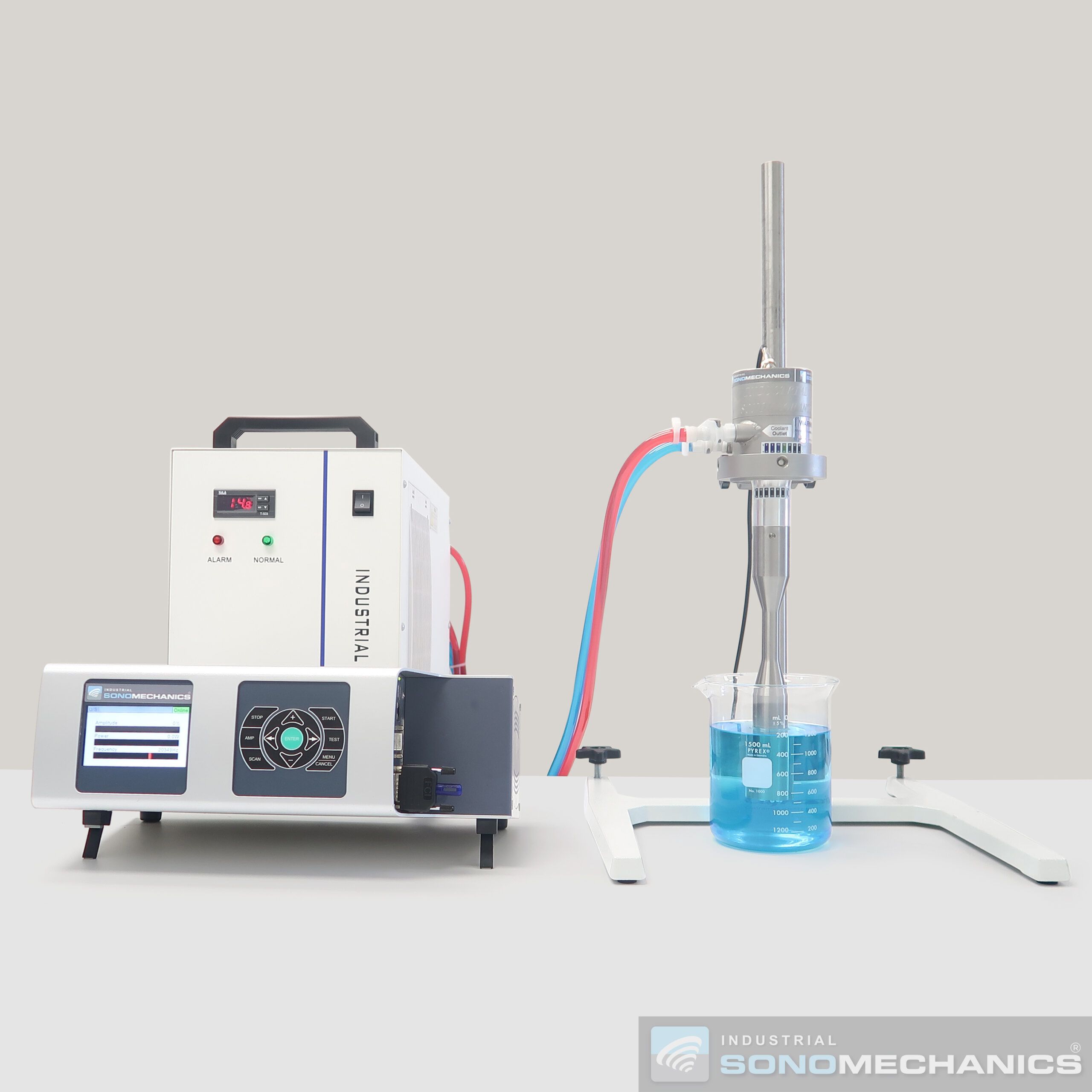

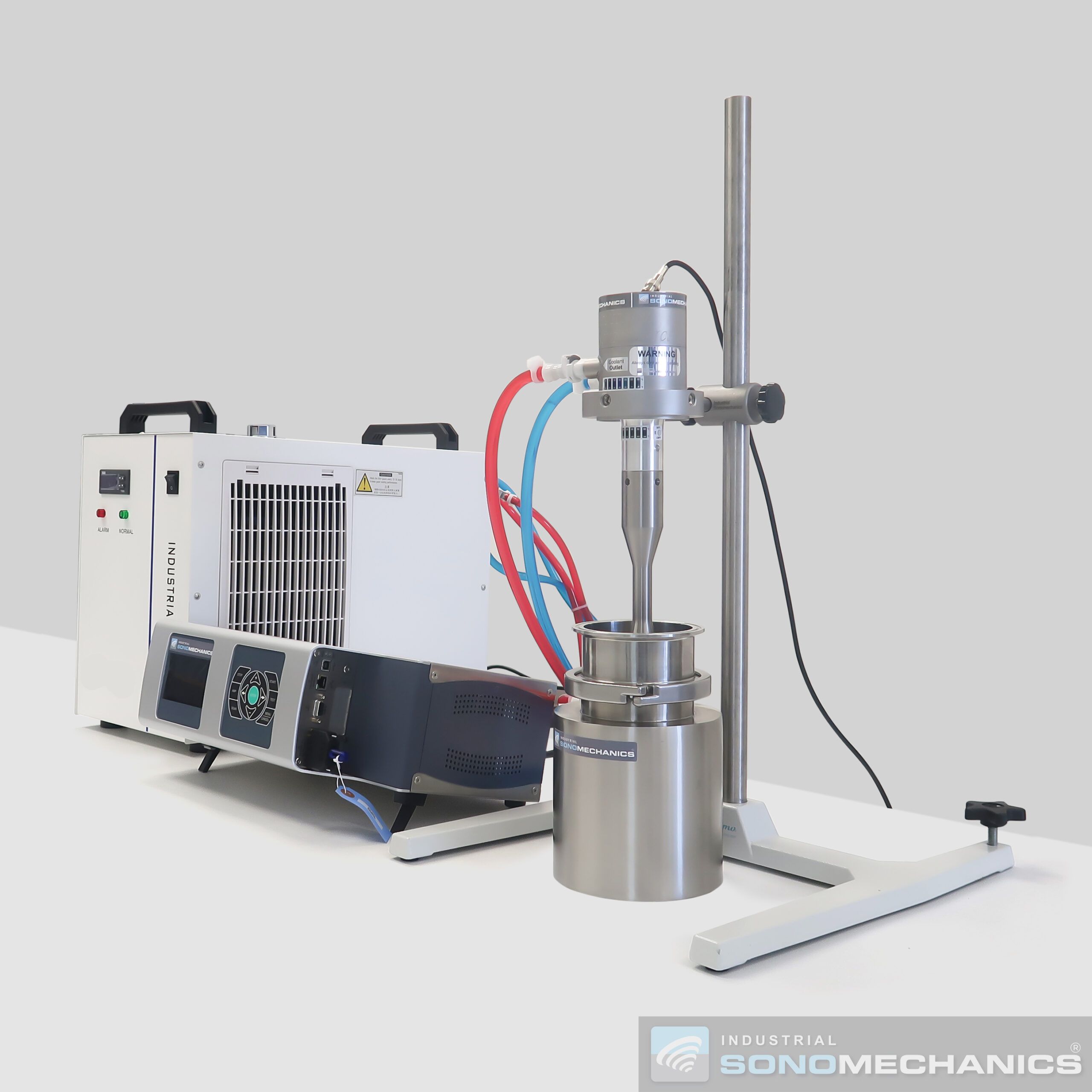

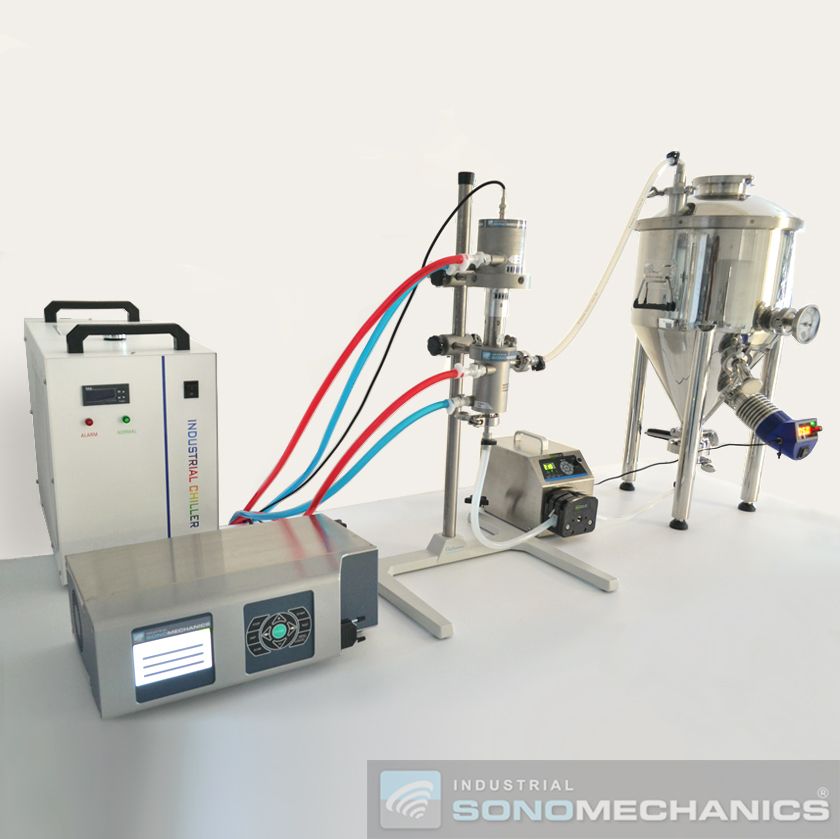

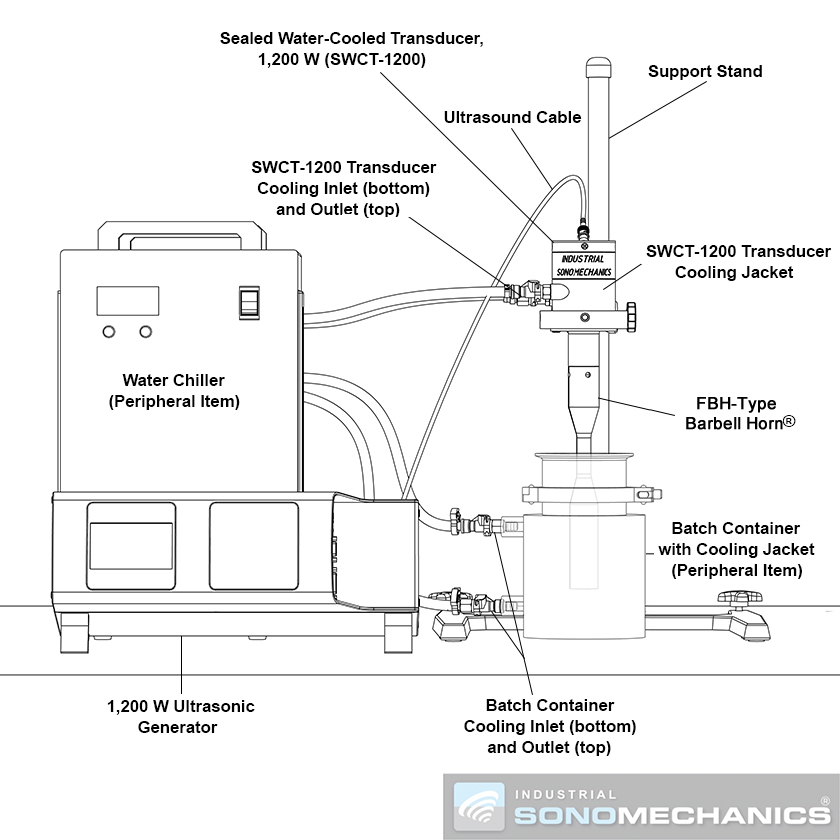

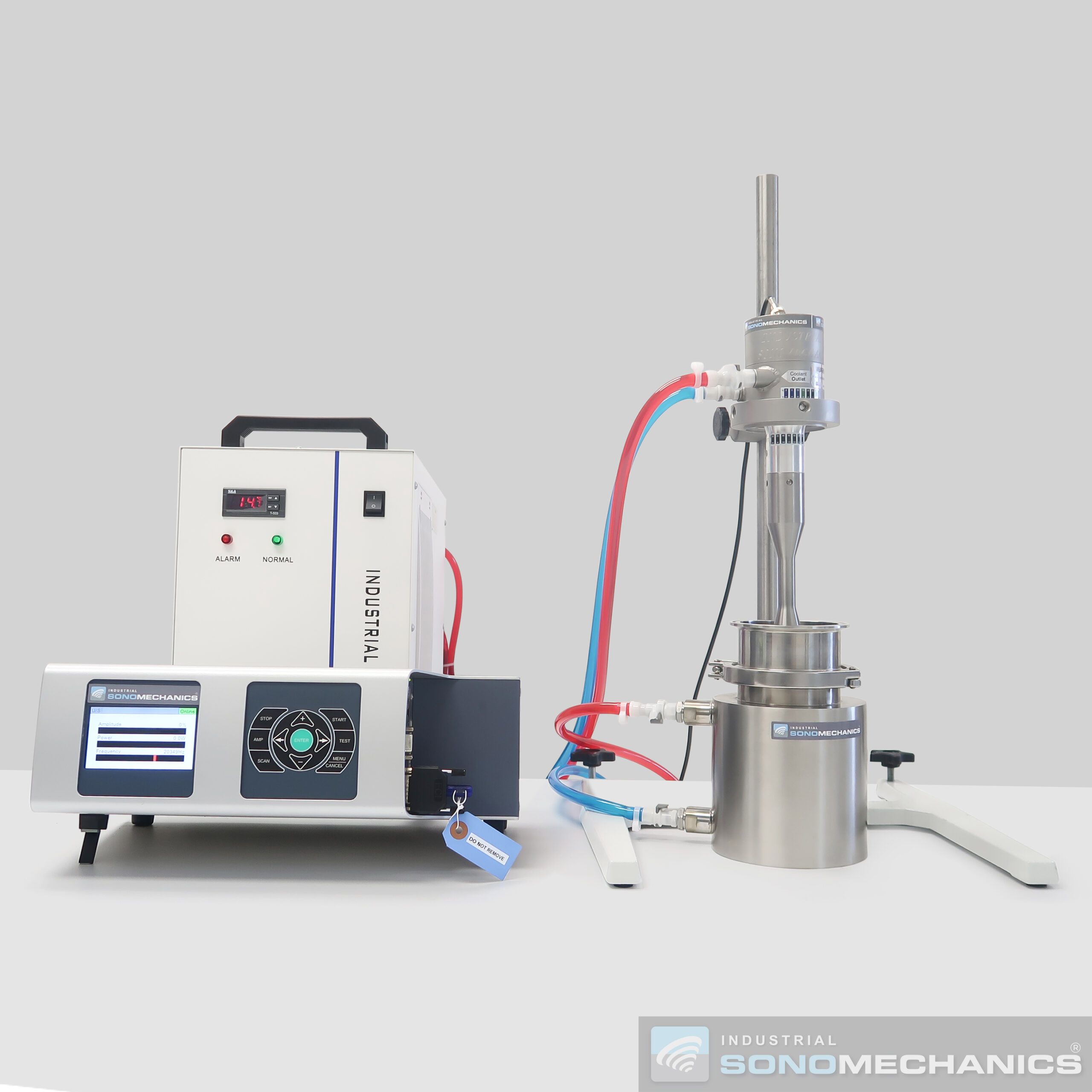

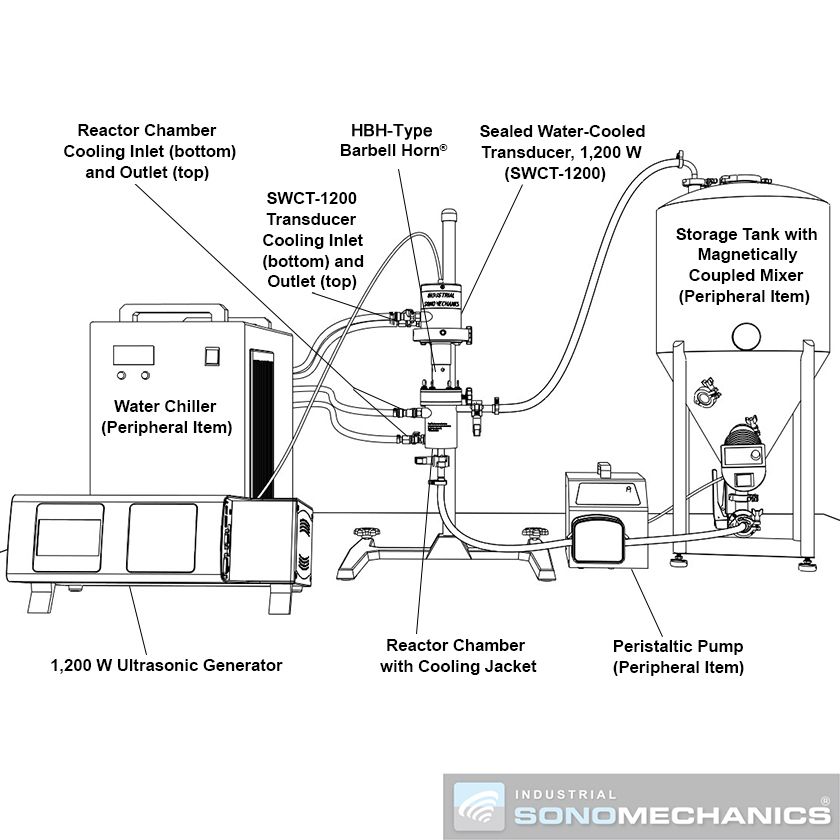

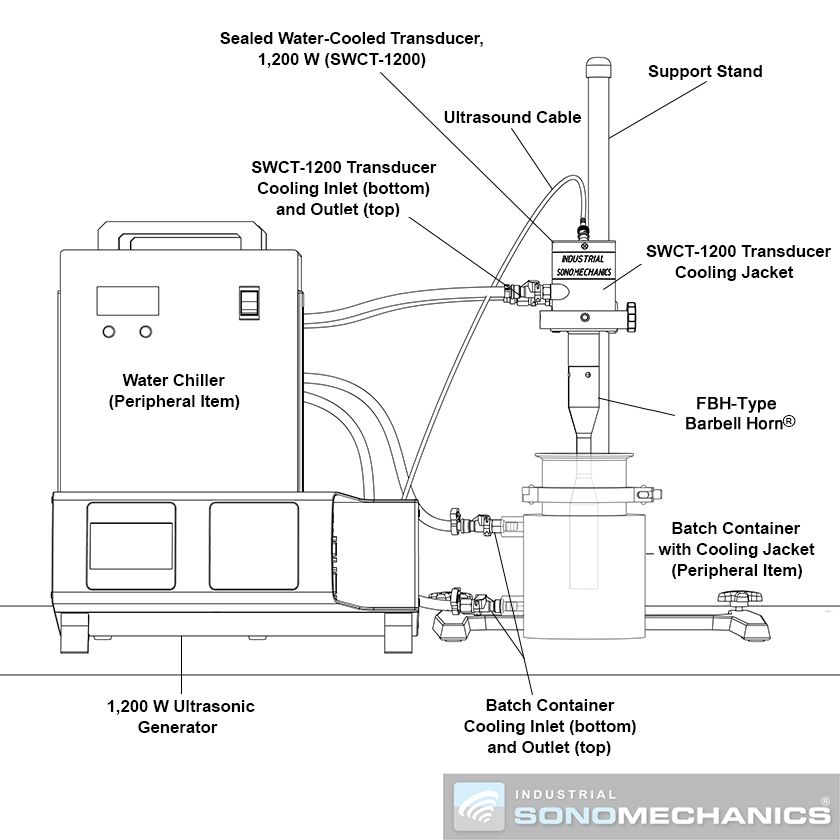

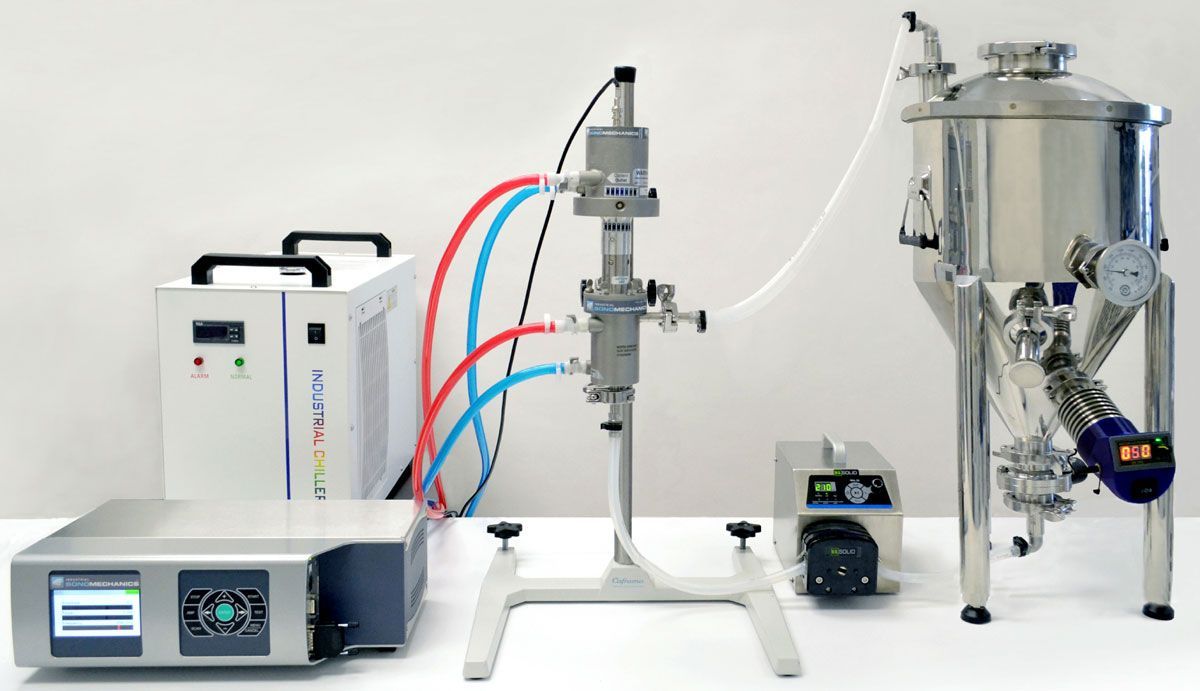

500 ml – 2 L — with FBH (batch mode) 1 L – unlimited — with HBH reactor chamber (flow-through mode)
Productivity rates
Productivity rates are highly dependent on the nature of each process and range from about 1 L/h for challenging tasks (e.g., top-down nanocrystallization of active pharmaceutical compounds) to over 50 L/h for fast processes (e.g., degassing, deagglomeration). 5 times faster processing than with the LSP-600
Optional accessories

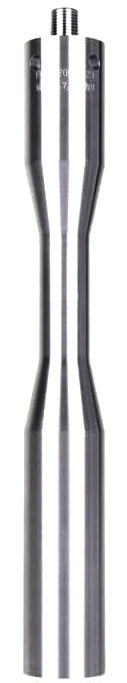

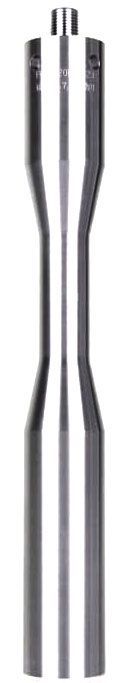

Full-wave Barbell Horn® (FBH, 35 mm tip diameter, amplitude — 92 microns (max.)) Support stand with clamp holders Noise reduction ear muffs
Warranty
One year
Download
User Manual, Assembly Guide
