Description
Model

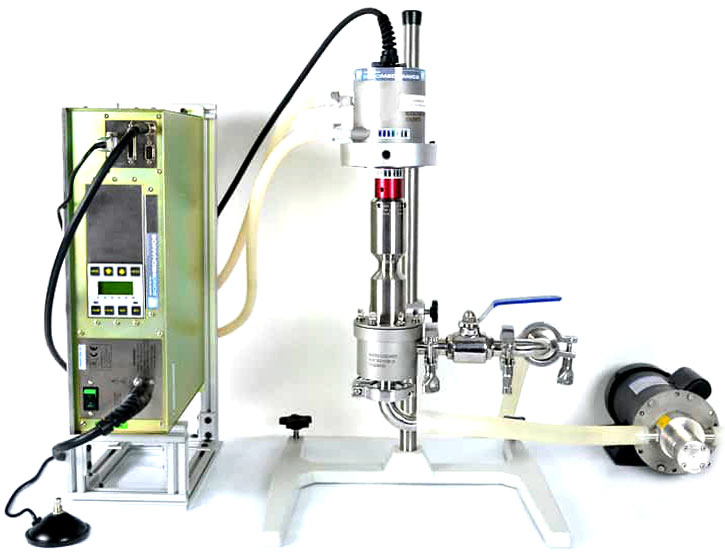

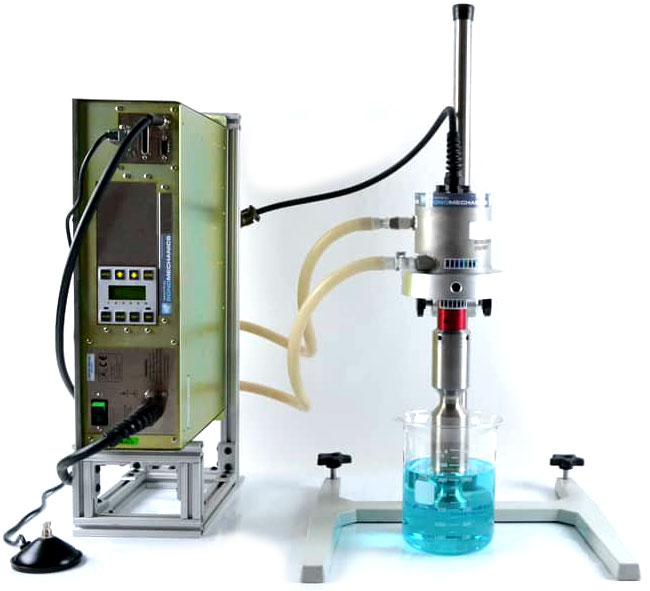

ISP-3000
Electrical requirements
220V-240V (15A max.), 50/60Hz
Ultrasonic output
3000 V rms (max.), 20 ( /- 1) kHz, 3000 W (max.)
Additional features
Continuous resonant frequency lock, automatic power adjustment, fine amplitude adjustment and lock (20 – 100%), monitoring of output power and frequency, optional external control.
Water-cooled piezoelectric transducer (SWCT-3000)
Output Characteristics: amplitude — 24 microns (max.), frequency 20 ( /- 1) kHz, power — 3000 W (max.)

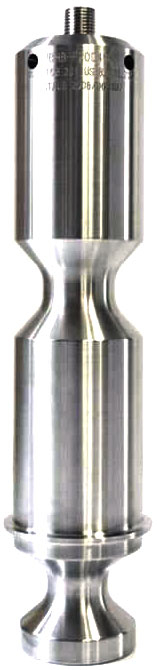

Half-wave booster Barbell Horn® (HBHB, 45 mm tip diameter)
Output characteristics: amplitude — 112 microns (max.), frequency — 20 ( /- 1) kHz, power — 3000 W (max.)

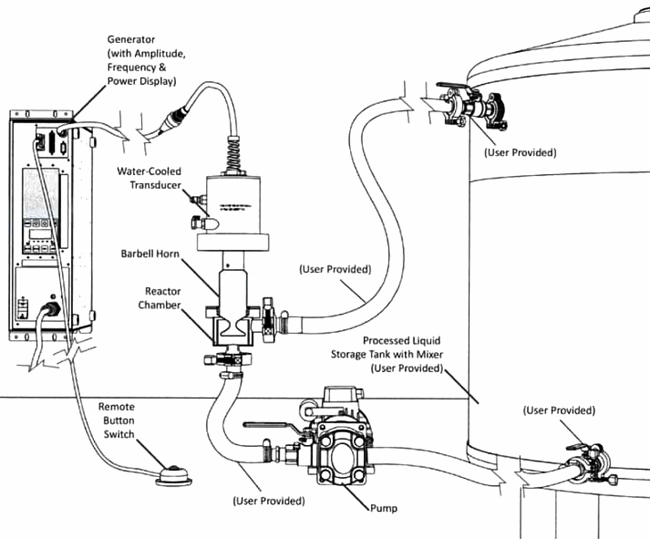

Flow-through reactor chamber (flow cell)
Features: 1″ tri-clamp inlet and outlet
Materials of wetted parts
Reactor chamber — 304 stainless steel. Food compatible. Horns (HBHB, HBH) — Grade 5 Titanium (Ti6Al4V). Food compatible. Gaskets — Buna-N or Teflon. Food compatible. O-rings — Buna-N. Food compatible.
Noise level
106 – 109 dBa at 2′ away. Noise reducing earmuffs or sound enclosure required.
Capacity

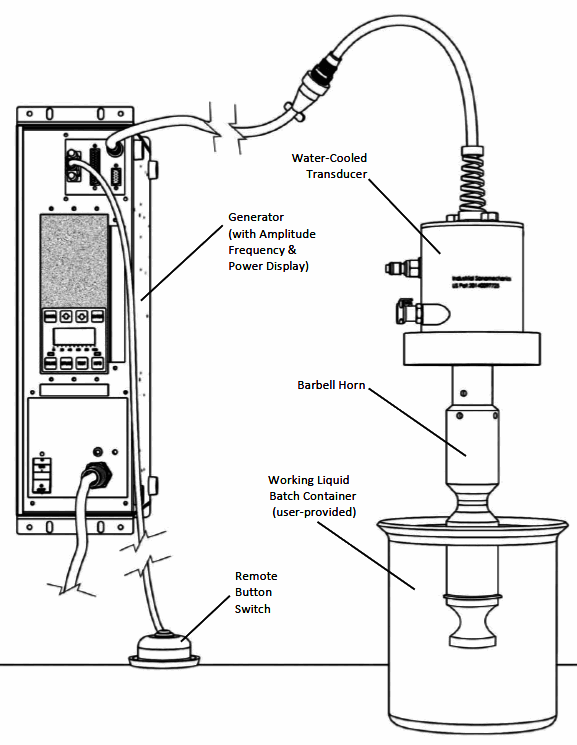

1 L – 10 L — with HBHB (batch mode) 2 L – unlimited — with HBHB or HBH reactor chamber (flow-through mode)
Productivity rates
Productivity rates are highly dependent on the nature of each process and range from about 5 L/h for challenging tasks (e.g., top-down nanocrystallization of active pharmaceutical compounds) to over 250 L/h for fast processes (e.g., degassing, deagglomeration). 4 – 5 times faster processing than with the BSP-1200 20 – 25 times faster processing than with the LSP-600
Optional accessories
Half-wave Barbell Horn® (HBH, 45 mm tip diameter, amplitude — 94 microns (max.)) Support stand with clamp holders Noise reduction ear muffs Heat exchanger
Warranty
One year
