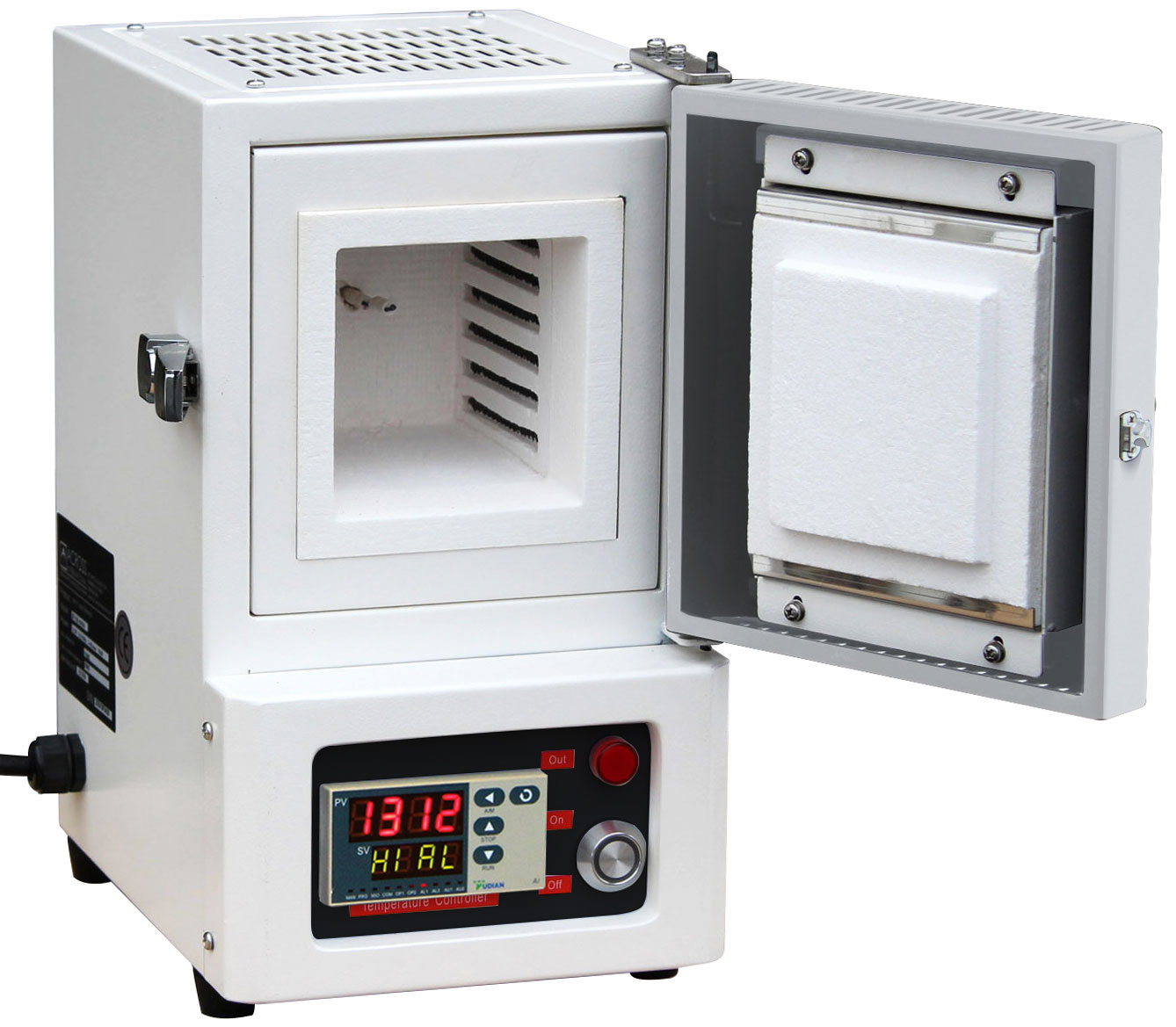

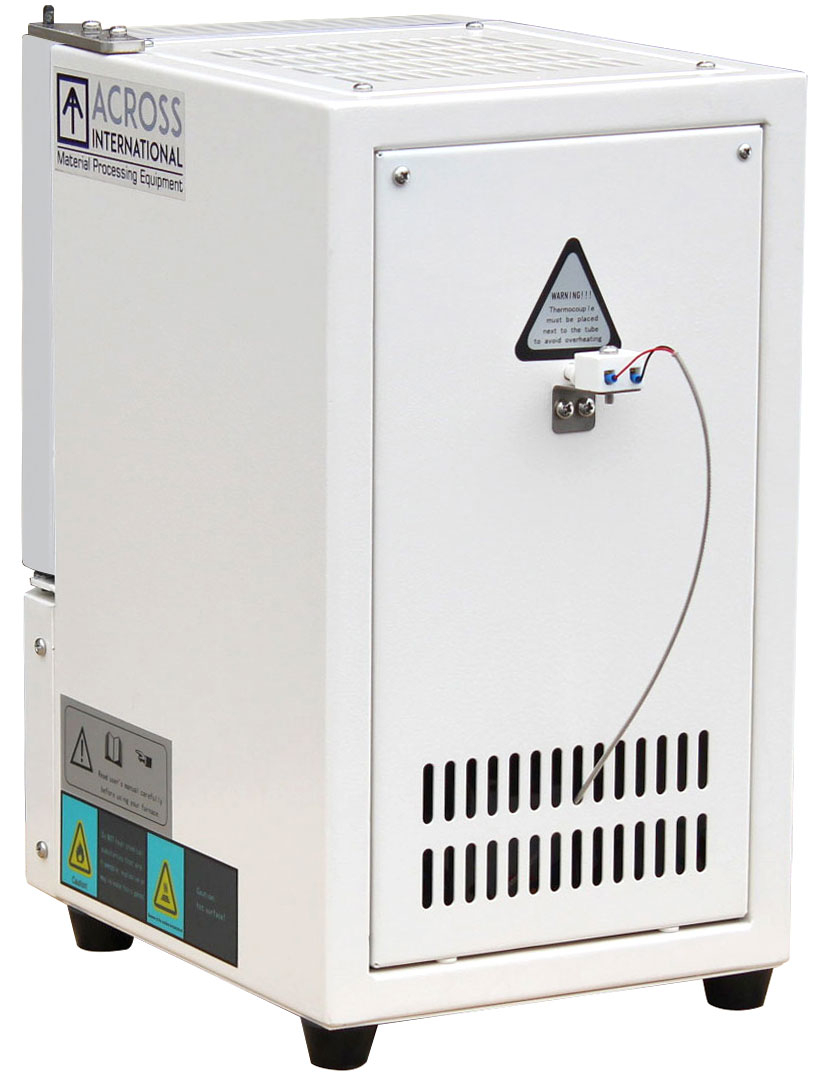

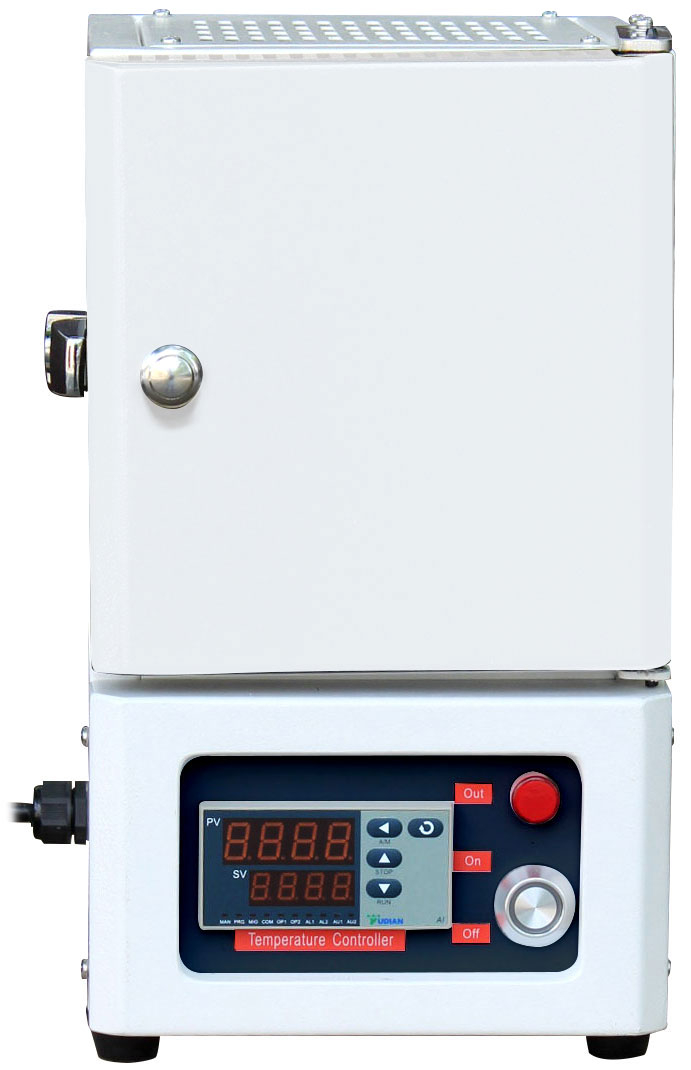

1050°C 4x4x4″ Compact Muffle Furnace w/ 30-Seg PID Controller

$1,341.92

SKU: 4200431 Category: Tag:

Description

 Electrical requirements
 AC 110V 60hz 700 watts

 Chamber dimensions (DxWxH)
 4 x 4 x 4″

 Chamber usable space (DxWxH)
 3.75 x 4 x 3.25″ (with cushion block)

 Min. working temperature
 Ambient

 Max. working temperature
 1050°C

 Max. constant working temperature
 950°C

 Refractory lining
 Mitsubishi (Japan) 1500 grade fiber alumina

 Heating element
 Resistance coil wire

 Thermocouple type
 K

 Temperature controller
 UDIAN 30-segment, single PID

 Max heating rate
 30°C / min

 Temperature accuracy
  /- 1°C ( /- 1.8°F)

 Unit dimensions (DxWxH)
 10 x 8 x 15″

 Shipping dimensions (DxWxH)
 15 x 14 x 21″

 Unit weight
 25 Lb

 Shipping weight
 40 Lb

 Compliance

 ETL tested to UL and CSA standards (optional), CE

 Download

 Product brochure
