Description
Model

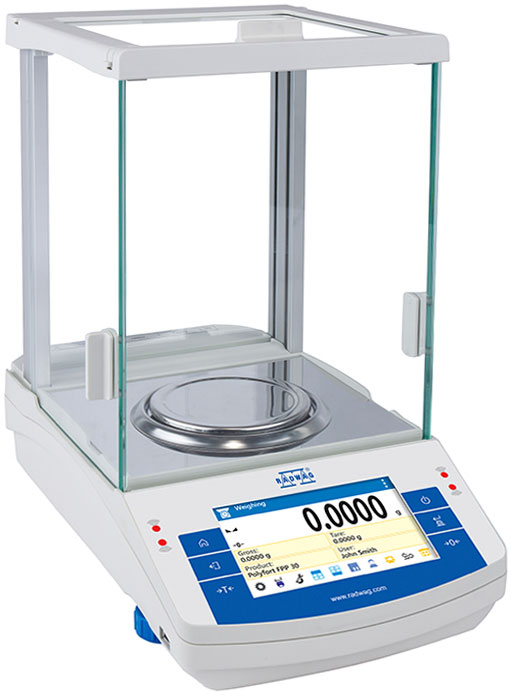

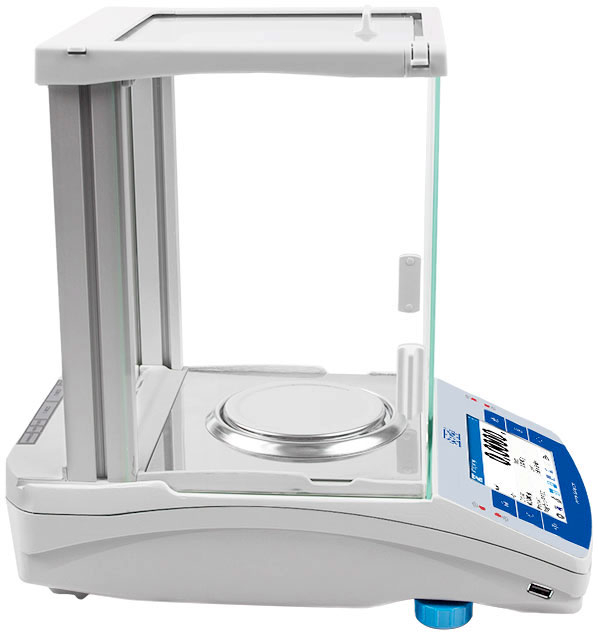

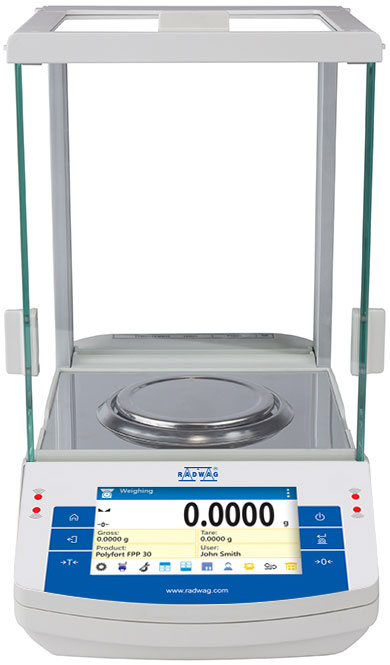

AS 220.X2 PLUS (P/N: WL-104-0169)
NTEP certified
Yes
Power requirements
100 to 240 VAC, 50/60 Hz
Power consumption max.
250 mA
Performance
Maximum capacity: 220 g Minimum load: 10 mg Readability: 0.1 mg Tare range: -220 g Standard repeatability (5% Max): 0.06 mg Standard repeatability (Max): 0.07 mg Standard minimum weight (USP): 120 mg Standard minimum weight (U=1%, k=2): 12 mg Permissible repeatability (5% Max): 0.09 mg Permissible repeatability (Max): 0.1 mg Linearity: ±0.2 mg
Stabilization time
2 s
Display
5″ capacitive color touch screen
Communication interface
RS232, USB-A, USB-B, WiFi, Ethernet
Database capacity
7
Touch-free operation
2 IR sensors
Operating temperature
10°C to 40°C
Weighting pan dimensions
ø4 inches diameter
Package dimensions
19.5 x 15.5 x 20.5 inches
Unit/shipping weight
12 lbs / 16 lbs
Warranty
Two years
Downloads
User’s manual, product brochure, USB driver
Online books
AS X2 PLUS Analytical Balance, Defined Weighing Profiles, USB Free Link
