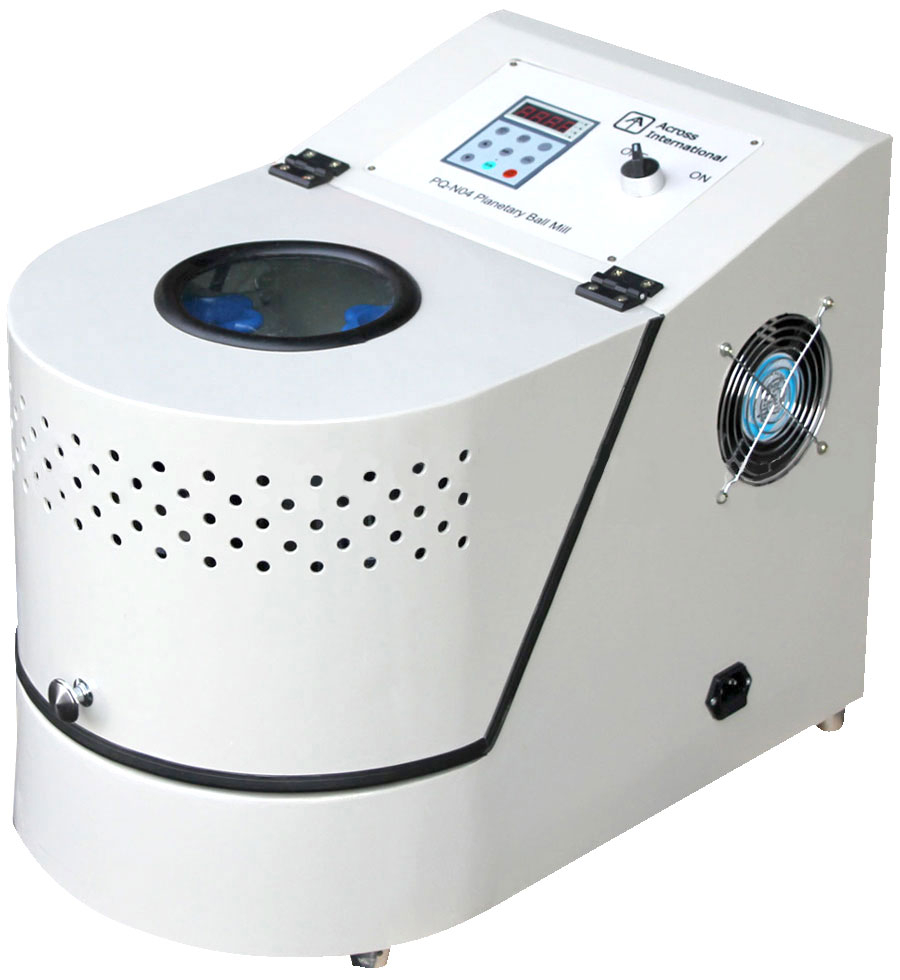

4x100ml Gear-Drive 0.4L Planetary Ball Mill


PQ-N04 series planetary ball mills may be used for mixing, homogenizing, fine grinding, mechanical alloying, cell disruption, small volume high-tech material production and even colloidal grinding. They are the ideal wet/dry milling tools for acquiring research samples with high efficiency and low noise. Vacuum jars may be used to process sample within a vacuum environment.

SKU: 4200298 Category: Tag:


Electrical requirements
110V or 220V 50/60Hz single phase, 370 watts

Compatible non-vacuum jars
100ml x 4

Compatible vacuum jars
50ml x 4

Operation mode
Two or four grinding jars working simultaneously

Maximum feeding capacity
2/3 capacity of the grinding jars

Feeding granularity
Soil materials ≤ 10mm, others materials ≤ 3mm (If the sample feed is larger than these then it must  first undergo preliminary size reduction)

Discharging granularity
Down to 0.1 micron

Maximum continuous operating time

72 hours

Planetary jar rotation speed
350 rpm

Unit dimensions
24 x 14 x 17.5″ (DxWxH) height is 32″ with cover open

Shipping dimensions
27 x 17 x 23″ (LxWxH)

Shipping weight
170 Lb
