Description
Electrical requirements
208-240V, 50/60Hz, single phase
Heating element type
Kanthal (Sweden) A1 2.0 resistance coil wire
Min/max/constant temperature
Ambient/1200°C/1100°C
Temperature controller
Shimaden fp93 (Japan) with 4 patterns and 40 segments (ie. 4 x 10 segments or 2 x 20 segments).
Maximum heating rate
15°C / min
Furnace cavity
Mitsubishi (Japan) high quality 1500 grade polycrystalline alumina fiber
Thermocouple type
K
Gas inlet/outlet
1/4″ hose barb with 1/4″ BSPT (British Standard Pipe Thread)
Positive pressure
Not to exceed 0.02 MPa / 150 torr / 3 psi
Temperature controller precision
/- 1°C
Working environments
Air, N2, Ar, NO2, CO, CO2, He, Ne, rough vacuum, etc. (Hydrogen, up to 5%)

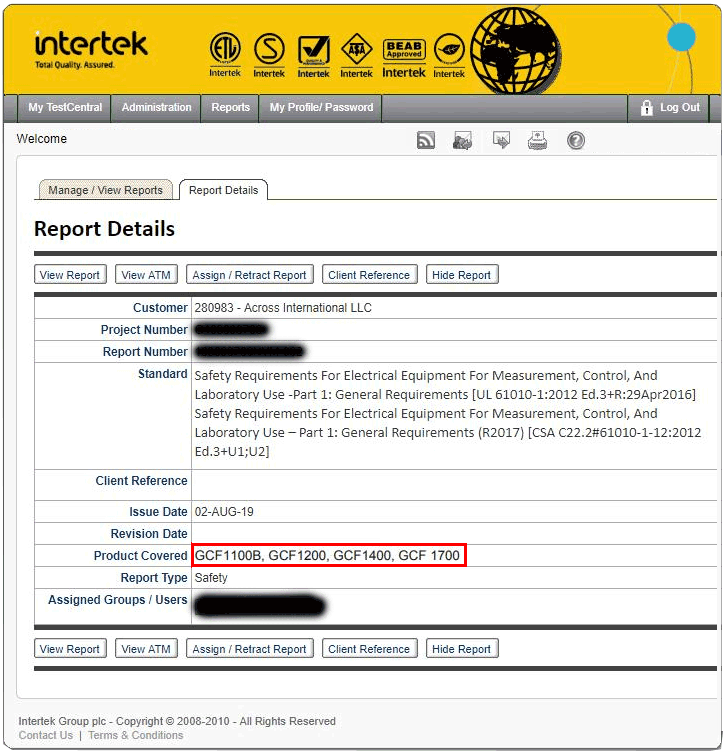

Certification
ETL tested to UL and CSA standards, CE
