Description
Electrical requirements
208-240VAC, 50/60Hz, single phase
Min. working temperature
Ambient
Max. working temperature
1200°C (2192°F)
Max. constant working temperature
1100°C (2012°F)

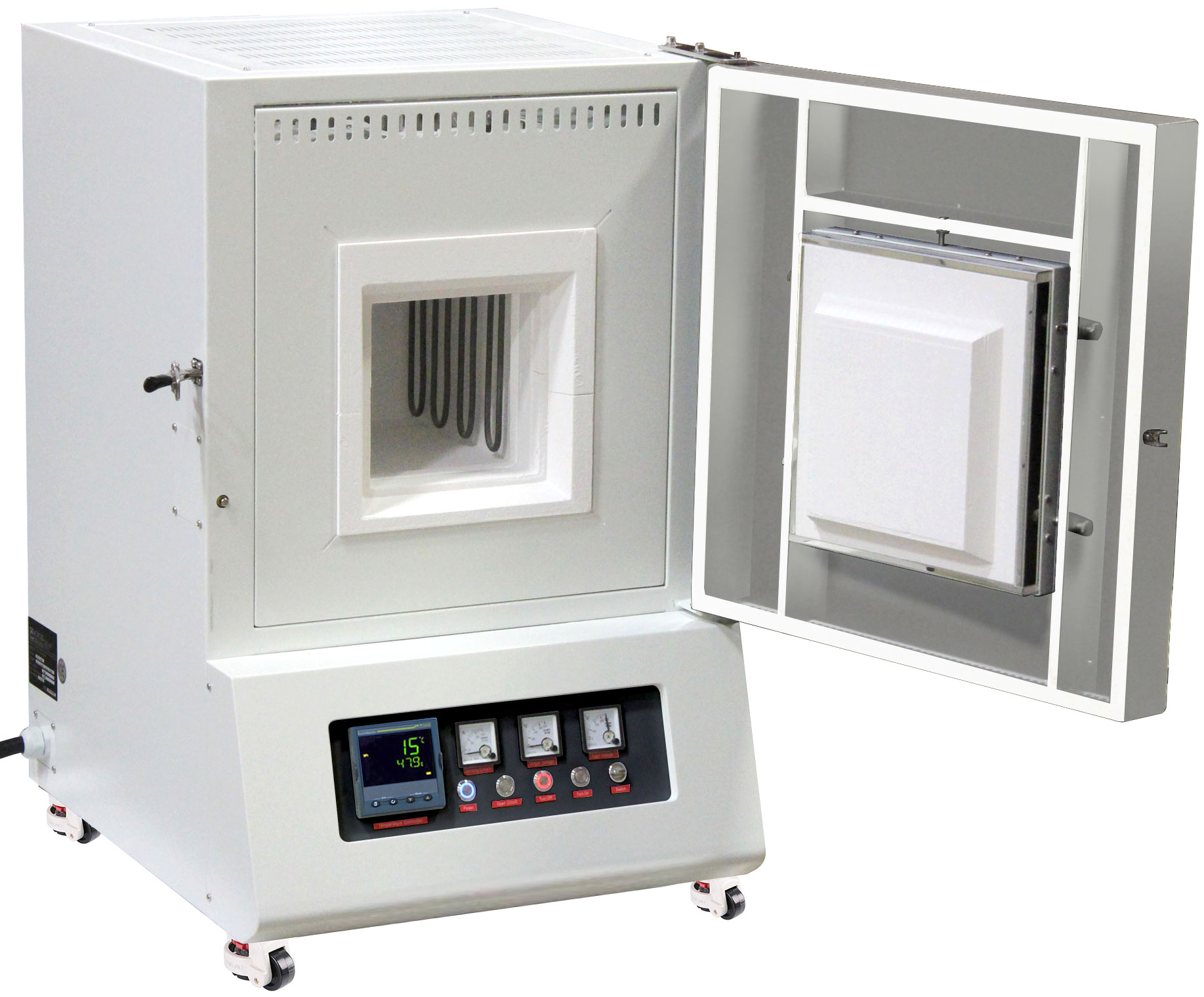

Refractory lining
Mitsubishi (Japan) high quality 1500 grade fiber alumina
Heating element type
Kanthal (Sweden) A1 2.0 resistance coil wire
Thermocouple type
K
Temperature controller
Shimaden fp93 (Japan) with 4 patterns and 40 segments (ie. 4 x 10 segments or 2 x 20 segments)
Max heating rate
< 15°C (59°F) / min
Temperature accuracy
/- 1°C

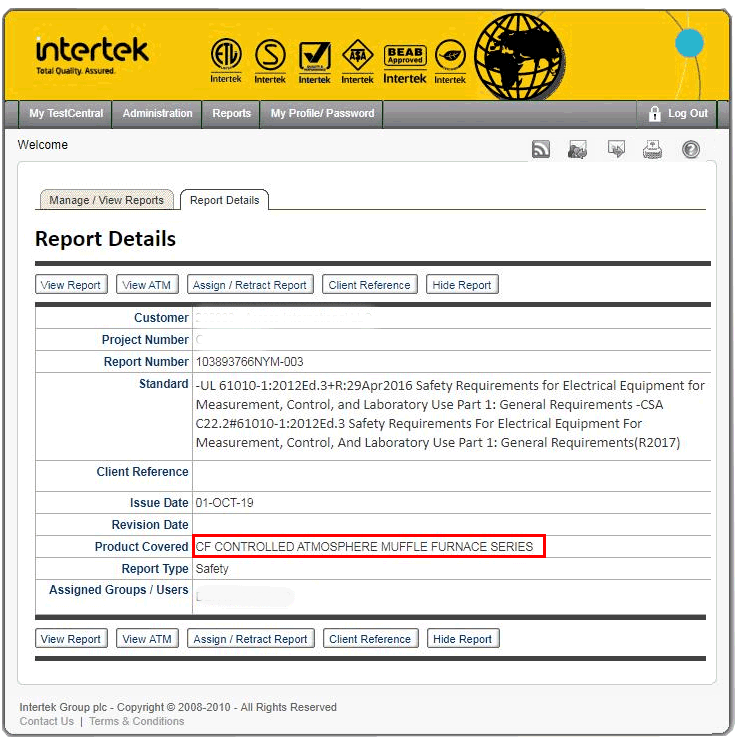

Certification
ETL tested to UL and CSA standards, CE
Download
Product brochure
