1500C 1-3 Zone Rotary & Tilting Top-Open Tube Furnace

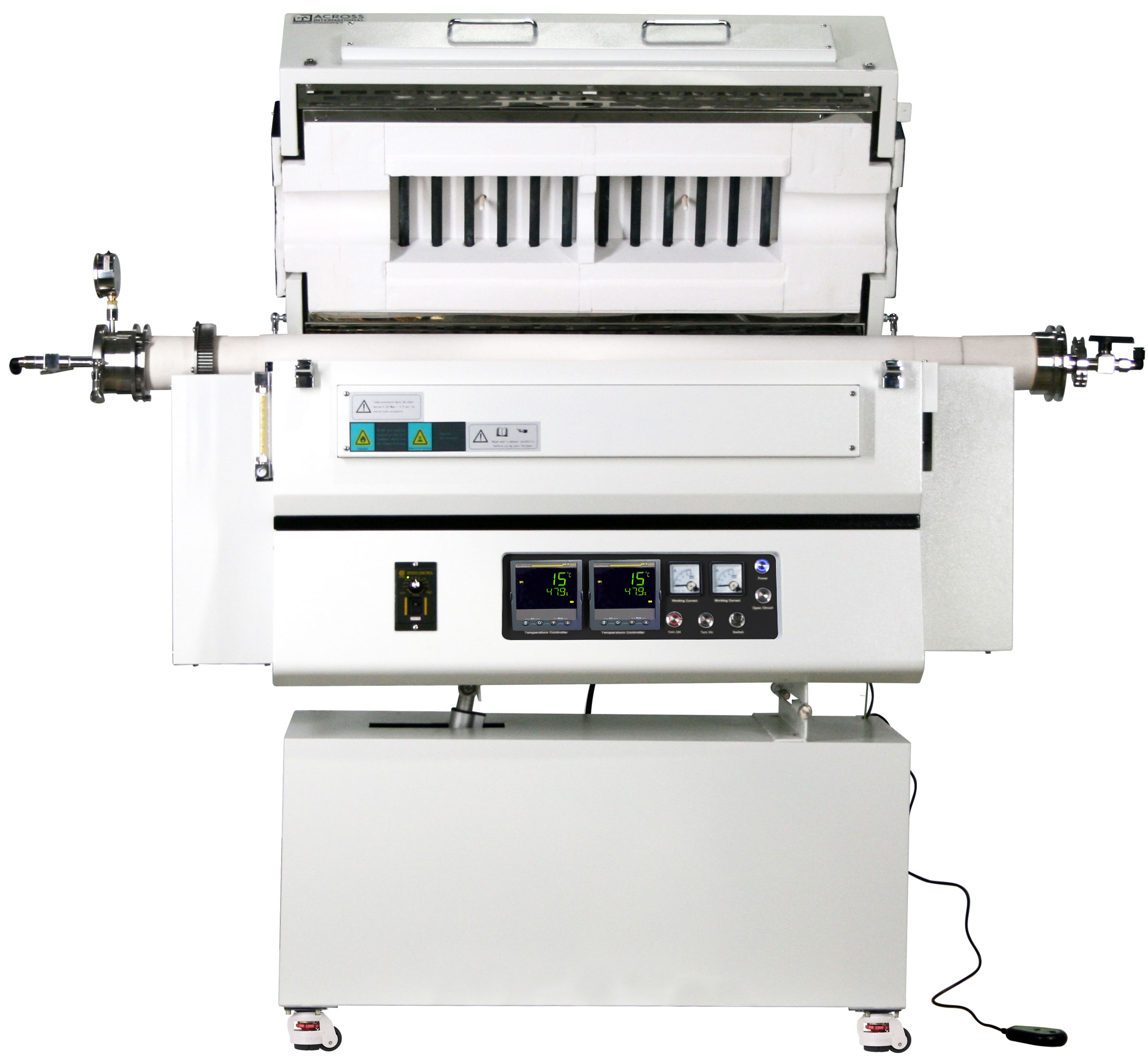

RTF1500 series rotary and tilting top-open tube furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and SiC heating elements. A dual-wall steel internal housing helps minimize heat loss to exterior surface.

SKU: 4200418 Category: Tag:


 Electrical requirements
 208-240 volts 50/60Hz single phase

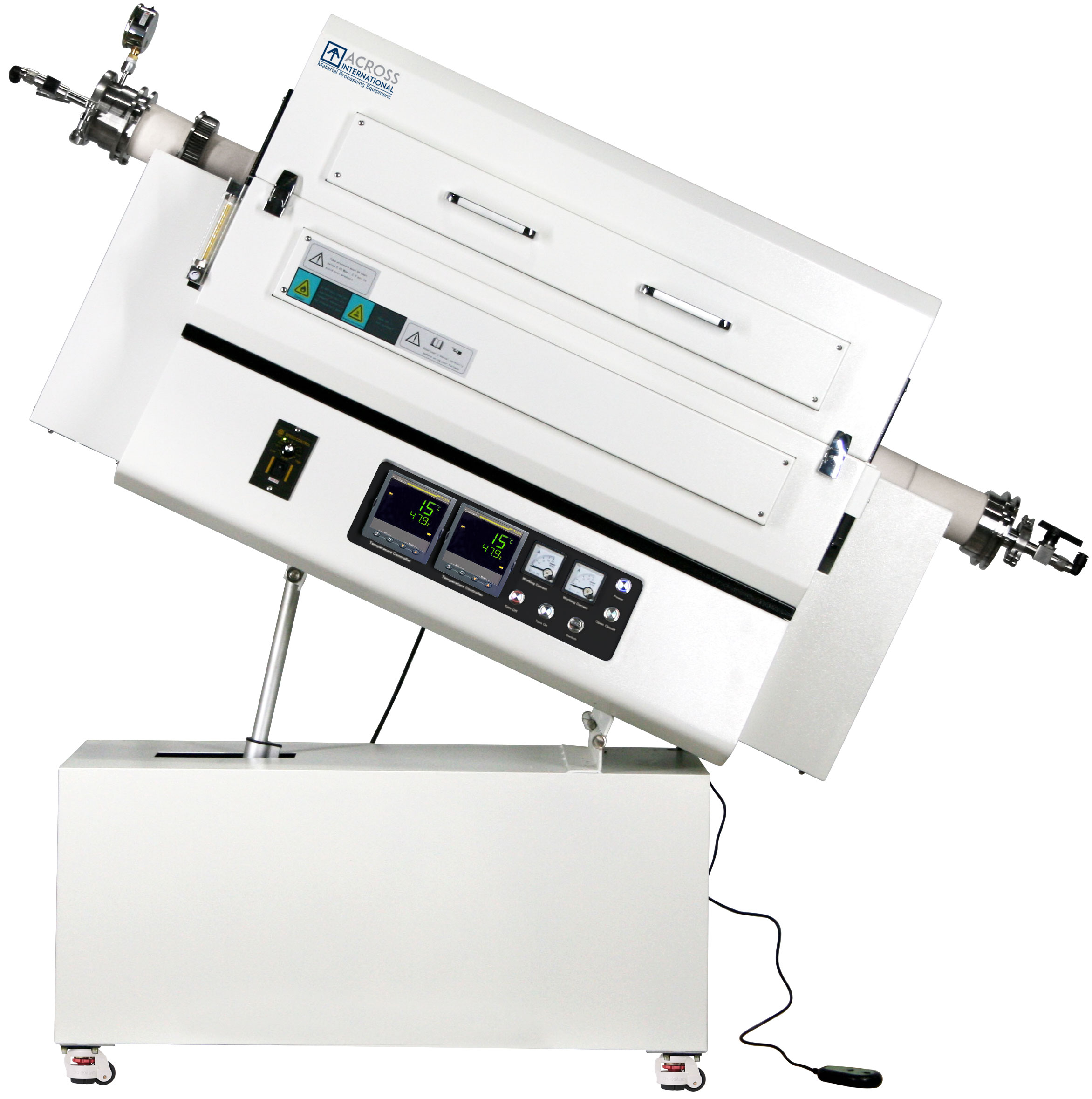

 Rotation speed & Inclination
 1 to 25 rpm, 0 to 30°

 Tube material
 High purity (99%) Al2O3 alumina

 Maximum / constant working temperature
 1500°C  / 1400°C * 2 hours maximum continuous run time at maximum temperature

 Rated vacuum pressure
 0.001 Pa / 0.0075 millitorr / 0.00001 mbar

 Rated positive pressure
 0.02 MPa / 150 torr / 3 psi

 Refractory lining
 Mitsubishi (Japan) high quality 1600 grade fiber alumina

 Heating element and thermocouple
 Silicon carbide (SiC) / S-type

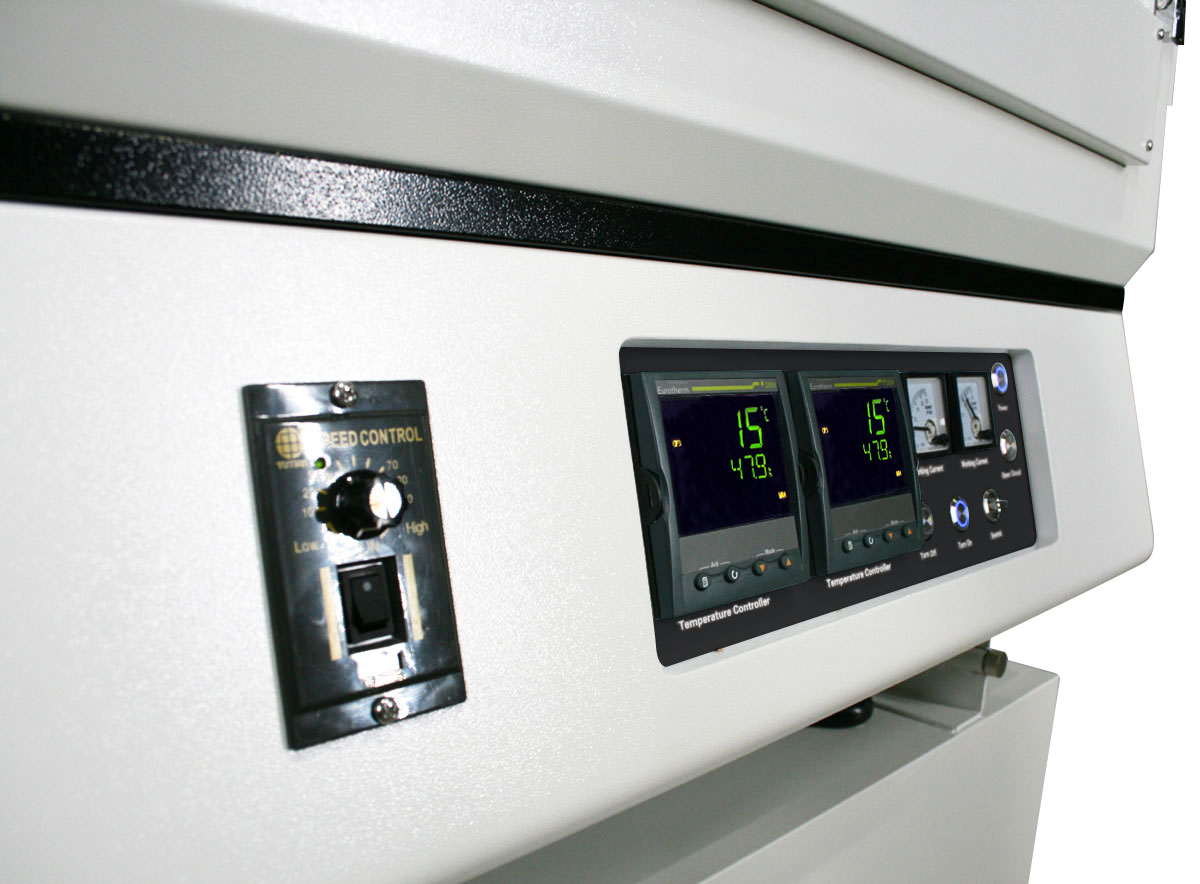

 Temperature controller
 Eurotherm multi-segment digital controller, ±1°C step

 Max heating rate
 5°C (41°F)/min above 1200°C and 10°C (50°F)/min below 1200°C (2192°F)

 Heating zone length

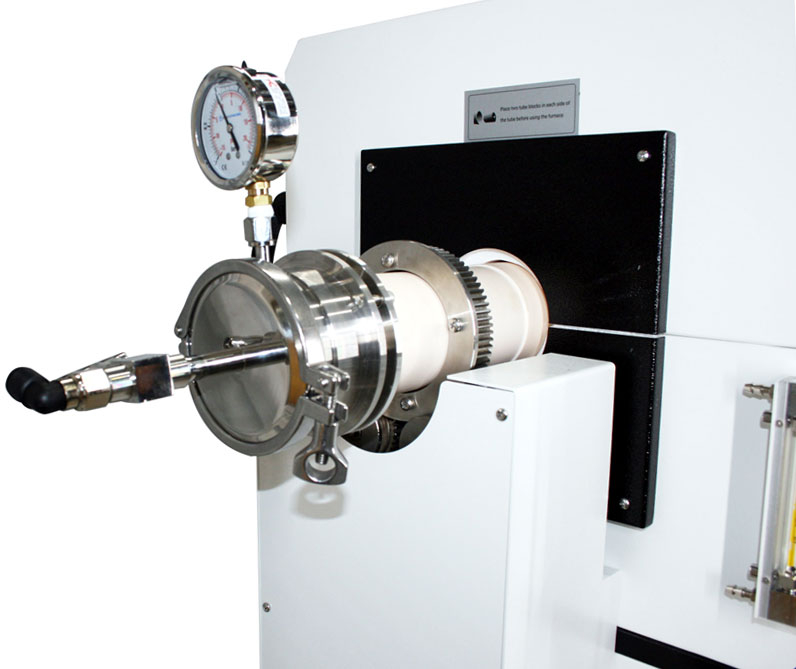

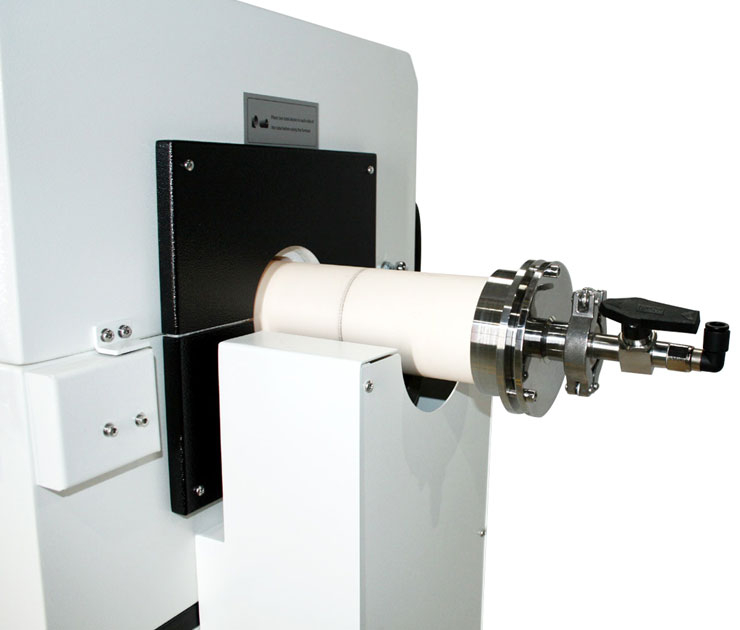

 Vacuum sealing flange kit
 Stainless steel vacuum sealing flanges with one     vacuum gauge, two valves and four thermal ceramic blocks.
