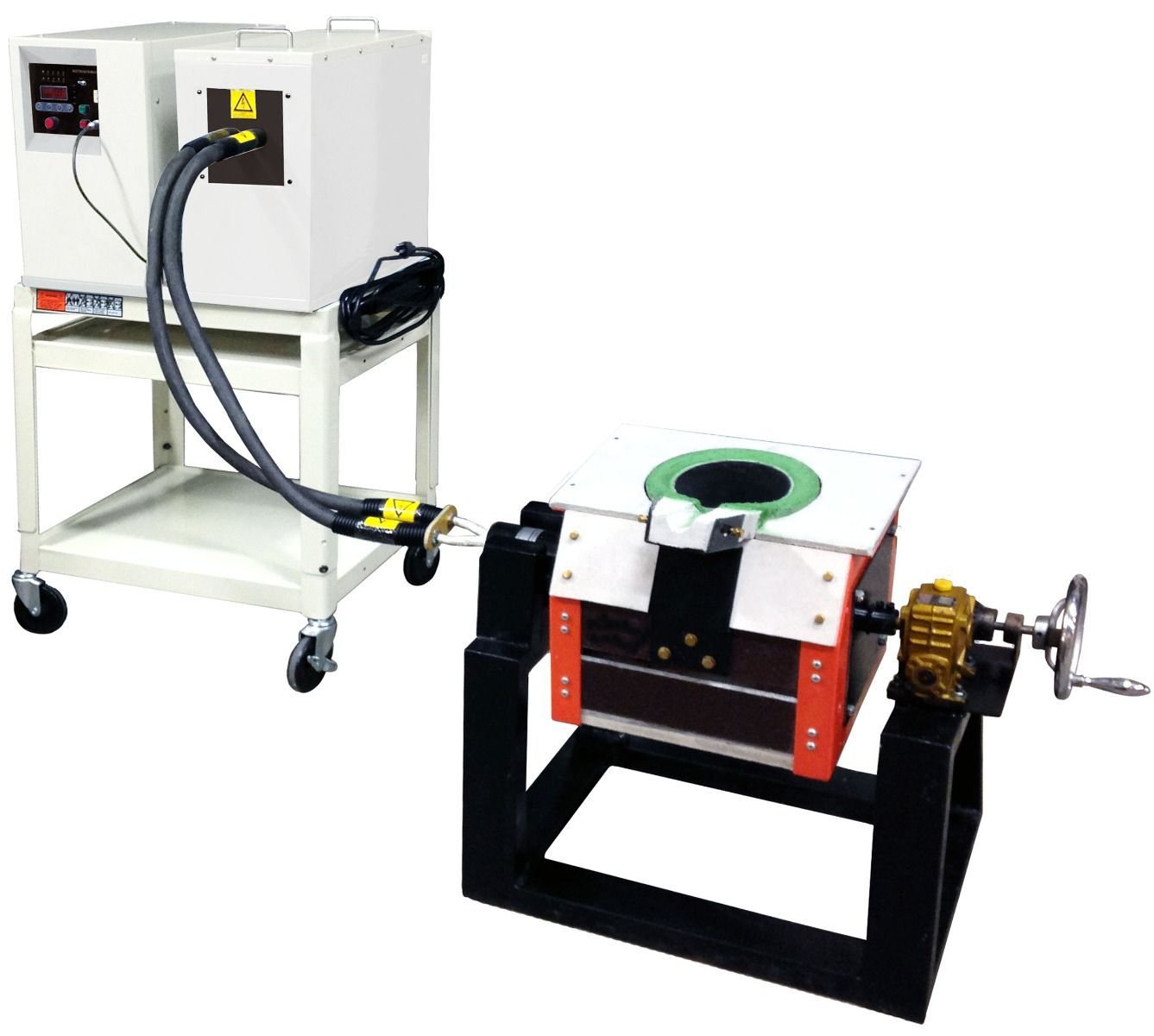

25KW Low-Frequency Induction Melting Furnace 1-20KHz

9,990.00$

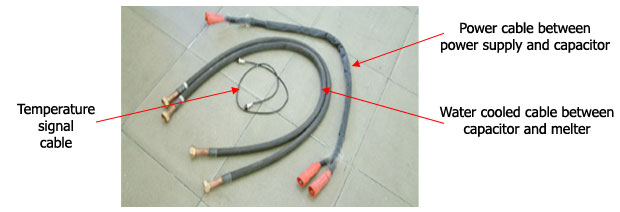

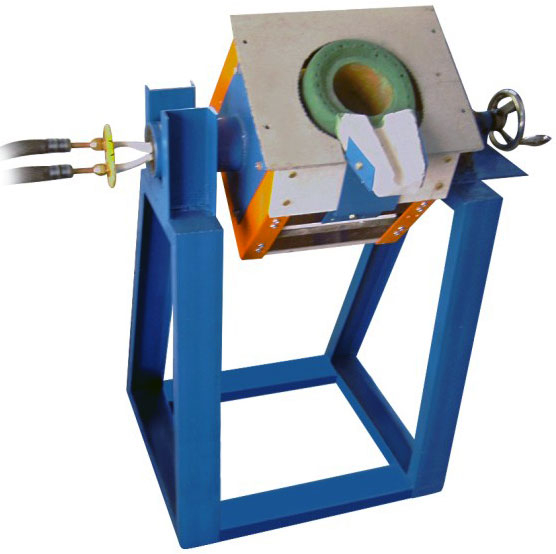

Note: This model only available in 460-480 volt three-phase.Across International’s IHL series 1 kHz to 20 kHz low frequency induction heaters are good for a wide range of applications including deep heat penetration for full hardening processes, steel rod forging, tempering of pressing dies, pre-heating for welding, and melting of metal batches over 4 lbs. They are not limited to ferromagnetic materials, so nonferrous metals can also be used effectively.There are three major components to the system: the power supply, the compensating capacitor/transformer and the induction coil/smelting crucible. Our heaters automatically adjust to the best resonant frequency in order to achieve the most efficient overall heating results based on our customer’s requirements which include heat penetration, heating efficiency, operating noise and electromagnetic homogeneity. Two of our most popular low frequency machines are the Melting Furnaces with Tile-Pour Melter and Auto-feeding Rod Heating Furnaces for Forging.

SKU: 4200498 Category: Tag:

Description

 Max. input current
 31 A (min. 47A 3-phase circuit breaker required)

 Power

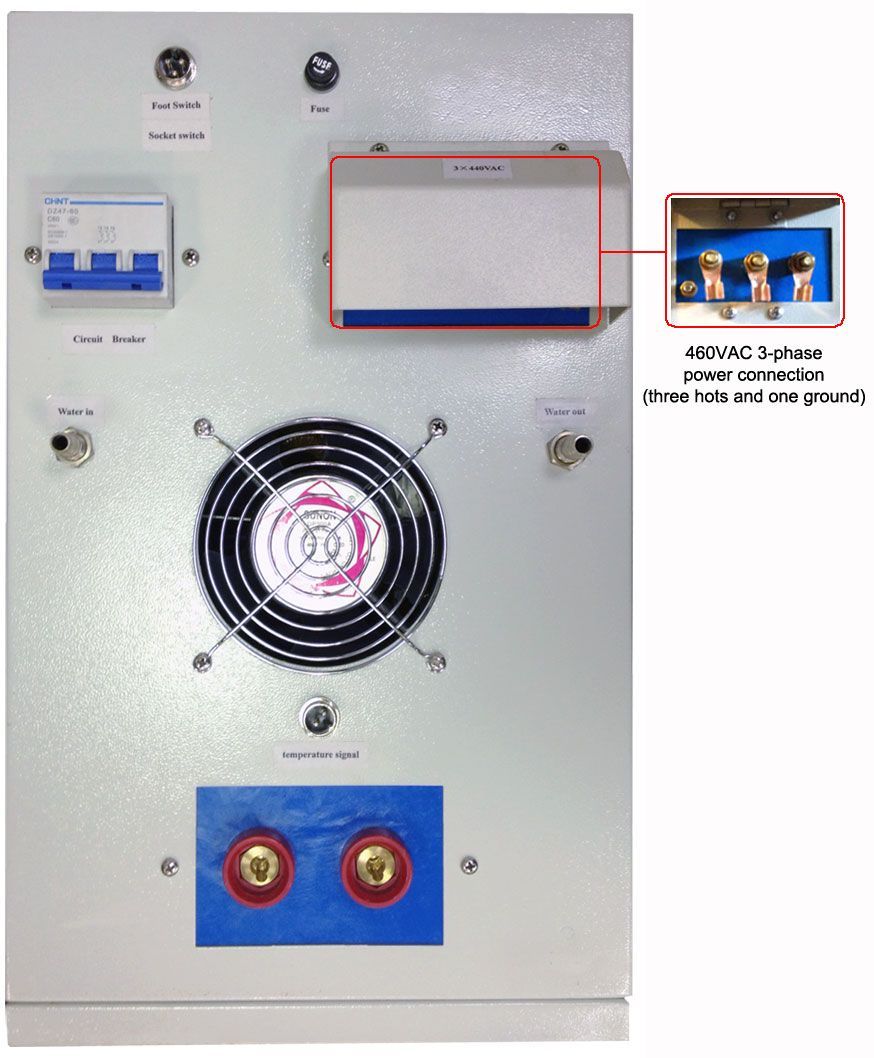

 460 VAC 50/60Hz three phase (380V available upon request)

 Power cord
 6-gauge 4-conductor Max 45A (6/4 SOOW for 3 PH system)

 Output frequency
 1-20 KHz (actual frequency depends on type, size of work pieces and heating requirements)

 Input power
 25 KW

 Output current
 5-45 A

 Output voltage
 70-550 V

 Duty cycle
 100% (24-7 continuous working)

 Water pressure
 ≥ 0.2 Mpa (29 PSI) you may use tap water and water pump (>1/4HP & >240 Gph)

 Water flow
 > 1.6 gallons (6 liters) per minute

 Unit dimensions (DxWxH)
 Power supply: 55 Lb, 18 x 10 x 18″ Transformer: 18 x 10 x 17″ (or 19 x 16 x 17″, depends on requirements) Tilt-pour: 26 x 22 x 27″ (or 26 x 24 x 37″, upon request) Graphite crucible: 6.7″ OD, 7.9″ height Optional 4P chiller: 37 x 22 x 54″

 Shipping dimensions (DxWxH)
 30 x 26 x 26″ (induction heaters) 43 x 27 x 35″ (tilt-pour)

 Shipping weight
 180 Lb (induction heaters) 220 Lb (tilt-pour)

 Max. melting capacity
 22-44 Lb (copper, silver, gold), 17 Lb (steel), 8 Lb (aluminum) See melting point of various metals and alloys
