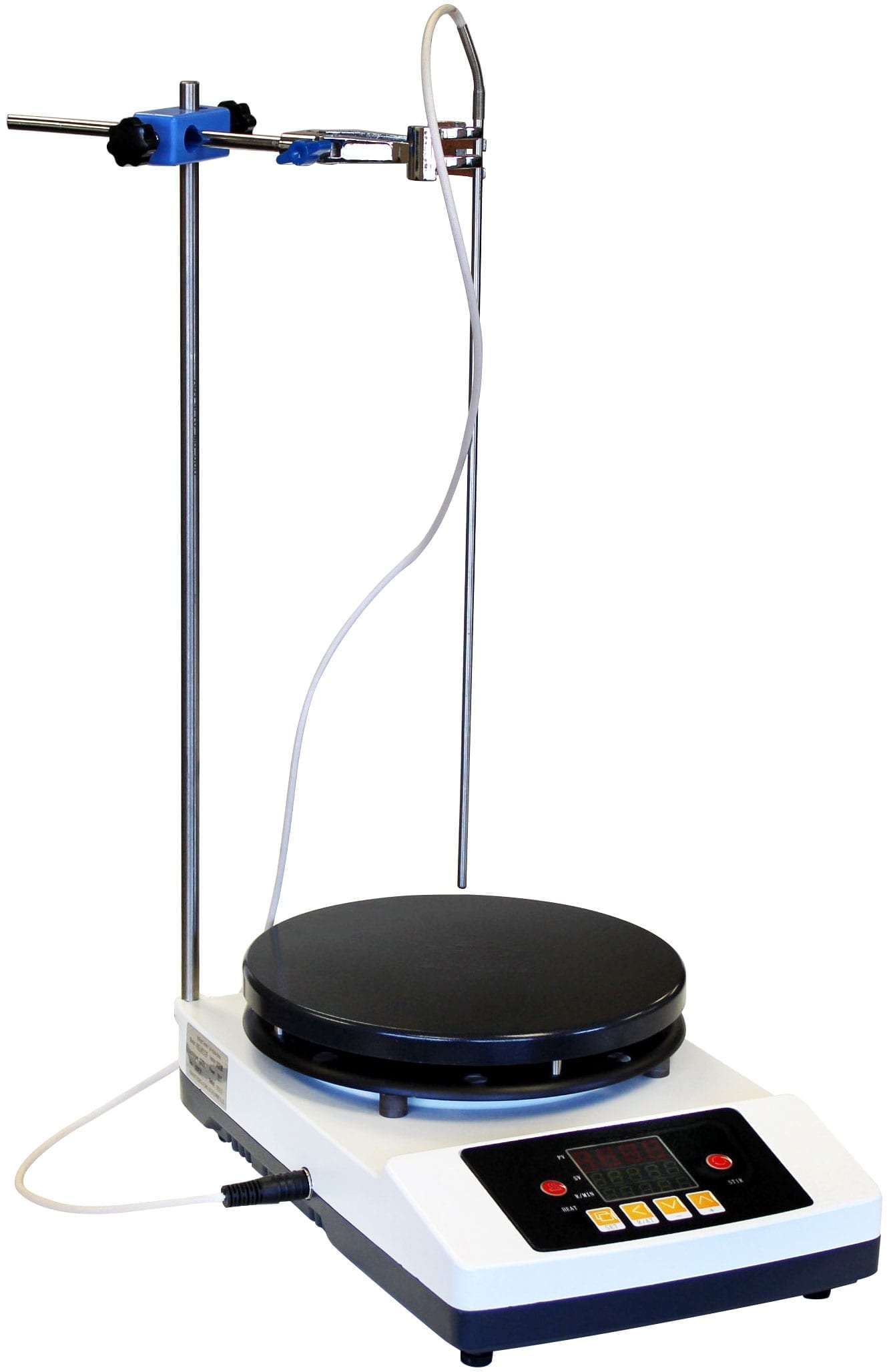

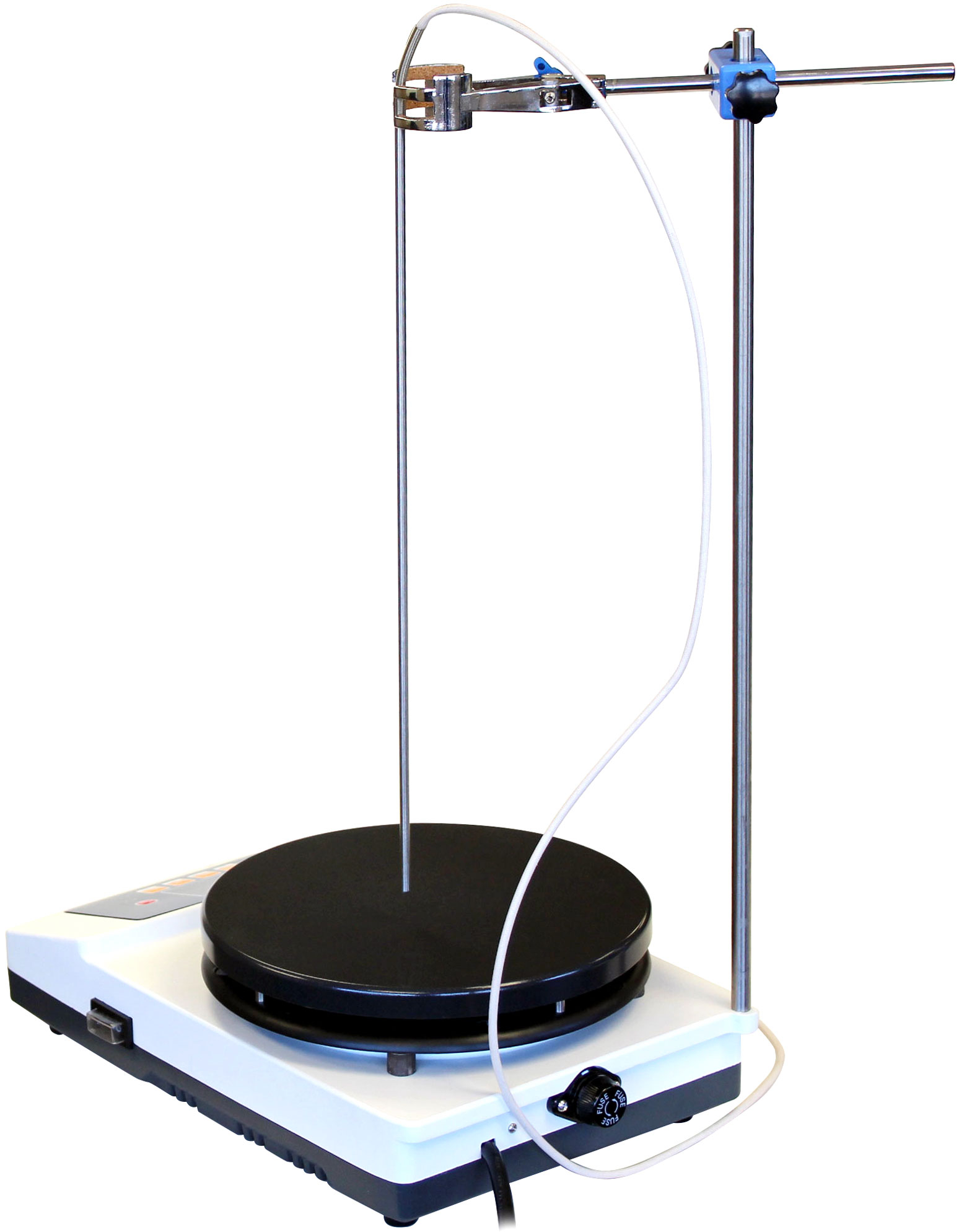

350C 2000RPM 1.5-Gallon PID Magnetic Stirrer w/ 9″ Heated Plate

699.54$

PID controlled for maximum flexibility. 110V 60Hz 750 watts. 2 stir bars included. UL/CSA certification available.

A magnetic stirrer or magnetic mixer is a laboratory device that employs a rotating magnetic field to cause a stir bar (also called “flea”) immersed in a liquid to spin very quickly, thus stirring it. The rotating field may be created either by a rotating magnet or a set of stationary electromagnets, placed beneath the vessel with the liquid. Since glass does not affect a magnetic field appreciably (it is transparent to magnetism), and most chemical reactions take place in glass vessels (i.e. see beaker (glassware) or laboratory flasks), magnetic stir bars work well in glass vessels. On the other hand, the limited size of the bar means that magnetic stirrers can only be used for relatively small (under 4 liters) experiments. They also have difficulty dealing with viscous liquids or thick suspensions. For larger volumes or more viscous liquids, some sort of mechanical stirring is typically needed.

Magnetic stirrers are often used in chemistry and biology. They are preferred over gear-driven motorized stirrers because they are quieter, more efficient, and have no moving external parts to break or wear out (other than the simple bar magnet itself). Because of its small size, a stirring bar is more easily cleaned and sterilized than other stirring devices. They do not require lubricants which could contaminate the reaction vessel and the product. They can be used inside hermetically closed vessels or systems, without the need for complicated rotary seals. Magnetic stirrers may also include a hot plate or some other means for heating the liquid.

Description

Specifications

 Model
 HP9
 Electrical requirements 110V 60Hz 1-Phase, 750 watts
 Temperature range
 Ambient to 350°C
 Heating plate Diameter: 9 inches
Material: ceramic coated aluminum
 Stirring Min. speed: 110 rpm, max. speed: 2000 rpm
Motor power: 40 watts
Motor type: brush-less DC motor
Max. stirring volume: 1.5 gallon (water as media)

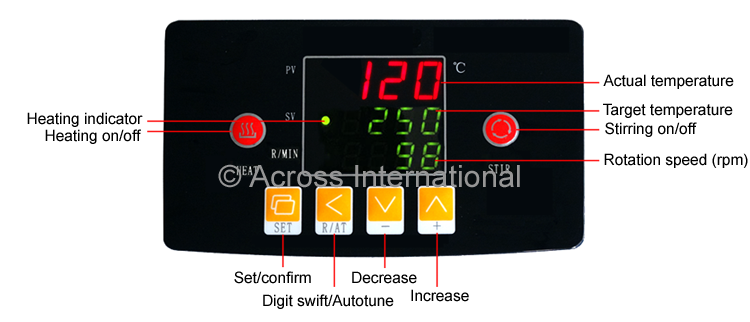

 Controller PID control with digital temperature and rotation speed display
 External thermocouple Type: PT100
Cable length: 35 inches
Stainless steel probe length: 11 inches
Stainless steel probe diameter: 5 mm
 Dimensions (WxDxH) Unit: 9 x 14.5 x 4.5 inches, shipping: 16 x 20 x 9 inches
 Weight Unit: 13 lbs, shipping: 25 lbs
 Safety Thermocouple failure protection
Built-in fuse protection

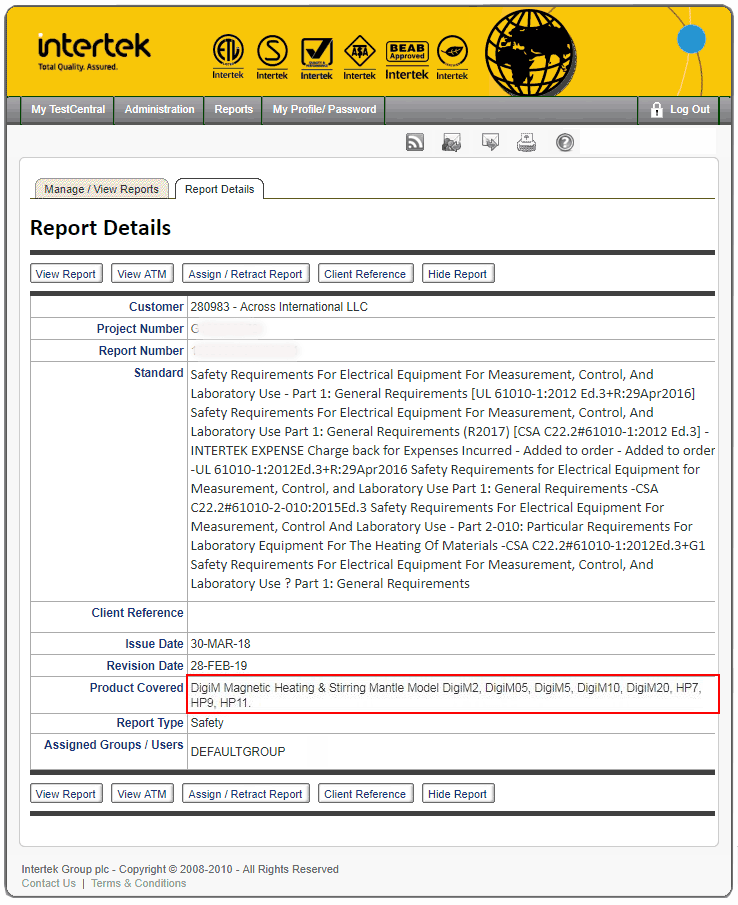

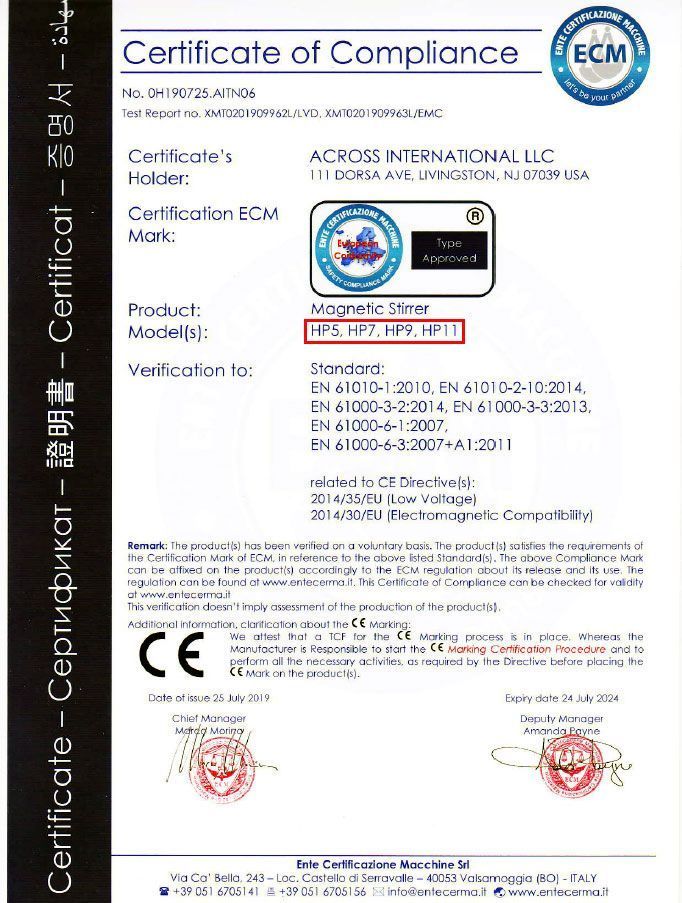

 Certification UL/CSA (optional), CE (standard)
 Warranty One year



Standard package

 Part description Quantity
Part image
 Ai HP9 digital heated magnetic stirrer1 set
 External temperature probe1 pc
 Internal temperature plug1 pc
 Boss head1 pc
 Stainless steel support rod (16 inches)1 pc
 PTFE coated stir bar2 pcs
 4 prong stainless steel clamp opens to 3 1/2″1 pc
 User’s manual1 pc

Additional information

Weight25 lbs
Dimensions16 × 20 × 9 in
