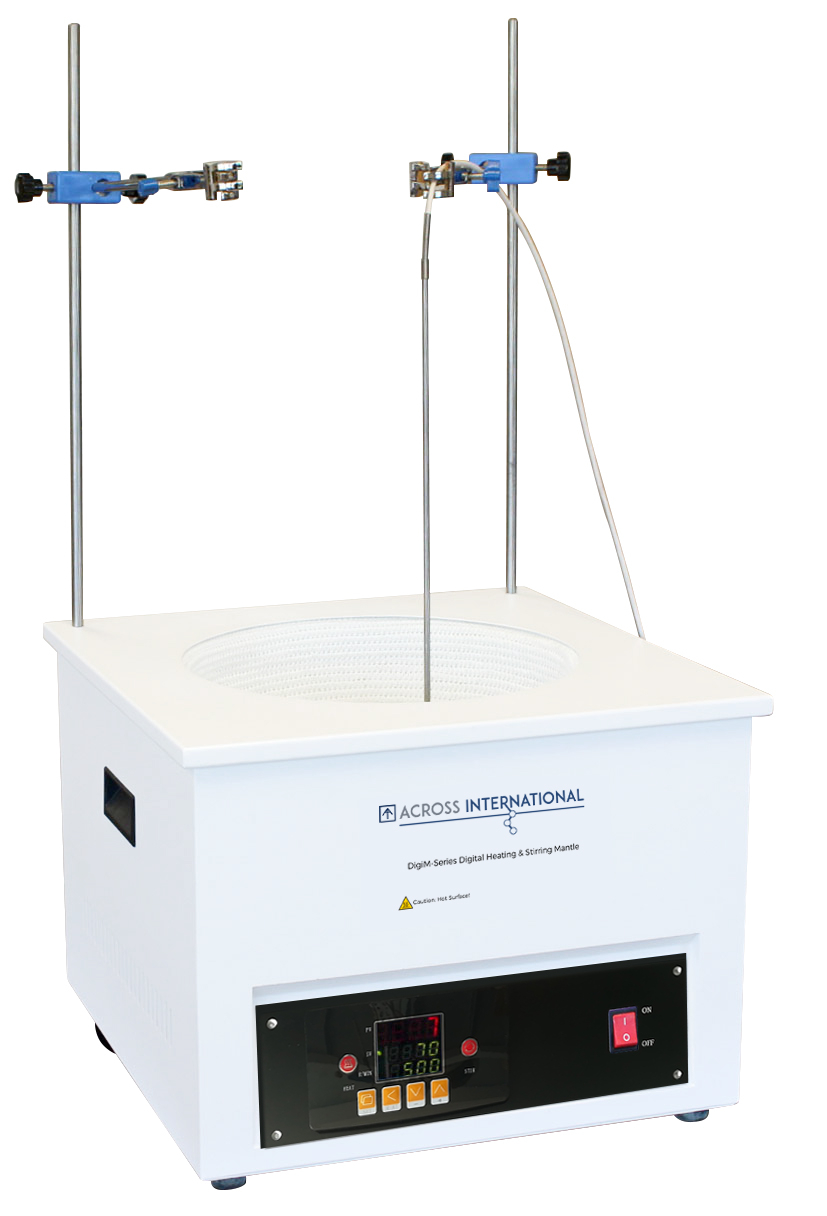

Ai DigiM 10L 300°C 2000 RPM Digital Heating & Stirring Mantle

2,160.77$

Low profile with built-in handles. 110V or 220V, UL/CSA certification available.

Across International heating and stirring mantles come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.

The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.

Description

Specifications



 Model
 DigiM10
 Electrical requirements  110V 60Hz 1-Phase, 2050 watts, 24A
or
220V 50/60Hz 1-Phase, 2050 watts, 12A
 Heating
 Ambient to 300°C
 Stirring  Min. speed: 110 rpm, max. speed: 2000 rpm
Motor power: 40 watts
Motor type: brushless DC motor
 Controller  PID control with digital temperature and rotation speed display
 External thermocouple  Type: PT100
Cable length: 43 inches
Stainless steel probe length: 15 inches
Stainless steel probe diameter: 5 mm
 Flask holder  Maximum flask capacity: 10 liters
Top opening diameter: 11.75 inches
Depth: 6.5 inches
 Dimensions (WxDxH)  Unit: 18 x 17.5 x 13 inches, shipping: 22 x 21 x 18 inches
 Weight  Unit: 30 lbs, shipping: 40 lbs
 Safety  Thermocouple failure protection
 Certification  UL/CSA (optional), CE (standard)
 Warranty  One year



Standard package



 Part description  Quantity
Part image
 Ai DigiM 10L digital heating & stirring mantle 1 pc
 External temperature probe 1 pc
 Internal temperature plug 1 pc
 Boss head 2 pcs
 Stainless steel support rod (15 inches) 2 pcs
 PTFE coated stir bar 2 pcs
 4 prong stainless steel clamp opens to 3 1/2″ 2 pcs
 User’s manual 1 pc



Additional information

Weight 40 lbs
Dimensions 22 × 21 × 18 in
