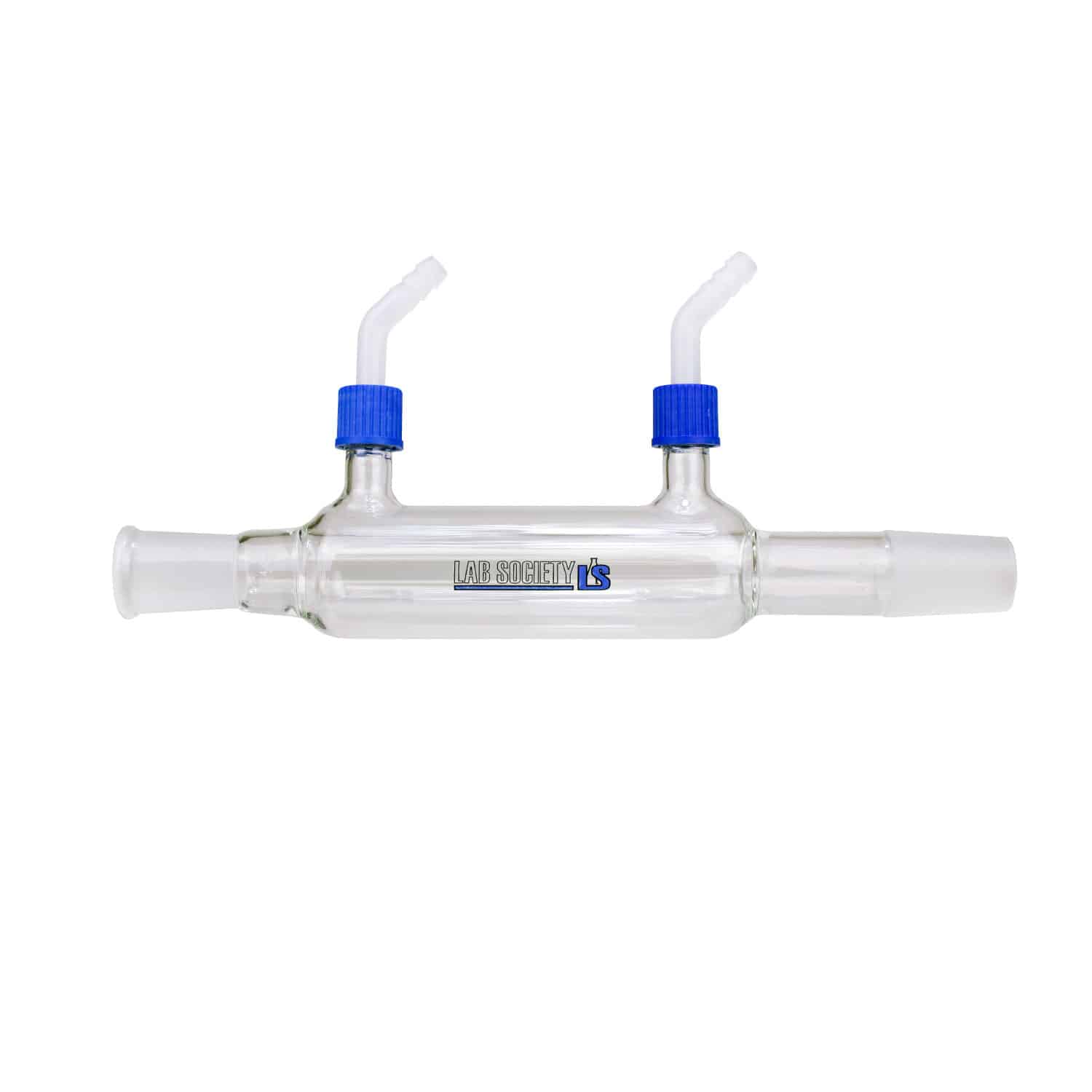

Liebig Condenser

Home / Products / Labratory Glassware / Liebig Condenser

Liebig Condenser

298.00$356.00$

The new, detachable Liebig Condensers are well-suited to just about any distillation run you can throw at them.

All of these condensers have a 29/42 lower inner joint and a varying upper/outer joint, depending on your needs and the model you select.

The glassware is designed to be cooled (or heated) to common laboratory temperatures.

Description

  • Vacuum take-off – A vacuum connection can be attached to the condenser.
  • Drip tip – distillate drips directly into receiving flasks
  • UV detection area – for distillate analysis
  • GL caps – All units have GL connection ports for heated or cooled liquids.
  • Can be used with either hot or cold fluids – GL caps have a temperature range of -45 to 200°C.
  • Made of lab-grade borosilicate glass
  • Made in the USA

*Note: Exact features will vary based on the Liebig Condenser model selected. Models without the one-inch extension do not have UV detection capability. Models without the vacuum take-off adapter do not have the capability to have a vacuum pulled or monitored from them.

Additional information

Joint Size

24/40 Top Outer, 29/42 Lower Inner, GL-18s, Drip Tip, 24/40 Top Outer, 29/42 Lower Inner, GL-18s, UV Detector Compatible, 34/45 Top Outer Dewar, 29/42 Lower Inner, GL-18s, Vacuum Take-off, 34/45 Top Outer, 29/42 Lower Inner, GL-18s, UV Detector Compatible, Liebig Condenser 34/45 Top Outer, 29/42 Lower Inner, GL-18s, Drip Tip
