Description
Specifications
Model |
HP11 |
Electrical requirements | 110V 60Hz 1-Phase, 1,000 watts |
Temperature range |
Ambient to 350°C |
Heating plate | Diameter: 11 inches Material: ceramic coated aluminum |
Stirring | Min. speed: 110 rpm, max. speed: 2000 rpm Motor power: 40 watts Motor type: brush-less DC motor Max. stirring volume: 2 gallons (water as media) |

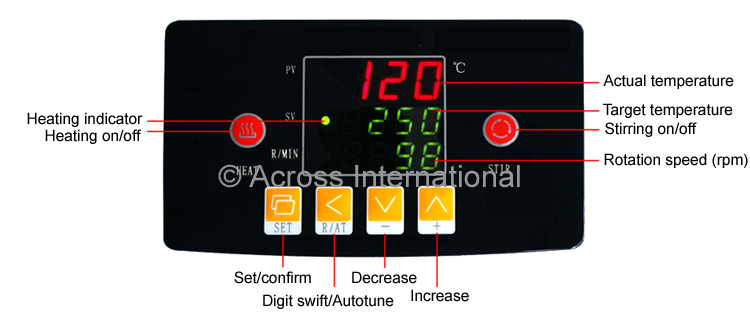

Controller | PID control with digital temperature and rotation speed display |
External thermocouple | Type: PT100 Cable length: 35 inches Stainless steel probe length: 11 inches Stainless steel probe diameter: 5 mm |
Dimensions (WxDxH) | Unit: 11 x 16 x 4.75 inches, shipping: 16 x 22 x 10 inches |
Weight | Unit: 18 lbs, shipping: 32 lbs |
Safety | Thermocouple failure protection Built-in fuse protection |

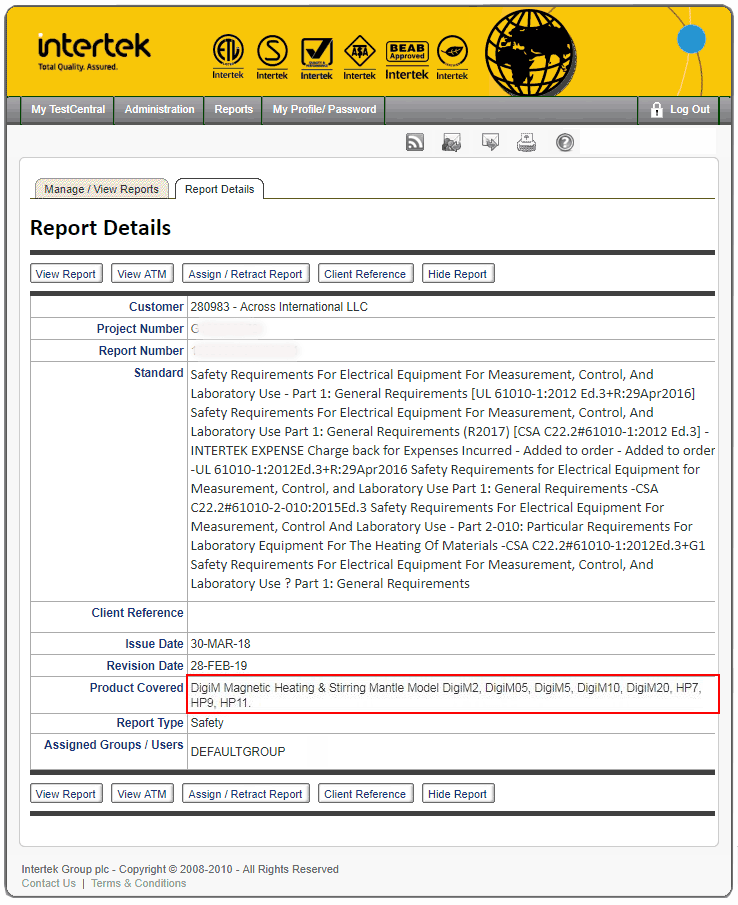

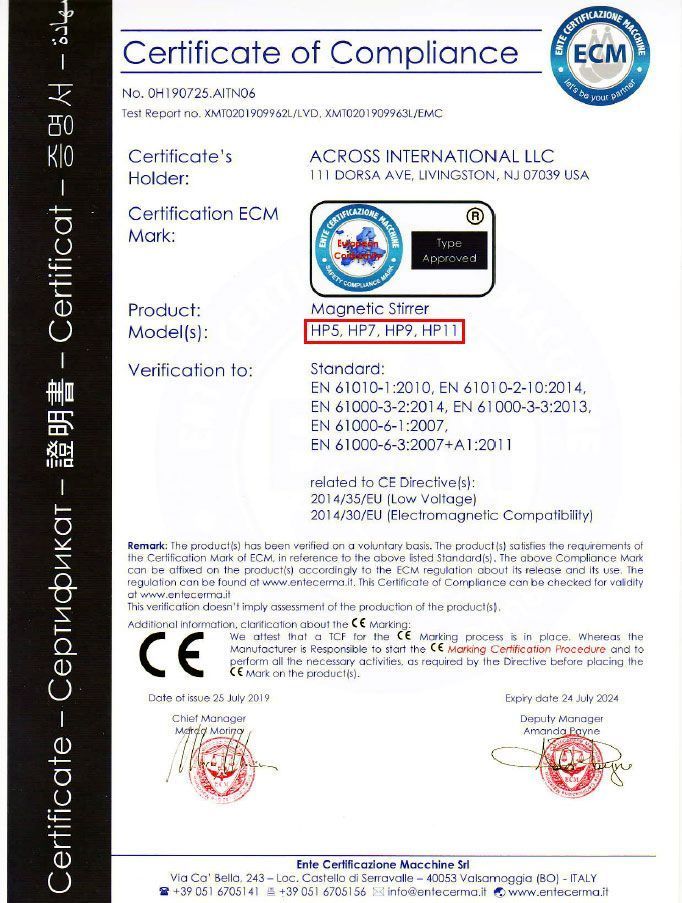

Certification | UL/CSA (optional), CE (standard) |
Warranty | One year |
Standard package
Part description | Quantity |
Part image |

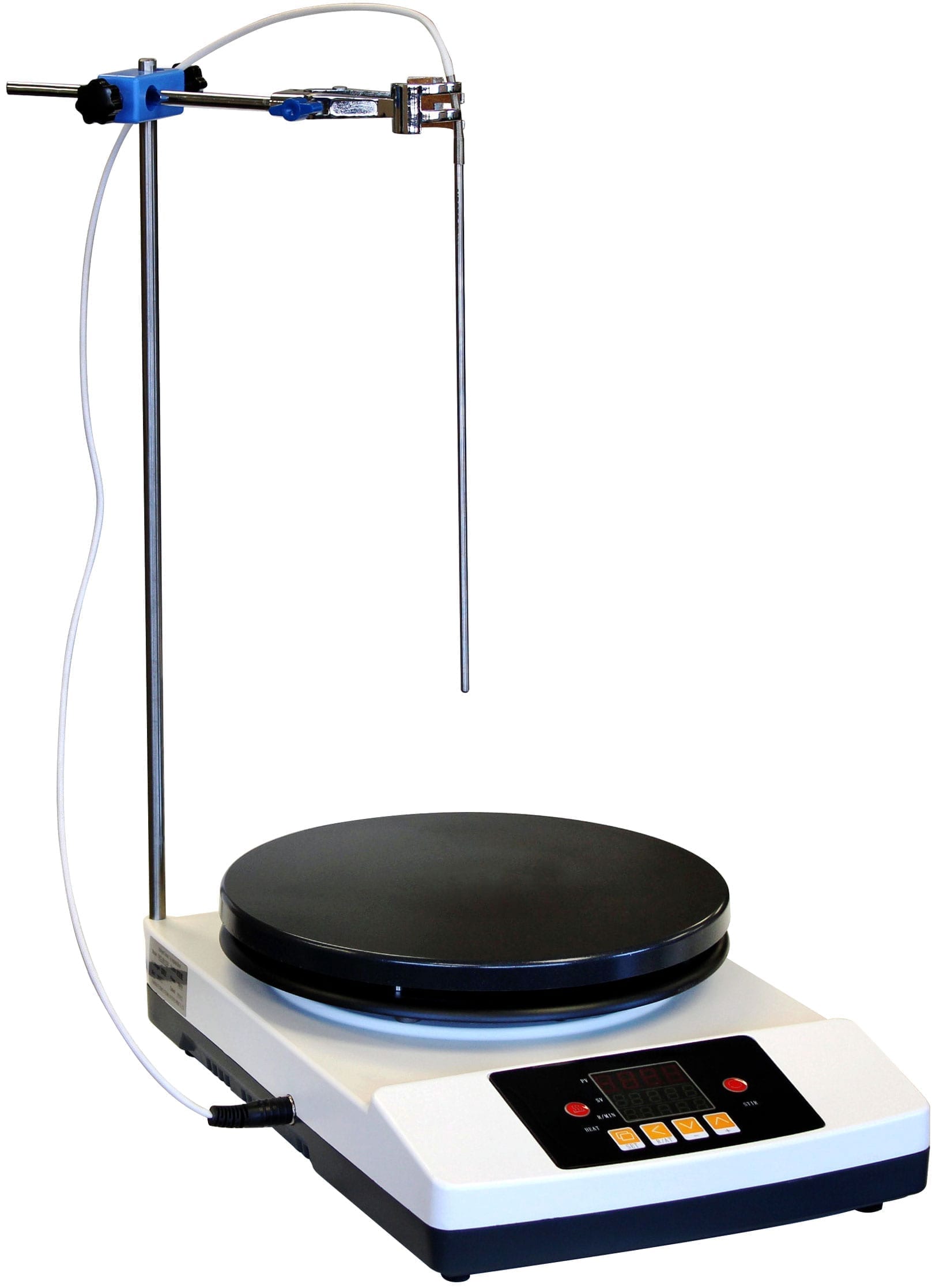

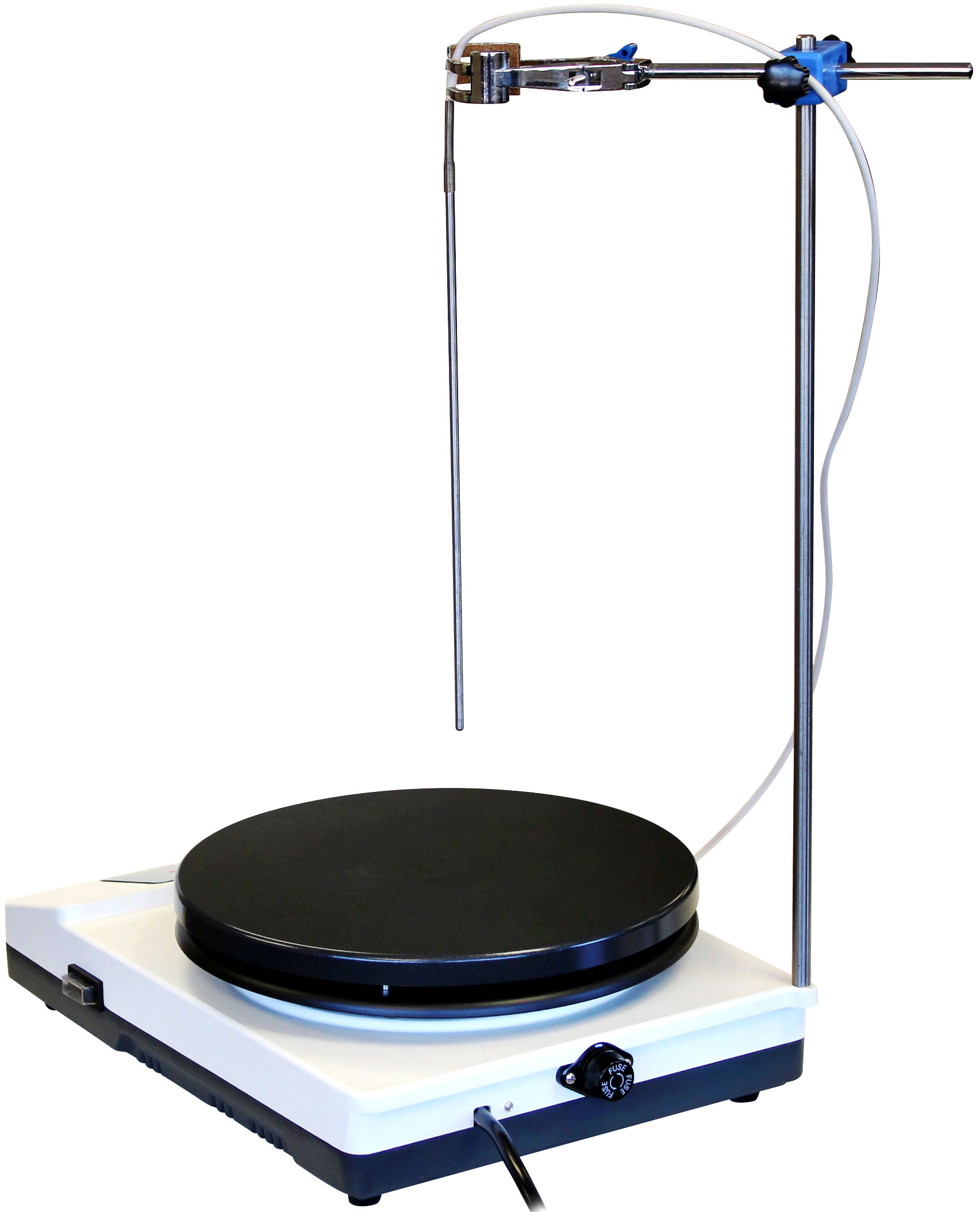

Ai HP11 digital heated magnetic stirrer | 1 set | |
External temperature probe | 1 pc | |
Internal temperature plug | 1 pc | |
Boss head | 1 pc | |
Stainless steel support rod (16 inches) | 1 pc | |
PTFE coated stir bar | 2 pcs | |
4 prong stainless steel clamp opens to 3 1/2″ | 1 pc | |
User’s manual | 1 pc |
